                         poultry automatic feeding system

 Performance Parameters of Feeding Line System

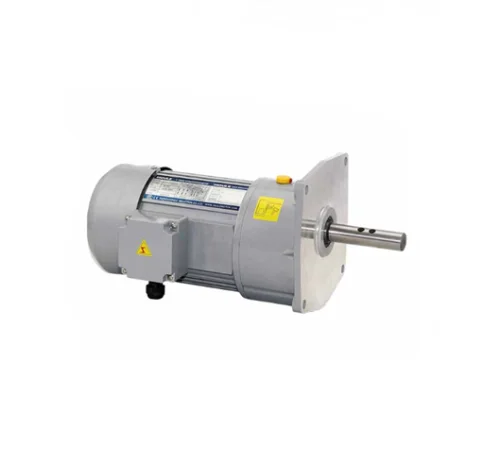

1. High-quality special driving reduction motor.  Power: 0.75kw, Voltage: 380V Frequency: 50Hz, Three-phase

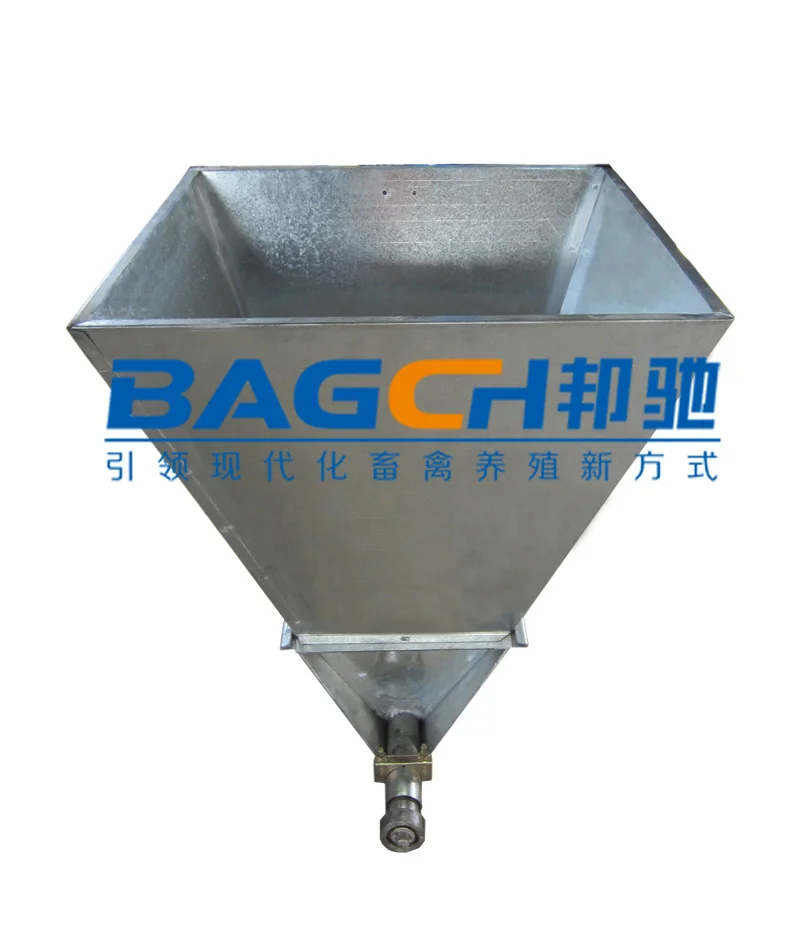

2. V-shaped Bin ( with Hopper)  Bin Volume: 115L, Hopper volume: 38L  Material: Hot-DIP galvanized sheet
3. Feeding system  Diameter of conveying pip: Φ 45mm  Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 G/M2  Helical spring auger from South Africa, feeding capacity: 450kg/h.

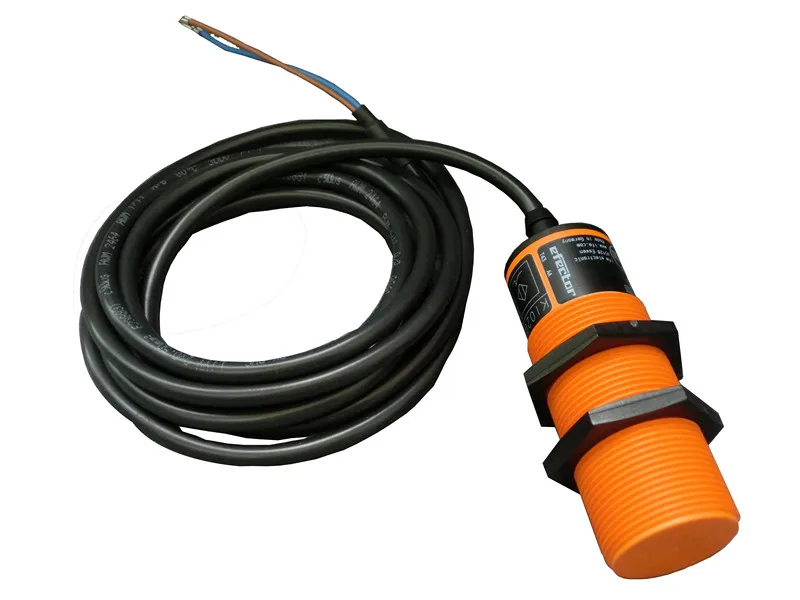

4.Material level sensor from Germany: Time delay range 0 to 2 hours.

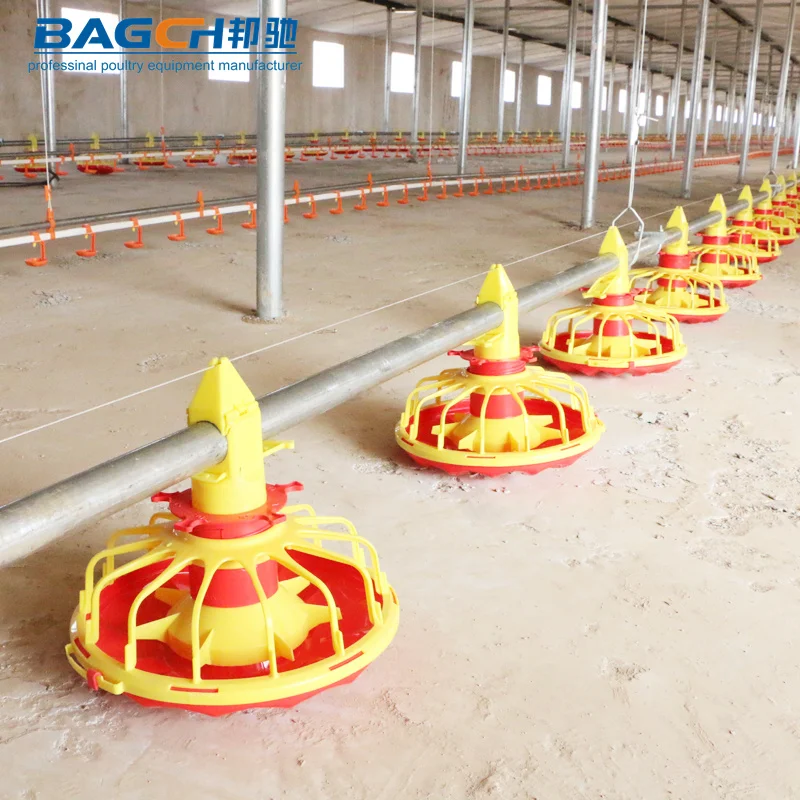

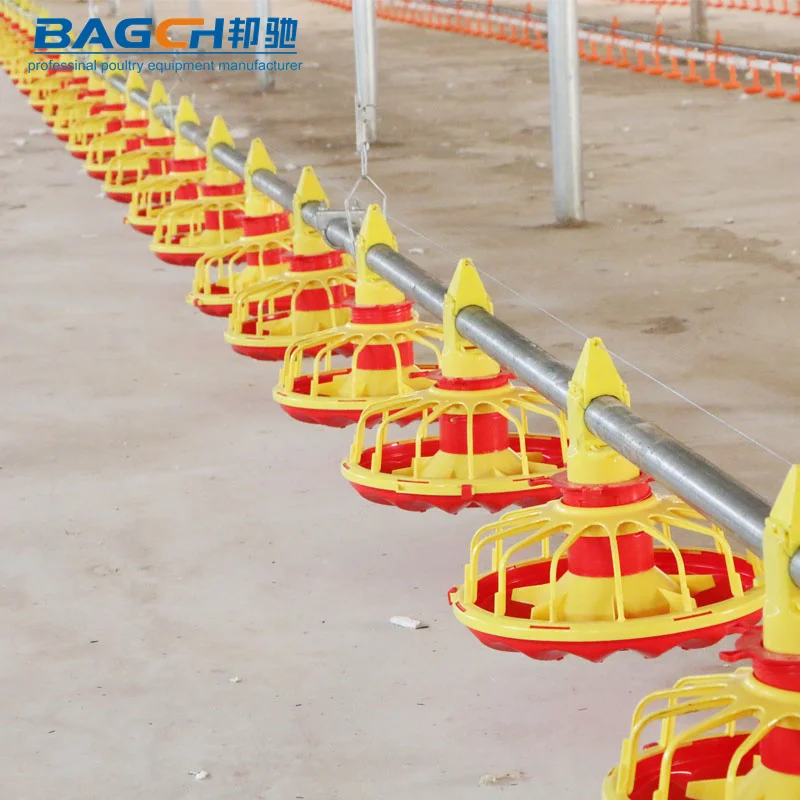

Detailed Product Description:

A high class dinner requires a high class automatic poultry equipments of feeder pan for broiler and breeder.
Bangchi poultry equipment is impact-proof and is also extremely resistant to the different types of cleaning/des infection/chemical products used on poultry farms.

It is composed of five different elements:

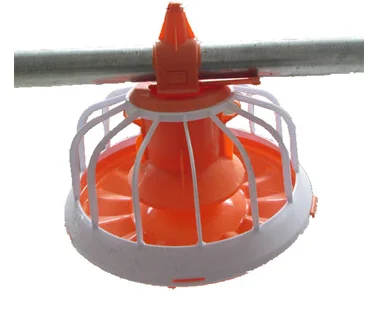

1. The poultry equipments feeder pan which features a special shape designed to avoid waste.
2. The adjustment device that dispenses the feed accurately
3. The poultry equipments of feeder pad have 14 grills designed to ensure easy access and featuring a special spill proof edge
4. The internal cone, designed with 3 openings to facilitate feed flow for chicks
5. The SnapTop make montage of the feed pan easy and the special opening on top is for a steel cable that will keep the chicken from climbing on the feed line.



 Nipple Drinking System

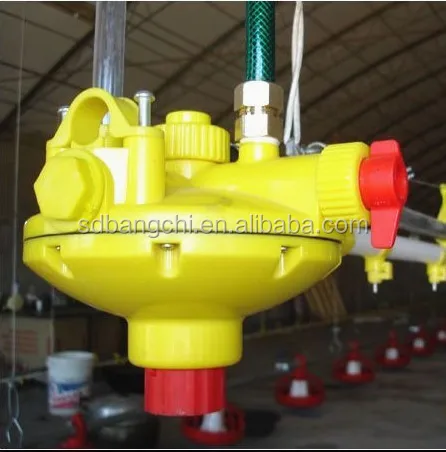

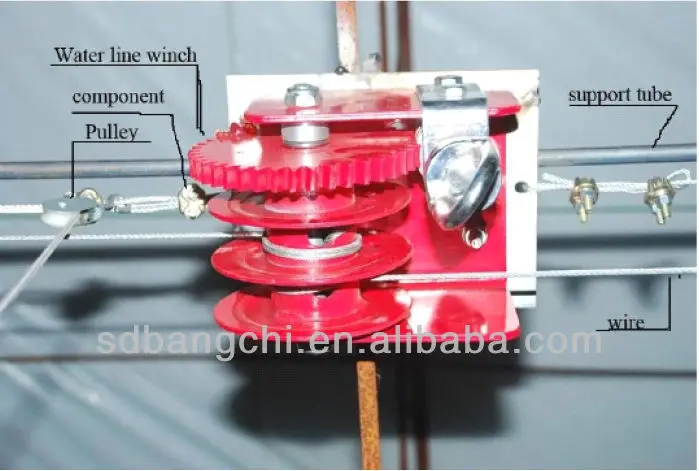

Automatic drinking system for poultry are composed of pressure regulator, nipple drinking lines, hanging system, anti-roost accessories.

Advantages:

1.Drinkers can be triggered from 360 degree which helps young birds start   well and makes drinking easier.

2.All the metal parts are hot galvanized for rust prevention.

3.Provide the right amount of water for their climate and house conditions.

4.The single-arm water receiving cup with a reasonable structure is more suitable for new culture idea.









Ventilation Fan Function:                                                                         Foggy system

Ventilation fan system controls poultry house inner environment,          1) Pump: 1.5kw/2.2kw

provides fresh air, proper humidity for your chickens, ensuring              2) Pipes: PE, Diameter:10mm

your broilers provide maximum production.                                            3) Nozzles: Pure copper   4) Nozzle base: Stainless steel





Cooling pad Function:                                                                      Environment Control system

When the air goes through cooling pads, the heat will                    Option 1: Agrologic Brand,imported from Israel,
be taken down by the evaporation of water. So the air                     T607/T610/T616
will be cooled before going into your poultry farms.
