Product Application

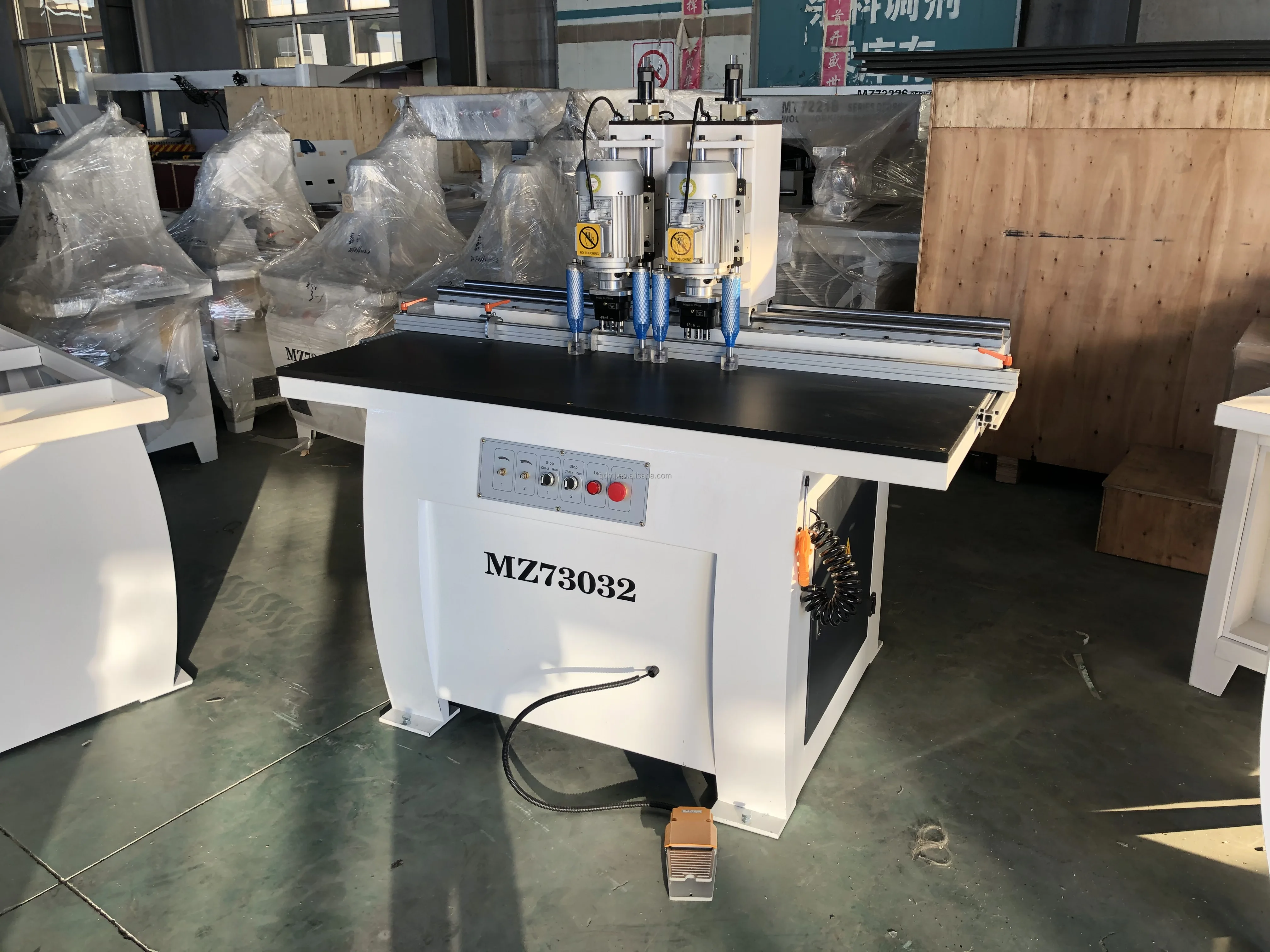

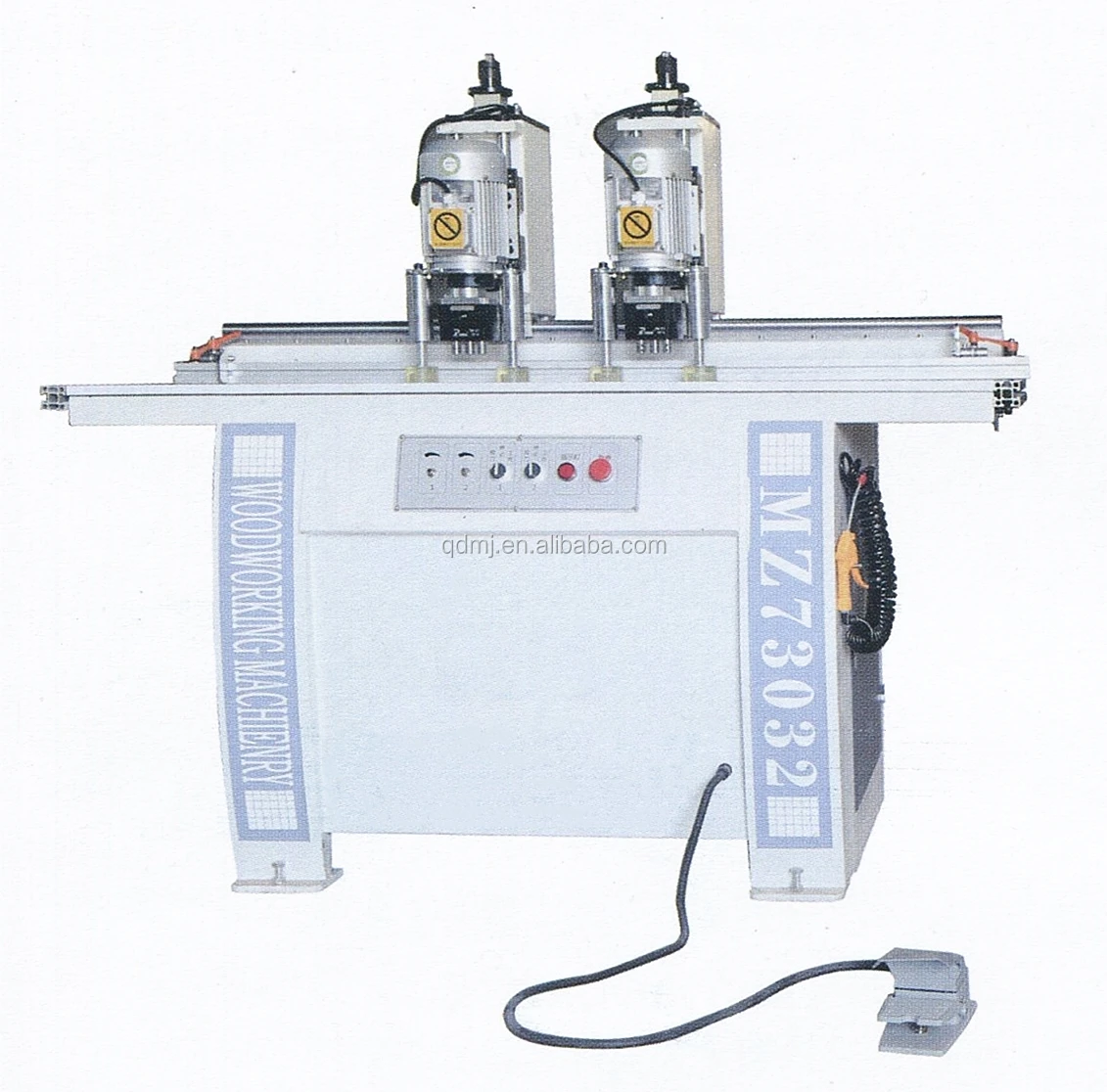

Woodworking Two Double Head Hinge Drill Press machine
Model | MZ73032 | MZ73032L |
Max drilling diameter | 50mm | 50mm |
Max drilling depth | 60mm | 60mm |

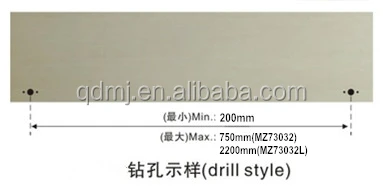

Drilling distance between two heads | 220-750mm | 220-2200mm |
Number of drill | 3 Spindles*2heads | 3 Spindles*2heads |
Spindle speed | 2840r/min | 2840r/min |
Motor power | 1.5kw*2 | 1.5kw*2 |
Air pressure | 0.6-0.8MPA | 0.6-0.8MPA |
Dimension | 1700*850*1700mm | 2500*850*1700mm |
Main Features
1Taiwan brand drilling head
2Each head with φ35mm*1, φ3mm*2 blade tool
Detailed Images

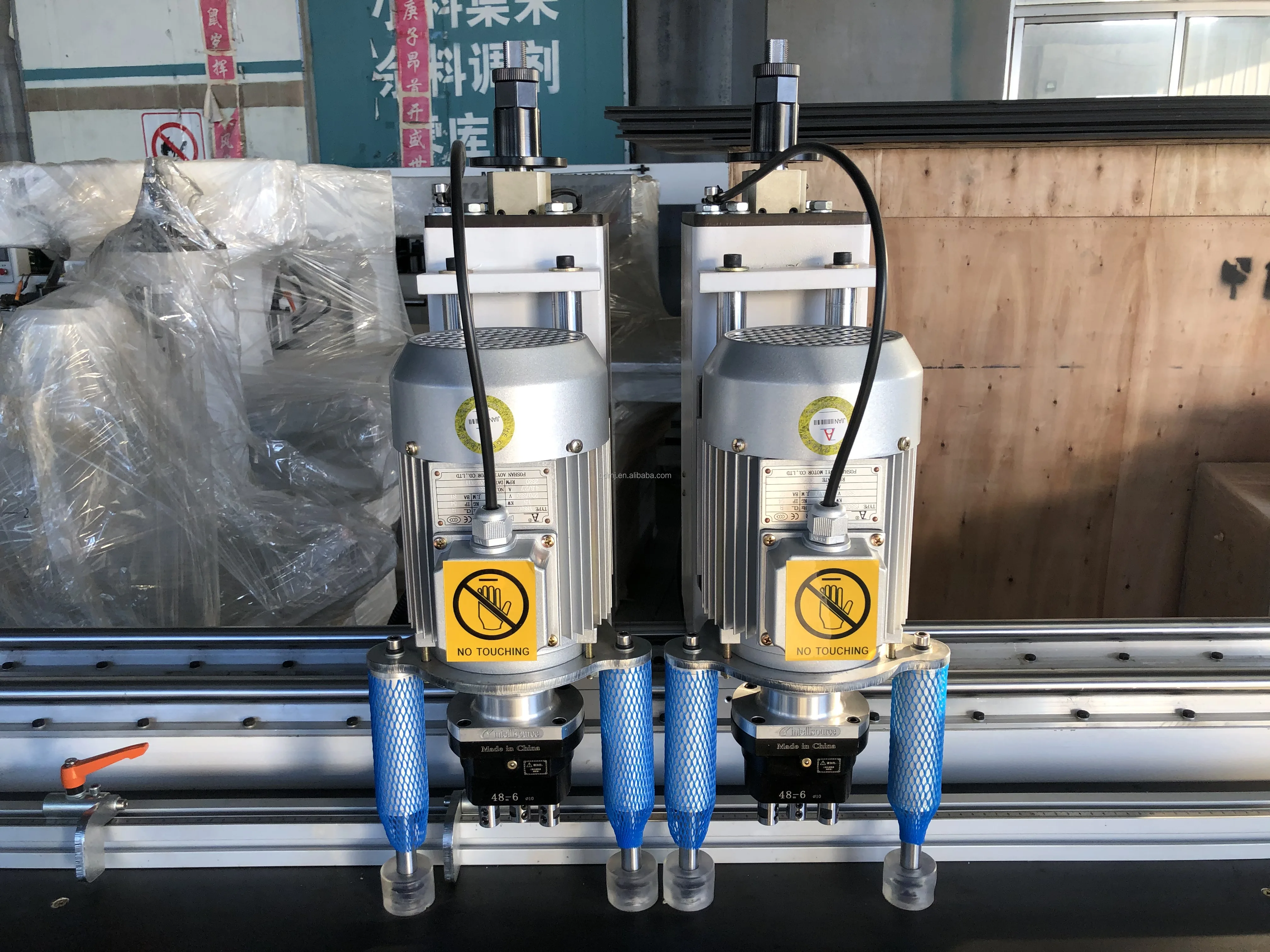

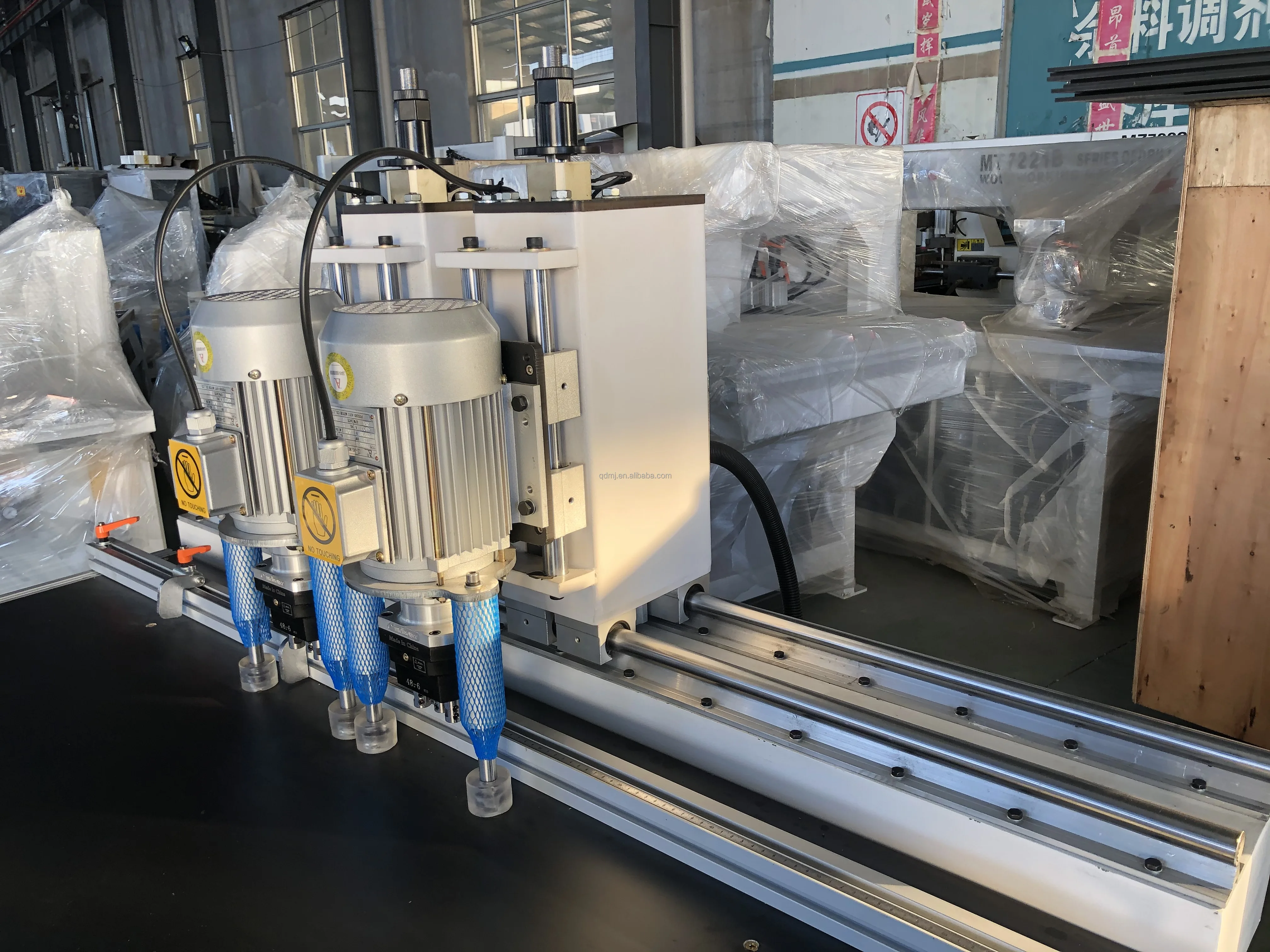

Drilling head

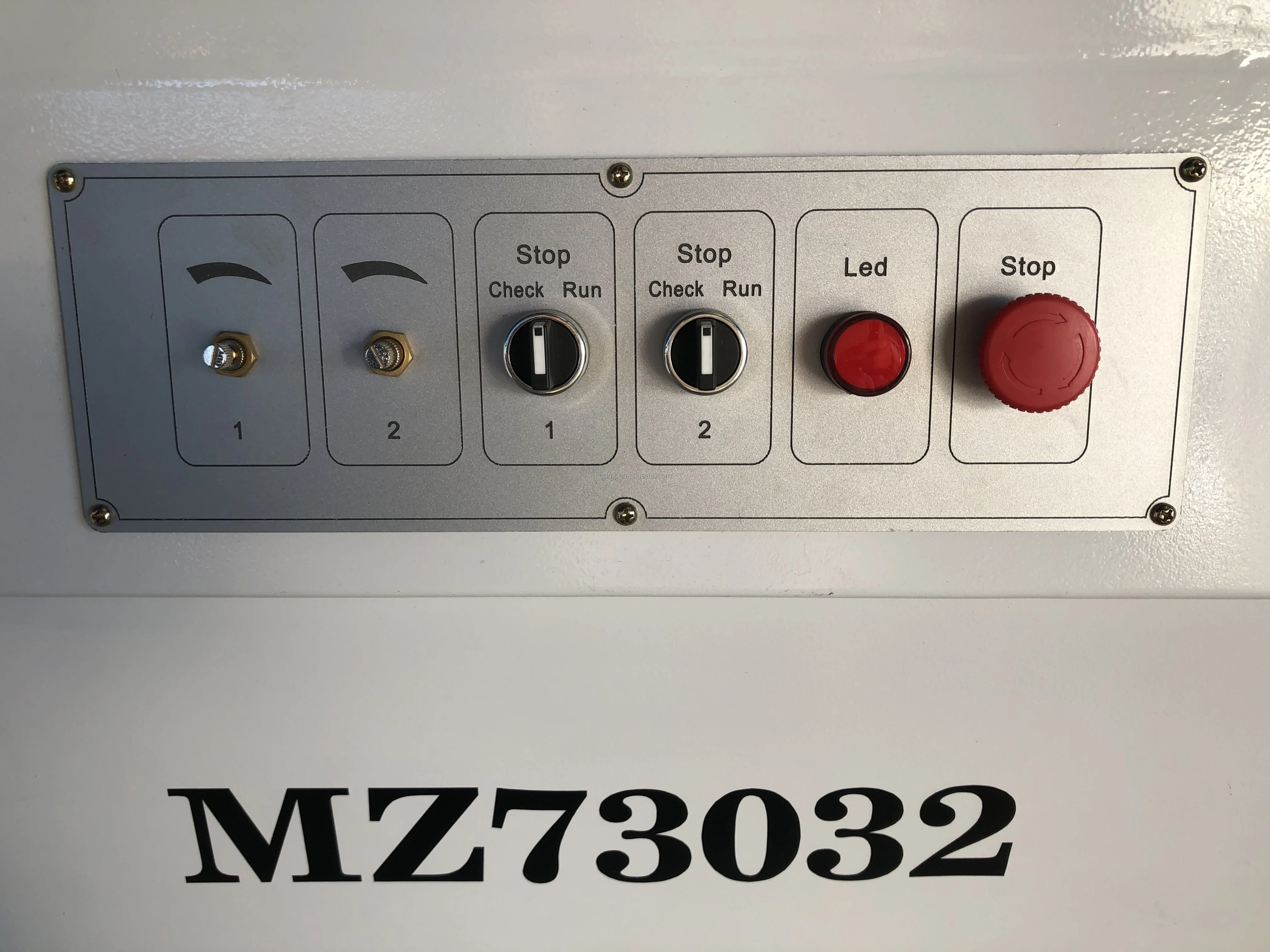

Control Panel

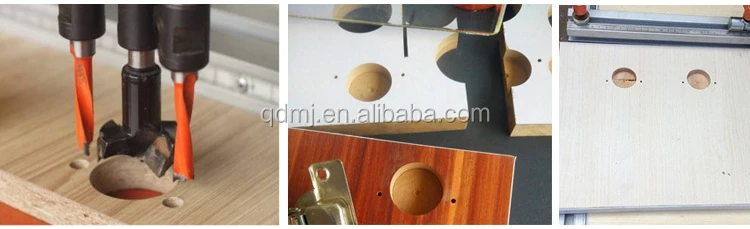

Finished products
Packing & Delivery
Plastic Film Packaging | ||
Wooden Box Packaging | ||
Related Products
High Glossy Vacuum Membrane Press
91.8% Response Rate
Automatic Edge Banding Machine
91.8% Response Rate
Sanding Machine
91.8% Response Rate
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
