Простая полировальная машина для стекла с 9
- Категории: Glass Production Machinery >>>
- Поставщик: Liaoda,(LAD),Glass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Vertical automatic glass edging machine / Straight Line Glass edge polishing machine / CE
Functions:
l Processes rectilinear glass plates in various sizes and thicknesses;
l The grinding (roughing), finishing resin and fillets can be performed simultaneously;
l The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.
Technical data
Item | Specification |
Maximum flat edging level: | 3mm |
Maximum arrising width: | 2.5mm |
Arrise angle: | 45° |
Min. glass size: | 80x80mm |
Glass thickness: | 3-26mm |
Installed power | 18kw |
Working speed | 0.8-6.0m/min |
Weight | 3000kg |
Worktable height | 750mm |
Overall dimension (L.W.H) | 6500x1000x2600mm |

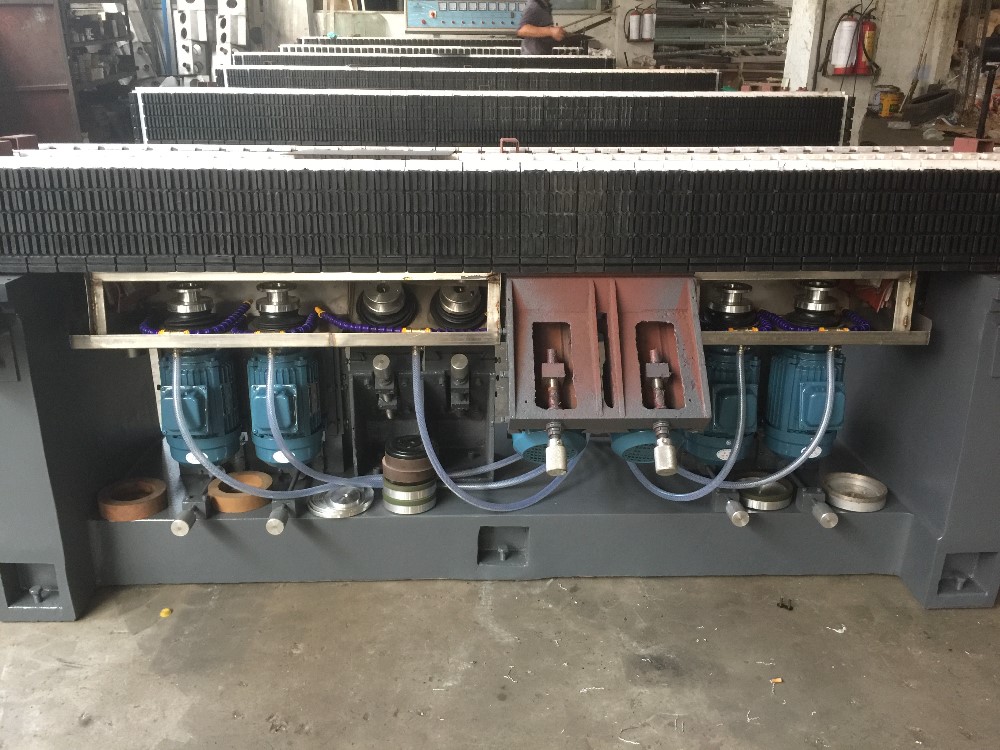

Wheels arrangement:
# | Wheels | # | Wheels |
1 | Diamond wheel,bottom edge | 6 | Resin wheel for arris |
2 | Resin wheel,bottom edge | 7 | BD wheel for arris |
3 | Resin wheel,bottom edge | 8 | Yew wheel for bottom edge |
4 | Resin wheel for arris | 9 | Yew wheel for bottom edge |
5 | BD wheel, arris | 10 | Woolly wheel, bottom edge |
Machine characters:
l Machine basement, cast steel

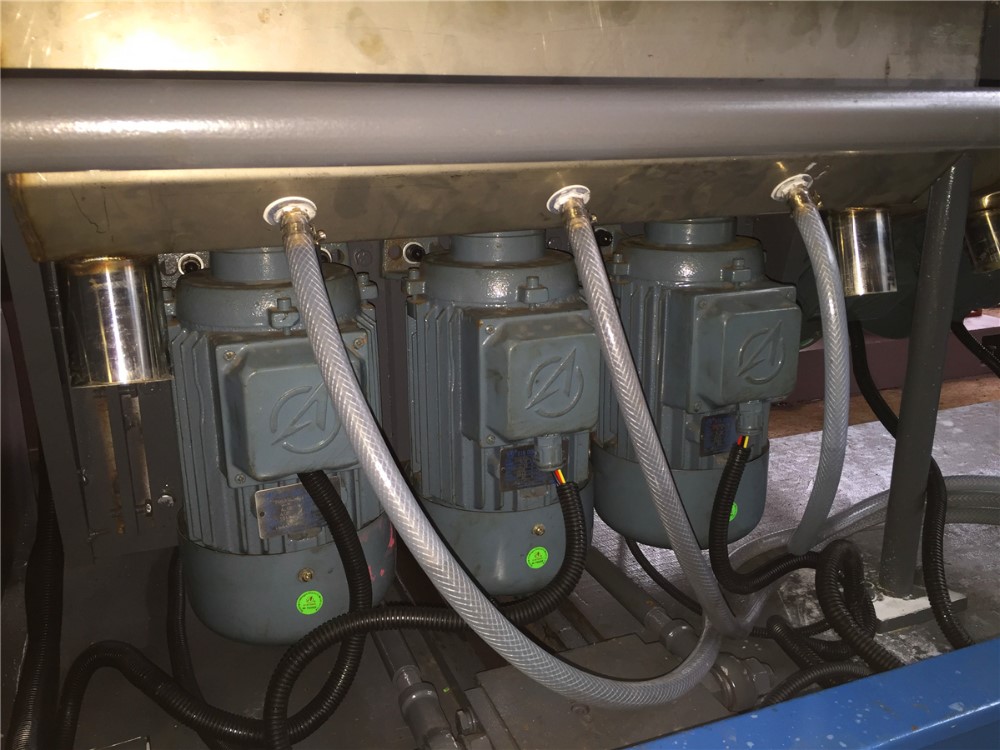

l Motors for spindles: three phase induction motor,ABB or Mingliang brand, China
Wheel for flat edge: 2.2KW, 4.7A, 2840r/min
Wheels for arris: 1.5KW, 3.7A, 2840r/min
l Cycloid-pin wheel: Chinese brand
l Control system: PLC control system
l Speed control: Frequency speed control

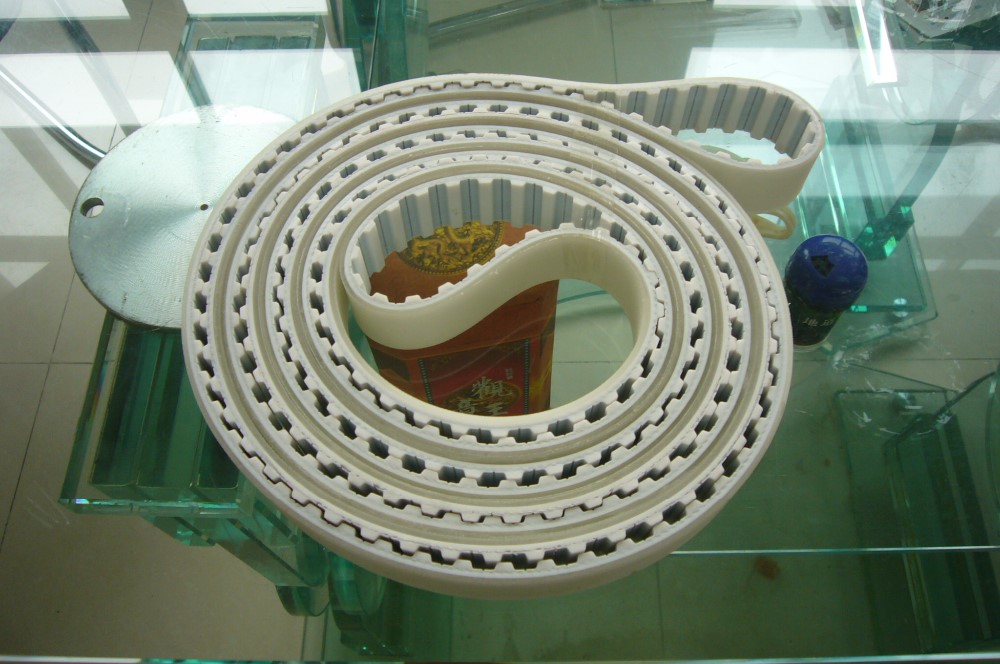

l synchronous belt
l Glass thickness adjusted on the control panel.
l 2pc of stainless steel water tank

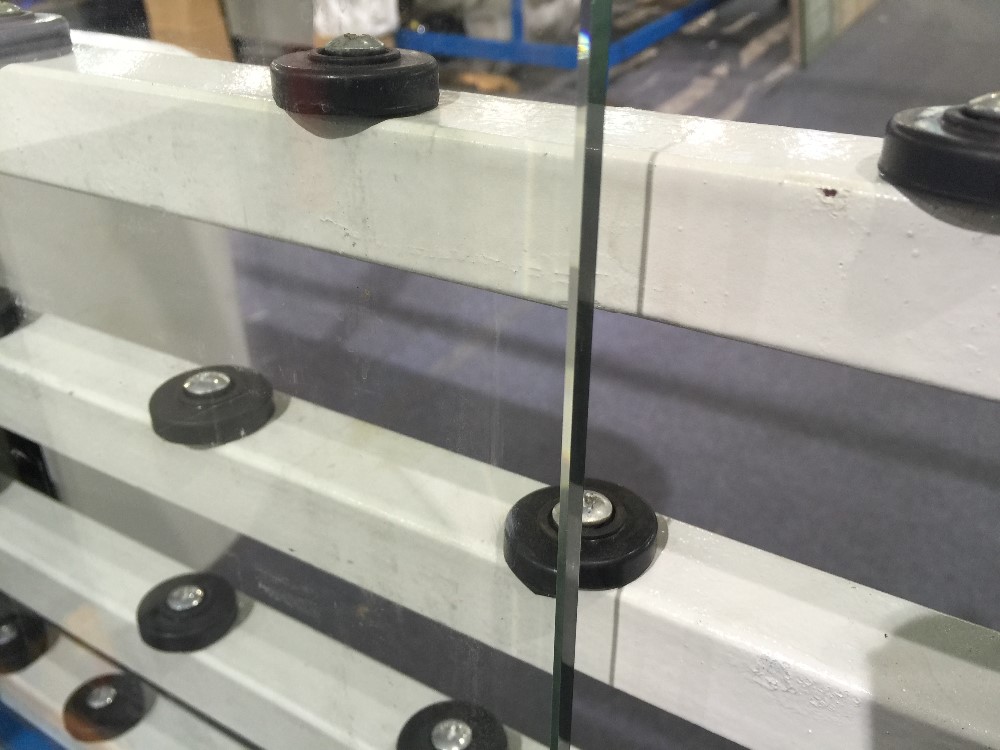

l Steel glass support

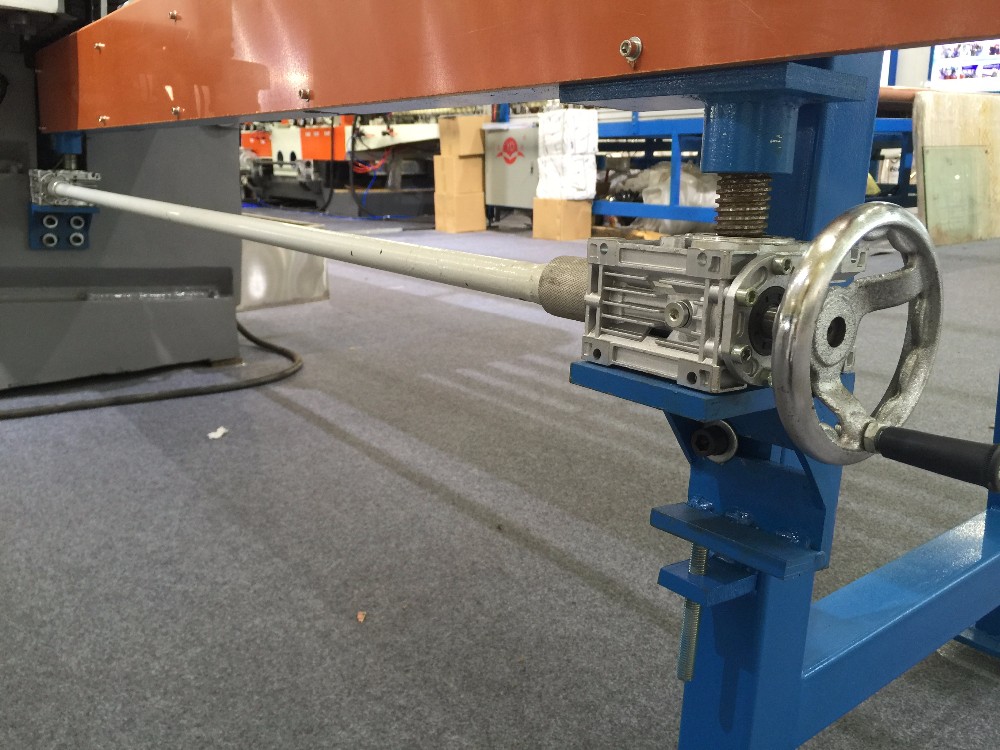

l Rail height adjustable
Advantage of machines
1.With the use of cast steel machine basement
2.Famous and durable Chinese motors
3.High quality conveyor belt
4.With feeding rail height adjustment, automatic lubrication pump and other function for option
5. Bearing structure edging machine for option.

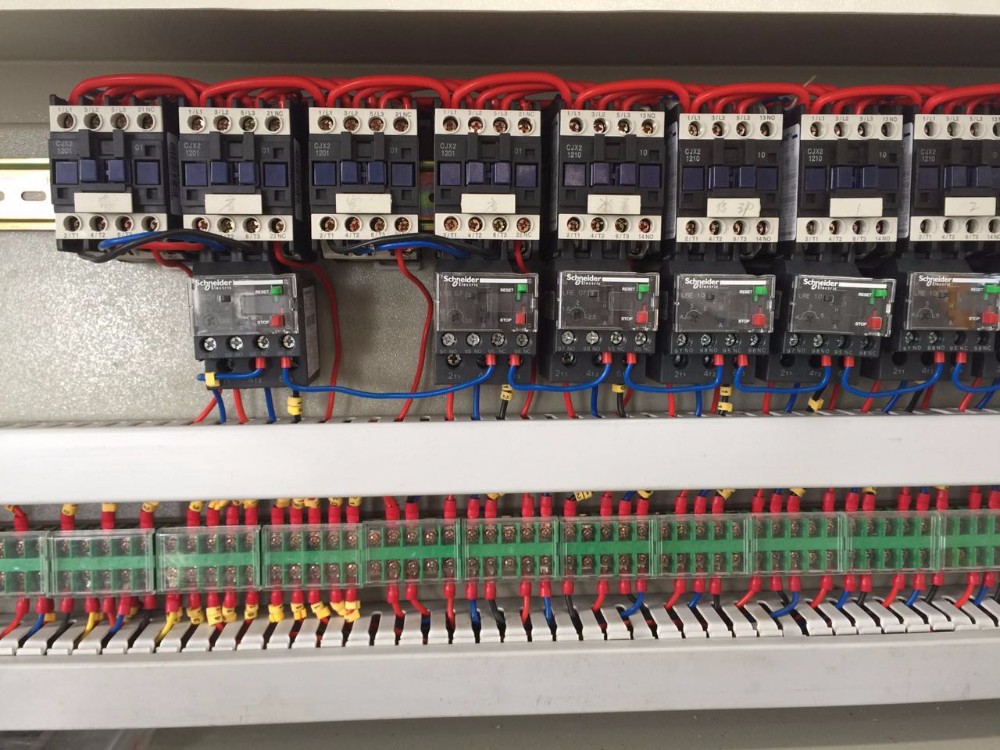

6.Schneider electric elements

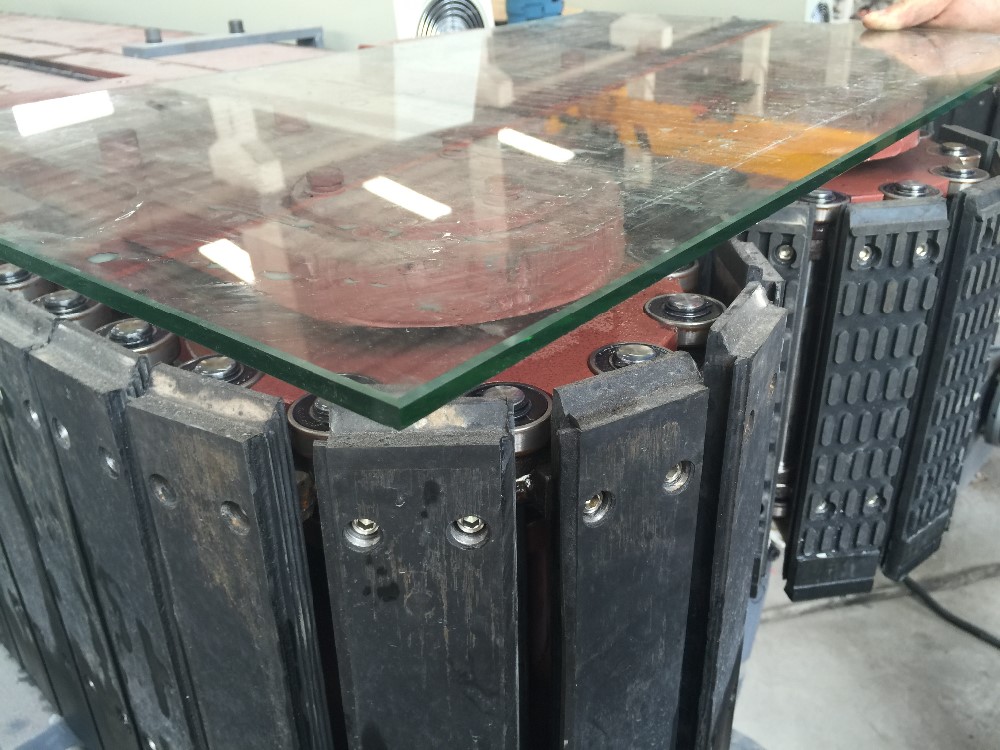

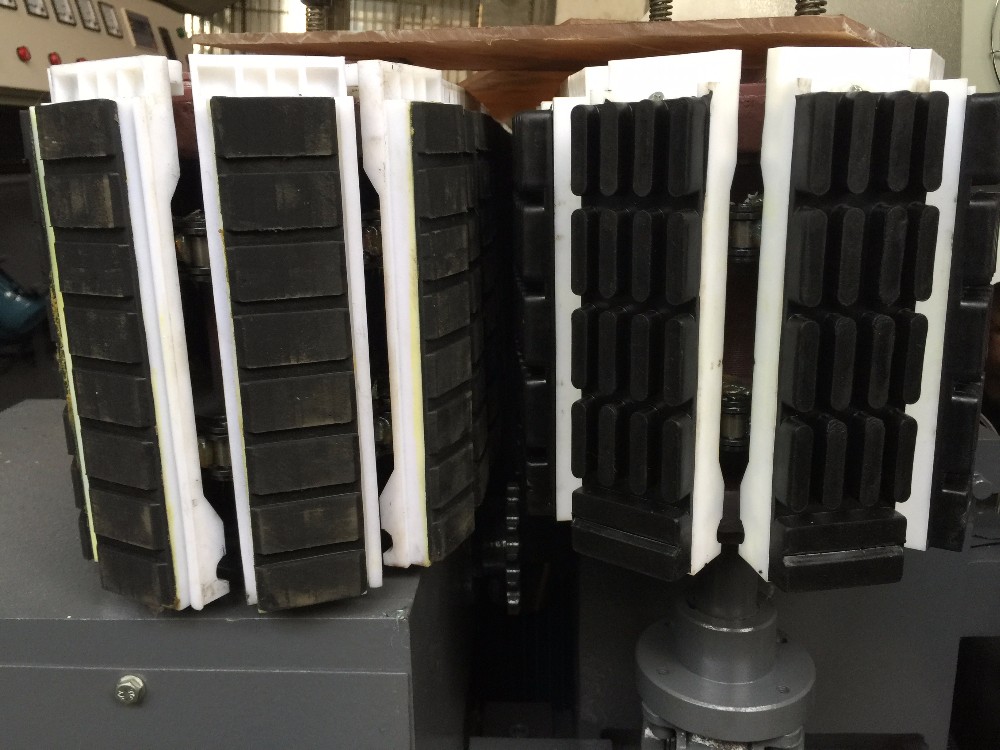

7.High quality and durable pads
Warranty and service:
1. 1 year warranty for the machine
2. Life time service available for parts and malfunctions
3. 24 hour on line service

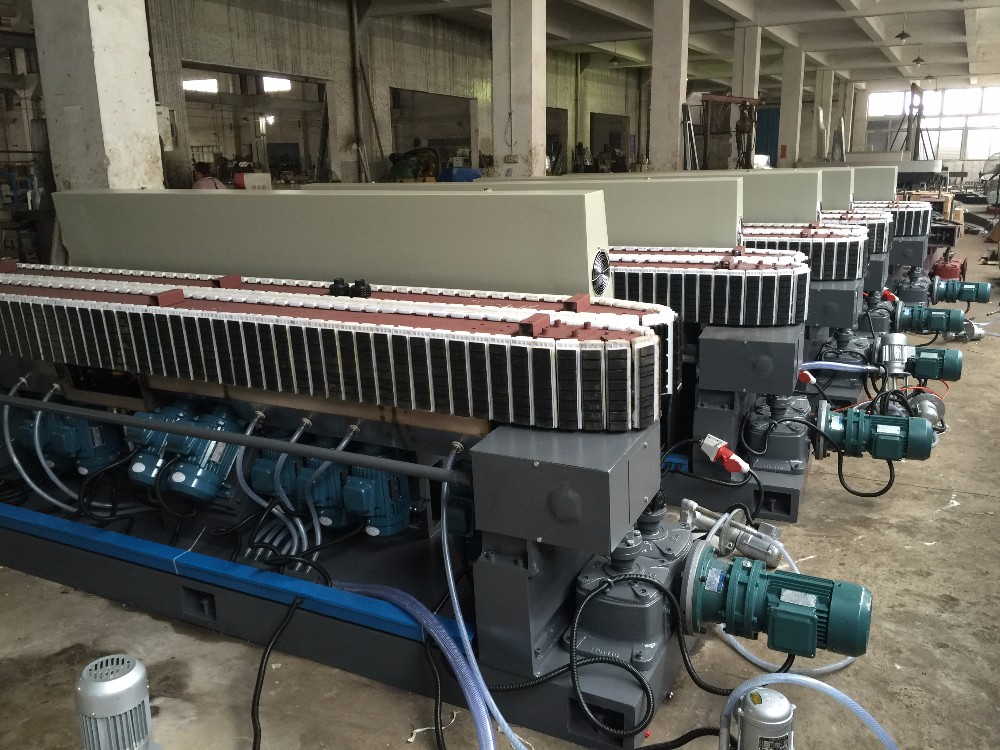

Macine in workshop
FAQ
1: Are you a manufacturer?
Yes, we are fanufacture of glass processing machines since year 1998.
Yes, we are fanufacture of glass processing machines since year 1998.
2:What about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
3:Where is your factory location?
We are in Shunde, Foshan, Guangdong province. We are about 1 hour drive from Guangzhou and 1.5 hours's drive from Guangzhou Baiyun Internation Airport.
4:How's your after-sale service?
Service: The machines will have one year warranty and long time technical support and parts service. For parts (not-worn out parts like wheels, belts) broken during warranty time, we will send replacement for free. After warranty, we will chage cost of parts together with the freight.
5:What about the Delivery time?
Within 30 days after receipt of advance payment.
Warranty and service:
1. 1 year warranty for the machine
2. Life time technical support and parts
3. English version machine operation manual, machine operation video and on site service if necessary

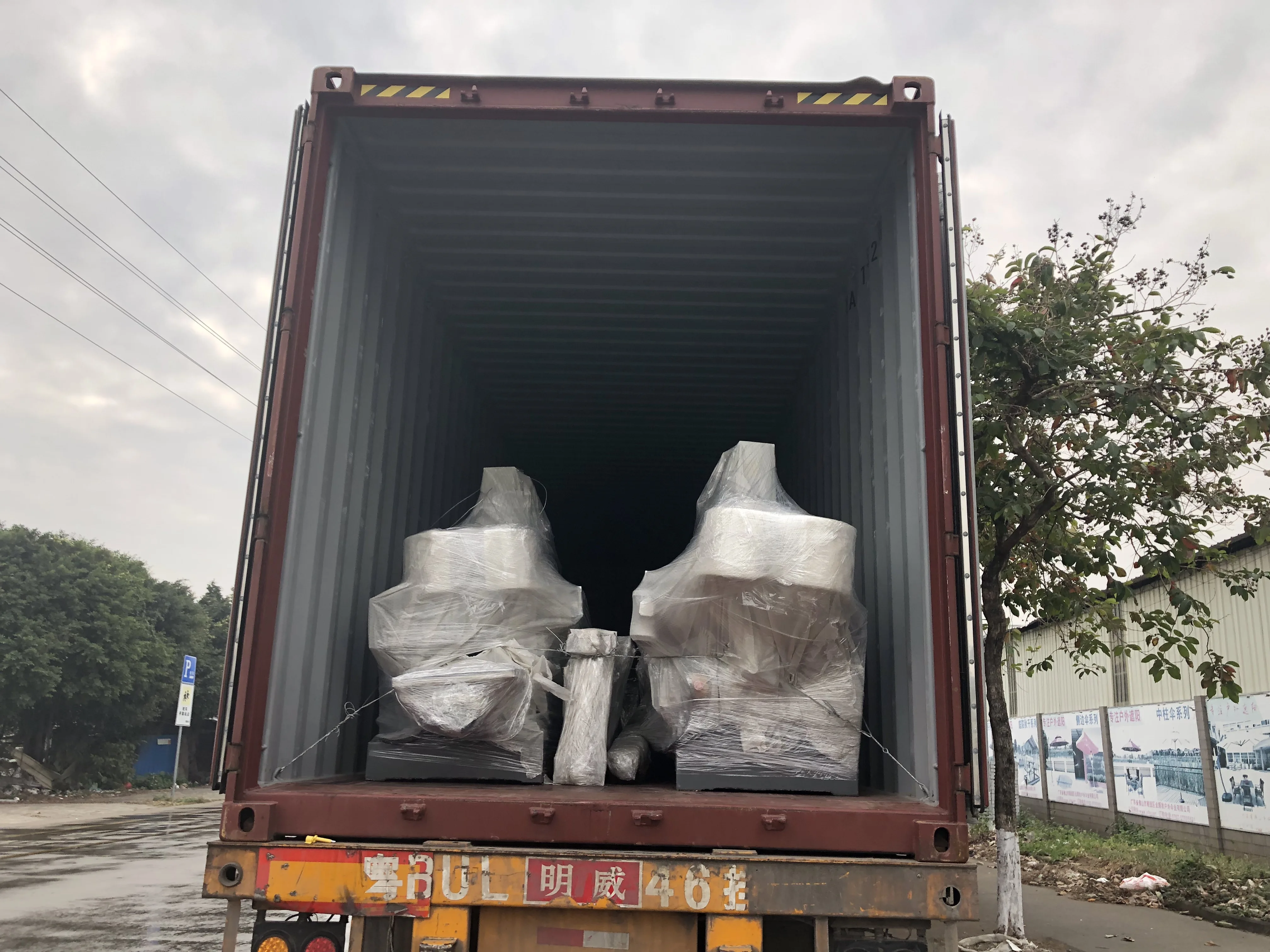

Machine package and loading
Introduction of the company
LIAODA(LAD) Glass Machinery Co.,Ltd, is a company integrating R & D, production and glass and stone processing machine. IThe company located in Lunjiao Town, Shunde Disctict, Foshan City, center of Pearl River Delta, with unique geographical location, easy to get technical support and human resources. The company was born in 90s of the last century, adsorbed huge amount of advanced technology and experience during production. In 2000, our former company, Yuanda glass machinery was established and in 2005, we changed our company name to "Liaoda (LAD) glass machinery" and use Yuanda as our brand name.
After years of research and development, "Yuanda" brand machines are widely used all over Chinaand over 40 countries and areas around the world. In the future, we will continuous supply high quality machines and service to meet the requirement of our clients in China and aboard. Welcome to visit our company, order our products and work together in the glass field!
CE certifications:
Our customers
Chinaglass 2019
Contact: Ms.Dawn Ding
Mobile / WhatsApp : 0086 133 26702509
Skype: dawnding929 Facebook: dawn.ding.18
Wechat: dawn2509 QQ: 404092767
