FUSB replace old floopy to USB flash drive work for embroidery machine/Knitting/Weaving /CNCand injection mould/Musical Keyboard machine(Manufacturer)



Used for Embroidery  machines:

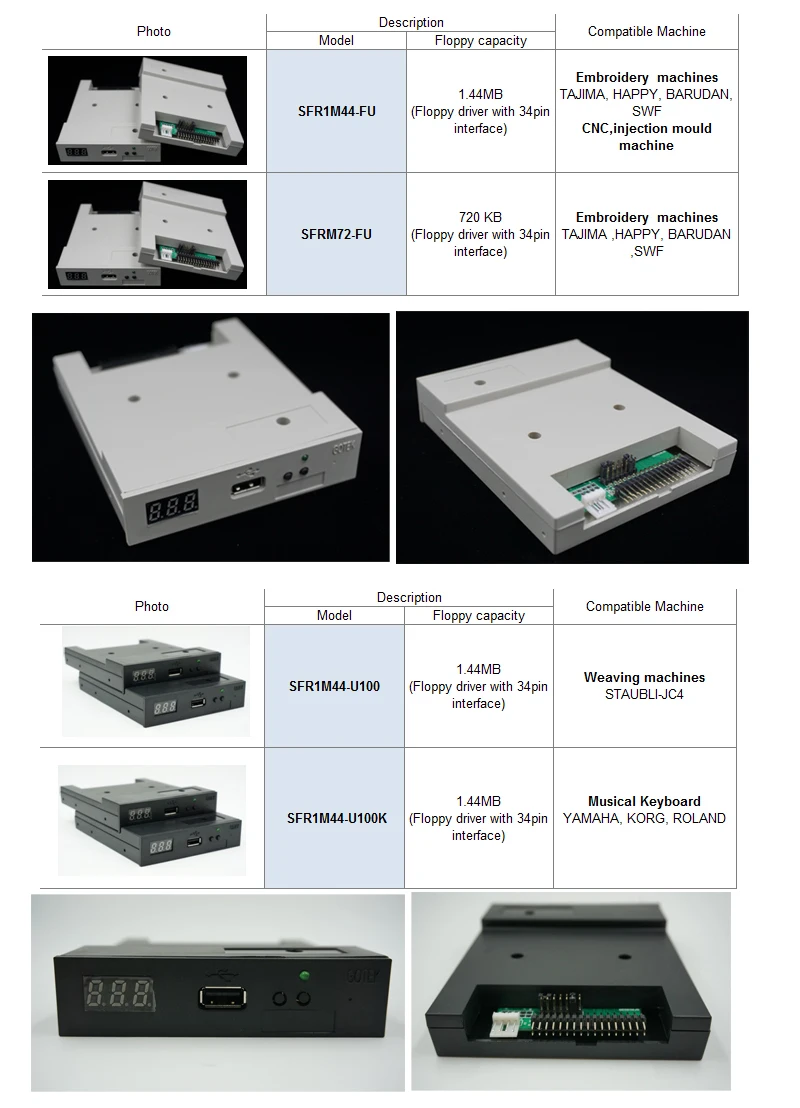

Model	Compatible Machine
SFR1M44-FU	TAJIMA, HAPPY, BARUDAN, SWF (used for floppy capacity is 1.44MB machine with 34pins)
SFRM72-FU	TAJIMA ,HAPPY, BARUDAN ,SWF (used for floppy capacity is 720KB machine with 34pins)
SFRM72-DU26	BARUDAN BENS machines (thin floppy disk Barudan low  720KB desnity 26pins)
SFR1M44-SUE	SWF,and Chinese machines (used for floppy capacity is 1.44MB machine with 34pins)























Used for Knitting machines&Weaving machines:

SFR1M44-LUN	STOLL machine STOLL used for floppy capacity is 1.44MB machine with 34pins
SFR1M2-FU	SHIMA SEIKI SES machine used for floppy capacity is 1.2MB machine with 34pins





Used for Musical Keyboard: YAMAHA,KORG,ROLAND

SFR1M44-U100K	YAMAHA, KORG, ROLAND
SFR1M44-FEL-DL	YAMAHA EL900 EL900M EL900B EL500 EL700 01C 01M



Specifications:

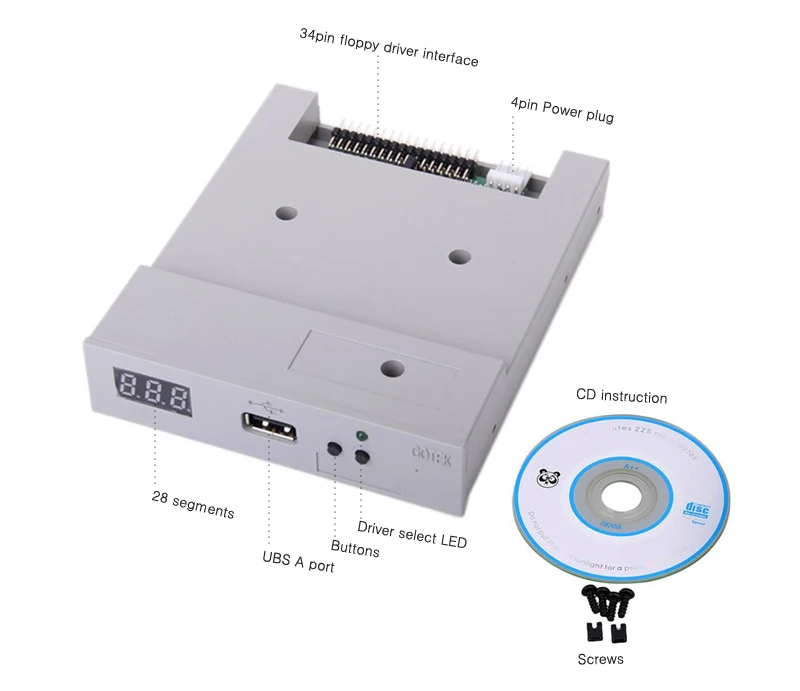

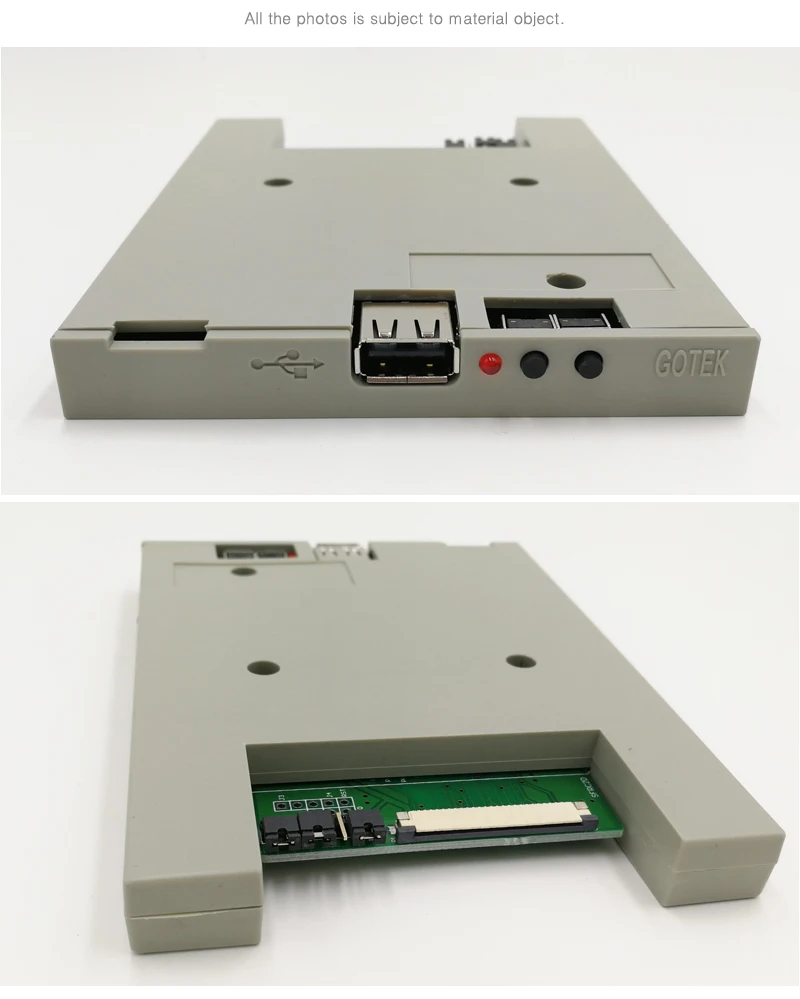

Interfaces:   - USB socket to insert USB flash stick.
                    - 4-pin floppy socket for voltage supply
                    - 34-pin socket board for floppy controller connection



Diagnostics LED:  Red LED and Green LED.
Control-buttons: 2 buttons to control the floppy drive emulator.
1) Read_button(In_button): read data on USB memory stick into memory of the floppy drive emulator.
2) Write_button(Out_button): receive data from the mother_device(embroidery machine, ) and write to the USB memory
