MEANWELL 60w PMW Диммируемые Водонепроницаемые светодиодные туда и обратно/драйвер для фонарика/трансформатора/контроллер/импульсивный источник питания

Описание и отзывы

Характеристики

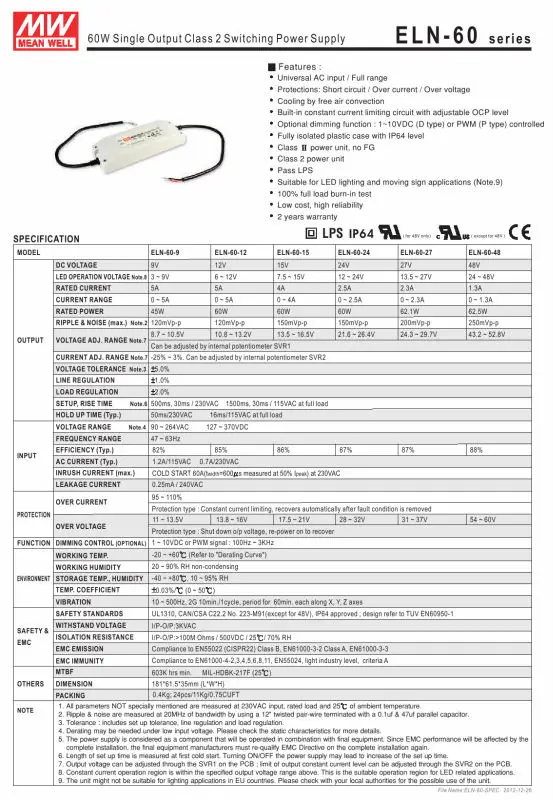

  MEANWELL UL CE TUV RoHS Waterproof Swiching Power Supply / LED Driver 60w ELN-60



Main Features:



♦ Universal AC input / Full range

♦ Protections: Short circuit / Over current / Over voltage

♦ Cooling by free air convection

♦ Built-in constant current limiting circuit with adjustable OCP level

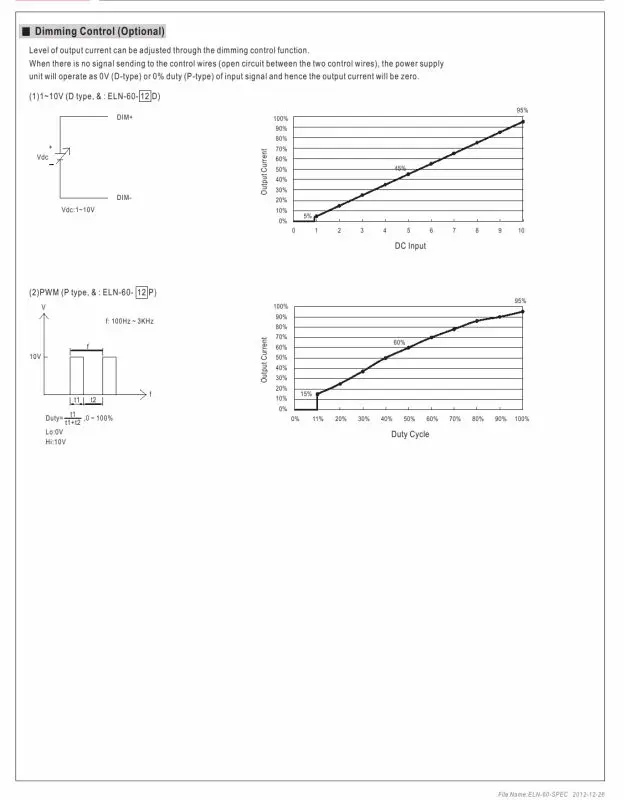

♦ Optional dimming function : 1~10VDC (D type) or PWM (P type) controlled

♦ Fully isolated plastic case with IP64 level

♦ Class II power unit, no FG

♦ Class 2 power unit

♦ Pass LPS

♦ Suitable for LED lighting and moving sign applications (Note.9)

♦ 100% full load burn-in test

♦ Low cost, high reliability

♦ 2 years warranty
