Низкосварные латунные шаровые краны с полным отверстием потовым концом FM UL CSA cUPC NSF61

TURES

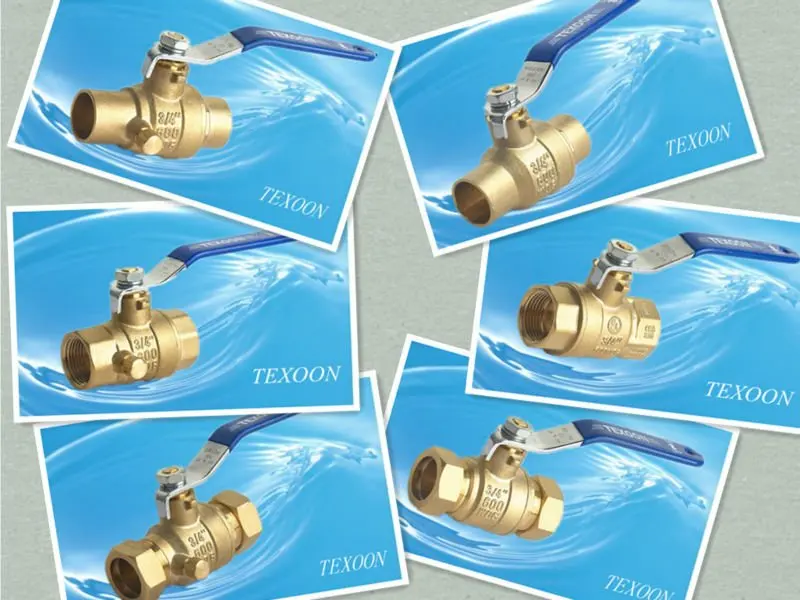

Fully welded forged brass ball valve Lead free brass

1) 2-Piece ,Forged brass body full port

2) Heavy duty rust resistant handle with grip

3) Packing gland and O-ring on stem is reliable seal mode
4) Threaded ends(1/2"TO4"),600WOG,150 SWP

5) Fully welded ball valve conform 35,Type Class A,Stype 3 and MSS SP-100.
6) -20ºC to 65ºC (-4ºF to 149ºF). temperature range
7) Fully welded ball valve material: HPb59-1

8) Handle material: Q235

9) Seal material: PTFE, NBRCSA approved 1/4" up 1",UL approved 1/2" up to 2"

10) Fully welded ball valve Certification: CSA   FM  UL cUPC,NSF61,AB1953

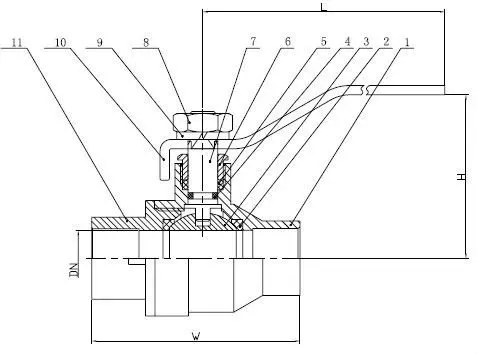

DIMENSIONS:

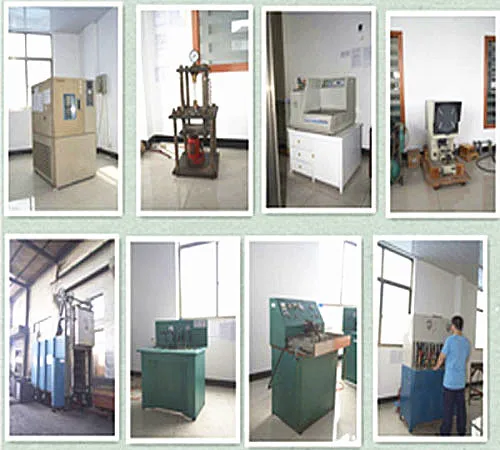

Quality and inspection

Fegular checking on line from production in each workshop, one special inspector inspect the goods in random during the period time of production. we are able to provide you test certificate and mill certificate if required.

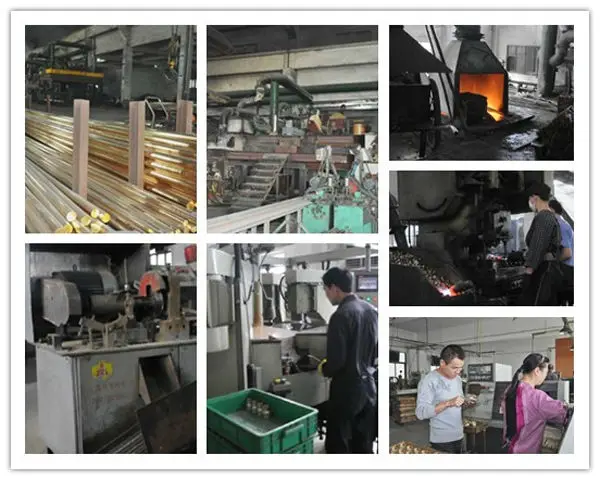

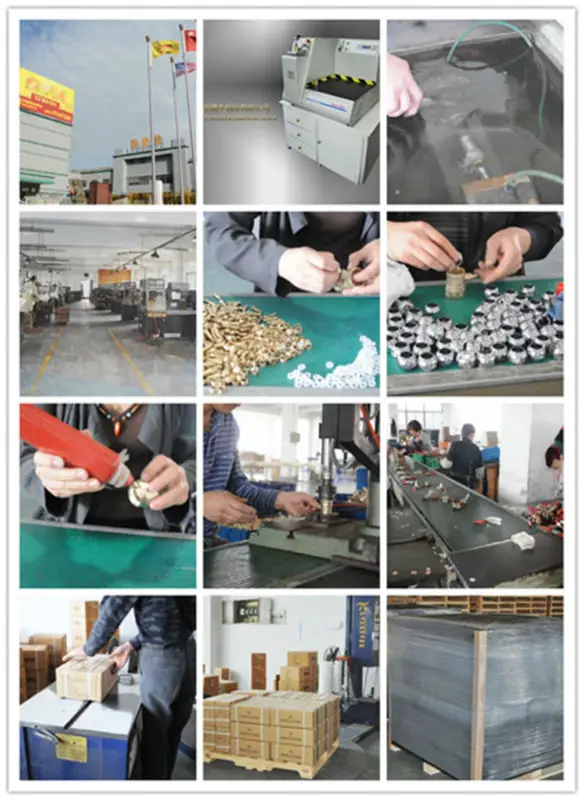

Production step

1) purchasing the material and forged the semi-products .

2) processing the semi-products in workshop .

3) assembling the goods .

4) testing the sealing in pressure and checking quality of the goods

5) package

6) deliveing the goods on time .

PACKAGE

1)The package standard : standard export carton, box .

     poly bag, inner box,  carton.

2) If you have any special requirements on package, we can package as per your artworks.

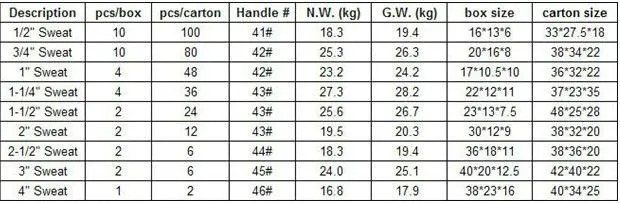

PACKING LIST

Primary Competitive Advantages

1, Our company has several years’s experience in producing all kind of brass valve and fittings , we have the self-operated importing and exporting rights .

2,Our products are approved by ISO9001:2008 and CSA/FM/UL/IAPMO approved .

3,We can produce the valve and fittings according to our customer’s requirement, and if the order is large , we don’t charge any mould fee .

4,We insist to popularize our brand“TEXOON” to our customers , and welcome to become our sales agency , We’ll give our customer the special prices once the customer become our approved agency .
