WFTD-AR Li Ion battery tester Battery internal resistance Analyzer
At present, Iead acid storage battery’ maintenance is applied for the check of Float voltage of battery at home, it has been found that Voltage is irrelevance with Capacity of battery, because Voltage is only to show battery’s basic parameters.
Internationally, Resistance test is widely applied in daily battery maintenance instead of Voltage check, because Resistance is reflection to internal parameters of battery with high precision worldwide.
WFTD-AR Storage battery internal resistance tester is as digital storage and multifunction test equipment which can quick and accurate measurement of battery running status .it can show and record multi-group battery voltage,resistance etc. and also precisely judge battery’s condition( Good or Bad) and Data analyzing software.
1.High precision online testing, Full automatically switch the testing range, Great capacity data storage.
1.1. Automatically switch the testing range between 0.000mΩ-99.999mΩ.
1.2. It can store 999 groups battery parameter.(Max. 500 cell battery per group)
1.3. It can store 200 groups battery parameter setting.
2. English Menu, 320*240 LCD Display.
3. Connect to PC by USB or RS232 and transmit the testing data to PC and storage, it is convenient to analysis the battery according to the history data.
4.Powerful data management function.
5.Enhanced over pressure protecting function.
6.Self recovery the over current protecting function.
7.Use the SOC chip to improve the tester stability.
8.Big capacity Lithium cell and AC 100V-240V power supply
9.Low battery indication.
10.Smart and portable.
11Automatic testing mode make user to test expediently.
12. Powerful PC software for manage the testing data.
12.1. Automatically analysis battery “bad” state.
12.2. Building the history record base, describe the battery sate curve.
12.3. Batteries contrastive analysis in the same battery pack.
12.4. All batteries are administrated by different levels(excellent, good, medium, bad)
Function
1.Test the battery voltage and internal resistance online. 2. Battery internal resistance and voltage out of gauge alarm. 3. All the battery parameter are marked group No.to make the user manage the data expediently. 4. PC software can analysis the battery according to the history data.
Model
WFTD-AR01
Testing range
0.000~20.000V interhal resistance&voltage
20.000~25.000Vvoltage only or worring
Testing voltage precision
±0.2%rdg ±6dgt
Testing internal resistance range
0.000mΩ-99.999mΩ
Testing internal resistance precision
±0.5%rdg ±6dgt
Communication mode
RS232/USB
Display
320 x 240 LCD
Power supply
10.8V,2000mAh, Rechargeable Lithium battery
Size
280 x 105 x 83 mm
N.W
1.2kg
No.
Item
Qty
1

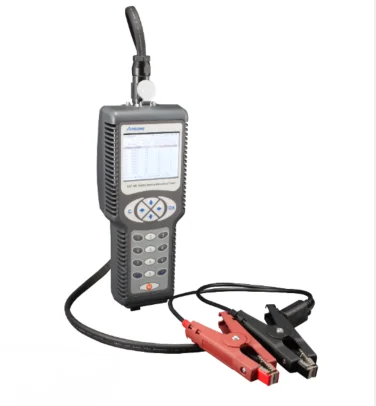

WFTD-AR01 Battery internal resistance tester
1 pc
Attachment files
2
User’s Manual
1 pc
3
Warranty/Certificate
1 pc
4
Software disc
1 pc
Accessories
5
Testing wire
1 pc
6
RS232 communication wire
1 pc
7
U disc
1 pc
8
Rechargeable Lithium battery
1 pc
9
Adaptor
1 pc
10
Testing clamp (standard)
1 pair
11
Testing probe (optional)
1 pair
