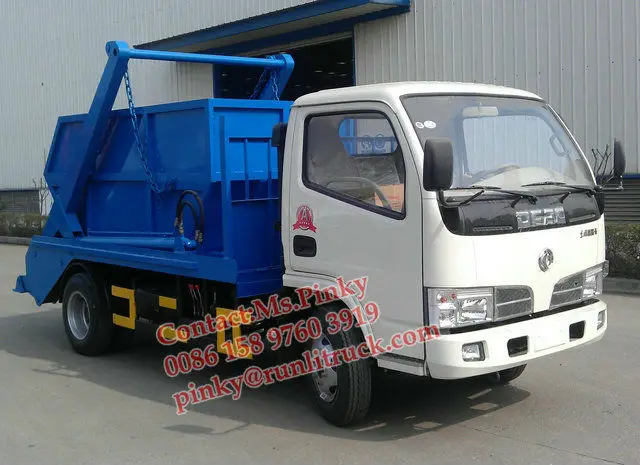

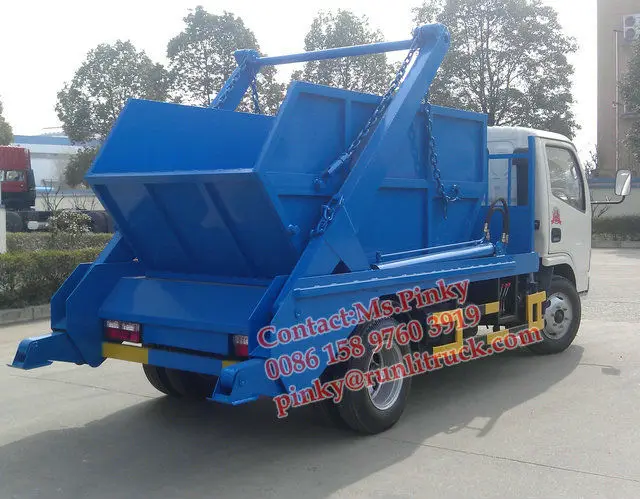

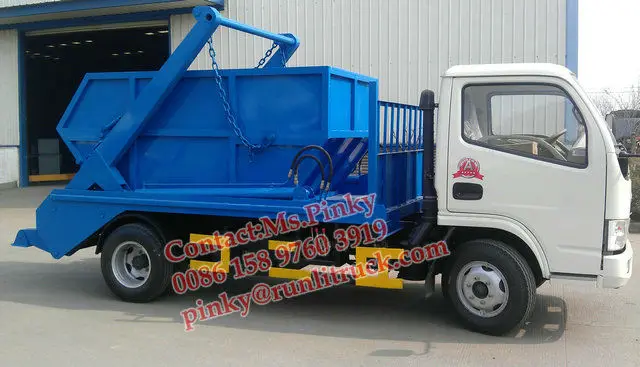

5m3 Garbage Truck Small Arm Roll Container Garbage Truck Call Ms.Pinky 0086 15897603919



-Function of Small 5m3 Garbage Truck:
1:The rubbish box can be hanged up and down;
2:One whole up and down operation takes about 60s;
3:The box can be detached from the truck body easily.
4:One vehicle can cooperate with several dustbins(box) to improve the ability of cycle operation, thereby improve transportation efficiency, especially it is suitable for short-distance transportation such as urban rubbish cleaning and transportation.

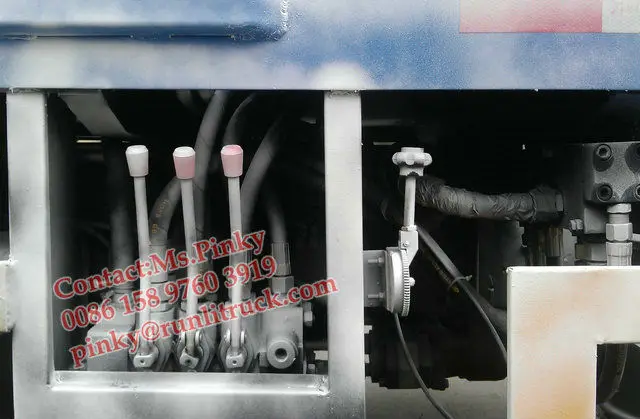

 5:Equipped with dustbin, hydraulic system and operating system
6:Equipped with two advanced double acting hydraulically cylinder



 specs of 5m3 Garbage Truck:



Product name	Dongfeng FuRuiKa Small Garbage Disposal Truck
Chassis name	EQ1040TJ20D3
Capacity of body	4-5cbm
Specification of vehicle	Outside dimension(mm):	6150x1950x2850
	Total weight (kg):	4495
	Loading weight (kg):	685
	Net weight(kg):	3680
	Approach / departure angle(mm):	19/13
	Front / rear suspension(mm):	1032/1818
	Fuel type :	Diesel
	Max. speed(km/h):	95
Engine specs	Model :	CY4102-C3F/YC4F90-30/YN30CR
	Manufacturer :	Dongfeng chaochai motor co., ltd. Guangxi yuchai yunnei
	Displacement (ml):	3856/2659/2977
	Power (kw):	70/66/76
Chassis specs	Driving type:	4×2
	wheelbase(mm):	3300
	Tread(front/rear):	1506/1442
	Displacement standard:	GB17691-2005 Euro 3,GB3847-2005
	Front / rear axle(T):	1.8T/3T
	Gear box:	Five forwards, one revere, mechanical
	Brake system:	Pneumatic
	cab:	Single cab
	Spring file(front/rear):	8/9+5
	tyre:	7.00-16
	Air condition :	Optional
Special function	Working pressure of hydraulic:	16MPa
	Turn radius of loading arm	2400mm
	Flux of hydraulic system:	50L/min
	Max. Boom angle :	145
	Lifting the bucket time:	30s
	Unloading bucket time:	50s
Brief introduction	1,The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation. 2,the type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal. 3,The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport, improve the transport capacity, specially for short-distance transport, such as the sanitation department.







Dongfeng Small RHD OR LHD Garbage Disposal Truck

Garbage truck,compression garbage truck,
skip loader truck,hook lift truck
Contact with Ms.Pinky 24Hours 0086 158 9760 3919
easy to operate and good quality lowest price Manufactuer Sales.



Garbage Disposal Truck Offical Website:www.runlitruck.com





More specs , photos, price, delivery time and other need,

please contact with Ms Pinky. Hotline: 0086 15897603919



Welcome to visit our company! suizhou city, Hubei Province.



Our Company License:

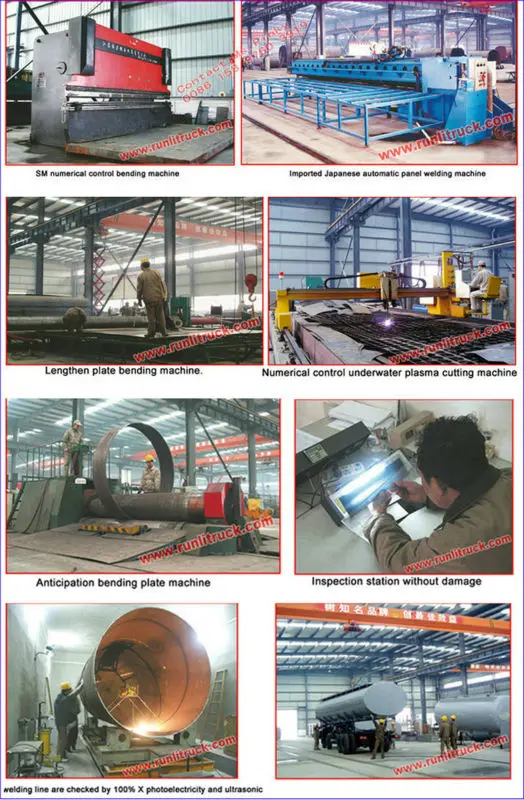

Our Company WorkShop:

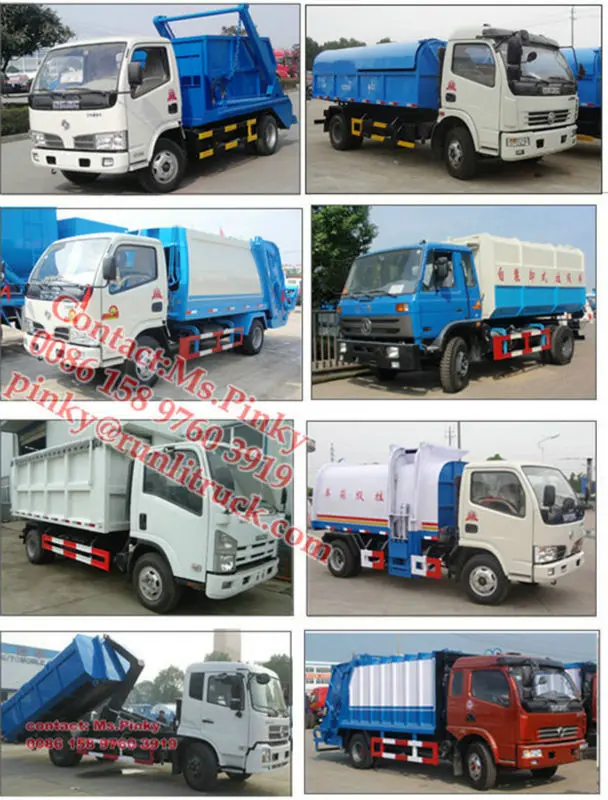

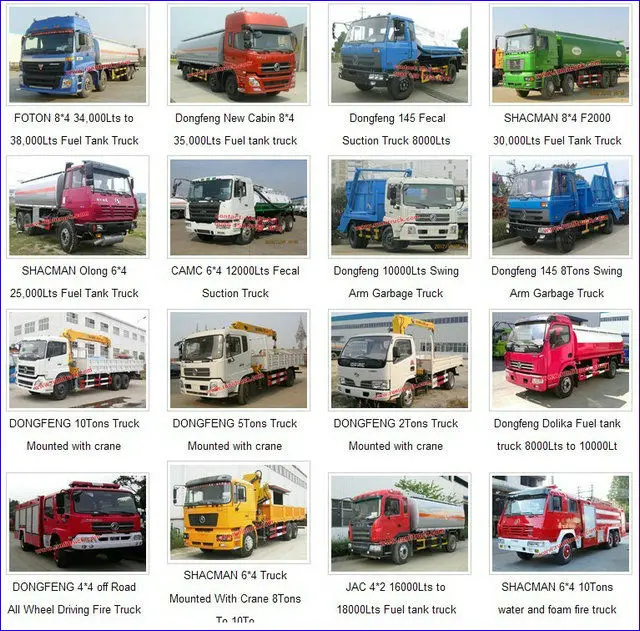

Runli company main products:

Runli has specialized in producing the following series of automobile.

1. Liquefied gas tanker;

2. Chemical liquid tanker;

3. Fueling truck and Refueling tanker;

4. Asphalt truck;

5.  Bulk cement tanker ;

6. Concrete mixer carrier;

7. Sprinkler truck/watering truck;

8. High-pressure cleaning truck;

9. sewage suction truck;fecel suction truck

10. Garbage truck;

11. Overhead working truck;

12. Road wrecker

13. Fire-fighting truck / rescue apparatus

14. Self-Motion transporter / Low platfore semitrailer transporter

15. Storage truck / Van semitrailer transporter.
