6 inch water gate valve

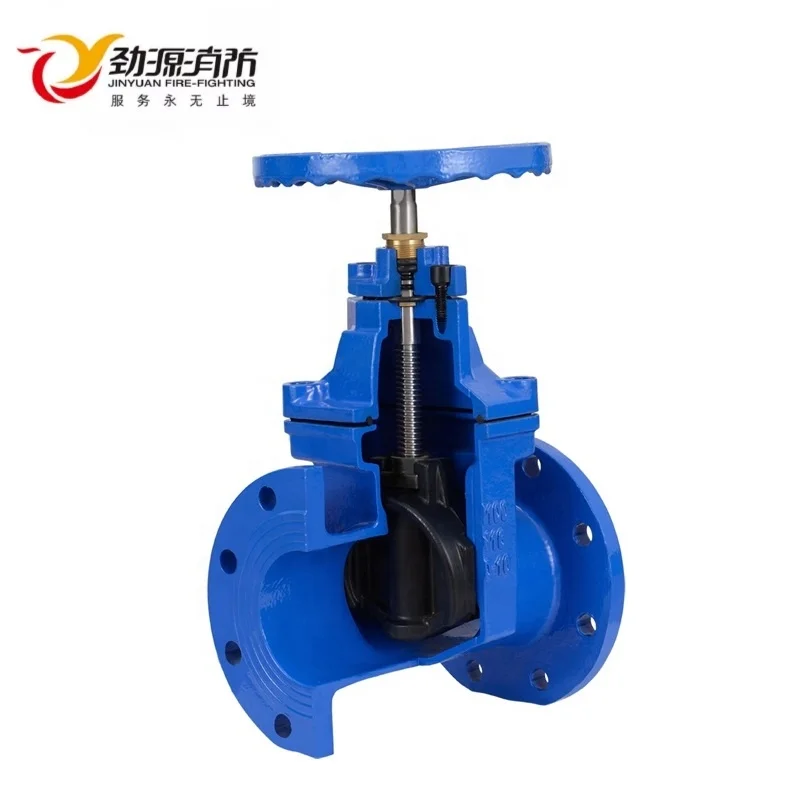

Resilient-seated Gate Valve
Ductile cast iron
ISO,CCC certificate
DN80 -- DN1000
It overcome phenomenon of general gate valve
bad seal,leakage and rust, against theft,antipry,water proof,dust proof,safety,confidential,
will make valve locking at any open angle
It can be wildly used in drinking water,polluted water,structure,petroleum,chemcial industry
foods,medcine,light industry,electricity,shiping and metallurgy
Main Parts Material
ITEM | MATERIAL |
Body | cast iron , ductile iron |
valve | ductile iron covering outside with EPDM |
bolt | zinc coat |
gasket | NBR |
bonnet | cast iron , ductile iron |
stem | stainless steel |
"O"seal ring | NBR |
thrust plate | tine bronze |
shatf sleeve | tine bronze |
bolt | zinc coat |
shaft cap | cast iron , ductile iron |
dust cover | NBR |
handwheel | cast iron |
fixed nut | zinc coat |
Techinical parameter
Normal diameter | DN80--DN1000 |
Normal working pressure | 1.0/1.6/2.5 Mpa |
Working temperautre | 0-80°C |
Seal pressure | 1.1 times of working pressure |
Body pressure resistance | 1.5 times of working pressure |
Applicable medium | water oil gas |
Model | Fire sprinkler |
Material | Brass, chrome plating |
Type | Upright/Pendent,Side Wall,ESFR Sprinkler |
Temperature | 57°/68°/79°/93°/141° |
Norminal diameter(mm) | DN15/DN20 |
Connecting thread | R1/2 or R3/4 |
Glass bulb color | Red/Orange/Yellow/Green/Blue(The higher the temperature, the darker the color) |
Temperature rating | 68°C |
Flow Rate | 115±6 or 80±4 |
Bulb | 5mm or 3mm |
Response | Commen/Quick response |
Model: | Fire Hose |
Working Pressure: | 8Bar/10Bar/13Bar/17Bar/20Bar |
Use For: | Garden/FIre-fighting |
Sides: | DN25/DN40/DN50/DN65/DN80/DN100/DN150/DN200 |
Inch: | 1"/1.5"/2"/2.5"/3"/3.5"/4"/4.5" |
Meter/Roll: | 10m/15m/20m/25m/30m |
Model: | Easy Contact Fire Hose Coupling/Nozzle |
Material: | Aluminum/Kirsite |
Types: | Easy Contact |
Sides: | DN25/DN40/DN50/DN65/DN80 |
Connection Fire hose mode: | Wire fastener/Fastener |
Jinyuan Technology Development CO.,Ltd is an enterprise of formalization,standardization and modernization,It’s a blendof fire fighting design, research&development,production,sales and services.
JinYuan is powerful,such as,owning large-scale excellent processing equipment and advance test equipment,masterful workmanship,gathering a crowd of high-quality talents on scientific research and management.It has also established advanced business management systems and perfect quality confirmation system,Therefore, JinYuan is of rich sources and strong market competitiveness.

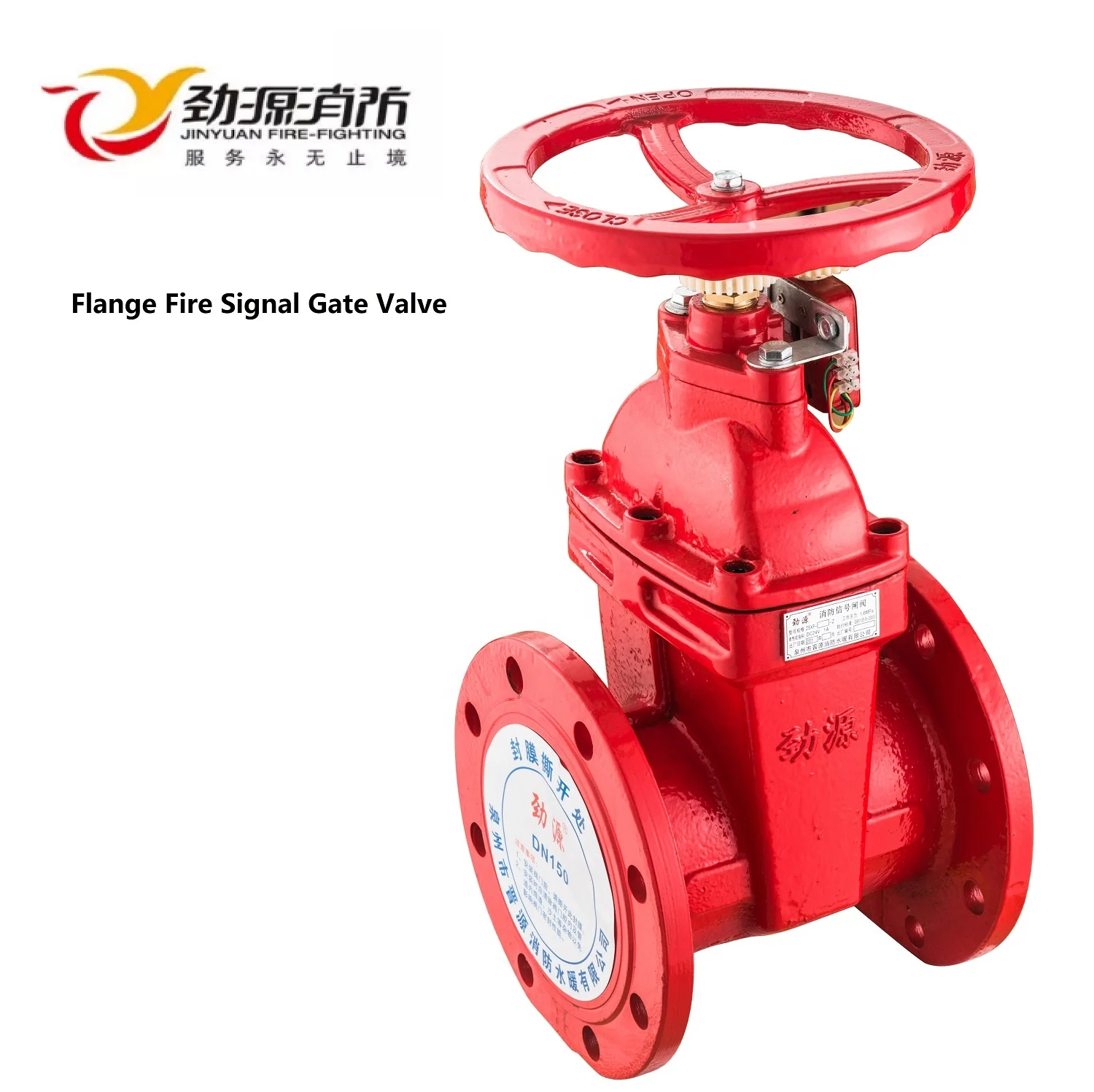

Main series of goods in JinYuan are indoor and ourdoor hydrant,water pump adapter,fire hose nozzle,fire water monitor,fire coupling,fire hydrant box,fire hose reel,deluge alarm valve,wet alarm valve,fire sprinkler,water flow detector ,fire signal butterfly valve ,fire signal gate valve,foam pump pressure balanced proportioning unit,foam maker,HFC-227ea and other fire-fighting equipment.resilient-seated gate valve and hard seal butterfly valve,fire-fighting signal gate valve and signal valve are of matching goods,And in year 2012,JinYuan established its subsidiary company- -Quanzhou GuangShi Electronics co.,ltd. The Guangshi mainly produces fire emergency lighting,fire sign lights,etc.The goods are best-seller everywhere from Europe to Southeast Asia.
Our firm philosophy is customer first,create first-class brand to make high-quality fire-fighting goods and to provide high quality and competitive prices of clients.
Jin Yuan Fire-Fighting and society hand in hand devote themselves to the development and explore ot the fire-fighting science.We are making contribution to the firefighting career and people’s life and property safety.
Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you.
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: 20 units
Q:What is your delivery time?Can we short it in 7 days or less?
A:3-30 days for mass production(depend quantity).
Q: What is your payment terms?
A: T/T,L/C,Western Union paypal
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q:How about your quality?
A: All of our products have obtained the CCCF and ISO certificates
,Try a small order, you will have your judgements!
