Product Description

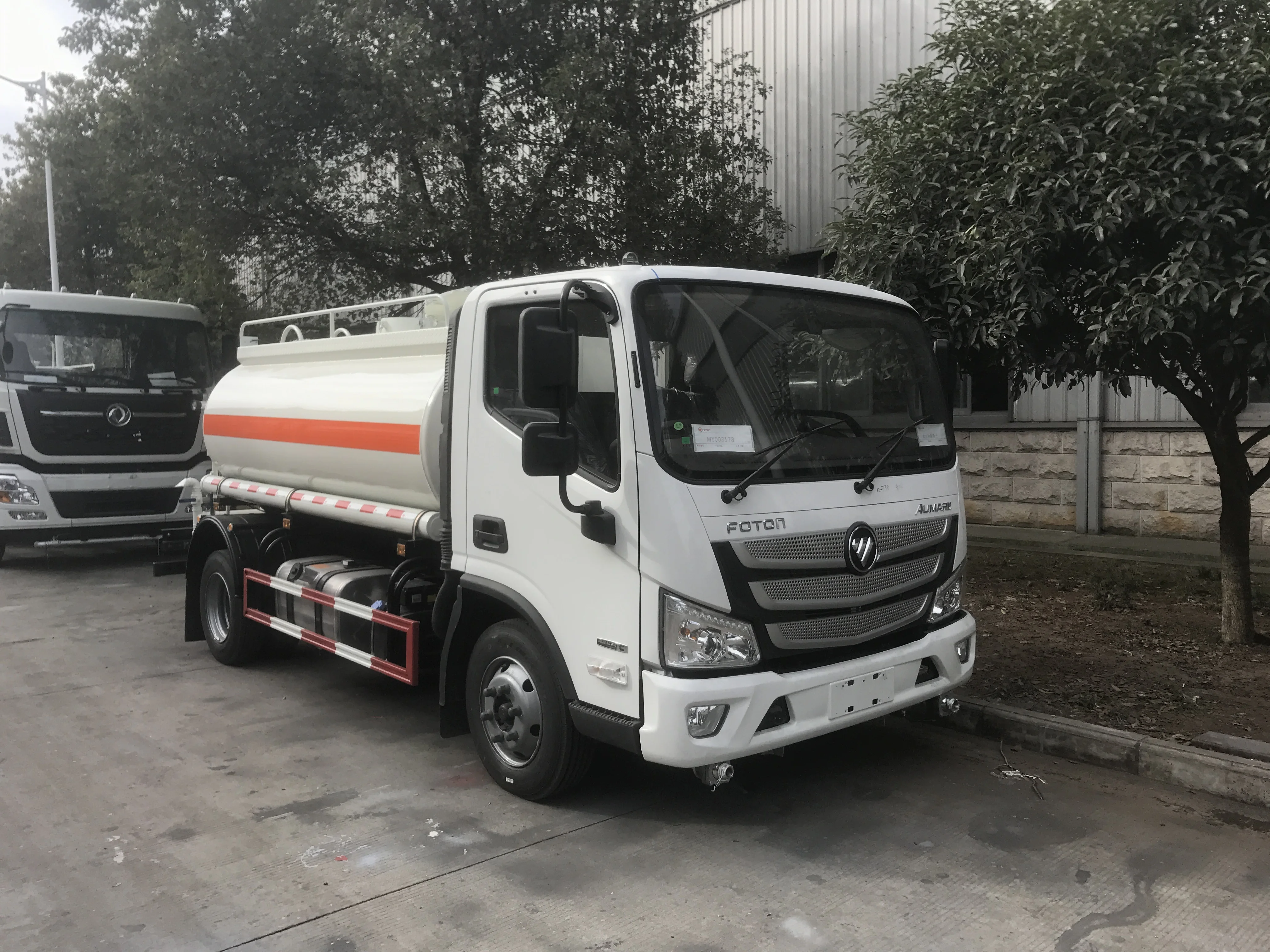

ChengLi factory hot sale 5000L Foton 4*2 RHD water spray and sprinkler truck
The tanker is made of high-quality carbon steel and equipped with CLW water pump with ample power , which adopt Japanese technology .
Its suction length> 6m , watering breadth>14m and lift height>30m .

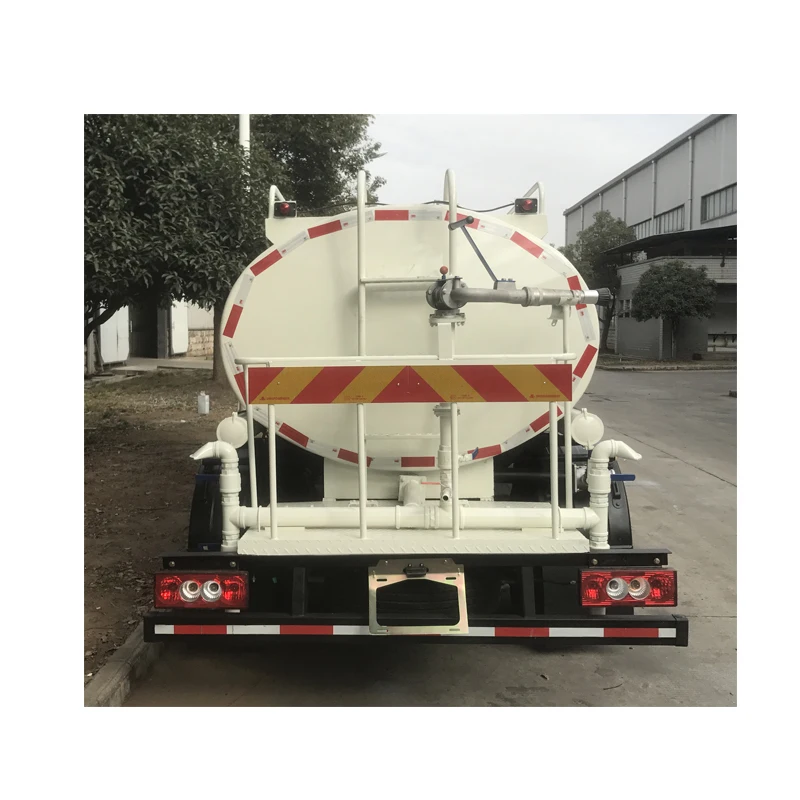

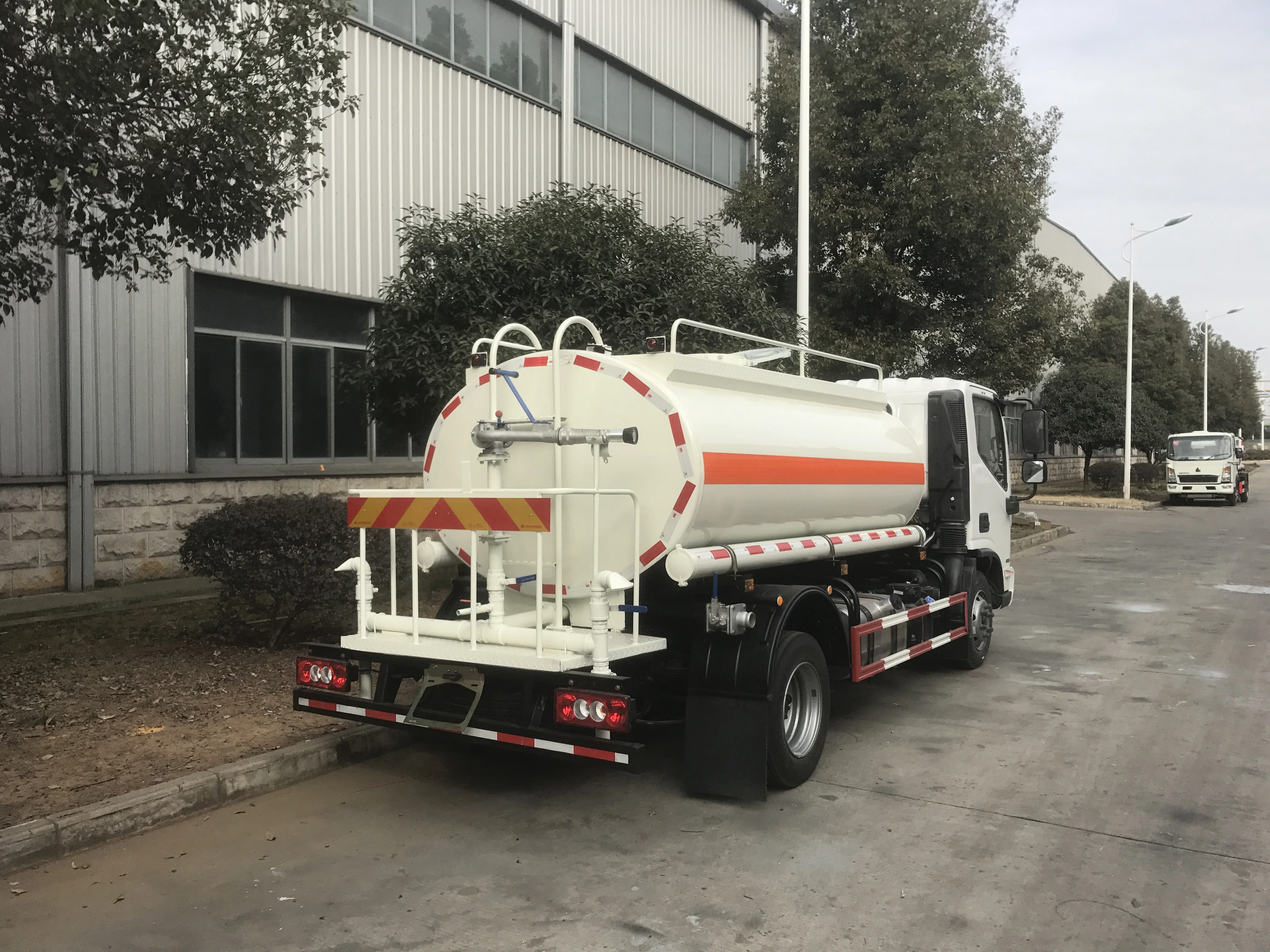

Water trucks can flush in front , water at rear and sprinkle at the tank's side . It is equipped with a working platform at rear
with high pressure water cannon, which can be columnar , heavy rainfall , moderate rain and drizzling rain . The water canon can be rotated and its lift height >30m.
Natural flow valve and fire fighting joint ..Self-priming pump can pump water from pool to tank , or join the truck with fire
hydrant to fill water in tank .
Water truck can also spray insecticide after special anti-corrosive treatment .It certainly can transport water and be used for
fire fighting in emergency .
We can assemble according to customer's request , such as add more pipes or sprinklers .
Its suction length> 6m , watering breadth>14m and lift height>30m .
Water trucks can flush in front , water at rear and sprinkle at the tank's side . It is equipped with a working platform at rear
with high pressure water cannon, which can be columnar , heavy rainfall , moderate rain and drizzling rain . The water canon can be rotated and its lift height >30m.
Natural flow valve and fire fighting joint ..Self-priming pump can pump water from pool to tank , or join the truck with fire
hydrant to fill water in tank .
Water truck can also spray insecticide after special anti-corrosive treatment .It certainly can transport water and be used for
fire fighting in emergency .
We can assemble according to customer's request , such as add more pipes or sprinklers .
Specification
Cabin | Single row/W2060/left rudder | ||
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5890×2105×2400 | |
Wheel base(mm) | 3360 | ||
Weight data | Curb weight(kg) | 3210 | |
Gross vehicle weight（kg） | 8275 | ||
Persons in cab | 3 | ||
Whole vehicle main performance | Max. speed（km/h） | 105 | |
ENGINE | Model | F3.8s3141 | |
Emissions standards | EuroⅢ | ||
Displacement（L） | 3.76 | ||
Rated Power（kw/rpm） | 105 | ||
Max torque （N.m/rpm） | 450 | ||
Gearbox | Model | 6S558 | |
Front axle | Type/Mainreducetion ratio | 3.6T | |
Rear axle | Type/Mainreducetion ratio | 6T/5.286 | |
Suspension | Front suspension/Leaf spring number | 9 | |
Rear suspension/Leaf spring number | 8+6 | ||
Brake system | Service brake | Drum pneumatic braking | |
Parking brake | Brake gas brake | ||
Auxiliary brake | Engine exhaust brake | ||
Wheels and tyre size | 6+1/(L8.25R1614L) | ||
tank | volume | 5m³ |
Dimensions | Sectional shape: oval | |
Tank material and thickness | Material and thickness of tank body: Q235B carbon steel, 4mm | |
Wave breaker | Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm | |
Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | |
Discharge port | 1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; | |
Climb the ladder | Install independent climbing ladder at the end of the tank | |
Top guard | Install hand guards on both sides of the tank top | |
Level gauge | The front part of the tank, plexiglass | |
Tube box | Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints | |
Water pump | model | Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
Limited Date | 40m³/h | |
lift | 45m | |
Water absorption depth | 6.5m | |
Spraying device | control method | manual |
Spray type | Front flush, side spray, back spray | |
Sprinkler width | not lower than 14m | |
Spray gun range | not lower than 28m | |
Work platform | position | Rear of the tank |

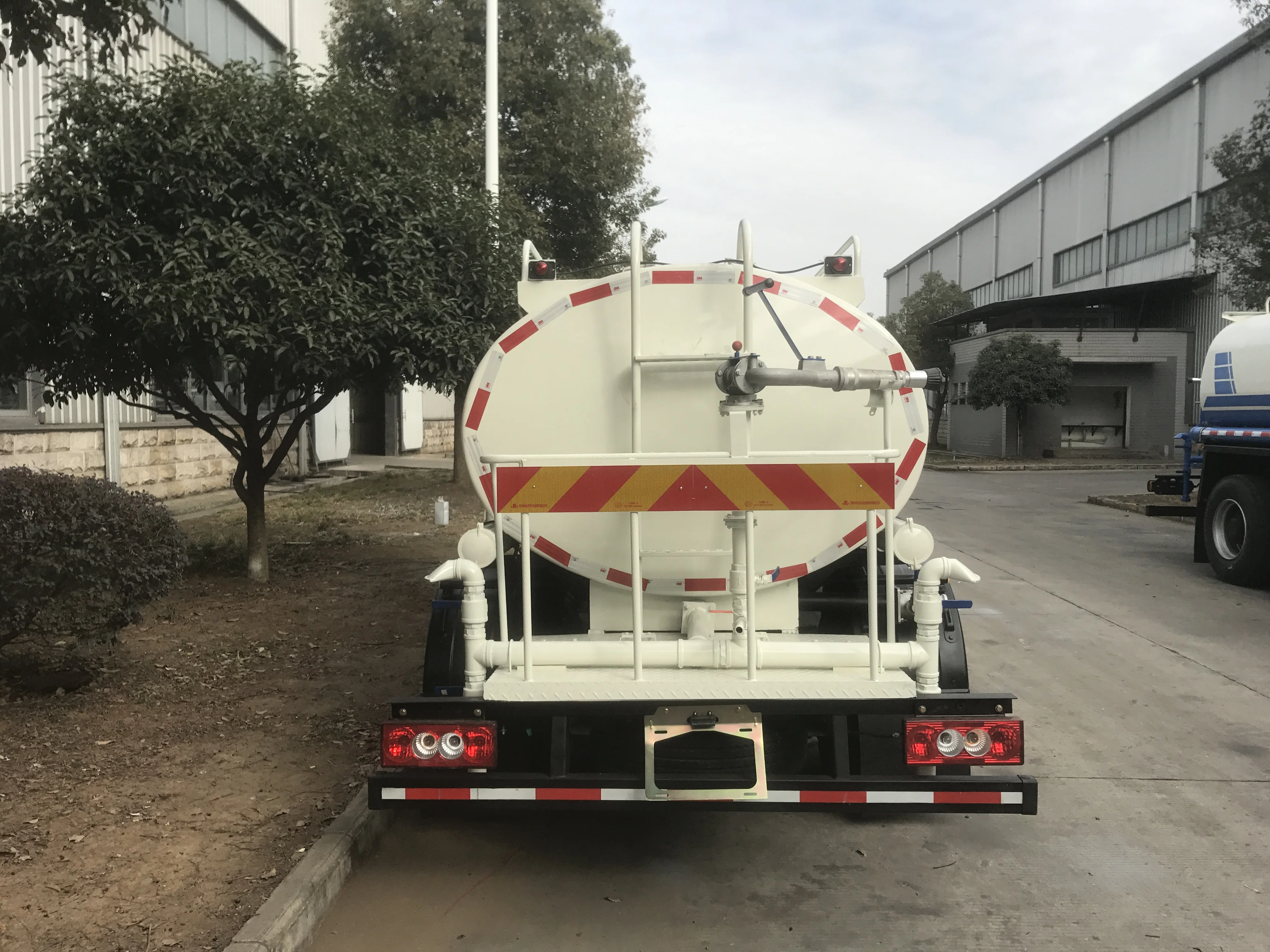

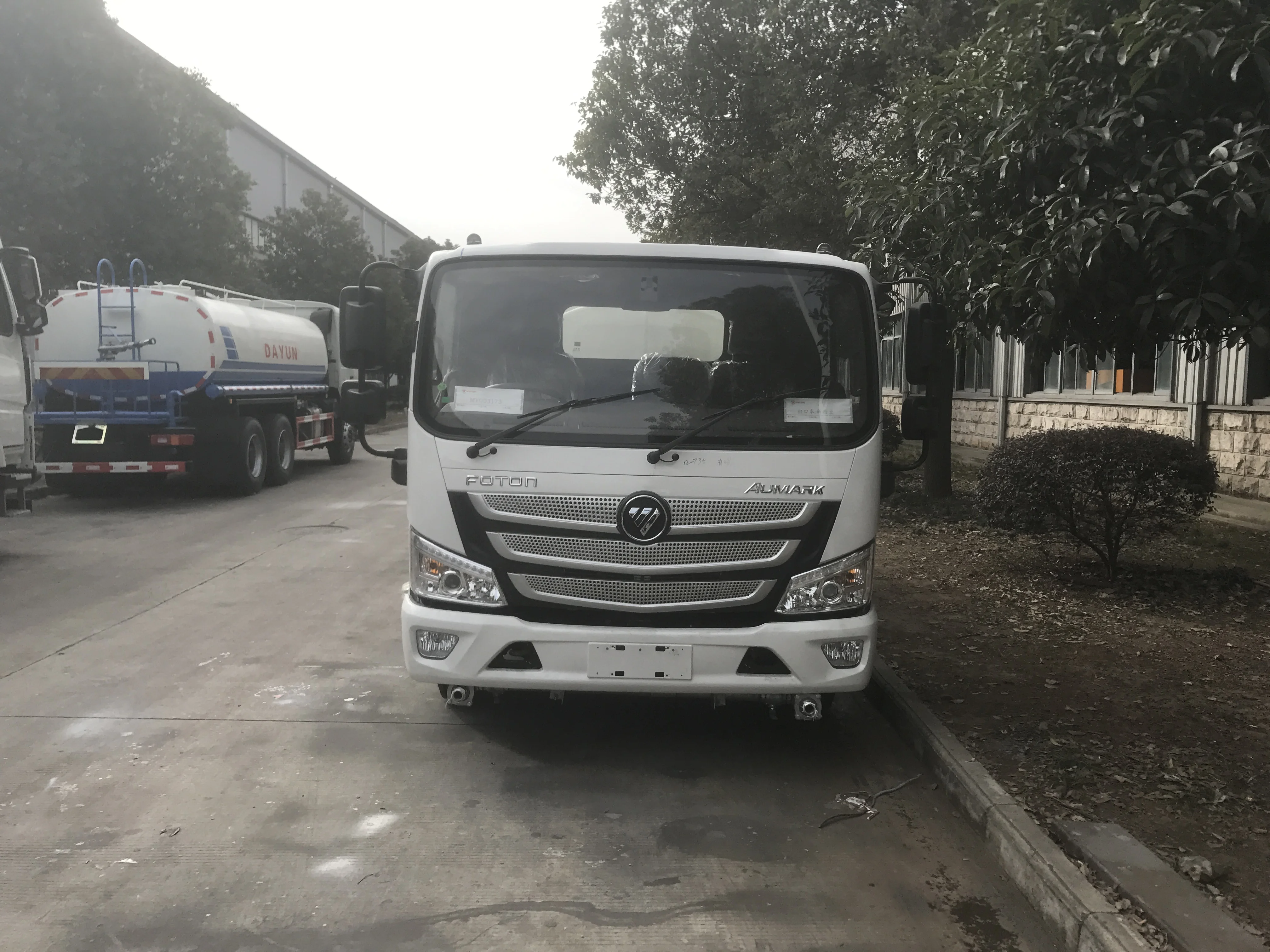

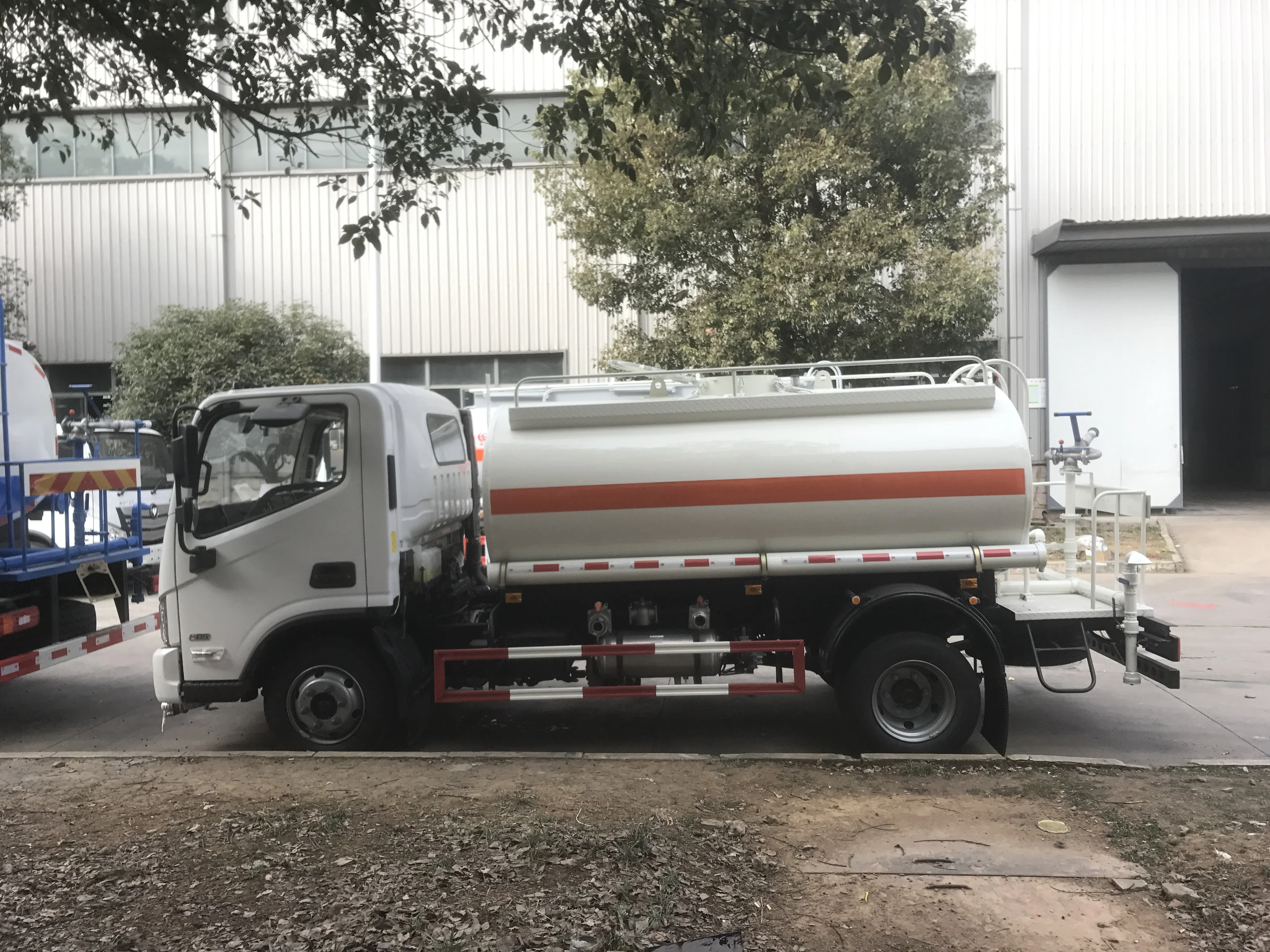

Details Images

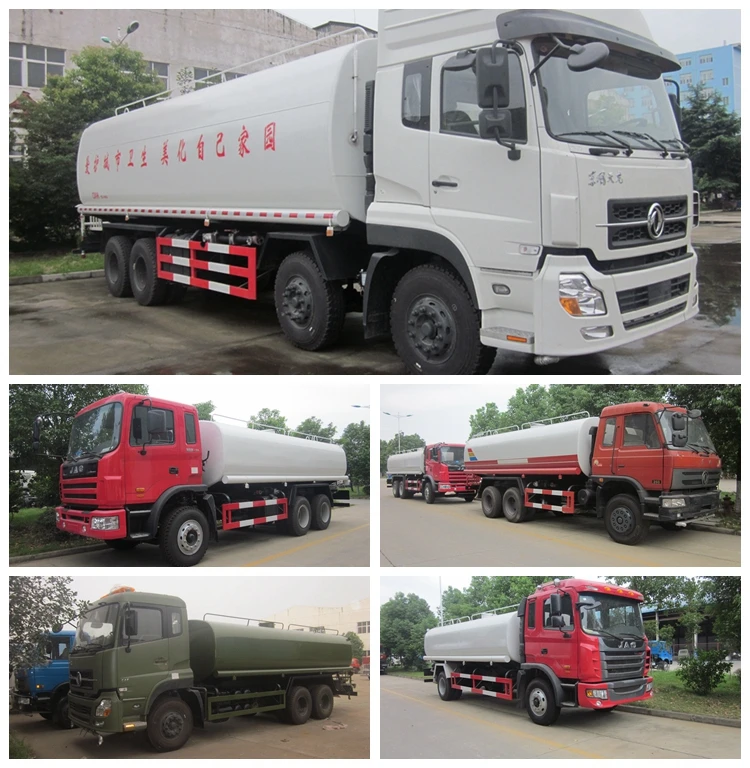

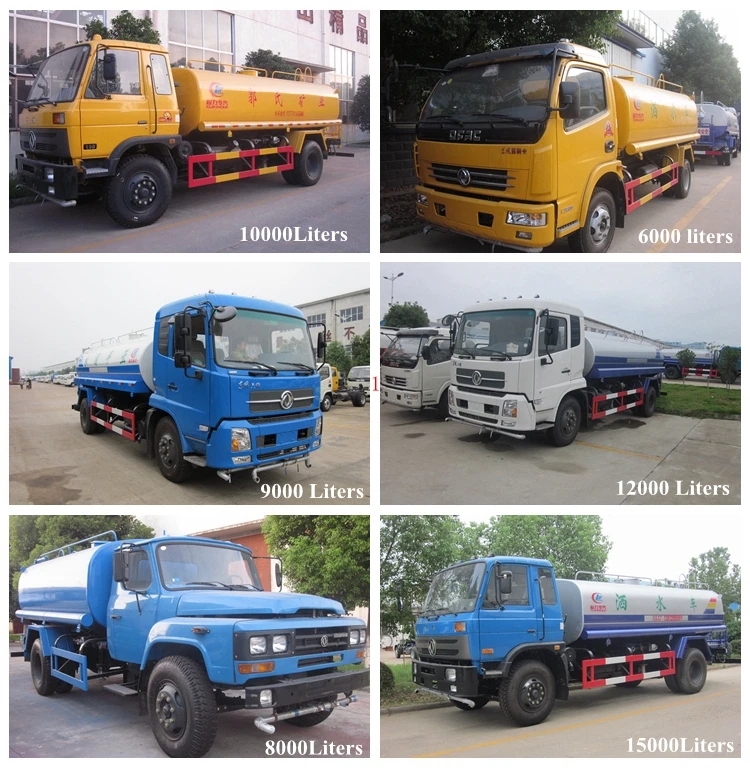

Recommend Products

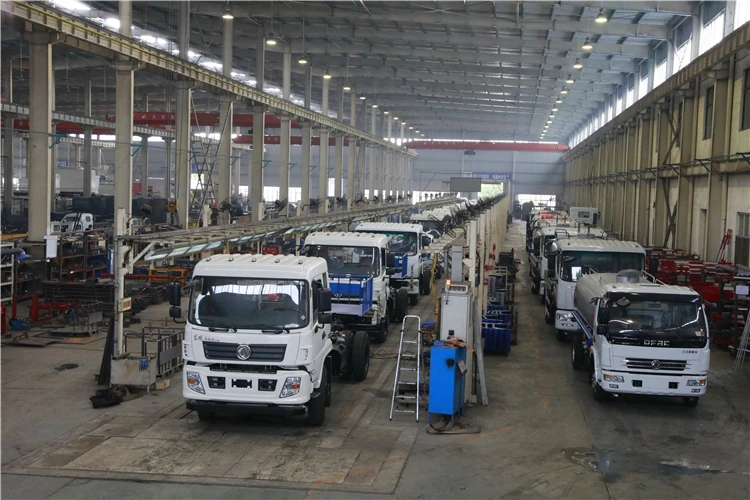

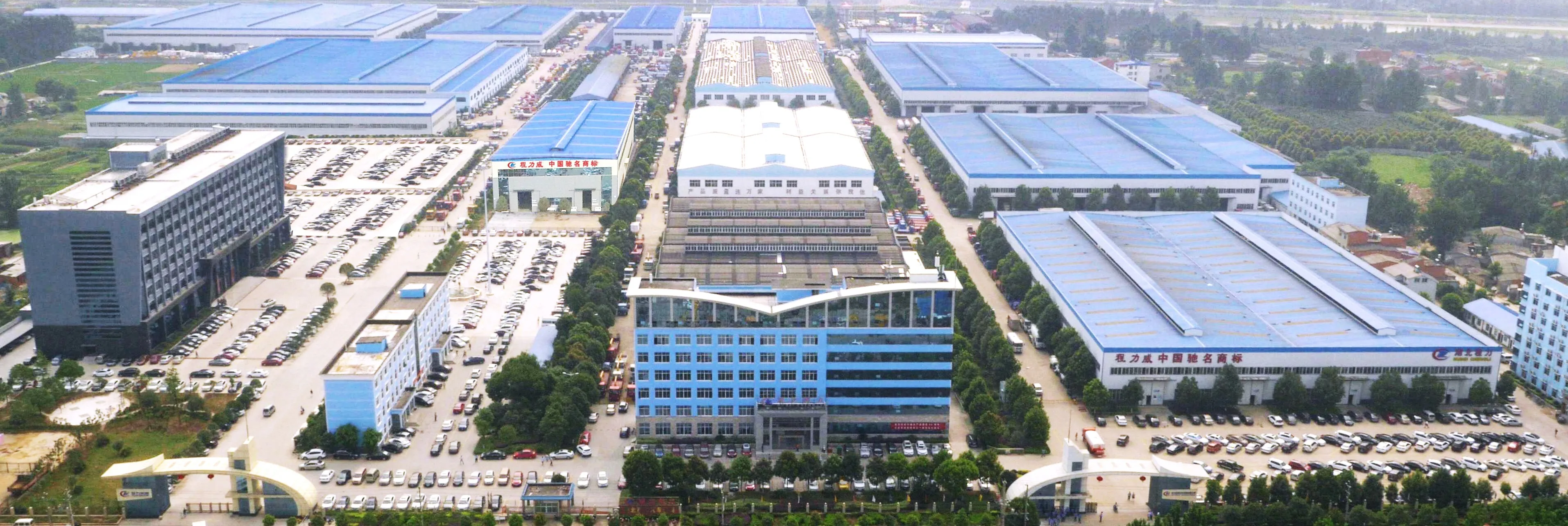

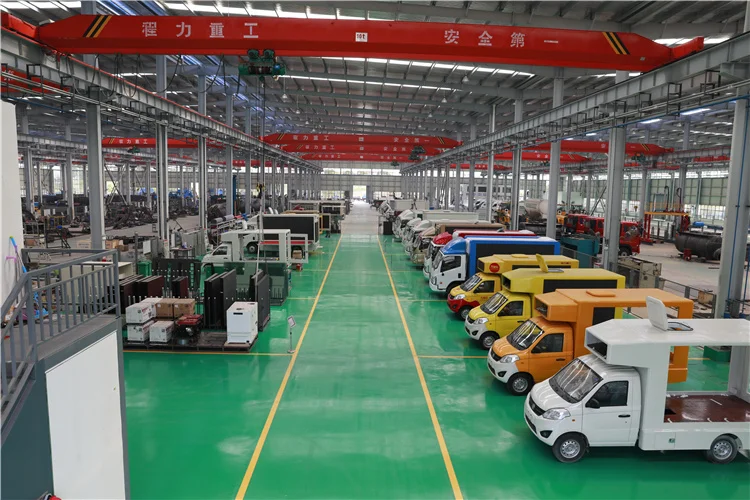

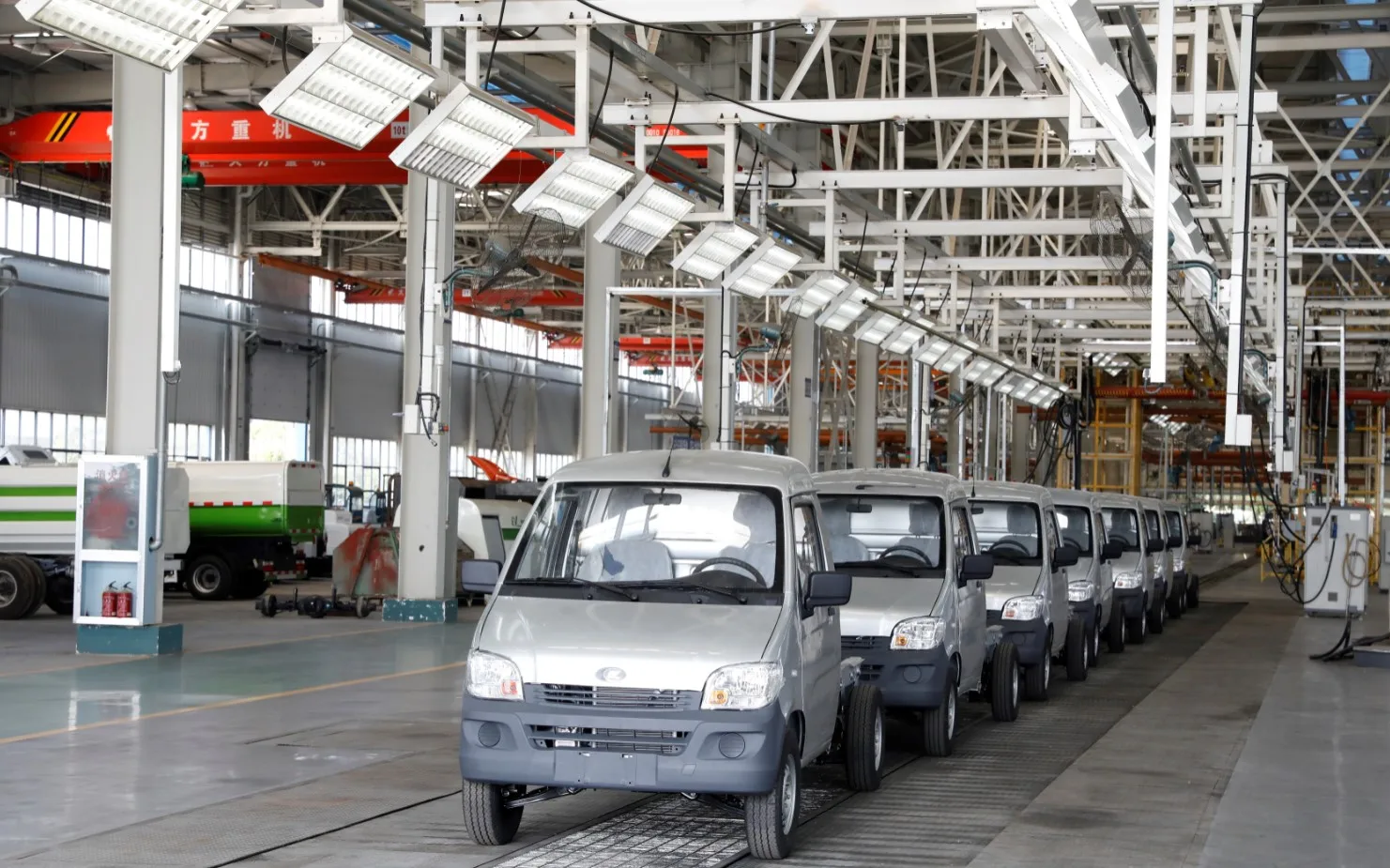

Company Profile

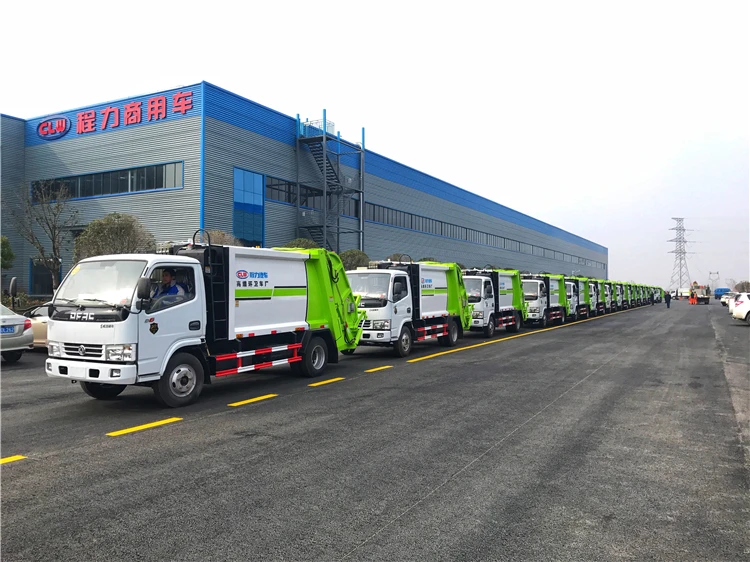

ChengLi Special Automobile Co.,Ltd, is a big manufacturer producing all kinds of special
