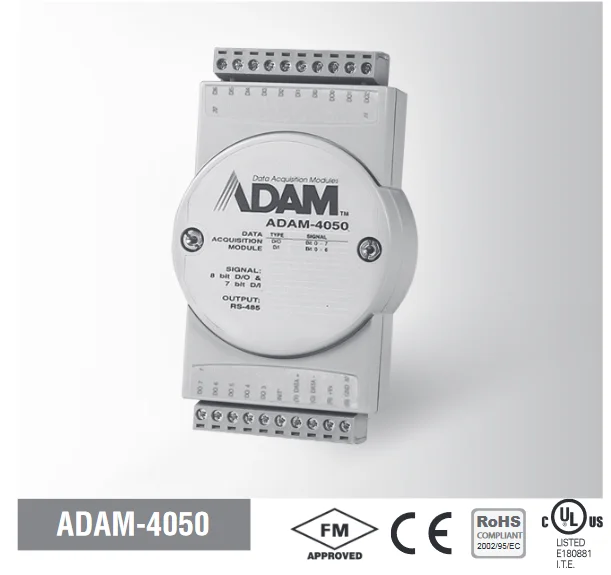

15-канальный цифровой модуль ввода-вывода Advantech

Описание и отзывы

Характеристики

Main Feature
	7 input channels, 8 output channels Watchdog Timer

  15-ch Digital I/O Module



Display	LED Indicators	Power
Power Supply	Power Requirement	10~30 VDC
General	Watchdog Timer	System (1.6 second)
	Connector	2 x plug-in terminal block (#14~22 AWG)
	Temperature (Operating)	-10~70 °C (14~158 °F)
	Humidity	5~95 %RH
	Temperature (Storage)	-25~85 °C (-13~185 °F)
	Interface	RS-485
	Communication Protocol	ASCII command
	Communication Speed	Serial: From 1,200 to 115.2 k
	Comm. Distance	Serial: 1.2 km
	Data Flow Control	Yes
Digital Input	Channles	7
	Input Voltage	Logic level 0: 1 VDC max. Logic level 1: 3.5~30 VDC
Digital Output	Channels	8  Open collector to 30V, 30 mA max. load
	Power Dissipation	300 mW
