Single Line Solar Station SR961 for Active system





Product Description



Introduction for VISION Solar Heater Station:

Active solar hot water systems require a solar controller, circulation pump, and depending on the system format may also include a flow

meter, temperature gauges, air separator, fill and drain valves and other components. Solar heater pump stations incorporate all these

components into a pre-engineered packaged system, improving reliability and greatly simplifying the installation process.



Application Capacity for SR961S Solar Heater Station :

Max. number of collector loop: 1

Max. number of storage tanks: 1

Max. number of relays: 3

Max. number of sensors: 5

Max. number of application system: 1



Main Technical Data for SR961S Solar Heater Station:

Dimension:  420mm*280mm*155mm
Power supply: 200V-240V AC or 100V-130V AC, 50-60Hz.
Power consumption:  < 2W
Accuracy of temperature measuring: ± 2oC
Range of collector temperature measuring: -10 ~200oC
Range of tank temperature measuring: 0 ~100oC

Available power of R1 electrical thermal trace: <500W
Suitable power of pump: 2 pumps possible to be connected, power of each pump < 200W .
Suitable power electrical heating:1 relay for 1500W (1500w-4000w must be use SR802)
Inputs: 5sensors,
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable ≤280oC),
4pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs: 3 relays, for circulation pumps or 3-way electromagnetic valve
Ambient temperature:-10 ~ 50oC.
Water proof grade: IP42.



Main Functions for SR961S Solar Heater Station:



Pump  support:
1.Can  be  support  Normal  Pump.
2.Can  be  support  High  Efficiency  pump.
Set  up  clock/week

Functions  operation  and  parameters  setup  (user  grade)
1  THET  Timing  heating
2  CIRC  DHW  water  circulation  function
3  tCYC Temperature  or  time  setting  for  DHW  pump  in  three  time  sections

Functions  operation  and  parameter  setup  (engineer  grade)
1.  DT  Temperature  difference  for  solar  circuit  pump
2.  EMOF  Maximum  switch-off  temperature  of  collector  (for  collector  emergency  close  function)
3.  CMX  Maximum  limited  temperature  of  collector  (collector  cooling  function)
4.  CMN  Low  temperature  protection  of  collector
5.  CFR  frost  protection  temperature  of  collector
6.  SMX  Maximum  temperature  of  tank
7.  REC  Re-cooling  temperature  of  tank
8.  C_F  Switch  between  Celsius  and  Fahrenheit

FUN  Auxiliary  Functions
1.  DVWG  Anti  legionnaires'  function
2.  P1  Pump  P1  operation  mode  selection
3.  nMIN  Pump  speed  adjustment(RPM  control)
4.  DTS  Standard  temperature  difference  of  pump  (for  speed  adjustment)
5.  RIS  Gain  for  circulation  pump  (speed  adjusting)
6.  Pump  P2  operation  mode  selection
7.  FTYP  Flow  meter  type  selection
8.  OHQM  Thermal  energy  measuring
9.  FMAX  Flow  rate
10.  MEDT  Type  of  heat  transfer  liquid
11.  MED%  Concentration  of  heat  transfer  liquid
12.  INTV  pump  Intermission  function
13.  tSTP  Pump  interval  run-off  time
14.  tRUN  Pump  interval  run-on  time
15.  AHO  /AHF  Automatical  thermostat  function
16.  COOL  Tank  cooling  function
17.  BYPR  Bypass  function  (high  temperature)
18.  HND  Manual  control
19.  PASS  Password  set
20.  LOAD  Recovery  to  factory  set
21.  “ON/OFF”  Controller  switch  on/off  button
22.  Holiday  function
23.  Manual  heating
24.  Manually  control  DHW  pump
25.  Temperature  checking  function
26.  Protection  function
27.  Memory  protection
28.  Screen  protection
29.  Pump  dry  running  protection
30.  Trouble  shooting
31.  Trouble  protection
32.  Trouble  checking



Warranty for VISION SR961S Solar Heater Station:

5 years international responsibility for VISION solar pump station due to original quality problems.

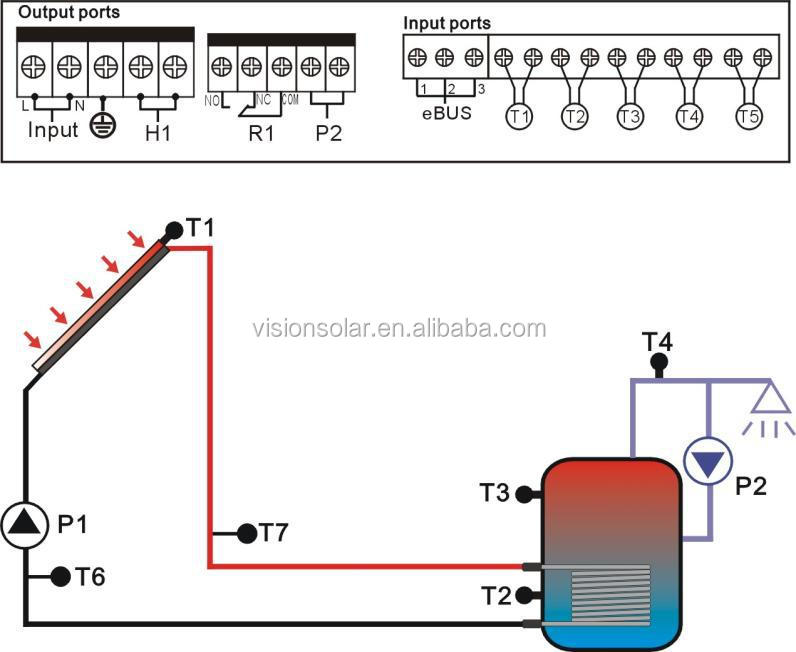

System Illustration for SR961S Solar Heater Station:



SR961S 2S-EN-20130703.jpg

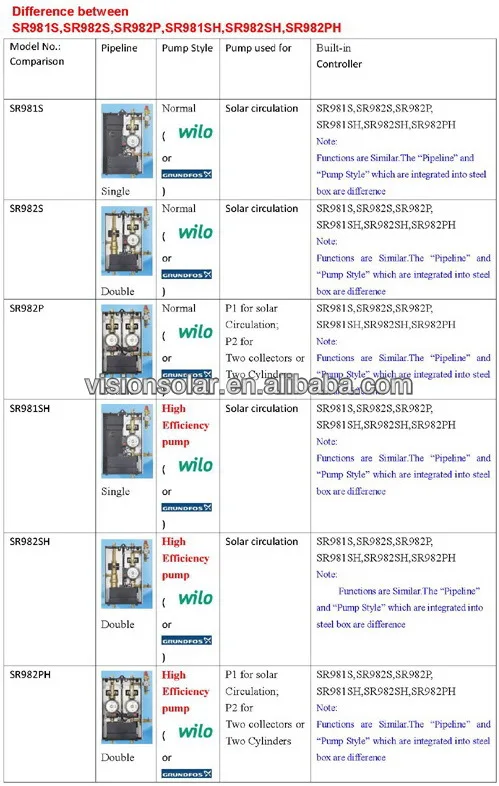

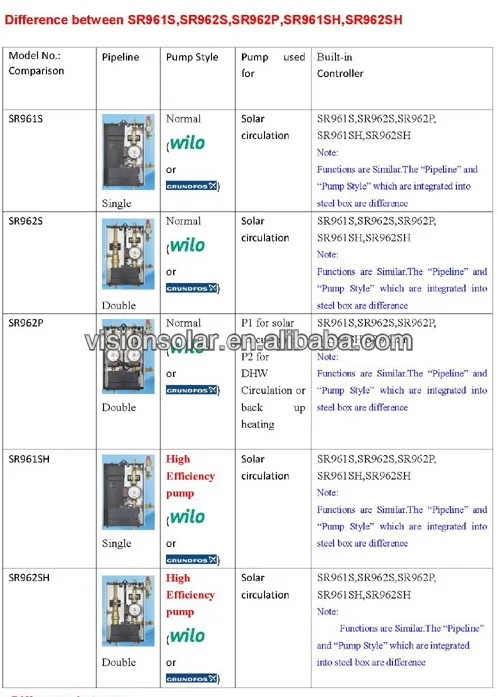

Difference Between Solar Pump Station Models:



SR961S-3 - .jpg



FAQ

Application: Active solar water heating system for domestic hot water.



OEM: Your LOGO information can be made on our solar products and carton boxes.


Packaging & Shipping

Packaging Details: Export strong corrugated carton outside with polybag and styrofoam protection inside.



Delivery Detail: Within 5 - 7 days for container order quantity upon confirmed invoice or sales contract


Our Services

Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;



Technical support: You have more than 10 years experience from VISION SOLAR for product suggestion, installation guidance, market analysis, etc.



OEM & ODM: We welcome OEM & ODM requirements for solar controller, solar collector, storage tank, etc.;



Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;



Minimum order quantity: We offer sample sample manufacturing for customers to check VISION quality and service;



Shipping service: VISION company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;



Import certificates: VISION company offers to make Certificte Origin CO, FORM A, FORM E, FORM F, customs certification, etc.
