Active Solar System Controller Solar Electronics SP25

Introduction for VISION Split Solar Water Heater Controller:

Solar thermal systems are operated and controlled intelligently by solar controllers. There are many different varieties of controllers. It is

important to choose one with additional functions to allow you to make the most of the energy available from the solar collectors.

The VISION controllers allow anyone to monitor a solar hot water system easily and safely with easy to read digital displays.

VISION SP25 controller is specially designed for active solar water heating systems, displaying of collector and tank temperature,

automatic controlling of circulation pump and auxiliary heating device etc.



Main Technical Data for SP25 Split Solar Water Heater Controller:

1. Dimension: 186×140×41mm

2. Input voltage: 200V~240V AC or 100V~120V AC

3. Power: ≤3W

4. Accuracy of temperature measuring: ±1°C

5. Range of temperature measuring: 0~99°C

6. Input signals:

       1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;

       2 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C

7. Output signals:

      1 x Auxiliary heating output (Max. load current: 12A)

      2 x Relay output (Max. load current: 1.5A)

8. Range of environment temperature: -10~50°C

9. Water protection grade: IP40



Main functions for SP25 Split Solar Water Heater Controller:

1. Time display

2. Temperature difference circulation

3. Tank overheating protection

4. Emergent stop of system overheating

5. Frost protection of pipeline and collector

6. Three periods of time adjustable on pipeline circulation

7. Three periods of time adjustable on auxiliary heating

8. Anti-bacteria function

9. Holiday function



Warranty for VISION SP25 Split Solar Water Heater Controller:

3 years international responsibility for VISION SP25 Split Solar Water Heater controller due to original quality problems.

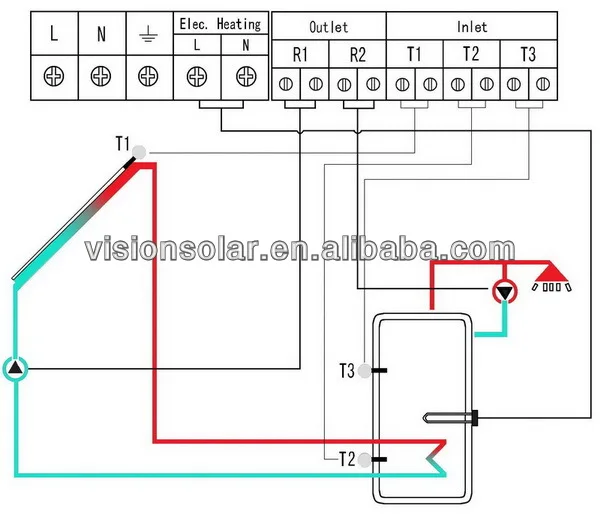

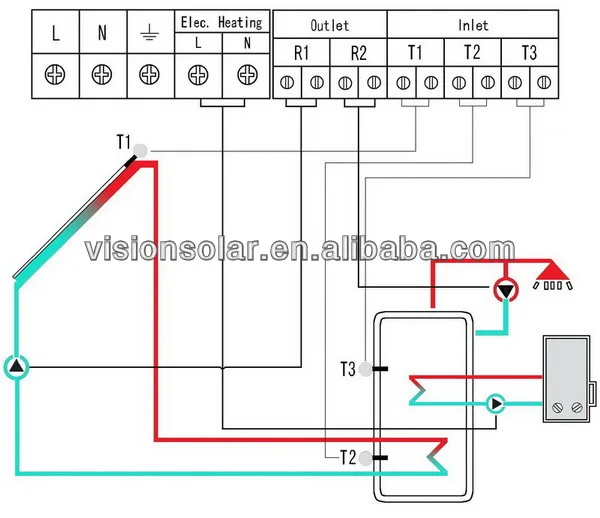

System Illustration for SP25 Split Solar Water Heater Controller:



Application: Active solar water heating system for domestic hot water.



OEM: Your LOGO information can be made on our solar products and carton boxes.

Packaging Details: Export strong corrugated carton outside with polybag and styrofoam protection inside.



Delivery Detail: Within 5 - 7 days for container order quantity upon confirmed invoice or sales contract

Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;



Technical support: You have more than 10 years experience from VISION SOLAR for product suggestion, installation guidance, market analysis, etc.



OEM & ODM: We welcome OEM & ODM requirements for solar controller, solar collector, storage tank, etc.;



Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;



Minimum order quantity: We offer sample sample manufacturing for customers to check VISION quality and service;



Shipping service: VISION company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;



Import certificates: VISION company offers to make Certificte Origin CO, FORM A, FORM E, FORM F, customs certification, etc.

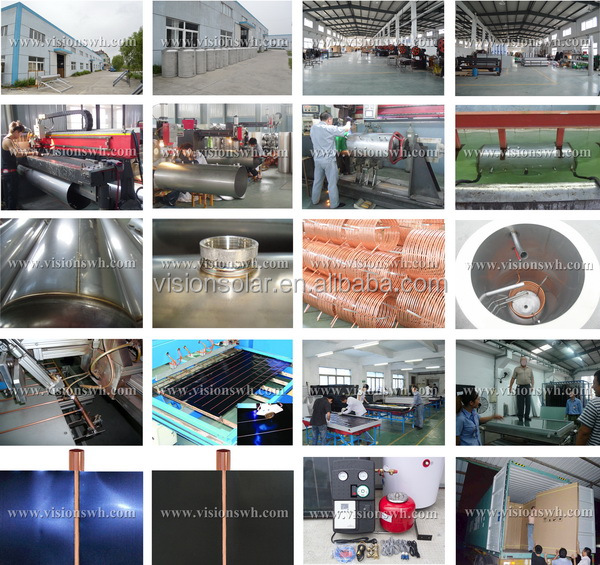

Production & Installation Pictures for VISION SOLAR:
