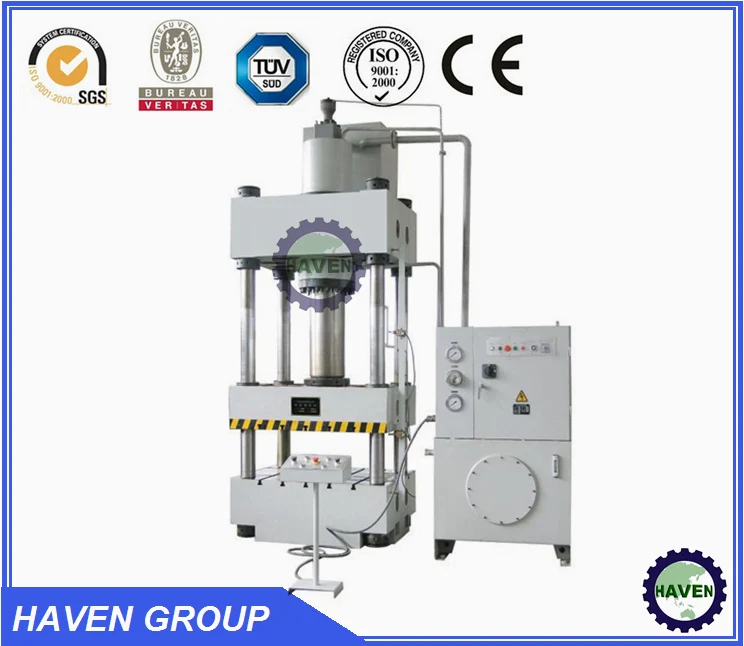

Четырехстоечный гидравлический пресс со стандартами качества Евросоюза (CE) машина

Описание и отзывы

Характеристики



This series liquid presses the machine is applicable to the fictile material inhibits the craft,If wash to press, flection, turn over the side, lamella pull to stretch etc..Return also in addition to used for correct, pressing to pack, the powder products to model and the nonmetal material inhibits to model.This series presses the machine tool has to control after the electric appliances to control two kinds of electricity control system with the PLC, having the adjustment, move and automatic three kinds of operations method in half, can realize to settle to press with settle distance two kinds of crafts method. This series liquid presses the machine is applicable to the fictile material inhibits the craft,If wash to press, flection, turn over the side, lamella pull to stretch etc..Return also in addition to used for correct, pressing to pack, the powder products to model and the nonmetal material inhibits to model.This series presses the machine tool has to control after the electric appliances to control two kinds of electricity control system with the PLC, having the adjustment, move and automatic three kinds of operations method in half, can realize to settle to press with settle distance two kinds of crafts method.



MODEL		UNIT	YQ32-200	YQ32-315	YQ32-400	YQ32-500
Rated pressure		kN	2000	3150	4000	5000
Knock-out pressure		kN	400	630	630	1000
Max pressure of liquid		Mpa	25	25	25	25
Speed of slide		mm	700	800	800	900
Stock of knock-out		mm	250	300	300	350
Open-height		mm	1100	1250	1250	1500
Stock of slide	empty loading	Mm/s	100	100	100	100
	working	Mm/s	8	6-8	5-7	10-12
	return	Mm/s	52	60	45	70
Size of work table	left--right	Mm	1000	1260	1260	1400
	front--back	Mm	900	1200	1200	1400
Dimension	left--right	Mm	3100	3235	3235	4060
	front--back	Mm	1800	2060	2200	3525
	Height	Mm	3500	4295	4500	4695
Main motor		kw	15	22	22	44
