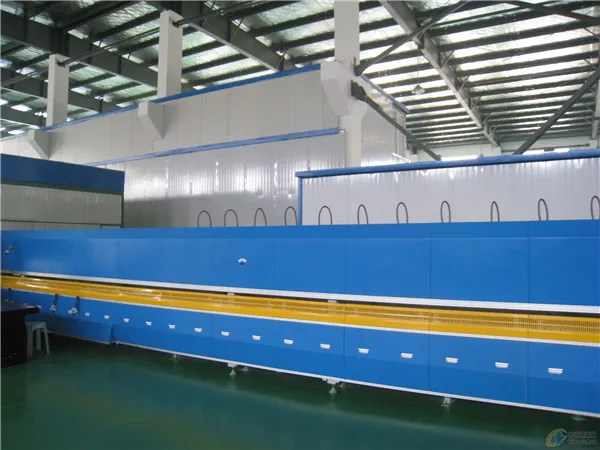

     Glass Bending Tempering Furnace



Glass Bending Tempering Furnace  is used to produce flat tempered glass, and suitable for float glass ,tinted float glass,clear figured glass.



Technical features:

1. Glass Bending Tempering Furnace adopts industrial control computer and PLC, the speed can be adjusted by the inverter steplessly. High automation made it reliable and precise, easy to operate and efficiency.

2.Conveying speed of the glass entering and exiting the heating oven is controlled by inverter, which can assure high synchronization and avoid scratch on the glass.

3.Heating section has a helix matrix structure, which can control the temperature independently. Reasonable design and unique structure of heating elements make a long serve life.

4. The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure a lower energy consumption.

5. The emergency cooling system is greatly convenient for machine maintenance.

6. The proportion of the air pressure between the upper quench and the lower quench can be adjusted.

7. The software has a powerful function, which is very convenient for operation, maintenance and adjustment.

8. The whole production procedure is controlled and monitored by computer, which is of high automation.





Suitable for glass type:

 1 Clear float glass

2 Reflective glass

3 Hard Low-E glass (E≥0.2)

4 Patterned glass

5. color float glass

6 single face silk screen glass

7 super white pattern glass





Payment and Shipment:







Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.



The packing size:need three wooden boxes



Port of Loading: Qingdao, China



Delivery Time: During 60 days after we receive your first payment.







Shipment: Usually by sea, Glass Bending Tempering Furnace is dismountable, so it can be packed in a small container.







Customer Visiting:

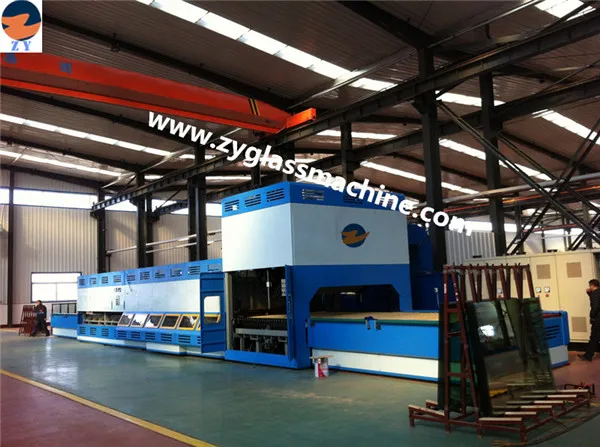

  Glass Bending Tempering Furnace



Specification of Main Parts

N0.	Model and Name	Code	From
1	PLC	CP1H-40DR-A	Omron (Japan)
2	Industrial control computer	IPC-610	ADVANTECH
3	Photoelectric sensor	E3Z-T61	Omron (Japan)
4	Encoder		Omron (Japan)
5	Frequency inverter for driving motor	MM430	SIEMENS
6	Frequency inverter for blower	MM430	SIEMENS
7	Thermocouple	WRGKK-131	Chuanyi (Sino-Japan)
8	Solid replay	H3100Z	Ximadun(Sino-Japan)
9	Motor for driving system	BW series	Changxin(Sino-Japan)
10	Time relay	ST3PA-A	FUJI (Japan)
11	Contact switch	E2E-X10ME1	Omron (Japan)
12	Temperature detecting module	I-87018R	ICP
13	Digital output module	I-8057-G	ICP
14	Digital module CPU	I-8411	ICP



Note: The products in this form without specification are high-quality product in domestic market. Manufacturer reserves the right to amend the products according to the requirement of technology, the quality of displacement should not be less than the original one, and the imported one can not be replaced by a domestic one.
