Detailed Product description:

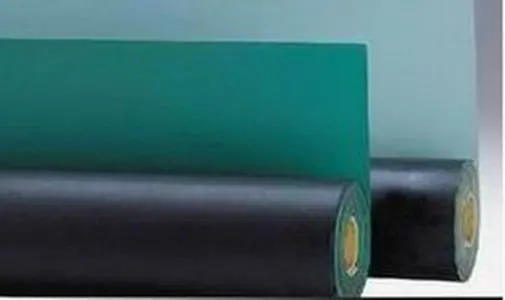

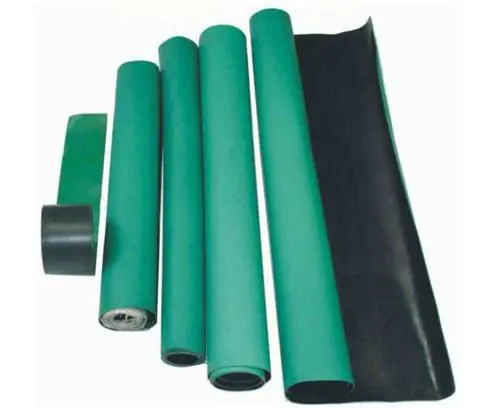

Cleanmo ESD Anti-Static Rubber Table Mat

1) offer excellent resistance to oil, grease and most common solvents;

2) retain equipotential between sensitive device or human bodies and itself;

3) both of Matte finish and Glaze type are available;

4) It is useful for semiconductor,computer & electronic parts factories,
    electronic exchange or OA machinery rooms and chemical laboratories,
5) will not peel, chip, or curl.

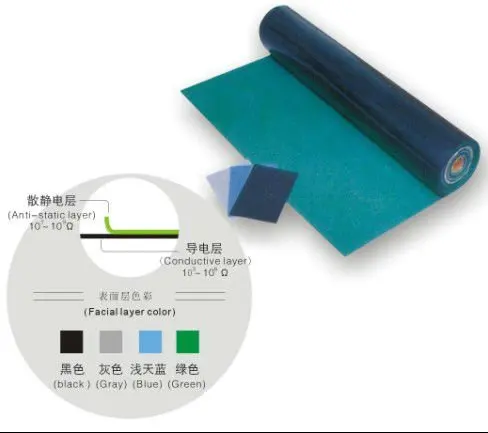

Material:



1) 2-layers mat
    -Top layer: Static dissipative NBR. Resistivity of top layer: 10^8-9 Ω/Sq
    -Bottom layer: Conductive NBR. Resistivity of bottom layer: 10^4-5 Ω /Sq
2) Colors: Blue and Green



Specification:



Thickness:  2mm
Width:  800, 1000, 1200mm(nominal)
Length:  10M / roll (nominal)
Tensile Strength (MPa):  27.9
Elongation(%):  295
Resistance to Group:  Less than 107 Ω /Sq
Chemical Resistance:  Solvent, Acidic, Alkali, Oil, Aromatics
Non Chemical Resistance:  D. O. P Ketone
5KV decay time: < 0.01sec.
