automatic tool changing multifunction woodworking machines



Some of the information is as follows:



This machine has two heads with automatic tool changing.

one head can cut and carve and the other head can mill and engrave.



 • Totally meet international standard: compatible to any CAD/ CAM, relief carving software.



• Independent CNC control system: closed control center, escape the machine from dust.



• Intelligent process, line crossing protection: prevent mechanical collision caused by designed area exceeds working area.



• Intelligent  speed control: working speed intelligently controlled, idlling speed, tool speed, improving efficiency, lengthen tool life, improve yield.



• Easy operation, esay use and learning: easy, convenient, easy learning control system, can be learned in a short time.



• Freely change spindle: customers can choose different spindles according to actual materials.



• Gantry moving structure: fixed worktable, can process the materials freely.

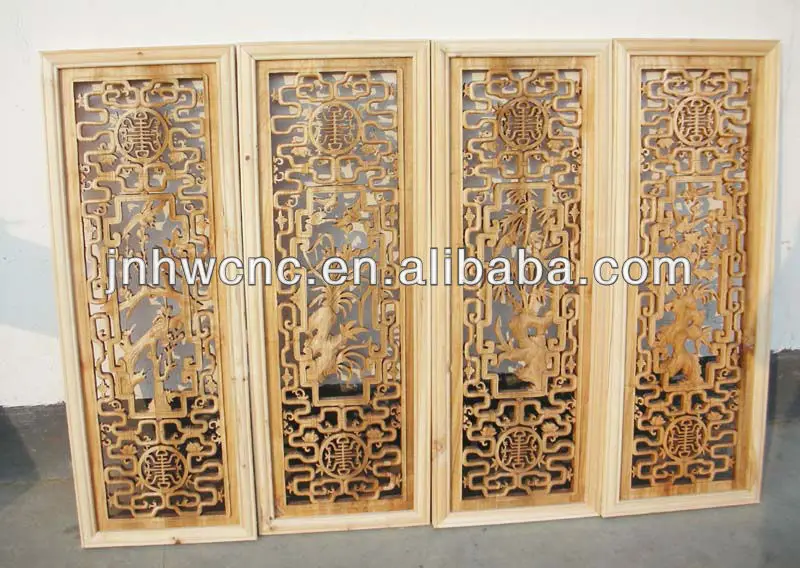

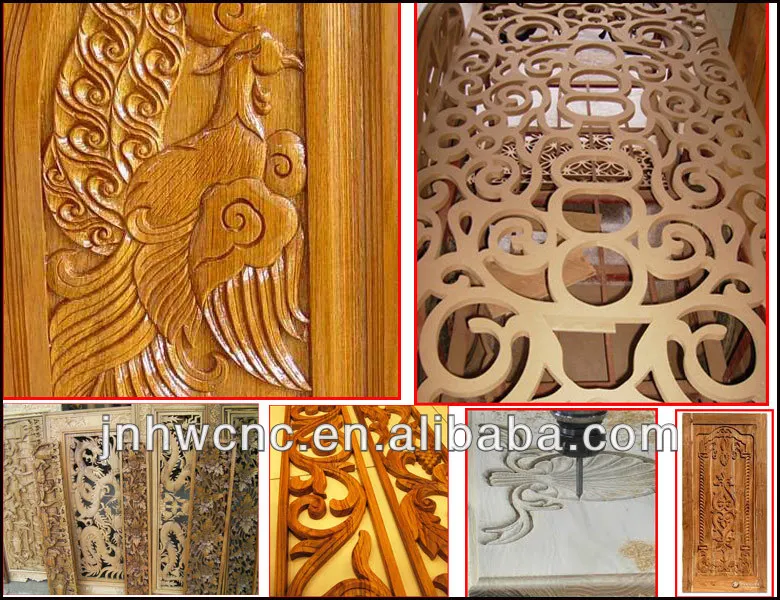

 Applications and samples

  Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.







 Parameters



X,Y,Z working area	1300*2500*200mm
control system	DSP
adsorption power	5.5kw
working voltage	220V,50HZ
spindle	3.2kw water-cooled spindle
max.engraving speed	20000mm/min
spindle rotating speed	0-24000mm
processing accuracy	0.05mm
reponsitioning accuracy	0.02mm
drive system	stepper motor(optional)
guide rail	X,Y,Z TAI WAN HIWIN linear square guide rail
inverter	Fuling  inverter
transmission	oblique rack drive
software	compatible
	type3/Artcam/Castmate/Proe/UG/Artgrave etc.
dictate format	G-Code
computer interface	USB
fixing method	vacuum suck with 12 sections
dust collector	yes
flash memory	128M(U disk)
certificate	CE

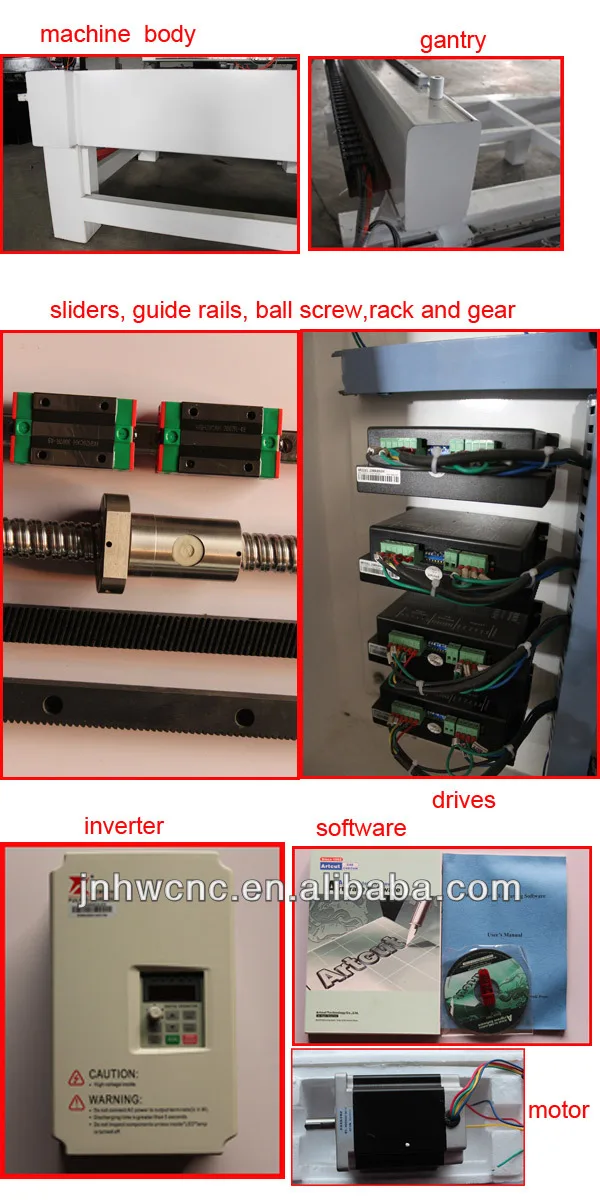

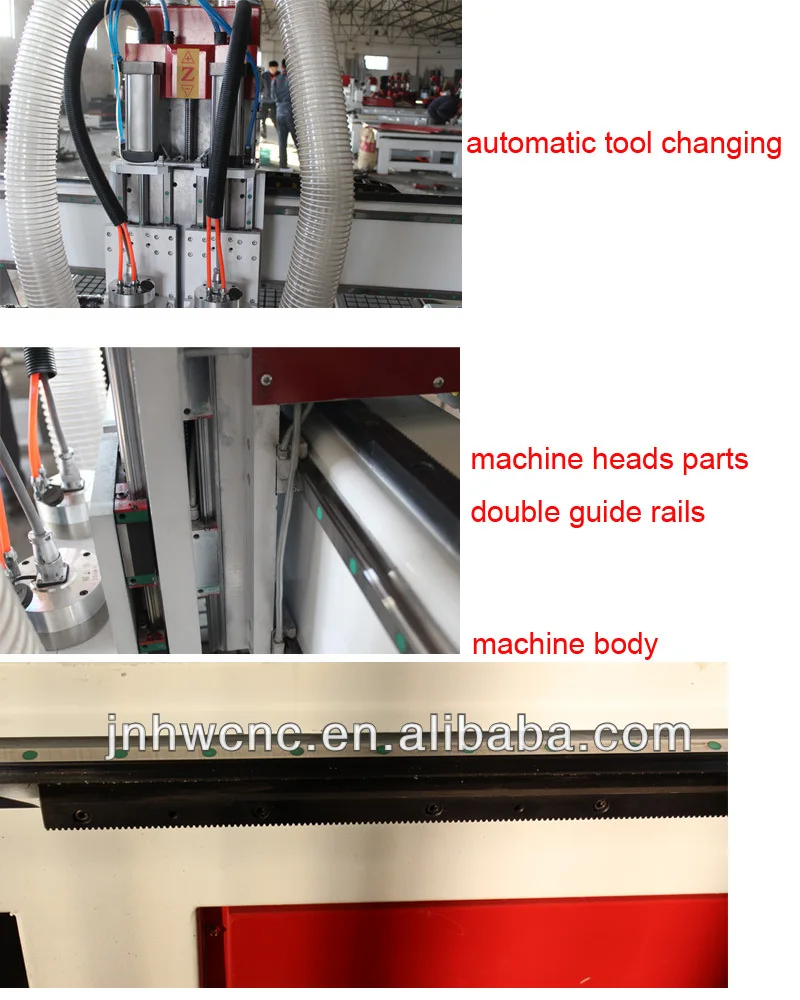

Main machine parts showing



Looking forward to coorperating with you!
