BLPS-YK micro refrigeration automatic pressure switch

Application

It is mainly used for high or low pressure protection and controls on household, commercial and automotive air conditioning refrigerating systems, and can also be used to protect and control high or low pressure on air compressor, hydraulic machines, various equipment and tools.



Operation/working principles

when the medium (liquid or gas) pressure within the pressure system is above or below the rated security pressure, the dish metal diaphragm within the system jumps instantaneously, thus to push the switch contact to be connected or disconnected through a connecting rod; when the pressure drops to the rated recovery value, the dish metal diaphragm is instantaneously reset and the switch is automatically reset.



Technical specialist

3.1. Electrical connection method: Terminal(socket) or Wiring.



3.2. Pressure Range: 3-667PSI or 0.02-4.6mpa or 0.3-46bar.



3.3. Service time: Bigger than 100000 times



3.4. Manufacture setting (contact form): Normal open or Normal close.

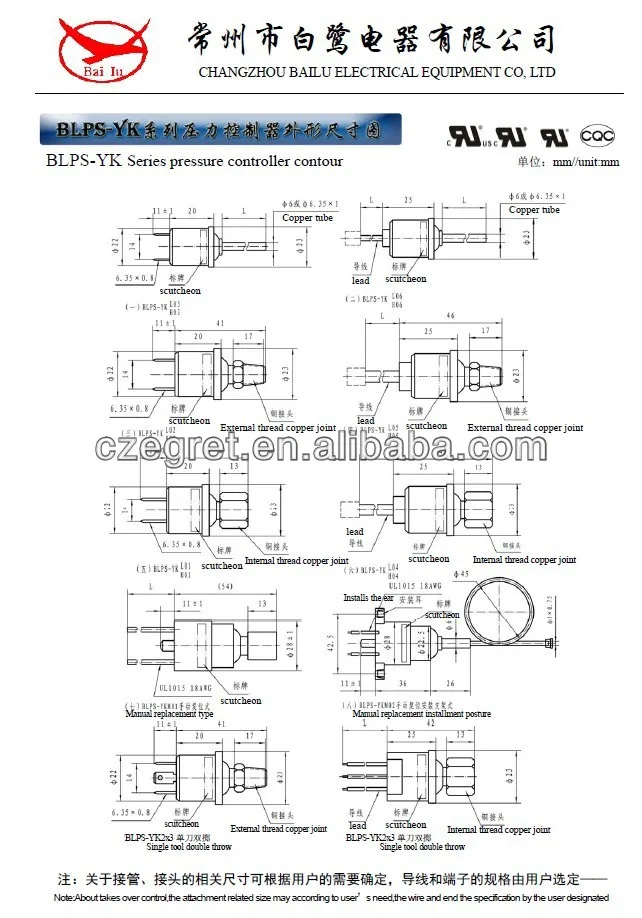

3.5. Machine connection method: Copper tube welding(70mm,55.4mm), thread(internal or external).





Technical form



NO.	Name	Features/setting value
1	Setting range of pressure range	3-667PSI/0.02-4.6mpa
2	Tolerance range of pressure switch	1.45-14.5PSI/0.01-0.1mpa
3	Contact form	Normal open, close
4	Contact capacity	AC240V,3A,AC120V,6A
5	Contact resistance	≤ 50 MΩ
6	Insulation resistance	≥100 MΩ(between terminal and housing)
7	Dielectric strength	No breakdown and flashing in 1min at AC1500V
8	Maximum burst pressure	No burst phenomenon in 1min at ≤5000PSI(34.5MPA) blast pressure
9	Gas tightness	No leakage (4.8mpa/1min)
10	Adaptive temperature	-30-80 degree
11	Life cycle	≥100000 times,
12	Over pressure Test	Increase to 10mpa.No burst and leakage in 10mins







Common used pressure value reference(unit:mpa)



Code	Series	Opening pressure value	Closing pressure value	Pressure category	Contact form
1	BLPS-YKH	2.5±0.06	2.0±0.05	High pressure	Normal close
2	BLPS-YKH	2.6±0.06	2.2±0.06	High pressure	Normal close
3	BLPS-YKH	2.8±0.06	2.2±0.06	High pressure	Normal close
4	BLPS-YKH	3.0±0.06	2.4±0.06	High pressure	Normal close
5	BLPS-YKL	0.05±0.03	0.15±0.04	Low pressure	Normal open
6	BLPS-YKL	0.15±0.04	0.3±0.05	Low pressure	Normal open
7	BLPS-YKL	0.3±0.05	0.45±0.05	Low pressure	Normal open
8	BLPS-YKL	0.02±0.01	0.15±0.04	Low pressure	Normal open



(Remark: The pressure value can be manufactured according to the requirement of customer)
