20 футов компактный легкий портативный приподнятый Мачтовый столб для фотосъемки
- Категории: Telecommunication Towers & Accessories >>>
- Поставщик: Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
model | telescopic pole |
exteneded length | 20ft |
closed length | 5.5ft |
payload | no less than 30kg |
OD | top 36-87mm |
material | aluminum alloy |
accessories | air comperssor,air tube,etc. |
No. of section | 4 |
we supply telescopic mast up to 35m,it can bear payload
not less than 10kg,usually used as antenna mast,communication tower,
light support,camera mast and so on
A.it can be adjusted to any length

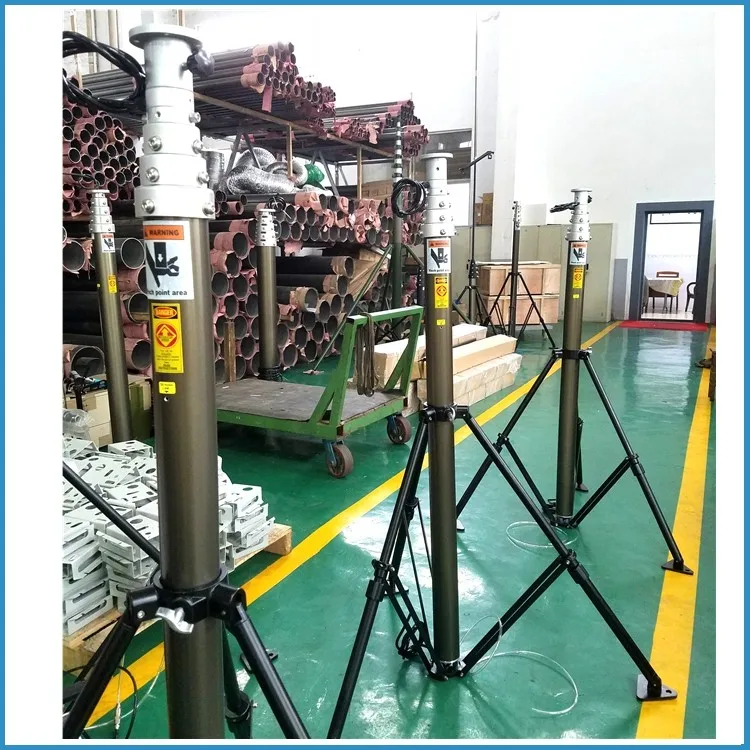

B.it can be mounted on the vehicle or stand on the ground with tripod
C.high strenght can bear large payload
besides,there are 3 designs for choice
A.handlifting telescopic mast
B.electric lifting&hand lifting telescopic mast
C.pneumatic telescopic mast
material:usually aluminum alloy
accessories
model | unit |
guy wire | 1 set |
ground anchor | 1 set |
air compressor or manual pump | 1 unit |
tripod or car clamp | 1 unit |
top plate | 1 unit |
bottom base | 1 unit |
more details as follows
Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast
Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car
Assist the pole to be fixed to a truck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories
Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Air pipe,Pressure gauge
Basic guy accessories
manual hand pump
Detailed Images

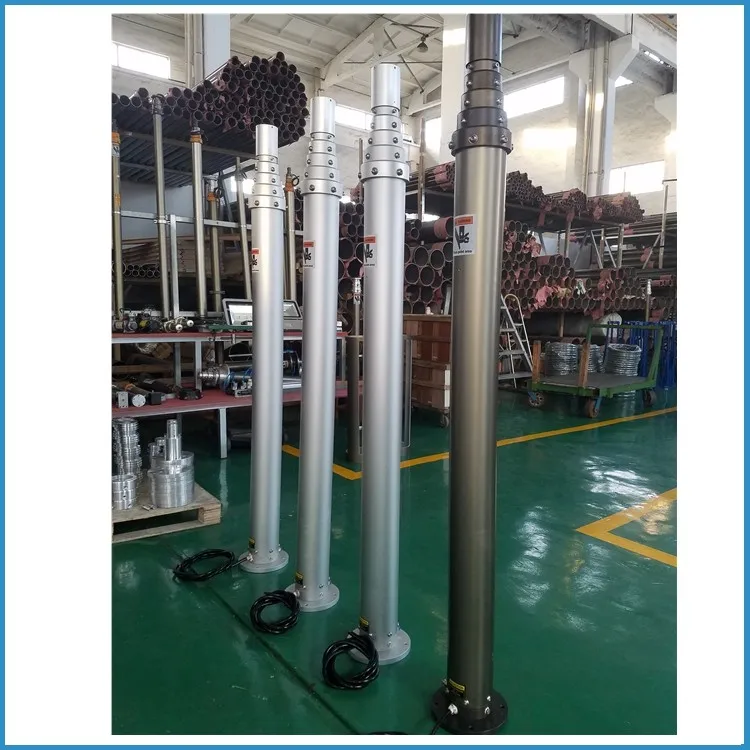

20ft compact light weight portable elevated mast pole photography
Packing & Delivery
20FT compact light weight portable pole , telescopic cb atenna mast
package | ||||||
carton packed | normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request | |||||
plywood packed | normal package is plywood case for extended height more than 10m, weight more than 70kg mast | |||||
After-sale service
Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
it’s better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height (m) | No. of section | retracted height (m) | outer tube range (mm) | max. head loads(kg) | self weight (kg) |
2 | 2 | 1.3 | 118-98 | 150 | 22 |
3 | 4 | 1.1 | 87-43 | 30 | 25 |
6 | 5 | 1.7 | 118-51 | 30 | 42 |
8 | 7 | 1.8 | 140-36 | 30 | 65 |
10 | 7 | 2.20 | 140-36 | 30 | 72 |
12 | 7 | 2.6 | 140-36 | 15 | 85 |
15 | 7 | 3.0 | 140-36 | 20 | 90 |
16 | 8 | 3 | 180-51 | 30 | 175 |
18 | 10 | 3 | 279-66 | 100 | 330 |
20 | 9 | 3.3 | 229-66 | 55 | 300 |
30 | 13 | 4 | 316-51 | 30 | 630 |
Welcome to contact
contact person: Ms.Grace Wang
Talents Enterprise Company Limited
T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106
whatsapp:0086 18222428293
W: http://www.tjtalents.cn
We strive for 100% Positive Feedback! If not completely satisfied with your purchase, please contact us BEFORE leaving feedback. We promise to discuss and mutually resolve all problems or mistakes immediately.
