Мини-трактор 30 л.с. 4x4

Описание и отзывы

Характеристики

30HP 4x4 Lutong Mini wheel Tractor LT304



Product Features ---





1. The use of a simple floor structure and an external divider is easy for maintenance;
2. The safety frame is optional;
3. The single-acting or double-acting clutch is optional;
4. The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity distribution is reasonable to meet different operating needs;
5. The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6. The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible.
7. The front and rear narrow treads, stepless and adjustable rear tread and the minimum tread of 960mm can better meet the operational requirements.

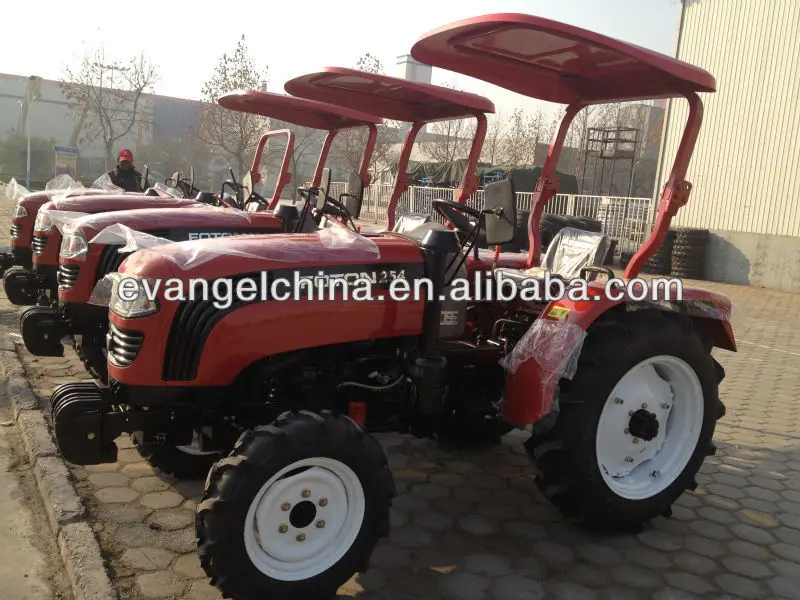

Product Pictures ---





Product Parameter ---



Drive type	4*4
Overall dimension(L * W * H)	3225*1240*1900
Wheelbase (mm)	1639
Track(front/rear)	1215/960-1460
Track(front/rear) regulating method	Fixed/stepless
Min.Ground clearance(mm)	270
Min.operating weight (kg)	1400
Counterweight (max)(front/rear)	80/124
Gears(forward/reverse/creeper)	8+2/8+8
Theoretical speed of each gear(forward/reverse)	1.72-26.02/2.25-10.39;1.72-26.02/1

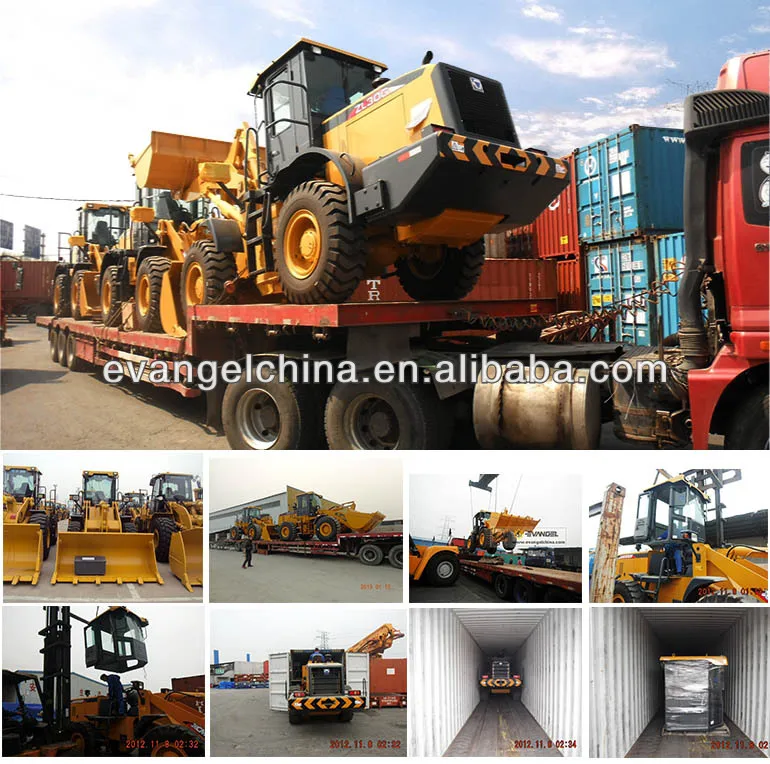

Our Delivery Photos ---
