27qg100 кремнистая

Описание и отзывы

Характеристики

Specifications of 27qg100 silicon steel

1) Thickness: 0.15mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm
2) Width: 800-1000mm
3) Inner Diameter: 508mm
4) Weight of each coil: 2-5 tons
5) Coating: Insulation coating of T2

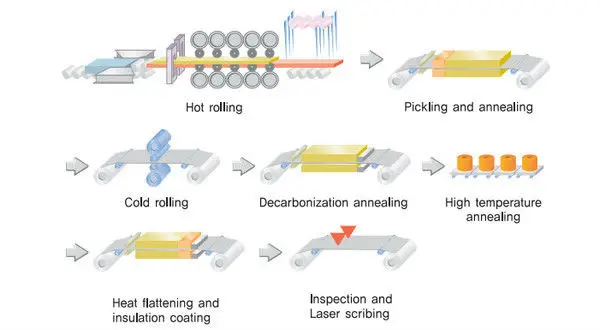

Manufacturing 27qg100 silicon steel:

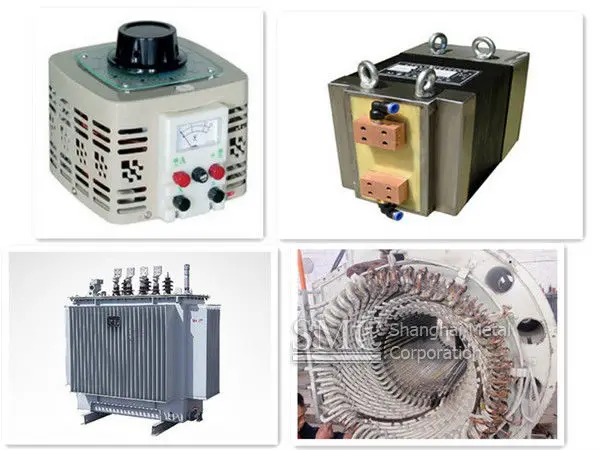

Application 27qg100 silicon steel:
1) Large power transformer
2) Medium & small power transformer
3) Distribution transformer
4) Reactor & magnetic amplifier
5) Audio transformer
6) Current & potential transformer
7) Ballast
8) Welding transformer
9) Magnetic switch core

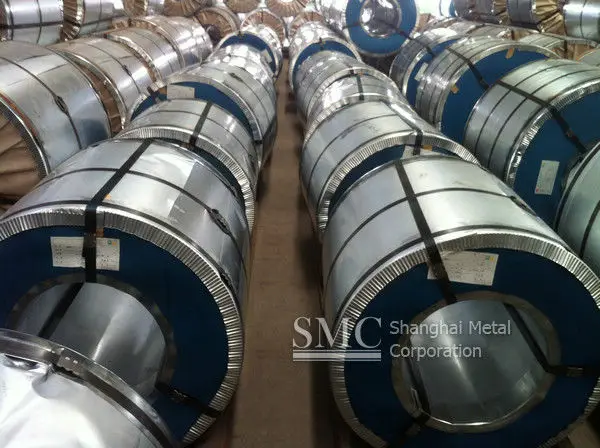

Packaging Oriented Silicon Steel:

Reference table of Chinese and Foreign Standard:

Thickness mm	GB/T2521-1996		JIS C2552-86		DIN 46400P.3		AISI(1983)		GOST21427.1
	Design ation	P15/50 W/kg	Designation	W15/50 W/kg	Designation	P1.5/50 W/kg	Design ation	P1.5/50 W/kg	Designation	P1.5/50 W/kg
0.27	27QG100 27QG110 27QG120 27Q120 27Q130 27Q140	1.00 1.10 1.20 1.20 1.30 1.40	27ZH100 27ZH110 - 27Z120 27Z130 -	1.00 1.10 - 1.20 1.30	- - - - VM130278 VM89-27N	- - - - 1.30 1.40	M-OH M-1H - M-3 M-4 -	1.03 1.09 - 1.21 1.27 -	- 3409 3408 3407 3406 3405	- 1.08 1.14 1.20 1.27 1.38
0.3	30QG100 30QG105 30QG110 30QG120 30Q120 30Q130 30Q140	1.00 1.05 1.10 1.20 1.20 1.30 1.40	30ZH100 30ZH105 30ZH110 30ZH120 30Z120 30Z130 30Z140	1.00 1.05 1.10 1.20 1.20 1.30 1.40	- - VM111-30P VM117-30P - - -	- - 1.11 1.17 - - -	- M-0H M-1H M-2H - - -	1.05 1.11 1.17	30PH132 30PH139 30PH145 30PG158 30PG172 30PG185	1.00 1.05 1.10 1.20 1.30 1.40
0.35	35W250 35W270 35W300 35W360 35W400 35W440	2.50 2.70 3.00 3.60 4.00 4.40	35H250 35H270 35H300 35H360 - 35H400	2.50 2.70 3.00 3.60 - 4.40	V250-35A V270-35A V300-35A - - -	2.50 2.70 3.00 - - -	36F320M 36F324M 36F386M 36F452M - -	2.53 2.70 3.05 3.57 - -	2413 2412 2411 - - -	2.50 2.70 3.00 - - -
