Products Description
Application:
1) Mini towable backhoe matched any vehicles;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
Details Images
Product Paramenters
Type | MODEL-10 |
weight | 900kg |
digging bucket capacity | 0.025cbm/120kg |
bucket width | 380mm |
Enging | Koop |
Bore stroke | Single cylinder, fan cool |
Rated power | 8.2kw/3600rpm |
Displacement | 6.8ml/r |
Travel speed | 1.5km/h |
Main Demensions | |
Overal dimension(LxWxH) | 2775x9300x2219mm |
Wheelbase | 910mm |
Total length of track | 1230mm |
Platform ground clearance | 380mm |
Platform back turning radius | 784mm |
Chassis width | 896mm |
Track width | 180mm |
Chassis ground clearance | 132mm |
Track height | 320mm |
Operating Range | |
Max. Digging depth | 1650mm |
Max. Vertical digging depth | 1375mm |
Max. Digging height | 2610mm |
Max. Dumping height | 1850mm |
Max. Digging radius on ground | 2850mm |
Min. Rotation radius | 1330mm |
Max. Upgrade height of bulldozer blade | 345mm |
Max. Digging depth of bulldozer blade | 255mm |

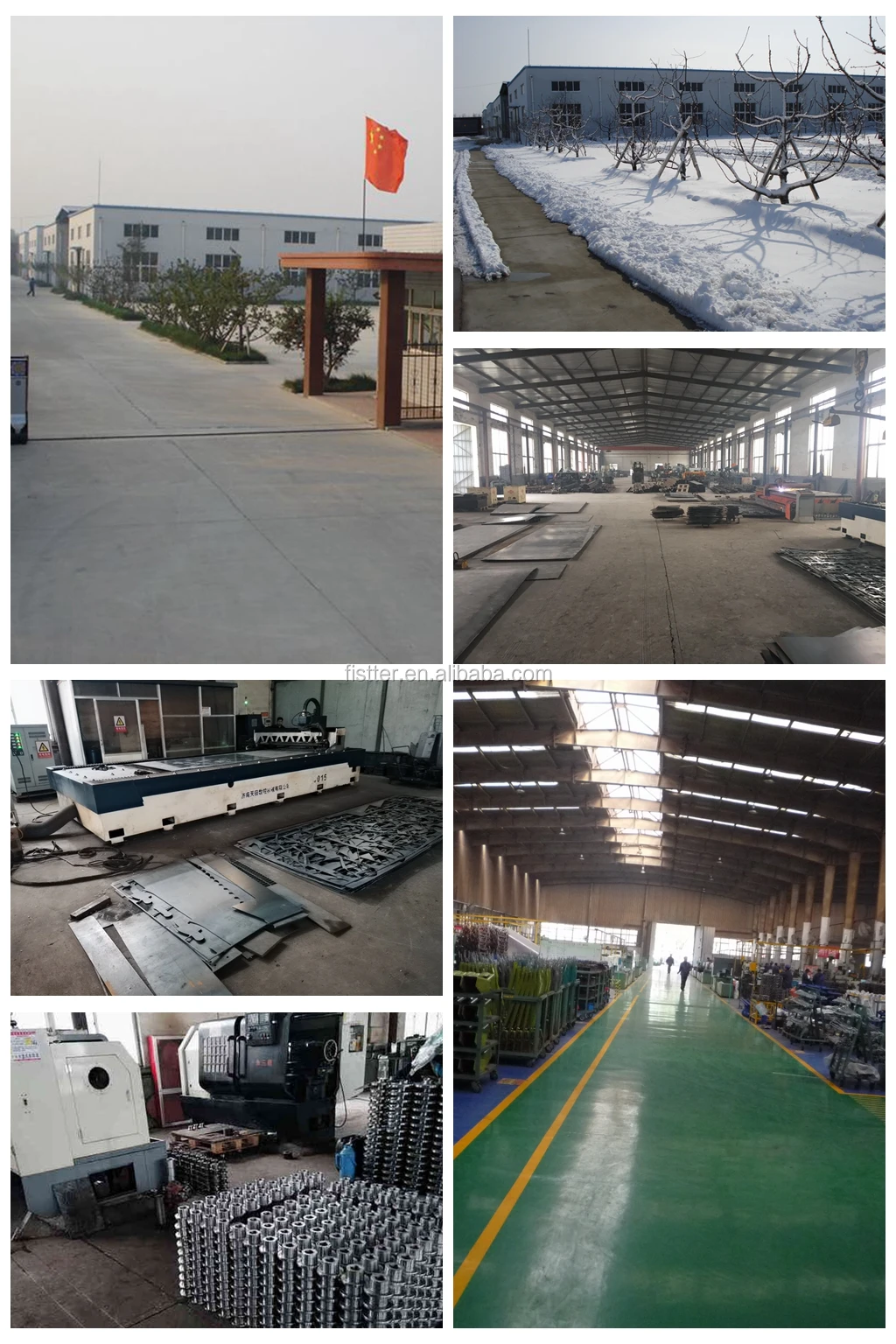

Company Profile
About us
Fistter was established in 2002 and now is one of the largest farm machine manufacturers. Our company has get the reputations of "Quality no complains company" continually 7 years and "one of 10 best agricultural enterprises in Weifang.".
Our company has Obtained the CE certificate for our products. The specifications of our products are tailor-made to requirments of customers. We also can do OEM for customers. We will be appreciated that you can give advices and suggestions on our products and services.
