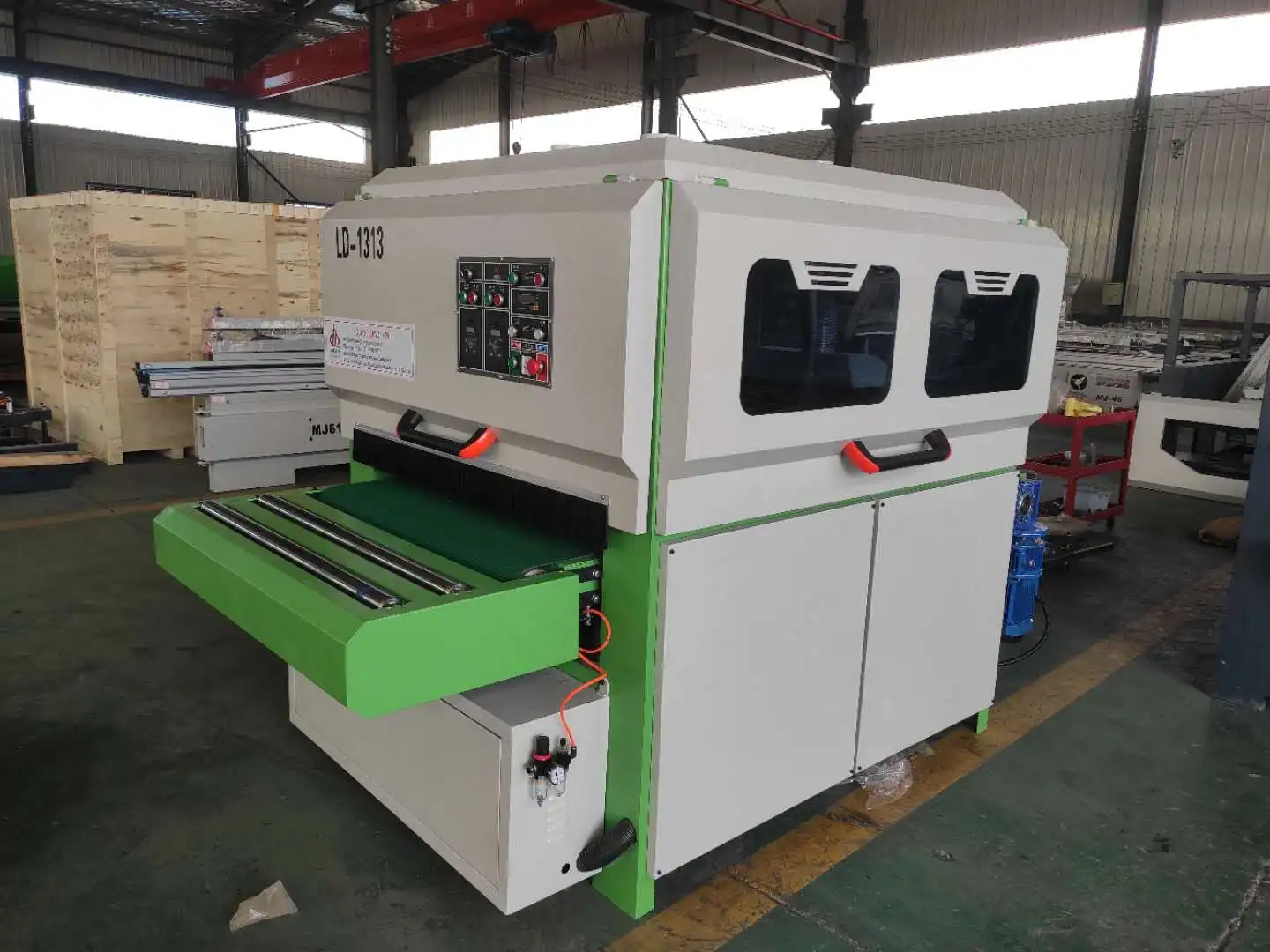

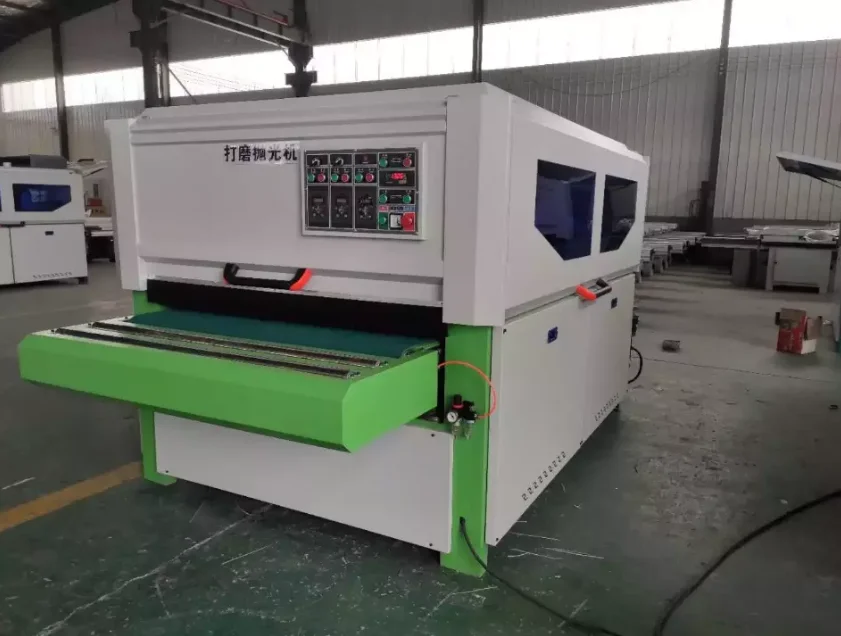

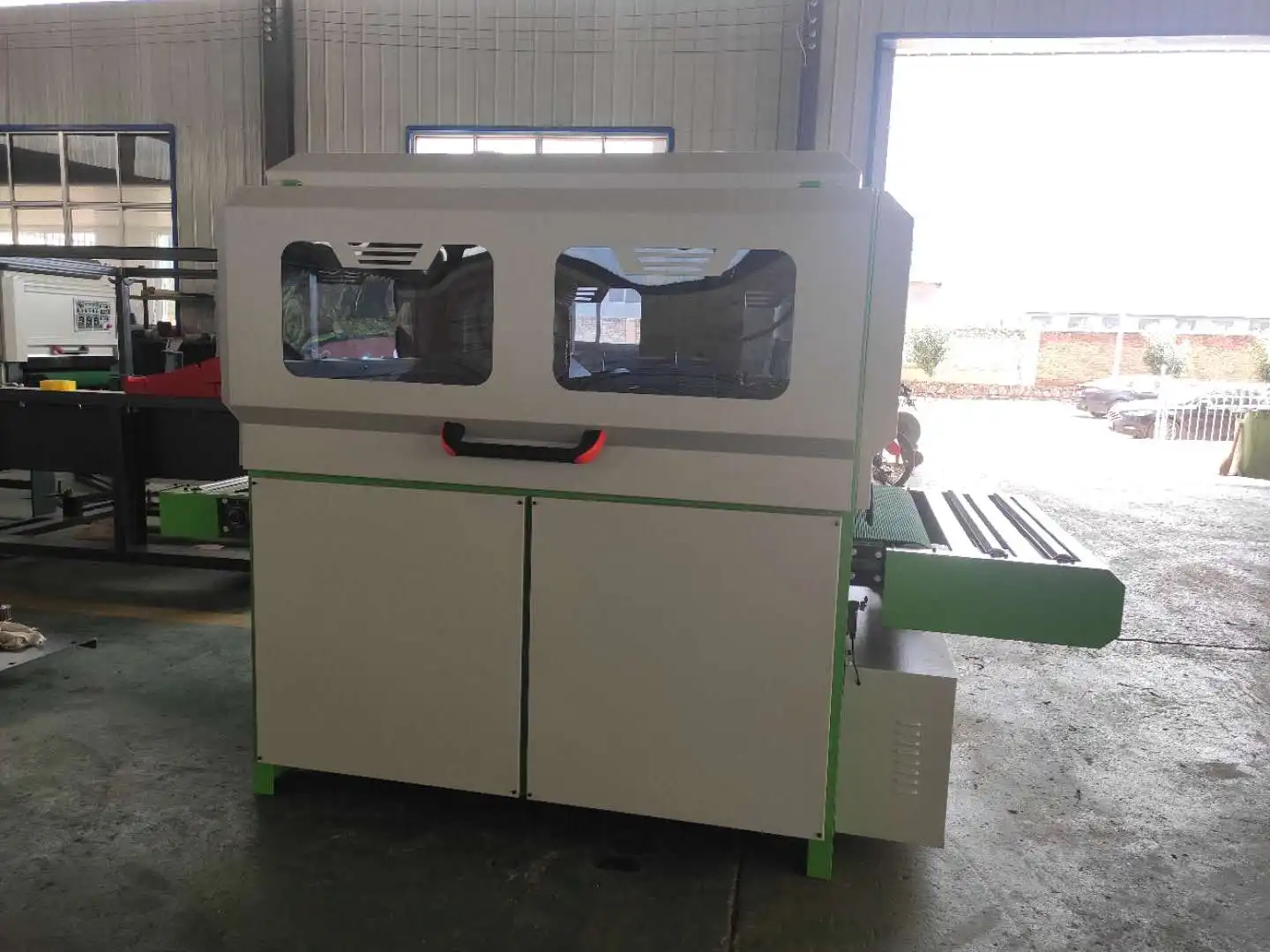

Шлифовальный станок для дерева 1000 мм ширина деревообрабатывающего оборудования шкаф из МДФ деревянная щетка ногтей
- Категории: Другое деревообрабатывающее оборудование >>>
- Поставщик: Shandong,Guandiao,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Contact Me
Products Description
Type | GD630 | GD1000 | GD1300 |
Working width | 30-630mm | 30-1000mm | 30-1300mm |
Working thickness | 2-100mm | 2-100mm | 2-100mm |
Feed speed | 5-25m/min | 5-25m/min | 5-25m/min |
Size of abrasive belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
Working air pressure | ≥0.55Mpa | ≥0.55Mpa | ≥0.55Mpa |
Speed of sucked air | ≥25m/s | ≥25m/s | ≥25m/s |
Overall dimensions | 1862*1240*1995mm | 1862*1635*2040mm | 2262*1983*2130mm |
Show details

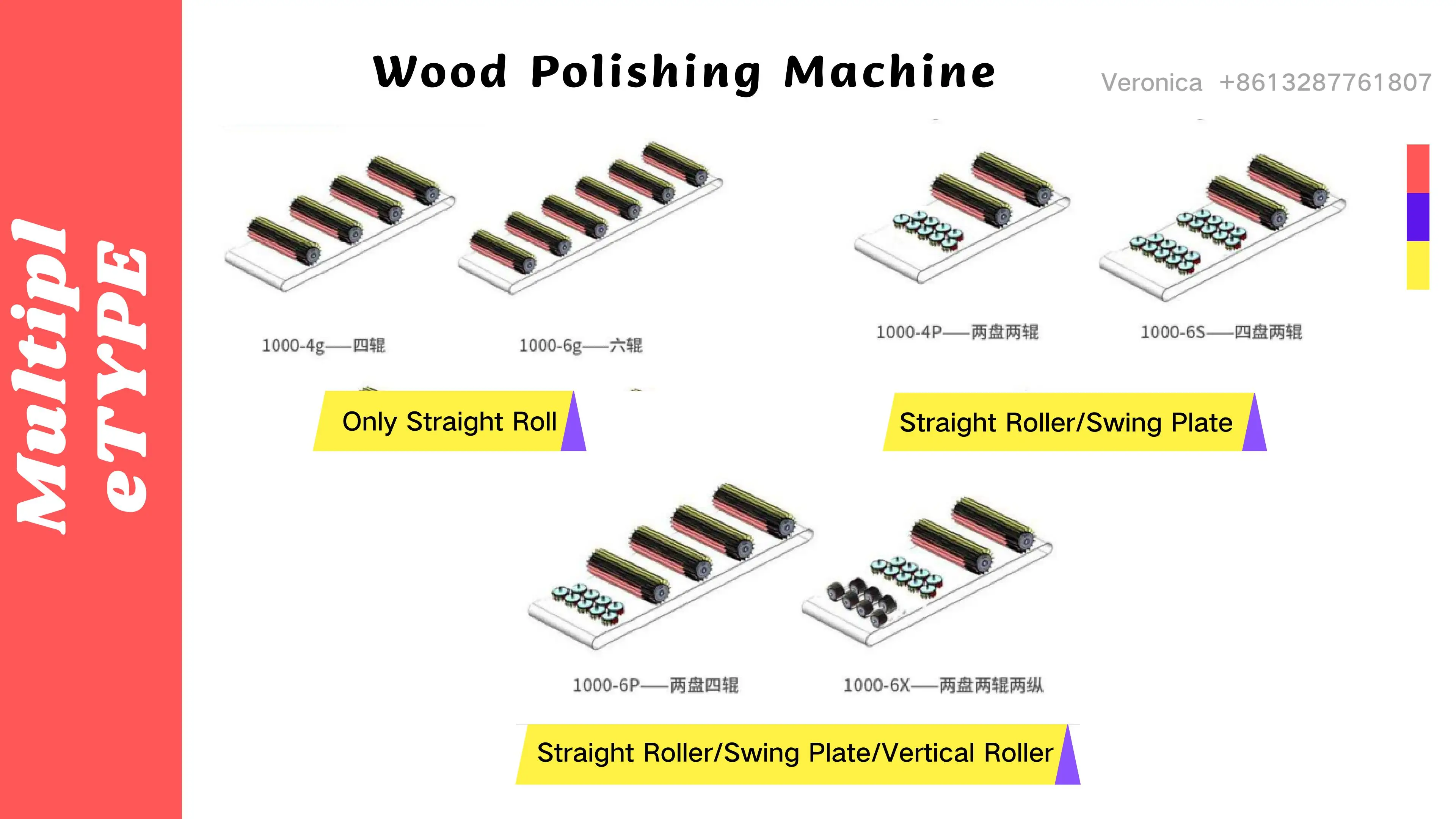

Multi-Type Machine
Advantage features
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensionning cylinder is made of cast iron, which has large tension and good stability.
1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability
2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient
maintenance.
3. The belt tensionning cylinder is made of cast iron, which has large tension and good stability.

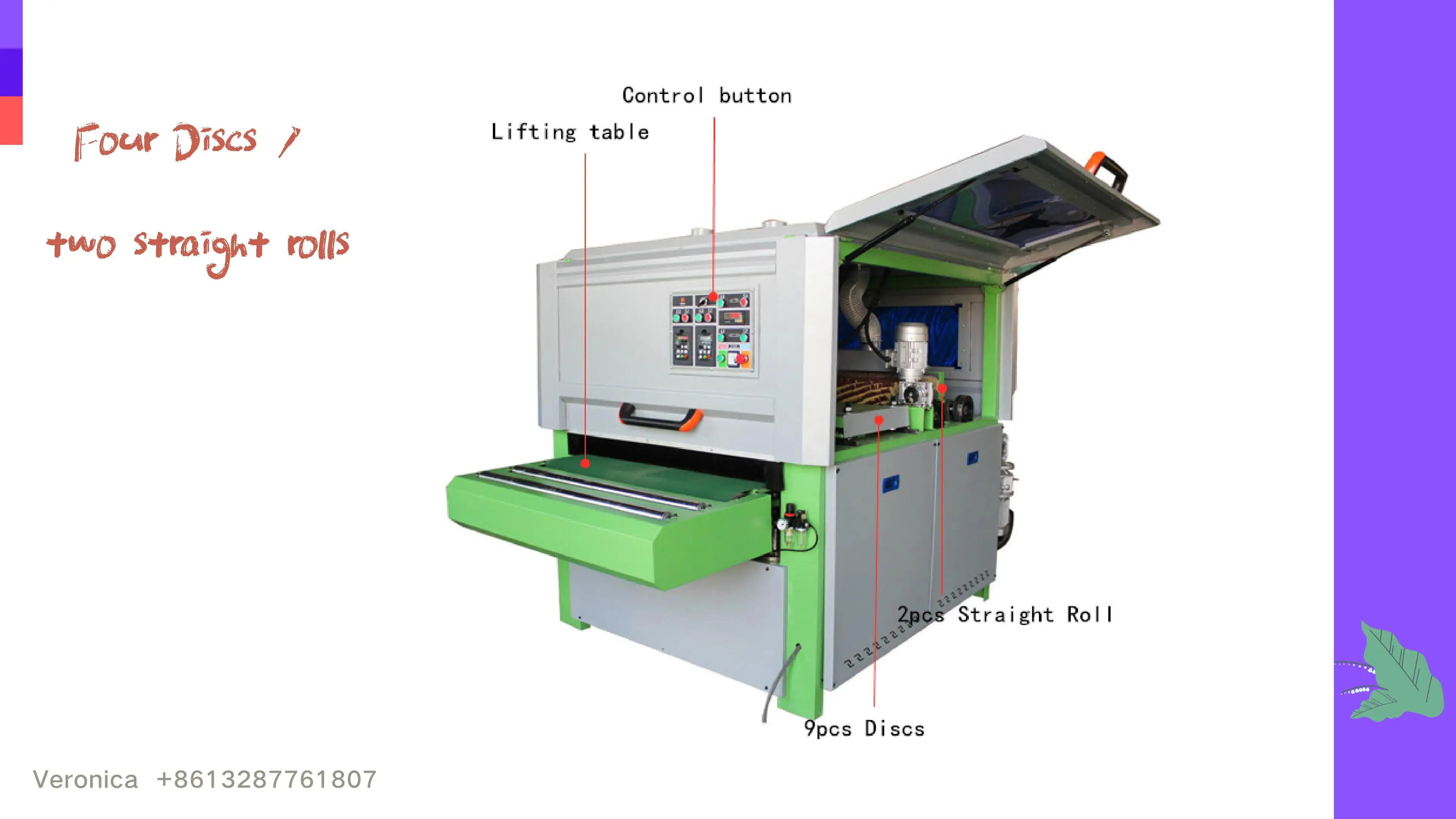

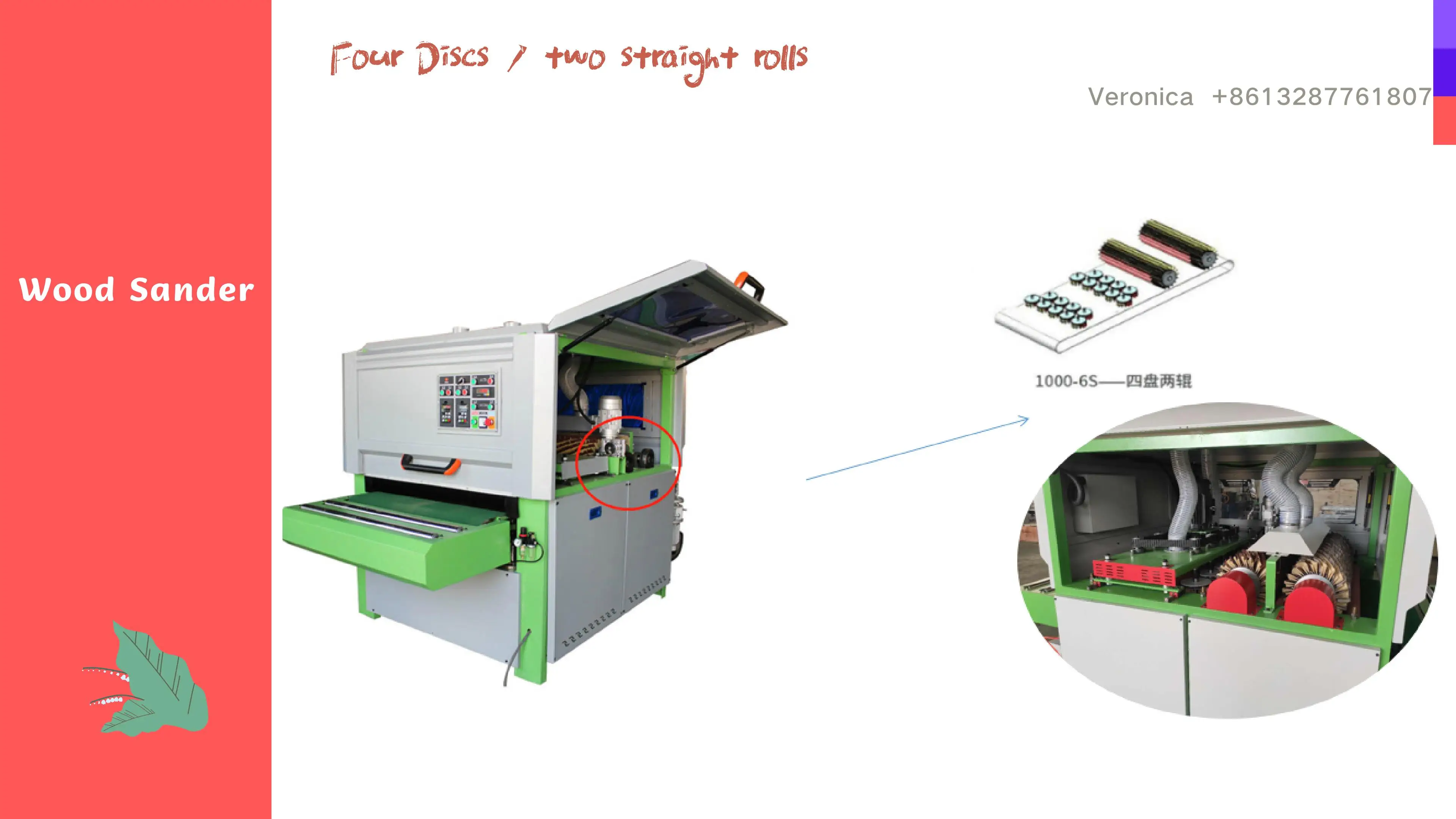

NO.1 Disc.
Disc vertical stagged grinding and reciprocating swing,refuse to miss,equipped with fast adapter, more convenient and fast to use.
NO.2 Straight track.
The long roll combination of large mesh yarn is put at the back of the process to make the workpiece grinding more meticulous.

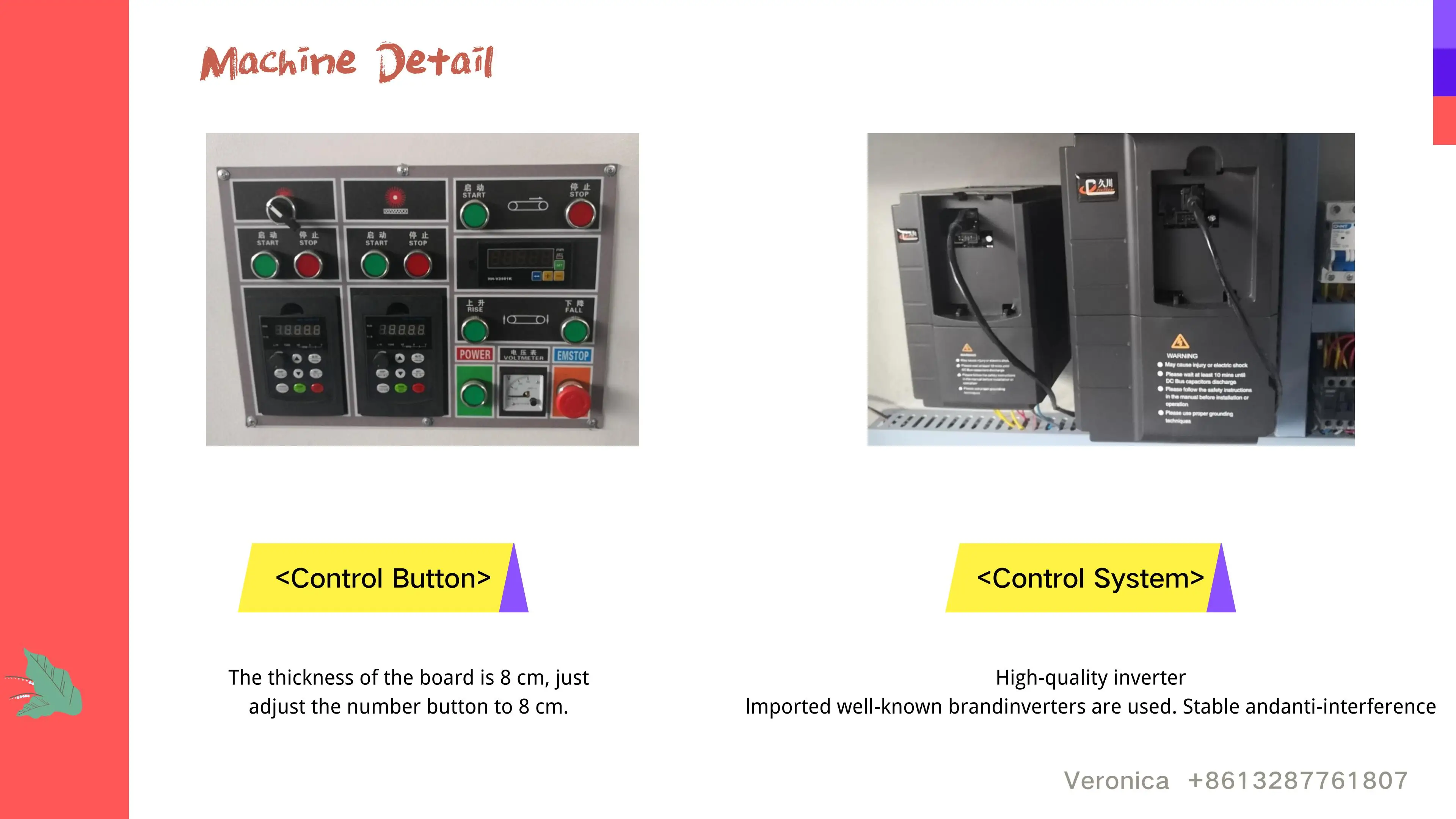

NO.3 control panel.
The panel is clean and clear,and each combination grinding is controlled separately
NO.4 control system.
Imported well-known brand inverters are used.Stable and anti-interference.
Details Images
Product Application
The machine is for surface polishing and fixed thick sanding ,suitable for timber, wood panels, block board, cement fiberboard,insulation panels, ceramic fiber, glass fiber, wall panels, wood products and other artifacts.
Company Profie
Shandong Guandiao CNC Equipment Co., Ltd
The main idea is "Condense spirit of craftsman,Creat delicate quality"
The main idea is "Condense spirit of craftsman,Creat delicate quality"
Packing and Shipping
(1):Wood case or plywood.
(2):Packing as your requirement.
Why Choose Us
1.Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM
If you have other needs, please let me know.
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM
If you have other needs, please let me know.
