Высокотехнологичный динамический гоночный симулятор первого

Product Parameter

Item

G-Force First Generation Racing simulator

Model

TW-GT-GF

Net Weight

110kg

Gross Weight

135kg

Size

180x90x130cm

Seat Color

Black and red

Packing

Seal strong wooden (inner fill with flexible package)

Bracket Pipe Diameter/ Wall Thickness

42mm/2.5mm

Bracket Surface Finish

Black matte stoving varnish

Seat

Car seat, F1 racing seat

Seat Material

Rebar, glass reinforced, carbon fibre-like leather, Litchi leather, sponge.

Steering Wheel Adjust:

Front and back 80mm, up and down 20 degree

Pedal Adjust:

Front and back 80mm, up and down 30 degree

Seat Adjust:

Front and back 180mm, up and down 180 degree

Simulator Freedom Degree:

3 degree

Transmission

Power Element:

Impulse stepping motor - High voltage permanent magnet synchronous servo motor

Driving Element:

Plum coupling

Transmission Model:

Precision ball screw

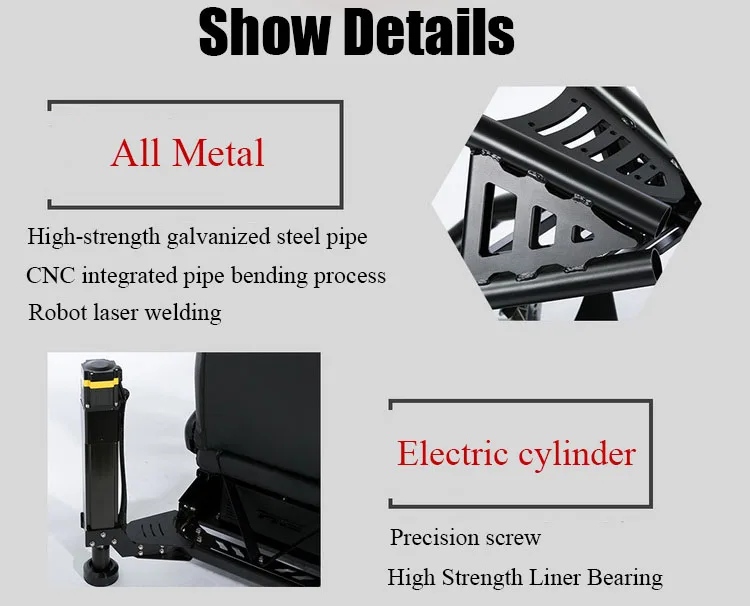

Electric Cylinder Thrust:

120kgf/pc

Electric Cylinder Stroke:

300mm

Electric Cylinder Position Accuracy:

0.001mm

Electric Cylinder Limit Speed:

300mm/ S

Electric Cylinder Limit Accelerated Speed:

8800mm/ S2

Electric Cylinder Working Life:

18000h

Electric Cylinder Working Noise:

45db

Electric Cylinder Maximum Vibration Frequency:

50Hz

Electric Cylinder Maintenance Requirements:

Lifetime free maintenance

Electric

Input Power:

AC200V~ 250V@50Hz

Rated Current:

4A

Rated Power:

800W

Safety Protection:

0mA Protection, 10A Overcurrent fuse protection

Safe Requirement:

The ground wire of three-hole socket shall be grounded

Motor Operating Voltage:

220V

Motor Control Way:

SVPWM / FOC / PID

Drive Communication Instruction Frequency:

400 order /s

Communication Interface Isolated Withstand Voltage:

±1.5KV ESD
