1080P H.264&H.265 HD IPTV Encoder For Youtube Facebook Live Streaming HDMI IP Video Encoder
. Good New: Product upgrade support POE, if you need this function pls contact us before order. POE is not supported on the device shipped by default
Product Advantages
✎ Powerful streaming media service function
1. HTTP, UDP/RTP, RTSP, RTMP/RTMPS, ONVIF, HLS, FLV and some other streaming media.Protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform/ NVR system.
2. Dual-stream output, the main-encode resolution up to 1080P@60Hz and the sub-stream resolution up to 720P@60Hz video encoding.
✎ Good performance: Transmit high definition, low-latency, the non-padding image under low bit network 1. With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 2Mbps@1080p network.
2. Latency≤200ms, Note: (≤200ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc
3. Adjustable bit rate from 16kbit/s～12Mbit/s.
✎ Strong flexibility to support secondary development, customized service available 1. SDK provided for second development 2. OEM/ODM 3. Free firmware upgrade for lifetime 4. Print customer’s logo on the shell of the device and web interface
✎ Easy operation and professional quality 1. Using Web interface to manage device. and setting are very easy. It is widely used in broadcast and TV 2. interactive media, IPTV systems, network education, secure safety and other fields, professional and stable.
Product Specifications
Model
ZY-EH311
Video
Sponge
Input interface
1×HDMI
Support resolution
1080P\1080i\720P ,1600x1200\1400x1050\1440x900\1280x1024\ 1280x960\1280x800\1024x768\800x600 etc.
Output interface
1×Ethernet port(RJ45),1×HDMI
Output resolution
Auto 1920*1080/1680*1200/1440*1050/1440*900/1360*768/1280*720/1280*800/1280*768 1024*768/1024*576/960*540/850*480/800*600/720*540/720*480/720*404/704*576 640*480/640*360/480*270
Video encoding
H.264 Baseline Profile H.264 Main Profile H.264 High Profile
Code Rate control
16kbps- 12Mbps
Code Rate
CBR/VBR
Audio
Input interface
External audio* 1
Audio encoding
ACC, MP3
Sampling rate
Auto
Bit-rate Option
32k,44.1K,48K,64K,96K,128K,160K,192K,384K
Sampling Accuracy
24 Bit
Audio Data-rate
64Kb/s to 384Kb/s
Network
RJ45
10M/1000M Ethernet port
Program streaming
HTTP, UDP/RTP, RTSP, RTMP/RTMPS, ONVIF, HLS, FLV
Control Panel
Web panel ( Language is English), remote upgrade
Firmware Update
Enable by uploading files to the dashboard
General
Dimension(W*L*H)
166*130*280mm
Gross Weight
0.3kg
Temperature
0 ~ 45℃（for working）,-20~60℃（for storing)
Humidity
<90%, non-condensing
Input Voltage
DC 12V/1A
Power Consumption
5W

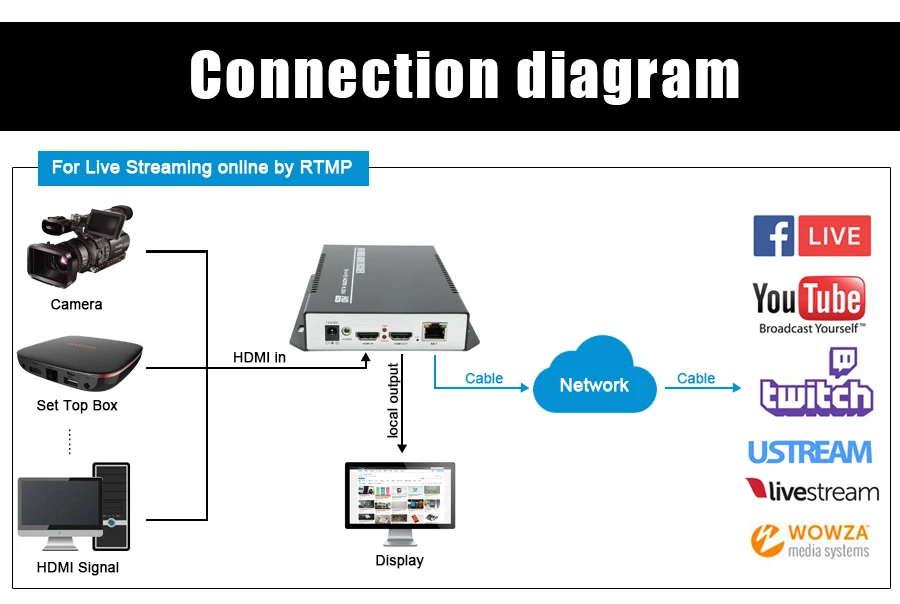

Topological Diagram
Product Application
Product Family
Model
H.264/H.265
Input
Interface
Local Loopout
Wifi Module
Audio
Maximum
Resolution
Size
ZY-EH101
H.264
HDMI * 1
×
×
HDMI Built in audio
1080P@60hz,30hz
Small box
ZY-EH101W
H.264
HDMI * 1
×
√
HDMI Built in audio
1080P@60hz,30hz
Small box
ZY-EH111
H.264
HDMI * 1
√
×
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
Small box
ZY-EH111W
H.264
HDMI * 1
√
√
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
Small box
ZY-EH401
H.264
HDMI * 1
√
×
HDMI Built in audio
3.5mm external audio
4K@30
Small box
ZY-EH404
H.264
HDMI * 4
×
×
HDMI Built in audio
3.5mm external audio
4K@30
Small box
ZY-EH408
H.264
HDMI * 8
×
×
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
1U Rack
ZY-EH121
H.264
HDMI * 1
√
×
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
1U Rack
ZY-EH114
H.264
HDMI * 4
√
×
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
1U Rack
ZY-EH1016
H.264
HDMI * 16
×
×
HDMI Built in audio
1080P@60hz,30hz
3U Rack
ZY-EH1116
H.264
HDMI * 16
√
×
HDMI Built in audio
3.5mm external audio
1080P@60hz,30hz
3U Rack
FAQ
1. Provide OEM & ODM OEM: Add customer information in software version and control web for free, MOQ is 1 unit OEM: Add customer logo on the shell of the device for free, MOQ is 10 units ODM: The customers can provide your customized requirements, We can evaluate production possibilities for our customers for free,but have to pay for development cost.
2. Provide remote technical support service Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
3. 3 years warranty We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
4. Provide factory repair service If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there will be a material charge.
5. About Import tax I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
6. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
7.About the shipping way Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
