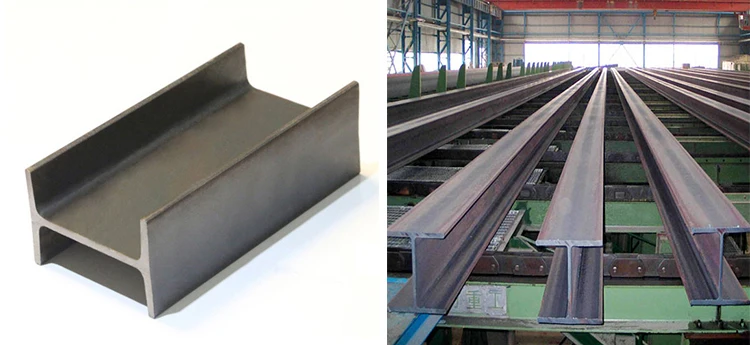

H Beam S
H Section Steel Column Prices Beams in Iron HEB S275
Product Details
| Item | H Beam |
| Material | EN S235 |
| Length | 6-12m or as required |
| Related Material | A36/SS400/40A/S355/Q235 |
Europe Standard H Beam
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
| HEA100 | 17.1 | 96 | 100 | 5 | 8 | HEB100 | 20.8 | 100 | 100 | 6 | 10 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 | HEB120 | 27.3 | 120 | 120 | 6.5 | 11 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 | HEB140 | 34.4 | 140 | 140 | 7 | 12 |
| HEA160 | 31 | 152 | 160 | 6 | 9 | HEB160 | 43.5 | 160 | 160 | 8 | 13 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 | HEB180 | 52.2 | 180 | 180 | 8.5 | 14 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 | HEB200 | 62.5 | 200 | 200 | 9 | 15 |
| HEA220 | 51.5 | 210 | 220 | 7 | 11 | HEB220 | 72.9 | 220 | 220 | 9.5 | 16 |
| HEA240 | 61.5 | 230 | 240 | 7.5 | 12 | HEB240 | 84.8 | 240 | 240 | 10 | 17 |
| HEA260 | 69.5 | 250 | 260 | 7.5 | 12.5 | HEB260 | 94.8 | 260 | 260 | 10 | 17.5 |
| HEA280 | 77.9 | 270 | 280 | 8 | 13 | HEB280 | 105 | 280 | 280 | 10.5 | 18 |
| HEA300 | 90 | 290 | 300 | 8.5 | 14 | HEB300 | 119.3 | 300 | 300 | 11 | 19 |
| HEA320 | 99.5 | 310 | 320 | 9 | 15.5 | HEB320 | 129.5 | 320 | 300 | 11.5 | 20.5 |
| HEA340 | 107.1 | 330 | 340 | 9.5 | 16.5 | HEB340 | 136.6 | 340 | 300 | 12 | 21.5 |
| HEA360 | 114.2 | 350 | 360 | 10 | 17.5 | HEB360 | 144.8 | 360 | 300 | 12.5 | 22.5 |
| HEA400 | 127.4 | 390 | 400 | 11 | 19 | HEB400 | 158 | 400 | 300 | 13.5 | 24 |
| HEA450 | 142.7 | 440 | 450 | 11.5 | 21 | HEB450 | 174.3 | 450 | 300 | 14 | 26 |
| HEA500 | 158 | 490 | 500 | 12 | 23 | HEB500 | 190 | 500 | 300 | 14.5 | 28 |
| HEA550 | 169.2 | 540 | 550 | 12.5 | 24 | HEB550 | 202.8 | 550 | 300 | 15 | 29 |
| HEA600 | 181.4 | 590 | 600 | 13 | 25 | HEB600 | 216.1 | 600 | 300 | 15.5 | 29 |
