24000/40000rpm aluminum alloy panel hardware parts cnc engraving milling machine 0.005mm accuracy jewelry engraving machine
Product description
Application | Smart home panels and furniture accessories processing, precision hardware in automobile industry, USB flash disk, mobile phone cover, acrylic doll, graphite electrode, cameric filter, plastic goggle and other hardware processing. |
Processing material | Copper, aluminum, steel, graphite, gold, silver, acrylic, pvc, jade, ceramic, wood etc |
Processing technology | CNC milling, drilling, engraving, cutting, chamfering, tapping |
Customized service |
Machine parameter

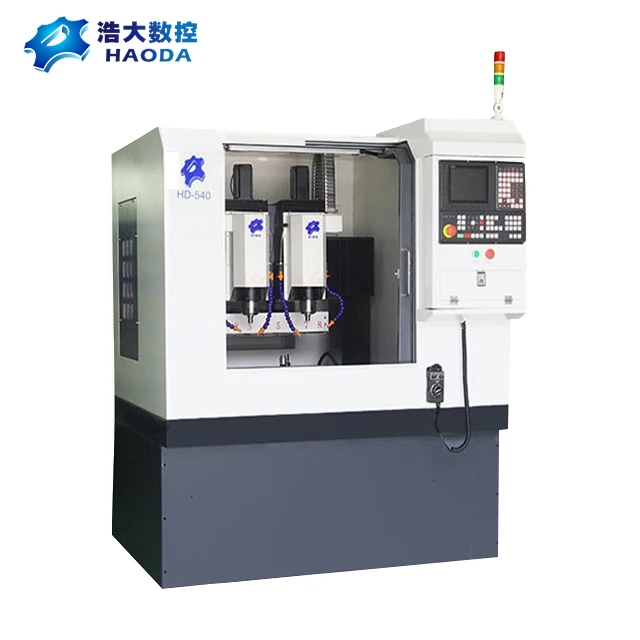

HD-540 | ||||||
Stroke | Tranmission system | |||||
Triaxial stroke XYZ | 500*360*150mm | Control System | Delta/LNC/weihong | |||
DOuble-head linkeage processing | 500*360*150mm | Three-axis AC servo motor | 750W*3(Z-axis with brake) | |||
Double-headed rotary machining | 140*400*130mm | Transmission | HIWIN P-grade guide rail, C3 grade grinding screw rod | |||
Spindle Nose to Work Table | 180mm | Lubrication system | automatic | |||
Workbench | Accuracy | |||||
working desk size(T type) | 550*400mm | Machine positioning accuracy | ±0.005/300mm | |||
Work max loading | 150kg | Machine tool repeat positioning accuracy | ±0.002/300mm | |||
Spindle | Electrical supply | |||||
Spindle motor | 2.2kw/3.7kw | Operating Voltage | Three phase AC380V±10% 50HZ | |||
Spindle speed | 20000/40000rpm | Air pressure demand | 6-7kg/cm² | |||
Spindle end specification | ER16/ER20 | |||||
Max.clamping tool diameter | Ф10/Ф12mm | |||||
Shank specification | ISO20 | Other | ||||
move quickly | Machine main body material | casting | ||||
3 axis max fast moving speed | 15m/min | Machine weight | 1600kg | |||

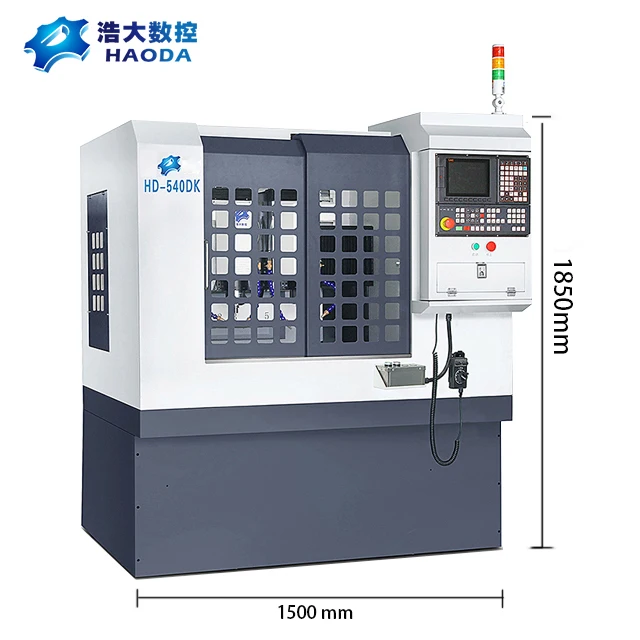

Triaxial max cutting speed | 10m/min | Machine size | 1550*1500*1850mm | |||

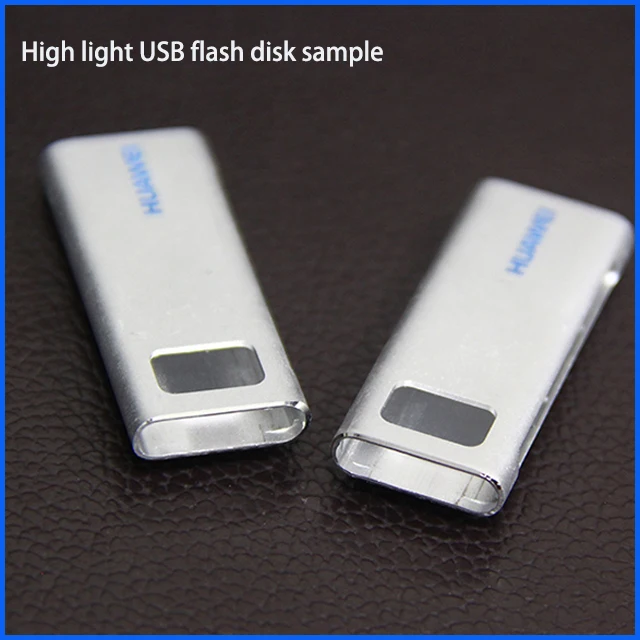

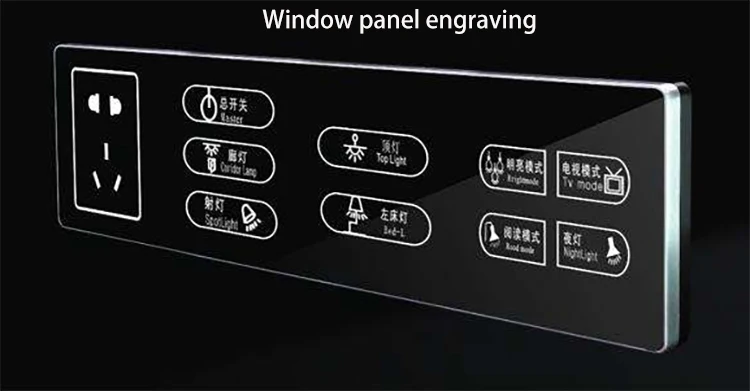

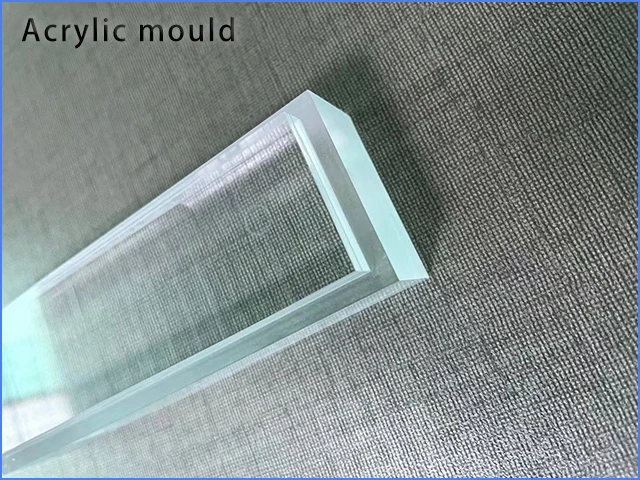

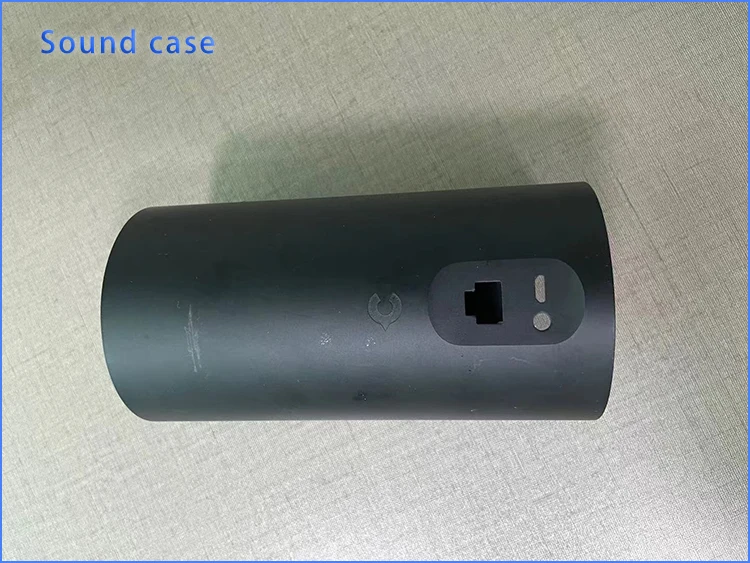

What product can process by this CNC machine?

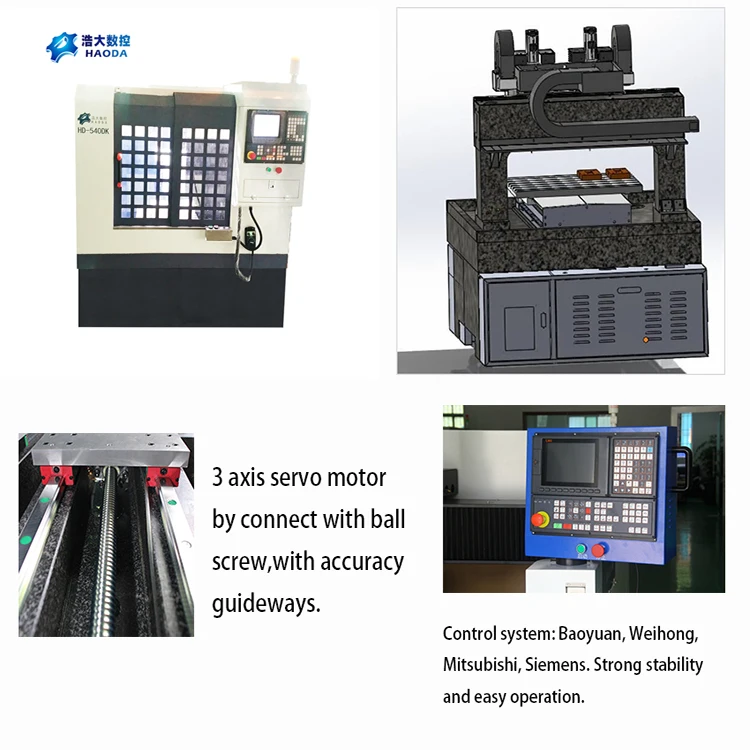

Product details
Recommend Products
Company Information
FAQ
Q1: I want to buy this machine. What is your suggestion?
A1: Please tell me: what materials do you process? what are the heights and lengths? You'd better show me your product pictures.
Q2: How about your delivery time?
A2: Usually 15 days after your deposit, we have the standard model in stock. If you are in a hurry, we will arrange the delivery as soon as possible.
Q3: This is my first time to use this kind of machine. Is it easy to operate?
A3: There is an English manual or guide on how to use the machine. If you have any question, please contact us via online service.
Q4: What is the warranty period for the machine and accessories?
A4: Warranty period: spindle motor half a year, other one year.
