Ручная работа по заводской цене неподъемный цементный затвор бабочный


Поделиться:

Цена:9,80 $ - 10,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


hand operation factory price non rising cement gate butterfly valve_01.jpg




gate valve,6 inch gate valve,stem gate valve,sluice gate valve,gate valve with prices,cast iron gate valve,gate valve price list,4 inch gate valve,slide gate valve,electric gate valve,gate valve 1 inch,gate valve picture,ductile iron gate valve,12 inch gate valve,wedge gate valve,8 inch gate valve,gate valve manufacture,6 inch water gate valve,bronze gate valve



Product Description


Technical Parameters:






































Size



DN40-DN600



DN40-DN600



Working pressure



16Bar



10Bar



Shell



24Bar



15Bar



Seal



18Bar



11Bar



Operating Temperature



-10~+90



Operating Environment



Ballast and bilge system     Chemical processing


Desalination plants  Drilling rigs


Drinking water Dry powder


Food and beverage Gas plants


HAVC  Mining industry


Paper industry Sand handling


Seawater


Sugar industry


Thermo technical water treatment


Waste water



Driving  method



Hand wheel  Electric  Pneumatic





Executive Standard:






















Design Standard



DIN 3352  BS5163  API 600



Inspection & Test



DIN 3230  ISO 5208  API 598



End Standard



BS4504PN10 & PN16


ANSI B16.1 CL. 125LB & B16.5 CL. 150LB


DIN 2501  PN10 & PN16


EN 1092  PN10 & PN16


ISO 2531  PN10 & PN16


ISO 7005 PN10 & PN16


JIS B 2210 10K


MSS SP44 CL. 150LB



Face to Face



DIN 3202 F4 & F5


BS 5163   ISO 5752





Main Material:


























Name



Material



Body



  Ductile Iron  Carbon Steel  Stainless Steel  AL-Bronze



Disc



  Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze



Shaft



  Stainless Steel  Brass



Seat



BUNA  NBR  EPDM  VITON








PACKING & SHIPPI







COMPANY PROFILE




TIANJIN WORLDS VALVE CO., LTD.is located at TIAN JIN BIN HAI  where is only 3 kilometers away


from Tianjin Xingang Port,TIANJIN WORLDS VALVE  CO.,LTD. is a specialized manufacture enterprise


that focuses producing, installing, sale and service. The main products include Center Line Butterfly Valve,


Flanged Butterfly Valve, Metal Butterfly Valve, Check Valve, Gate Valve, Waterpower Control Valve,


Microresistance Slow Close Check Valve, Multi-function Pump Control Valve and their series products.


Moreover, we can produce control valve and pressure reducing valve that are different materials,


pressures, specifications, actuation ways. Our products include more than 50 serials and 1200 species,


and the annual production output is more than 8.000 metric tons. WORLDS valves have been selling well


all over China and exporting to Europe, America and other countries and areas, which are used widely in


water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. Our


products are quite creative, good quality, cheap price and excellent credit, so customers trust our products.

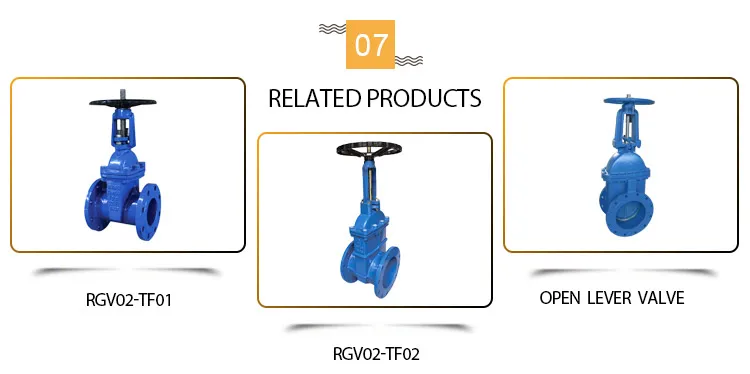

Related products







FAQ




1. Q: Are you a manufacturer or trading company ?


A: we are valve manufacturer and factory ,and not trading company.


2. Q: Do you have agent or representative abroad?


A: We dont have agent abroad,


please contact us to purchase valves from Tianjin Worlds Valve Co.,Ltd directly.


3. Q: What's your product range?


A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,


by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.


4. Q: Is there any stock in your factory? and how about your lead time?


A: We stock valves with normal sizes.


The lead time depends on your quantity,generally 30-40 days.


5. Q: Which countries do you export to ?


A: We export directly to vast majority of countries in the world.


6. Q: What certificates will you provide ?


A: We can provide CE-PED / ISO / WRAS - UK/ ACS-France CO.


7. Q : How do you control the quality of the product?


A: Adheres to strict quality control procedures that begin with product design and carry


through to the end of the production process using state-of-the-art quality control equipment.
