6 в 12 В 24 постоянного тока насос-бустер водяного давления на солнечной батарее лидер продаж Китае длительный срок службы высокое давление бесшумный 300-900 л/ч 1-15 м 10-60

Описание и отзывы

Характеристики

Professional manufacturer top quality low pirce high pressure 300-900LPH 1-15M 10-60W 6V 12V 24V dc solar water pressure booster pump CE ROHS for solar pool heating system, solar spa heating system, solar water heater, mobile bath machine, foot massage, Electric Vehicle Engine, car washing, irrigation, solar water circulation, water circulation of home appliance, crafts, etc.





Pump Main Features:

1. Compact size and light weight; Very good structure design to avoid heating.

2. High efficiency, low power consumption.

3. Single and three-phase motor can be supplied.

4.  Environmental protection and safe working voltage: No waste, no corrosion, no explosion. Low safe voltage: from 12VDC to 48VDC.

5.  High efficient BRUSHLESS DC MOTOR with long lifespan: over 30000 hours.

6.  Heavy duty work: It can run 24 hours continuously.

7.  Low noise, within 40db

8. Imported main materials, advanced magnetics driving technology, wear-resistant and corrosion-resistant rotor, strong and wear-resistant shaft to avoid broken easily. Good seal without leakage at all.

9.  Food grade materials, no pollution and no radiation.

10.  Wide range power supply: DC regulated power supply, Solar panel, Photovoltaic Panel, Battery, Car cigarette lighter, etc.

11.  It is better operated in PURE WATER to ensure its lifespan.

12.  Specifications and functions can be customized, such as over voltage protection, over current protection, over-temperature protection, circuit protection, Reverse Polarity protection, run-dry protection, PWM speed control, etc.



Main Specifications:

• Working voltage range: 6-24V DC


• Rated working voltage: 12VDC/24VDC (Please choose one, other rated voltage also can be supplied.)


• Power range: 10-60W


• Water lift: 1-15m


• Flow rate: 300-900 L/H


• Low noise: Within 40db


• Max working temperature: 70degC


• Pump dimensions: L76*W57*H111(mm)


• Inlet/Outlet OD: 15mm / 10mm



Application: Solar pool heating system, solar spa heating system, solar water heater, mobile bath machine, foot massage, Electric Vehicle Engine, water coolant of vehicle, car washing, irrigation, sewage discharge, milling machine, drilling machine, turning lathe, fountain, aquarium, water tank, fish pond, solar water circulation, water circulation of home appliance, crafts, etc.



Specifications:

Product name	HM5017-1
Working voltage range	6VDC-24VDC
Rated working voltage	12VDC/24VDC                                    ( Please choose one, other rated voltage also can be supplied.)
Power consumption range	10~60W
Static water head range	1~15 meters
Static flow rate range	300~900 L/H
Pump size	L76*W57*H111 (mm)
Inlet/Outlet outer diameter	∅15/∅10 (mm)
Motor type	Brushless DC motor
Media	Clean water, Antifreeze, Beverage, Oil
Media condition	PH value: PH5-10(weak acid and weak base), workable both in water and on land.
Max noise	Under normal working condition,(10cm over the test instrument)<40dB
Idea lifespan	30000 hours
Ambient temperature	-40℃ to 70℃
Media temperature	0℃ to 70℃                                  (Under room temperature surroundings, fluid medium temperature.)
Power supply	DC regular power supply, battery, solar panel, photovoltaic panel, car cigarette lighter.
Customized functions (Optional)	Reverse Polarity protection, over voltage protection, over current protection, over-temperature protection, circuit protection, run-dry protection, PWM speed control, etc.
Application	Solar pool heating system, solar spa heating system, solar water heater, mobile bath machine, foot massage, Electric Vehicle Engine, water coolant of vehicle, car washing, irrigation, sewage discharge, milling machine, drilling machine, turning lathe, fountain, aquarium, water tank, fish pond, solar water circulation, water circulation of home appliance, crafts, etc.

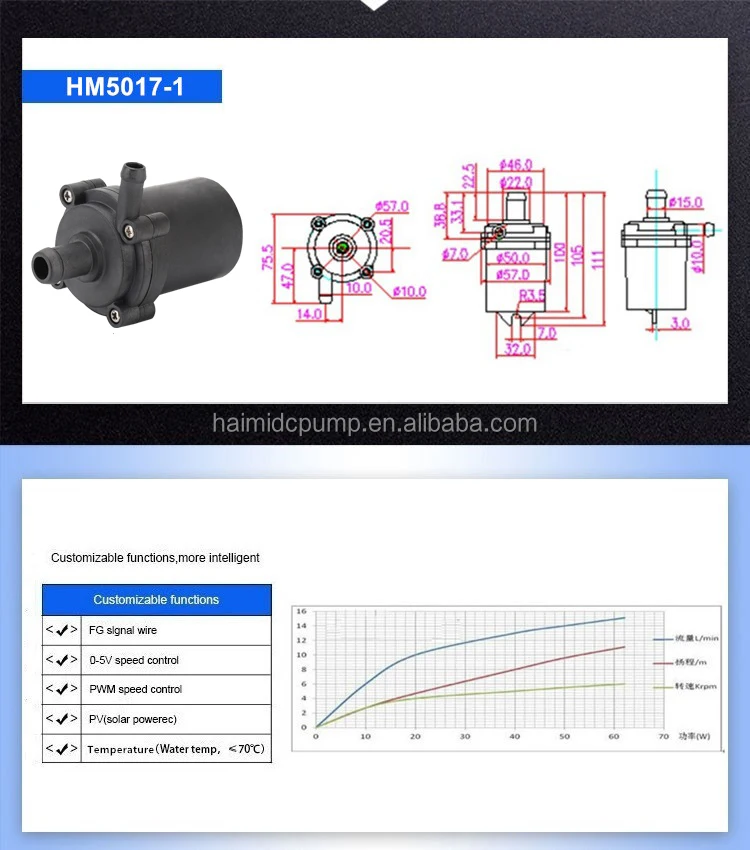

Pump Dimension & Curve Graph



CAUTIONS:

1. Run-dry operation (no water inside of the pump) is strictly prohibited. If you need run-         dry protection function, please do inform us before you place an order.

2. Do not drop, knock, throw them to the ground when you receive the goods, although they were well tested for performance and appearance before shipment. It will effect their performance and may cause lound noise and heavy vibration.

3. Reverse Polarity is prohibited. If you need reverse polarity protection function, please do inform us before you place an order.

4. Pumps are prohibited under the long-term exposure to strong sunlight and heavy rain.

5. Pumps are prohibited to use in strong acid solution (PH value≤PH5-10, salty: 20%), Please tell us your special requirement, when place an order.

6. Keep the pump appearance and working fluid clean. The working fluid must be clean water.

7. Please remove the pump and wash it with clean water, dry it and wrap it, put it away, if you will not use it for a long time. Next time when you use it, pour water into the pump inside and wash it, shake the pump with your hand slightly, then, put 60%-80% rated working voltage to power the pump and test, to watch if the working current is regular. After that, turn the working voltage to the complete rated working voltage, watch 1- 2 hours to see if the temperature rise is normal.
