Гуанчжоу завод 1350 Вт 4 канала профессиональный усилитель мощности

Описание и отзывы

Характеристики

Product Feature:
1.It is a switching  power supply amplifier,the net weight is very low.
2.Adopt SMT technology,The quality more stable and the spare parts are accurate.
3.It has 30Hz and 50Hz low cut mode to reach a perfect limit function.
4.The work mode is stereo mode,and parallel mode.
5.It has independent clip.protect,signal direction,it will watch the work mode of each channel easily.
6.The heat dissipation is very good,as it adopts intelligent fans,it will insure the machine in a cool situation.



Parameters:

Model	FP10000Q	FP20000Q
Rated Power 8Ω Stereo:	1350W*4	2200W*2
Rated Power 4Ω Stereo:	2100w*4	3500W*2
Frequency Response (±3 dB):	20Hz-20KHz	20Hz-20KHz
Total Harmonic Distortion:	<0.1%	<0.1%
Signal to Noise Ratio:	>112db	>112db
Coefficient of Damping:	>1000(100Hz)	>1000(100Hz)
Resolution:	>65db	>65db
Conversion Rate :	>10V/µs	>10V/µs
Input Sensitivity:	0.77V/1.0V/1.4V	1.0V
Input Resistance:	10kΩ/ 20kΩ	10kΩ/ 20kΩ
Output Circuit:	Class-D	Class-D
Net Weight:	13.5 kg	13.5 kg
Product Size ( W x D x H):	483x 400x 88mm	483x 390x 88mm
Packing Size ( W x D x H):	530 x 450 x130mm	530 x 440 x130mm



Packaging:

1)Dual carton with Foam.

2)Carton with external plywood bracket for Speaker.

Our Company:
We are Guangzhou Yunqiang Electronics Co.,Ltd

Area: 10000 square meter .

Worker:  more than 200 rich experienced technicians.

History: more than 8 years ----------- We are a global marketing factory.

Certificates:  ISO9001(2008), RoHS ,CCC, FCC, CE,SGS.

Market: western European,north American,middle-east Australia, east-south Asian , etc.

Our promise:pay more attention to product quality than you .

                        We will reply you any question within 24 hours.

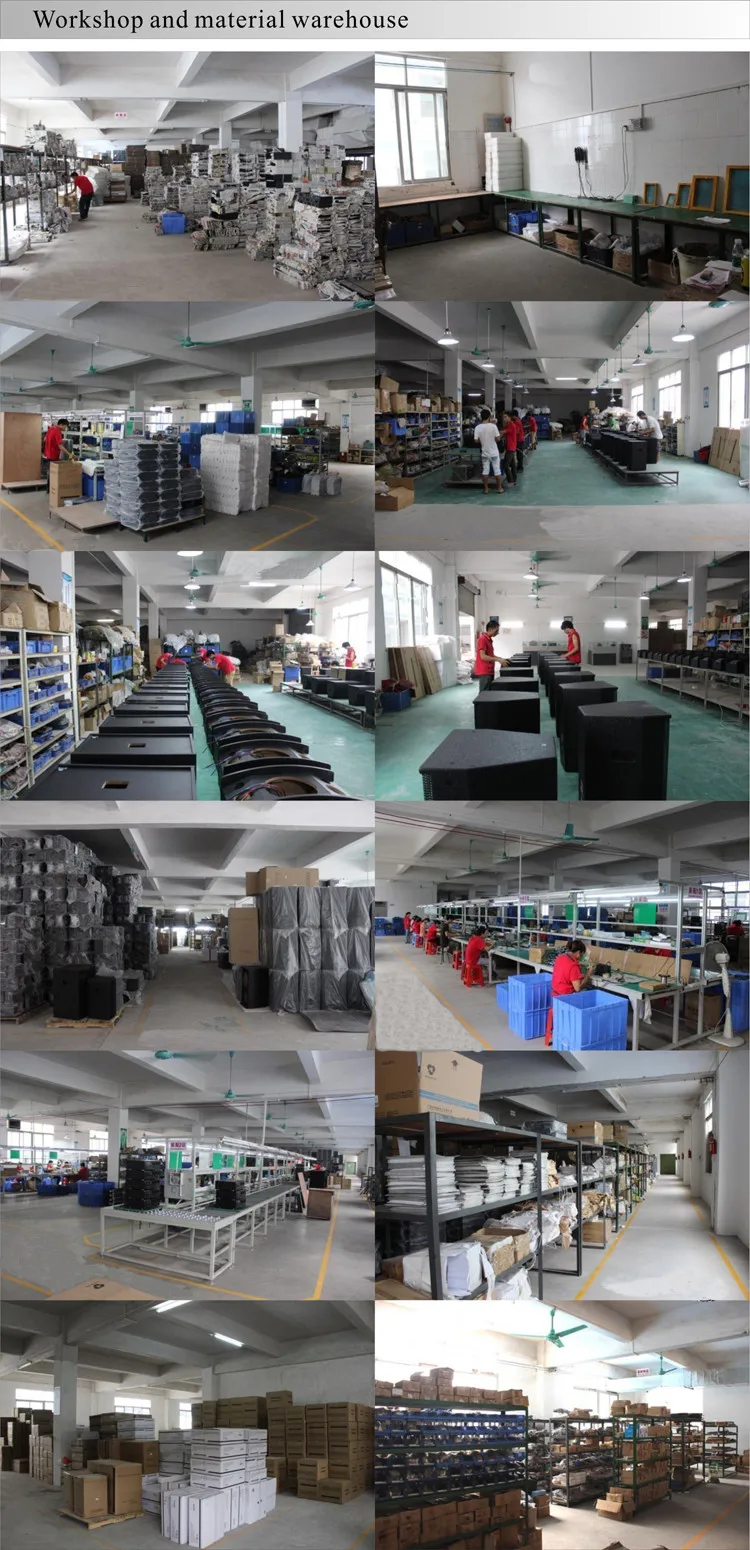

Our company picture:
