Product Description

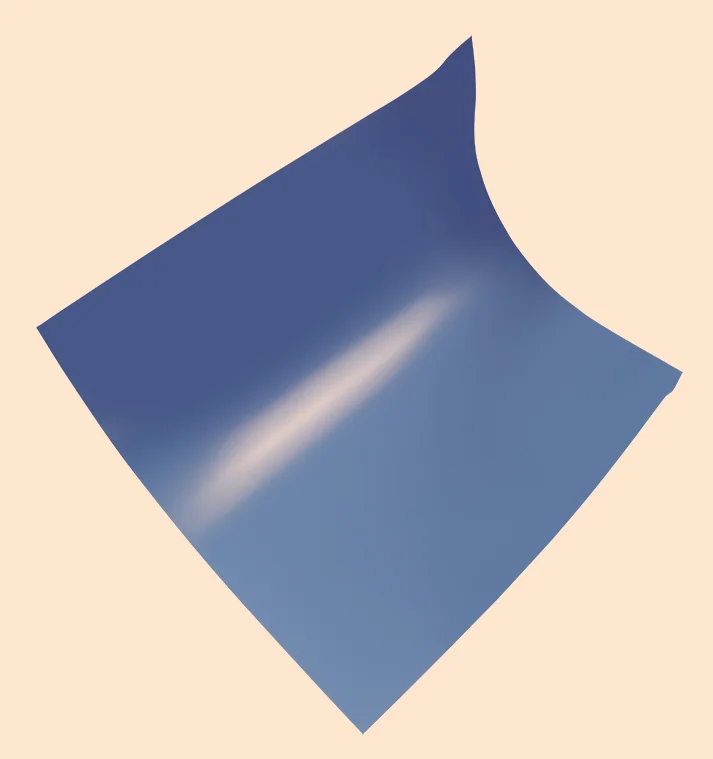

gto printing machine aluminium conventional plates offset ctcp
Feature: HUIDA HD-CTCP-2-W Type gto printing machine aluminium conventional plates offset ctcp , have high sensitivity, good hydrophilic, well ink-water balance, Long run-length, best market compatitibility, so it is extensively usedcommercial printing and newspaper printing. Whether conventional or alcohol wet plate can output the clear, excellently, perfect colorful prints.
Style | gto printing machine aluminium conventional plates offset ctcp | |
Features | 1.First-class Aluminum Substrate, 99% 1060 H18 CTP Aluminum Alloy 2. Close-grained Oxidation Layer –Outstanding dot reproduction and high pressrun 3.Perfect Hydrophilic Layer-Substainable Ink-water Balance 4.Unique Photosensitive Coating-High and fast Sensitivity 5. Large exposure and developing latitude, fit for any printing conditions, | |
Gauge | 0.15mm, 0.20mm, 0.25mm, 0.30mm conventional plates | |
Max. Size | 1650*1350mm aluminium plates offset | |
Coating | Blue aluminium plates offset conventional plates | |
Dot Reproduction | 1-99% at 200lpi gto printing machine conventional plates | |
Micro-line Reproduction | 20 um gto printing machine conventional plates | |
Application Type | Newspaper printing , Commercial printing and Light printing | |
Compatible Platesetter | Basysprint, Luscher, Cron. Amsky etc. gto printing machine | |
Sensitive Wavelength | 405-410nm UV laser gto printing machine | |
Exposure Energy | 50-60 mj/cm2 gto printing machine | |
Developer: | Kodak and Huida developer best, other brands workable except Fuji | |
DevelopingTemperature | 20±5 ℃ | |
Developing Time | 20±5 s, test at 25S | |
Developer Concentration | Powder to liquid or liquid=1:4(automatic) Powder to liquid or liquid=1:6(manual) | |
Baking Temperature | 230 degree Celsius | |
Baking Time | 5-8 minutes | |
Run Length | 100,000 copies unbaked, 200,000 copies baked | |
Safelight | Yellow light | |
Shelf life& Storage Conditions | 18 months under the recommended storage conditions (10-25℃,with 40%--60% humidity, stock height less than 1.5m. Away from sunlight radiation &direct sunlight, Anti-humidity, Anti-acid &alkali). | |
Package | Standard Safe Package for Ocean: 50sheets for 0.15mm,100sheets /0.30mm. wrapped by a black photo protective paper, then put in a strong brown carton box, finally 20-60boxes on a ply-wood pallet, outer covered by cardboard and wrapped plastic film | |
If use ctcp plate to work as conventional PS plate | ||
| Exposure Enery 160-180 mj/cm2, 50s with 3KW iodine-gallium lamp distance:1-1.2m, developing time 23-25℃, 25S | |
Company Information

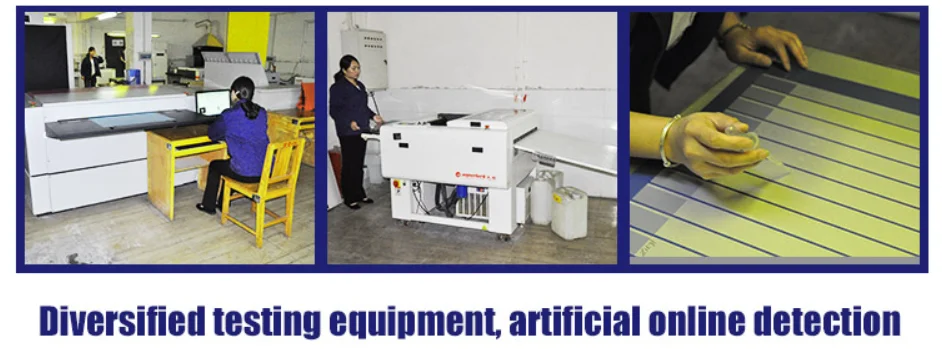

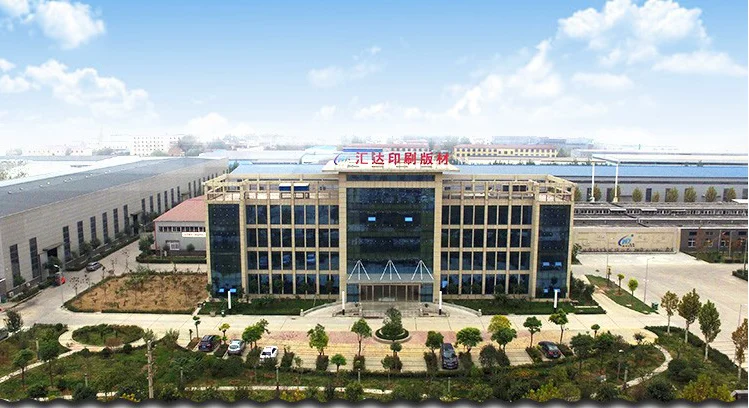

Specialized in PS/CTCP/CTP plate since 2003, it located in DaZhou Metal Industry Zone, Changge City, Henan Province, is the largest domestic production base of renewable resources. Huida has strong technical force, has a professional R&D team, advance production equipment and sophisticated detection equipment, proucts have more than 30 patent applications, and through ISO-9001 quality system certification, is the national science and technology enterprises, products are in the domestic industry the top level, won the market recognition and praise, and best-selling all over the word.
Top leading positive thermal ctp plate,ctcp plate production base in china

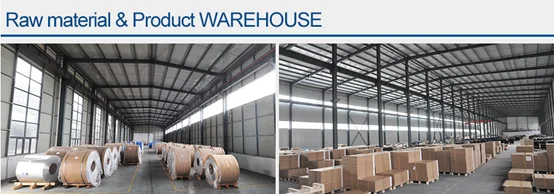

A. No.1 aluminum coil inventory
more than2000 tons(7 million USD value)
B. 3 high-speed production lines
C. 30million SQMS per year
D. 8 million USD finished plates stock value.
assure No.1 fast speed in production and delivery in China

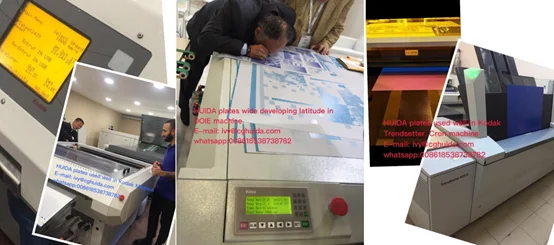

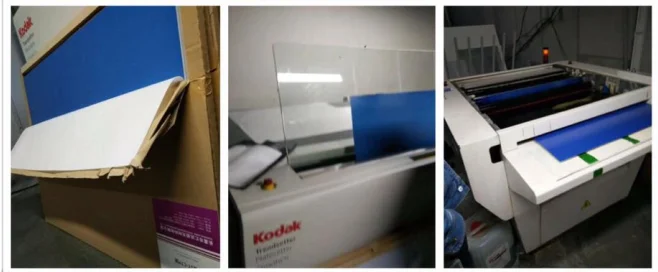

Less laser energy, exceptional interchangeability, wide imaging and processing latitude and competitive price,proved to perfect working with all brands ctpplatesetter, nearly all brands chemical in the market, which reduce plate remaking and maximize productivity in the pressroom for end-user, to dealers, no any worry for cross-sale with other plate brands to achieve the max profit

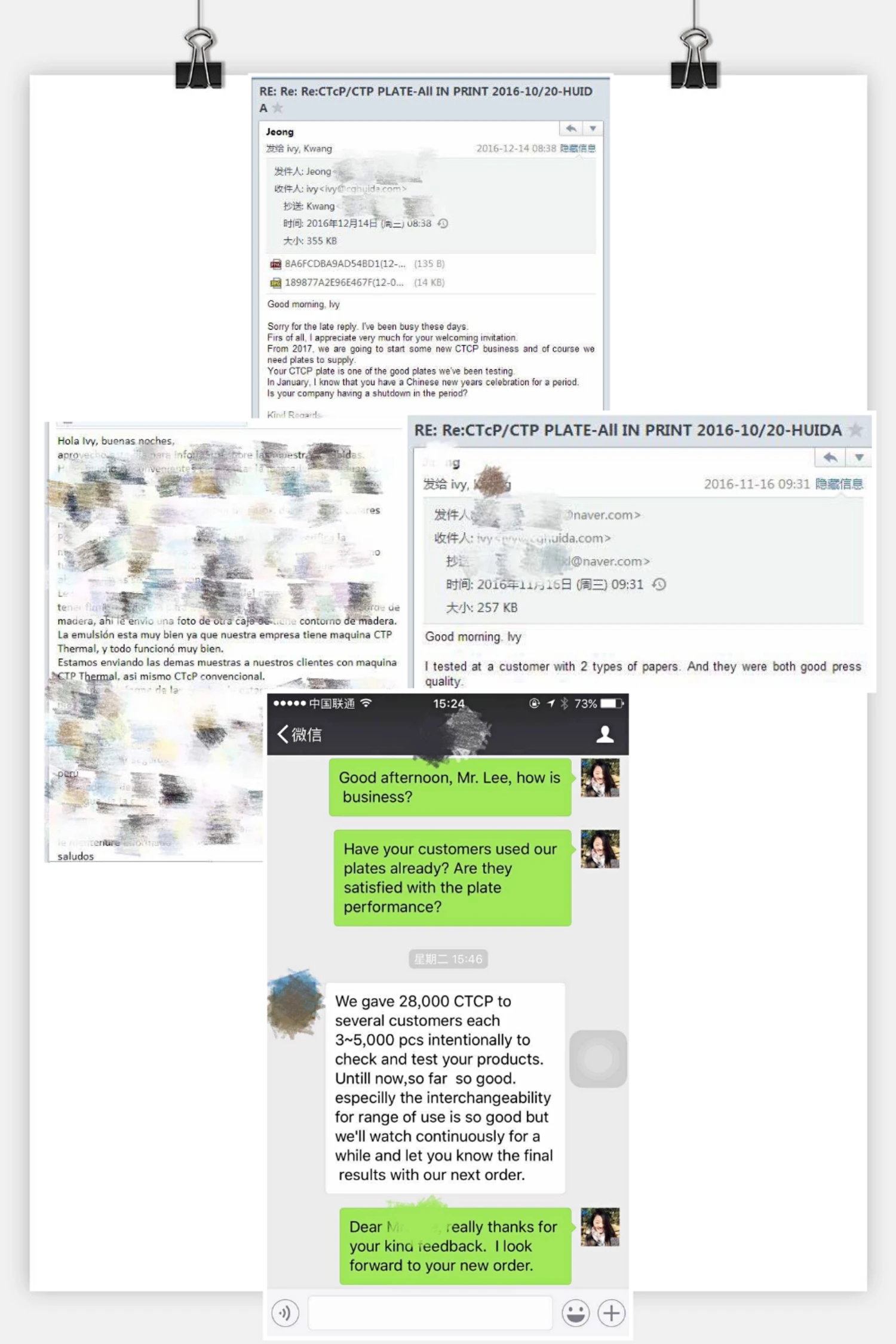

GOOD MARKET FEEDBACK ALL OVER THE WORLD
Huida factory is the best choice for China thermal CTP plate , CTCP plate, PS plate.
Our Services
1. Sample available, we can send 8 sheets in one size per style to customer for on-site professional test
2. All sizes plates can be customized produced according to customers’ special demand
3. Online technical support supplied,If there is any problem, you can feel free to contact us at any time, we will help you solve the problem in time.
