Product Description
We focus on water pumps for 25 years
solar energy products water pump price philippines
solar energy products water pump price philippines
WHY CHOOSE US :
1.Quality Assurance (which means all the items is the same as your ordered,if there is any quality issue
sending all new spare parts to you)
2. Delivery guarantee (We are the only workshop to use fully automatic assembly line production, you can rest assured of our
delivery and you can be compensated for the delay）
3.After-sales service guaranteeas (we have special team work for after sales services, which mean you can find us any time ,also we will keep in the touch with you for allyour order details)
1.Quality Assurance (which means all the items is the same as your ordered,if there is any quality issue
sending all new spare parts to you)
2. Delivery guarantee (We are the only workshop to use fully automatic assembly line production, you can rest assured of our
delivery and you can be compensated for the delay）
3.After-sales service guaranteeas (we have special team work for after sales services, which mean you can find us any time ,also we will keep in the touch with you for allyour order details)

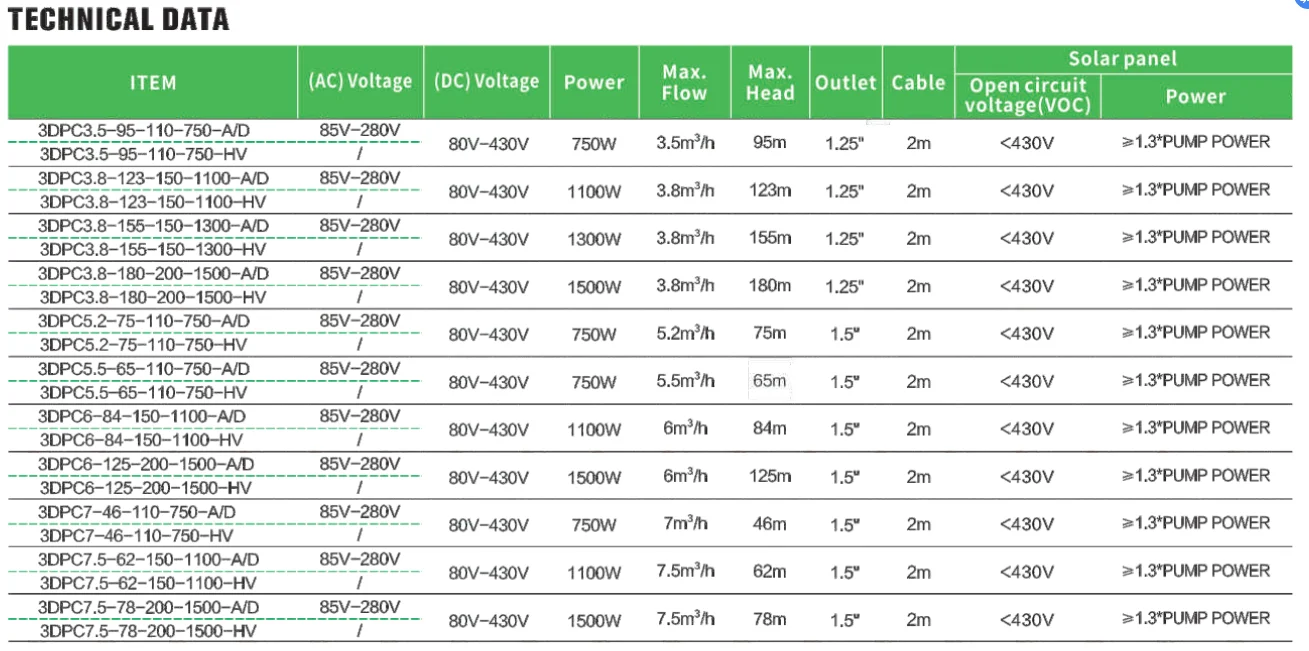

Product Paramenters
solar energy products water pump price philippines
3DPC7-46-110-750-HV
VOLTAGE:DC110V
POWER:750W
MAX HEAD:46M
MAX FLOW:7M3/h
OUTLET:1.25INCH
VOLTAGE:DC110V
POWER:750W
MAX HEAD:46M
MAX FLOW:7M3/h
OUTLET:1.25INCH
Why Choose Us
How to choose pump
HEAD CALCULATE:
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tank
1.Distance of 'B+C+D/10' if have a water tank
2.Distance of 'B' if without water tank
FLOW CALCULATE:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
PUMP VOLTAGE (V) | SOLAT PANEL (W) | MAX.Open Circuit Voltage(v) | MPPT Voltage Range (V) |
DF-110V-HV | ≥1.3PUMP POWER | 430v | 110V-400V |
DF-150V-HV | ≥1.3PUMP POWER | 430v | 150V-400V |
DF-200V-HV | ≥1.3PUMP POWER | 430v | 200V-400V |
DF-300V-HV | ≥1.3PUMP POWER | 430v | 300V-400V |
Customer reviews
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
⑤Enviroment friendly
⑥Pumping and drip irrigation
Packing details
What We Get For You (Package Include):
- 1 x 3" DC-HV solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You Need To Get By Yourself (Package DO NOT Include):
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You Need To Get By Yourself (Package DO NOT Include):
- Suitable solar panels. There’re some suggestions in the instruction book.
- A stainless steel wire ( called safety cable) to hold the pump in the bore. If pumping water from dam or river, a float set up required.
- A poly pipe from pump to the water tank.
- Wire power cable (3 wires plus earth). we recommend cable size at least thicker than the original cable in the pump.
- A stainless steel wire ( called safety cable) to hold the pump in the bore. If pumping water from dam or river, a float set up required.
- A poly pipe from pump to the water tank.
- Wire power cable (3 wires plus earth). we recommend cable size at least thicker than the original cable in the pump.
About us
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day difful pump will exist in every corner of the world by means of its reliable quality and good reputation.
DIFFUL sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-winpartnership with all of you cause dingfeng pump is always on the way to be better
FAQ
1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
