SML Welding Material Ag 25% Silver Brazing TIG Welding Rod

Product Description

Alloy	Chemical Compsosotion	Melting Range (℃)	Operating Temp (℃)	Density (g/cm³)	Tensile Strength (N/mm²)	Mpa Shear Strength	Usage
SML201	Cu92P	710-780	830	8.1	141	151	Suitable for copper and copper alloys, not suitable for welding of impact parts.
SML202	Cu93P	710-780	840	8.1	150	160	Suitable for dressing and flat wire, brazed copper and copper alloy large gap joint.
SML203	Cu91P7Sb	650-700	760	8.1	150	167	Low temperature, suitable for small gap brazing, good air tightness.
SML204	Cu80P5Ag15	645-802	810	8.4	188	163	Suitable for medium gap copper alloy brazing, good fluidity
SML205	Cu89P6Ag5	643-843	850	8.2	180	169	Suitable for large gap brazing of copper alloy joints with vibration, P high suitable for brazing small gap joints: glasses frames, etc., suitable for electric resistance welding.
SML206	Cu87P7Ag6	645-725	780	8.2
SML207	Cu90P7Ag3	643-843	850	8.2
SML208	Cu75P5Ag18	645	645	8.4	188	163	Suitable for brazing copper and copper alloys on motors and electrical equipment.
SML209	Cu91P7Ag2	643-778	810	8.1	190	170	Suitable for refrigerator, air conditioning copper and copper alloy joint brazing, suitable for medium clearance.
SML210	Cu91P7Sn2	640-750	810	8.1	190	170	Suitable for sanitary copper and copper alloy joint brazing, suitable for medium clearance.
Applications	This solder is mainly used for brazing copper and copper alloys, it is subject to some restrictions on silver, tungsten and molybdenum. This solder should not be used for iron-based or nickel-based alloys and copper-nickel alloys containing more than 10% nickel. This solder is suitable for all brazing methods and lap joints are recommended for joint forms. When brazing pure copper, such solder can be used without flux, but when soldering other metals (including copper alloys), it is recommended to use with flux. Brazing money must strictly remove the grease, oxides and other contaminants on the brazed surface, and the optimum gap of the brazed joint is 0.03-0.075mm. The brazed joint is light gray in color and immersed in a 10% sulfuric acid solution to restore the color of the copper.

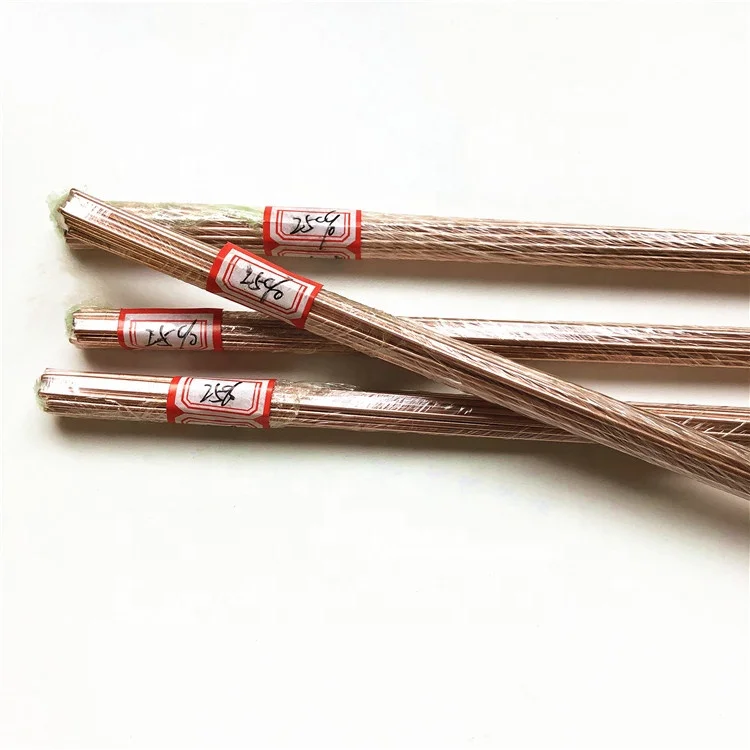

25AG

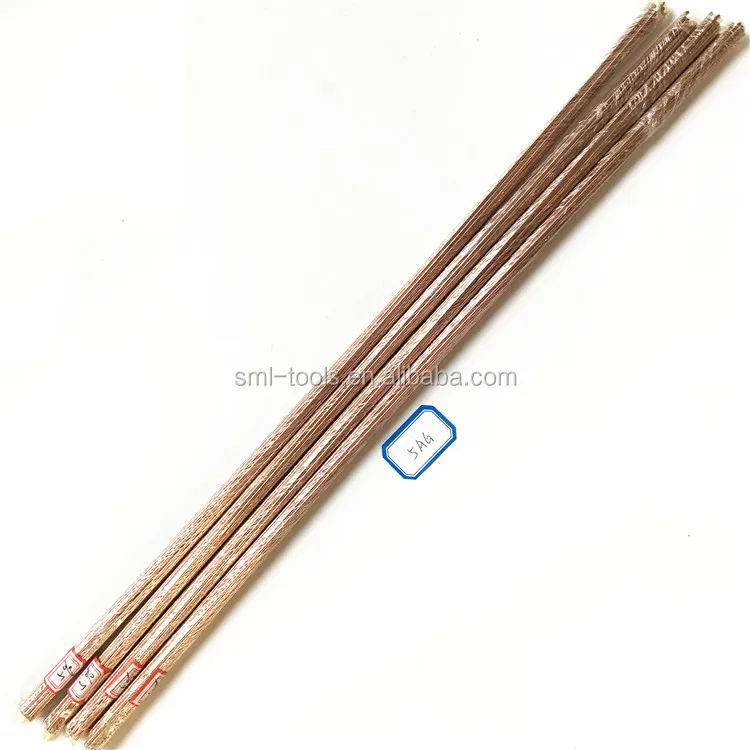

5AG (13)

Packaging & Shipping

Usage

Brazing Copper and Copper Alloy

Company Information

Founded in Wuhan, China, SML Tools has been involved in the supply of various tools for use in oil drilling, mining and geotechnical work since 2008.
In order to better serve the ever-growing needs of our customers, we are expanding our business in raw materials and accessories, such as metallic powder and alloy, materials... They are widely used in machining, electronics, aerospace industries.

We provide a broad and deep range of products to help our customers and save their budgets by our rich purchase experiences and channels.
Customers’ satisfaction is our pursuit; we always guarantee first-class products and perfect pre-sales and after-sales services.
We adopt a policy based on reliable product quality, reasonable price and punctual delivery and have flexibility and the ability to respond promptly to customers’ ever arising requirements.

.jpg

FAQ

1. Payment methods

T/T (Telegraphic Transfer), Western Union, MoneyGram or Credit Card…

2. Lead time

Based on order quantity, it ranges from 3 to 20 days to finish production.

3. Shipping

Express: DHL, TNT, UPS, FedEx and Special lines…

Carrier: by air or sea.

They all apply to a very economic cost.

4. Services:

We will respond to your inquires in one hour (holidays as well).

We provide free replacement once the failure is confirmed to be caused by our product quality.
