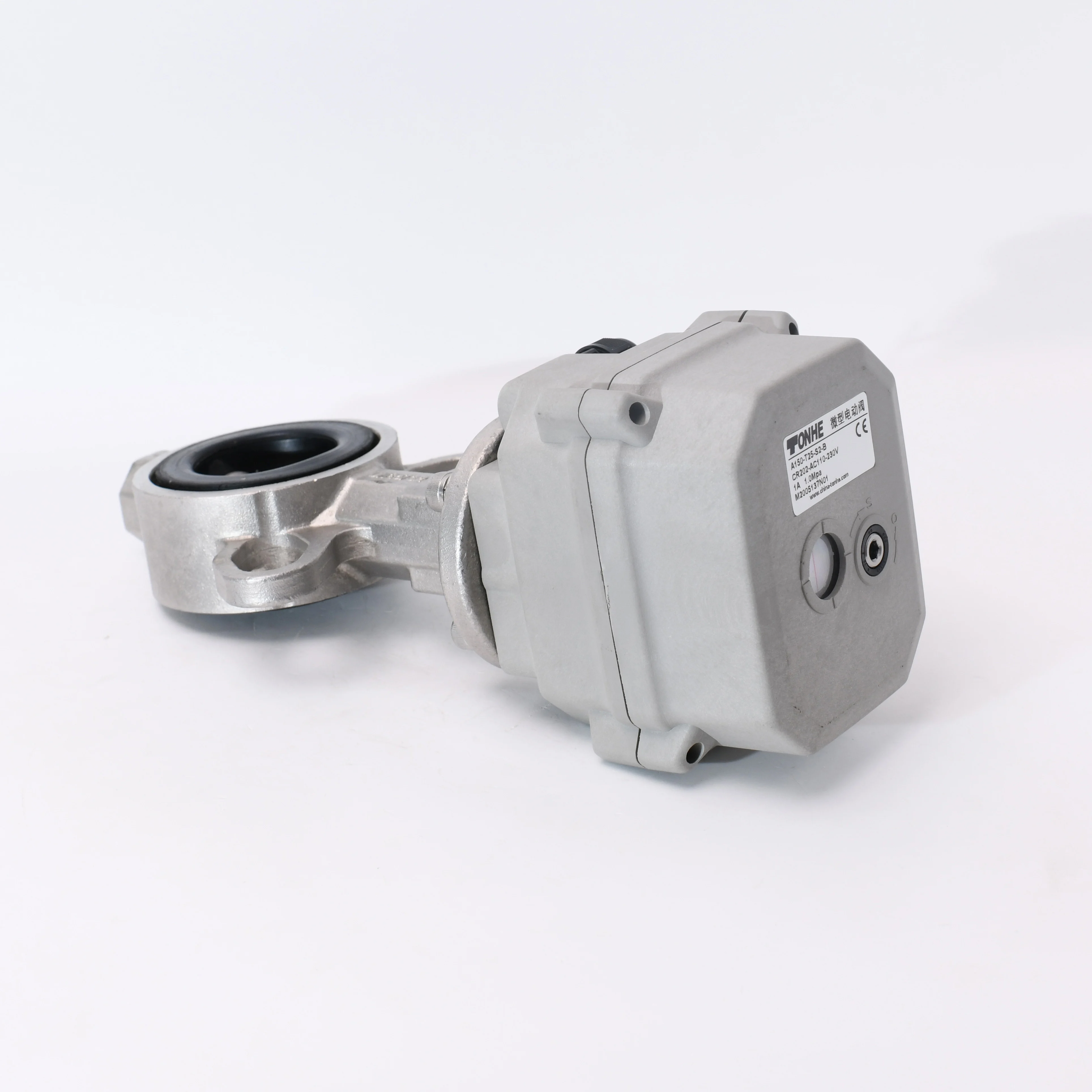

DN25 DN32 электрический клапан-бабочка из нержавеющей стали Электрический

12v 24 volt DN25 1" electric adjustable flow shut off motorized butterfly valves for water treatment system

Pls confirm the two details when you order them.

CR201 wiring diagram

RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .

BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .

Suitable Working Voltage: DC12V, DC24V

Exceeding the working voltage is forbidden

CR501 wiring diagram  ( with feedback signal)

RD connect with positive, the BK connect with negative,the valve closed, the actuator automatically power off after in place .

BK connect with positive, the RD connect with negative,the valve open, the actuator automatically power off after in place .

GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully.

Suitable Working Voltage: DC12V, DC24V

Exceeding the working voltage is forbidden!

CR301 wiring diagram

RD and GR connect with positive, BK connect with negative
When RD and SW connected , the valve open, the actuator automatically power off after in place , valve remains fully open position
When GR and SW connected, the valve closed, the actuator automatically power off after in place, valve remains fully closed position
Suitable Working Voltage: DC12-24V, AC24V
Exceeding the working voltage is forbidden

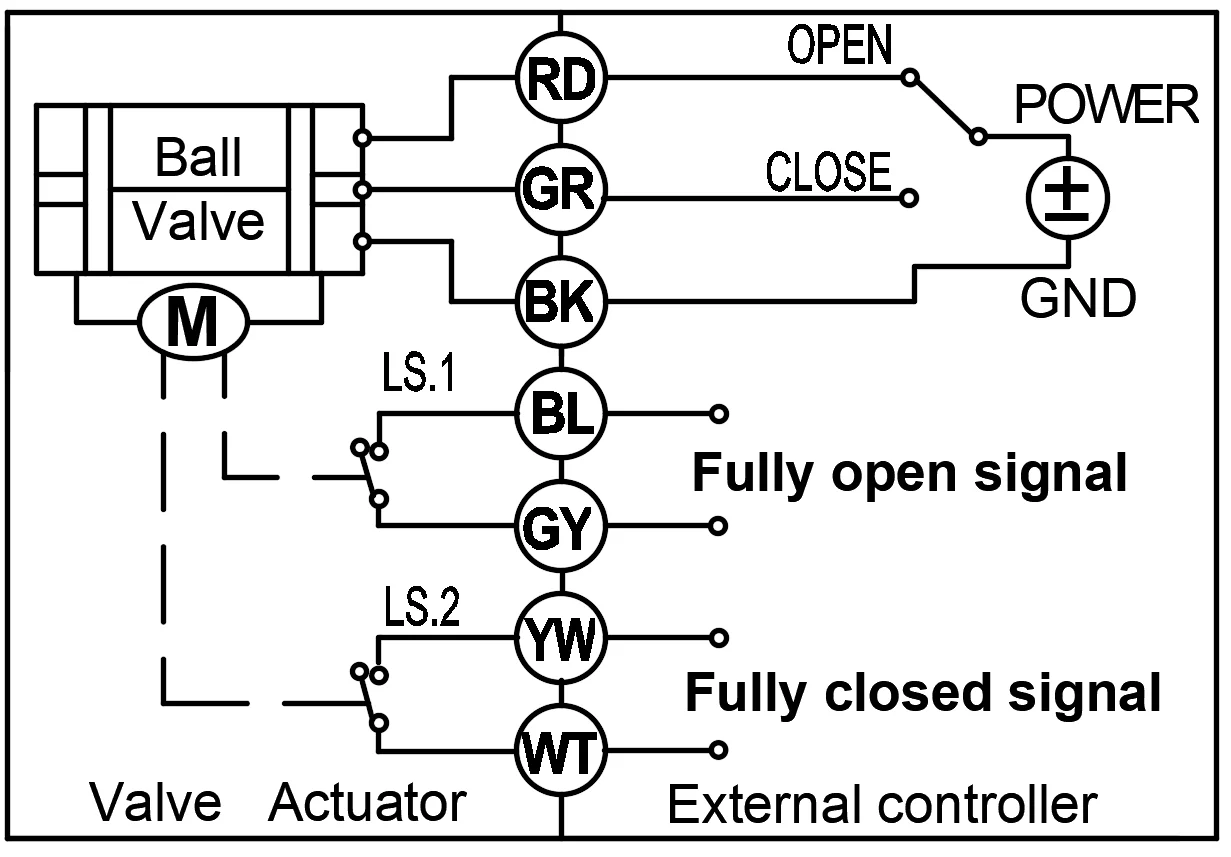

CR702 wiring diagram  ( with feedback signal)

RD & GR connect with positive, the BK connect with negative
When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.
When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed,.
BL & GY connect with the valve’s fully open signal wiring
YW & WT connect with the valve’s fully closed signal wiring
Suitable Working Voltage: DC12-24V, AC24V
Exceeding the working voltage is forbidden
Feedback with load ability:The Max. off voltage: DC36V AC220V  The Max. off current: 0.4A

CR303 wiring diagram

RD& GR connect with positive, the BK connect with negative.

SW CLOSED, the valve OPEN,  the actuator automatically power off after in place

SW OPEN, the valve CLOSED,  the actuator automatically power off after in place.

Suitable Working Voltage: DC12-24V, AC24V

Exceeding the working voltage is forbidden

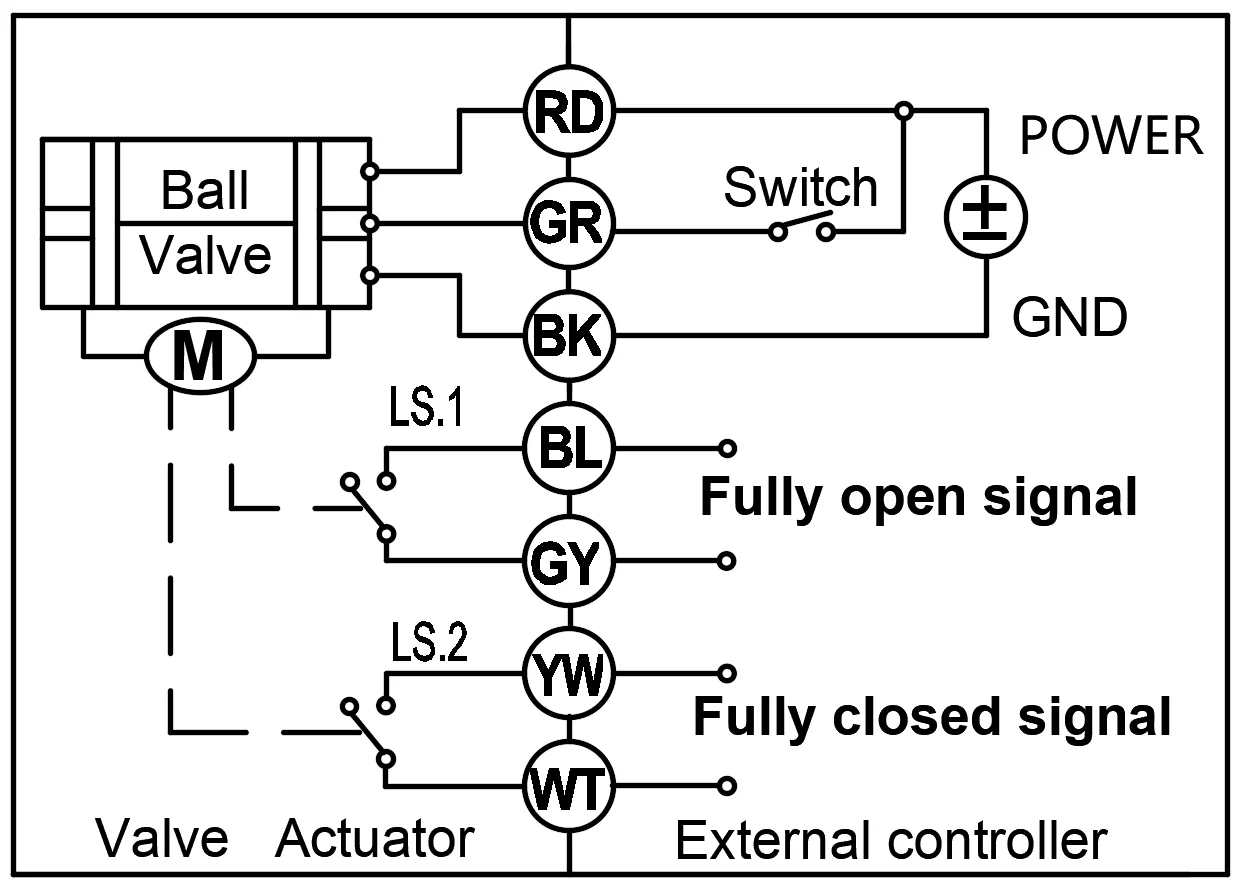

CR703 wiring diagram  ( with feedback signal)

RD& GR connect with positive, the BK connect with negative.

SW CLOSED, the valve OPEN,  the actuator automatically power off after in place

SW OPEN, the valve CLOSED,  the actuator automatically power off after in place.

BL & GY connect with the valve’s fully open signal wiring

YW & WT connect with the valve’s fully closed signal wiring.

Suitable Working Voltage: DC12-24V, AC24V

Exceeding the working voltage is forbidden

Workshop Process

Packaging: PP bag, carton size of foreign trade in accordance with customerrequirements.

                                   A150 series packaging
