Model No. | SD-581A |
Wired Transmission | Yes |
Measure | Speed, Speed Comparator,Time, Odometer, Trip distance,Clock, Date. |
Backlight | No |
Display Size | 1.5" LCD |
Battery Capacity | 140mAh |
Batteries Life | AG10x1 The stand-by time is 12 months, Working Time: 500 hours |
Material | ABS |
15 FUNCTIONS | -Speed -Odometer -Trip Distance -Maximum Speed -Average Speed -Trip Time -Clock -SCAN -Speed Comparator -Settomg(km/h)(m/h) -Setting Tire Size -Setting the last value of Odometer -Freeze Frame Memory -On/off -Setting Maintenance Alert |
14 PARAMETER SETTING FUNCTIONS | -Speed -Odometer -Trip Distance -Maximum Speed -Average Speed -Trip Time -Clock -SCAN -Speed Comparator -Settomg(km/h)(m/h) -Setting Tire Size -Setting the last value of Odometer -Freeze Frame Memory -On/off -Setting Maintenance Alert |
2 AUXILIARY MODE AND FUNCTIONS | -Maintenance Alert -Automatically wake up |
Package | Product size: 5.0*4.5*1.5cm Individual packing: Blister card Packaging size: 18*10*3cm Unit Weight: 56(g) Export CTN quantity: 200pcs Inner CTN Meas: 49*22*18.5cm Export CTN Meas: 50.5*46*39cm Export CTN Weight : NW(11.5KG),GW(13KG) Export CTN CBM: 0.09 |
Malfunction | Problems |

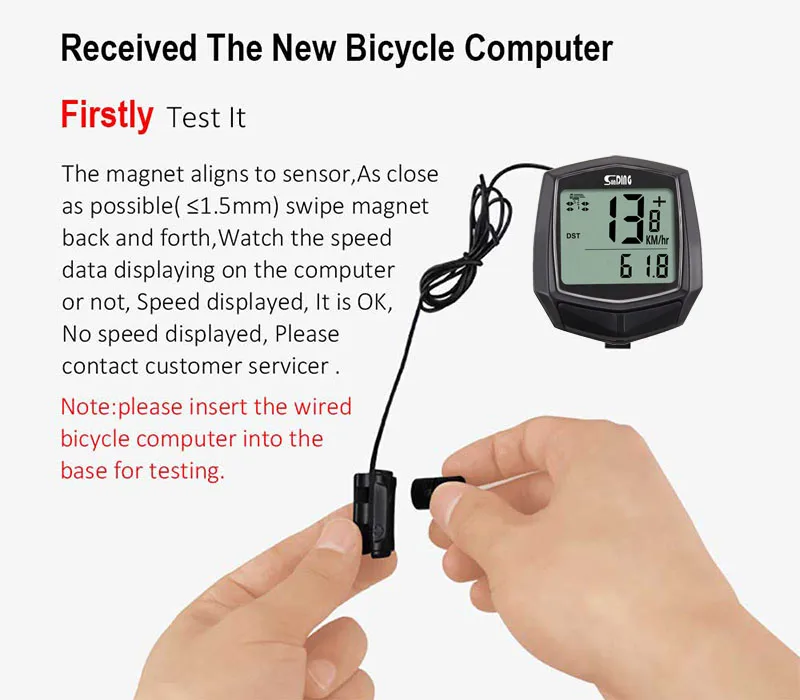

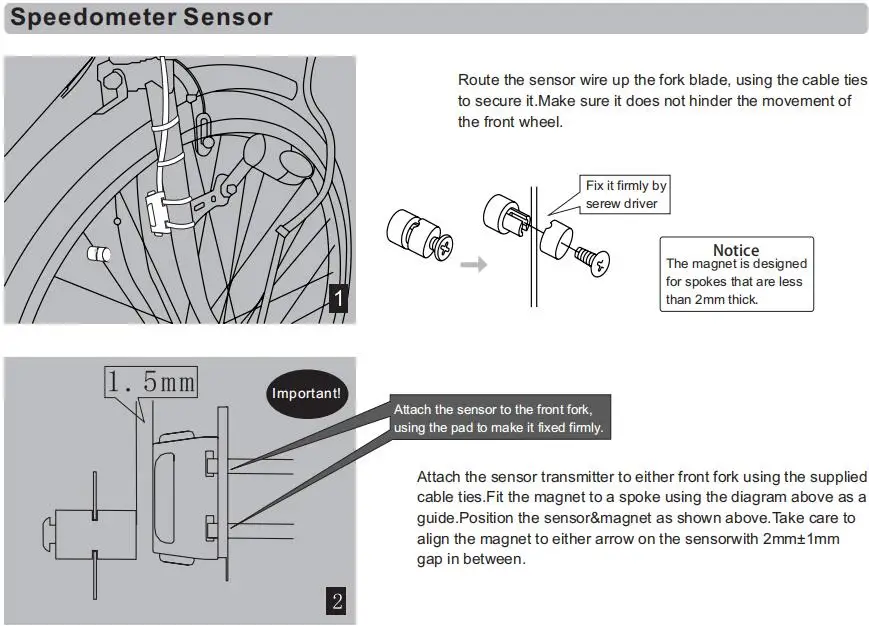

No speedometer | Incorrect magnet/sensor alignment |
Inaccurate value is indicated | Improper input, such as wheel circumference |
Slow display response | Temperature exceeds operating limits (0° C ~ 55° C) |
Black display | Temperature too high,or placedin direct sunlight for too long.Let the unit cool down. |

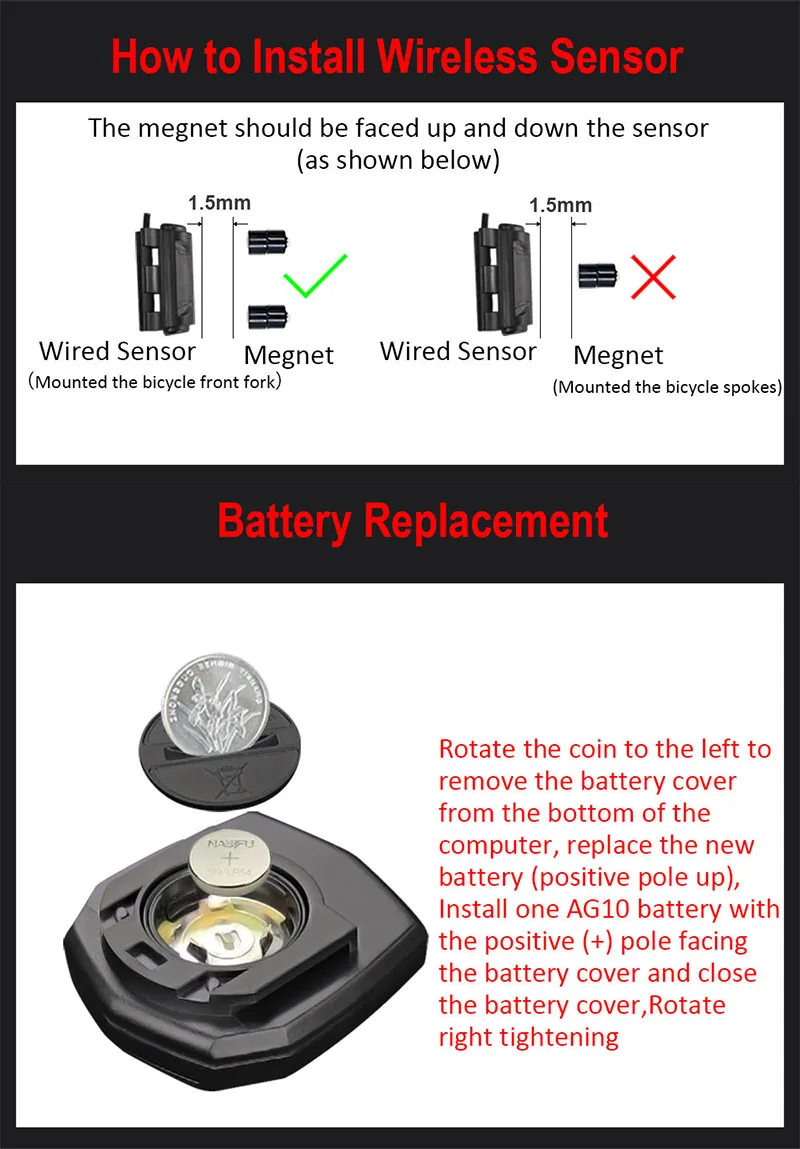

Weak display | Poor battery contact or dead battery. |
Display shows irregular figures | Take out battery and re-install after 10 seconds. |
