Полностью автоматическая машина для производства труб из углеродистой стали и
- Категории: >>>
- Поставщик: Foshan,Jopar,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Model | Horizontal shaft O.D | Vertical shaft O.D. | Tube Range | Thickness | Drive Motor | Dimension | ||||||
ZP-S40 | 40mm | 25mm | ∅8-51mm | 0.3-2.2mm | 7.5kw+7.5kw | 21.5m*1.1m | ||||||
ZP-S50 | 50mm | 30mm | ∅25-76mm | 0.4-2.5mm | 11kw+11kw | 24m*1.2m | ||||||
ZP-S60 | 60mm | 40mm | ∅50-114mm | 0.5-3.0mm | 15kw+15kw | 26m*1.4m | ||||||
ZP-S80 | 80mm | 50mm | ∅89-168mm | 0.8-4.0mm | 18.5 kw+18.5 kw | 32m*2.3m | ||||||
ZP-S100 | 100mm | 60mm | ∅114-219mm | 1.0-6.0mm | 22 kw+22kw | 36m*2.5m | ||||||
ZP-S120 | 120mm | 80mm | ∅168-325mm | 1.5-8.0mm | 37 kw+37kw | 40m*3.0m | ||||||
Support For Customizing Orders | ||||||||||||
Company Profie
We are a professional manufacturer for the welding pipe making machine in Foshan China.The diameter of the tube ranges from 6mm to 604 mm and thickness is 0.2mm to 12mm,round square rectangular and oval tubes. this machine is mainly used for the production of stainless steel/Carbon Steel galvanized, copper, aluminum and other materials pipes/tubes with heavy thickness which applied indecoration,furniture,hand rail,outdoor decoration,household tubes etc.

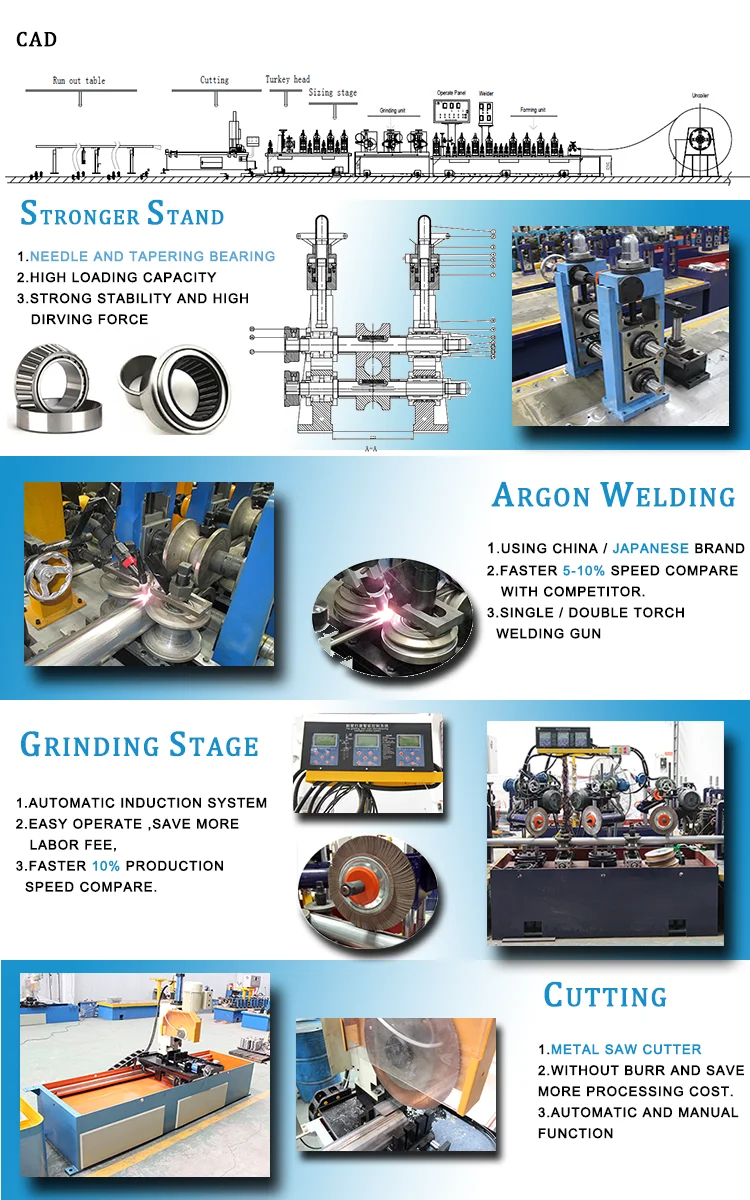

The Process flow:
Single/Double Side Uncoiler—Strip Jointing—3 Roller leeling-Tube Making Machine(1.Forming Part,2.Welding Part,3.Sizing

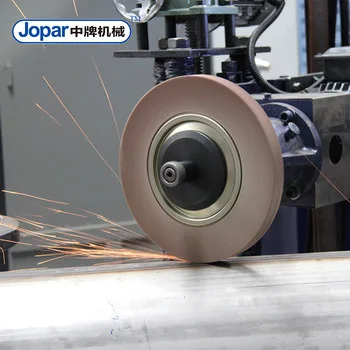

Part)—Cooling System-Outside Weld Bead Grinder—Automatic Cutting System—Run Out Table—Electric Control System—Rolls Sets/Die Sets.
Part)—Cooling System-Outside Weld Bead Grinder—Automatic Cutting System—Run Out Table—Electric Control System—Rolls Sets/Die Sets.

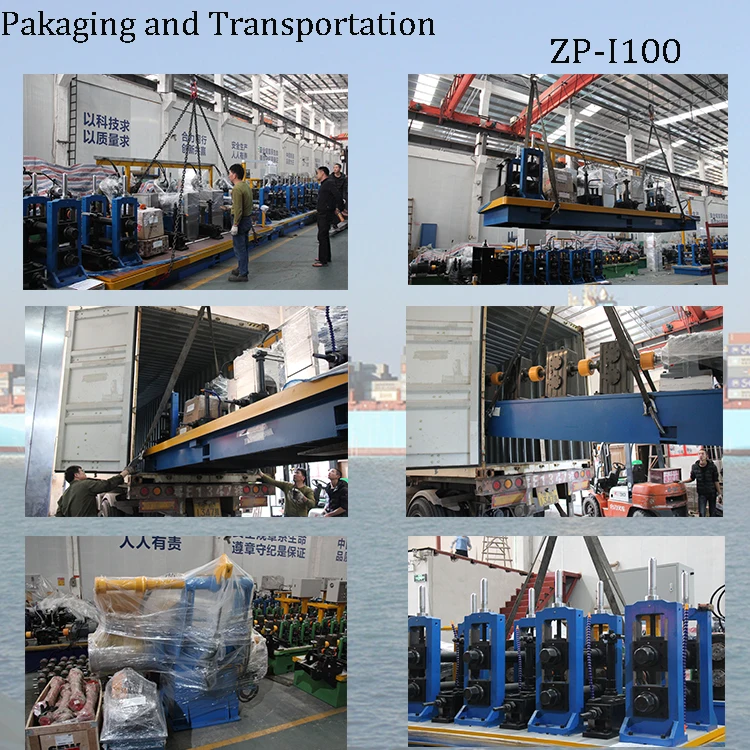

Packing & Delivery
FAQ
Q:Can you print the company name or logo on the products?
A:Yes. We can print your logo or company name on the products by Stamping or Coating.
Q:What payment terms you can accept?
A:We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight.
Q:When is your company delivery time?
A:Our delivery time is within 45 days , It depend on your quantity.
Q:How many workers will need to operate the machine?
A:If the worker know how to operation the machine, then one worker can operate two machine in the same time.
Q:How long will take to change the roller sets on the machine?
A:If one worker to change the roller sets, will need about 3 hours to change , But sometime is according to the worker whether have enough familiar to decide.
Q:Whether your machine can ensure ovality to make the pipe?
A:Yes, our machine component used top famous CNC from Taiwan, to make the component will have high accuracy. We assurance 100% of tube will ovality . also we testing the machine before delivery.
Q:How we get from the machine for after service?
A:We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to your company .
A:Yes. We can print your logo or company name on the products by Stamping or Coating.
Q:What payment terms you can accept?
A:We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight.
Q:When is your company delivery time?
A:Our delivery time is within 45 days , It depend on your quantity.
Q:How many workers will need to operate the machine?
A:If the worker know how to operation the machine, then one worker can operate two machine in the same time.
Q:How long will take to change the roller sets on the machine?
A:If one worker to change the roller sets, will need about 3 hours to change , But sometime is according to the worker whether have enough familiar to decide.
Q:Whether your machine can ensure ovality to make the pipe?
A:Yes, our machine component used top famous CNC from Taiwan, to make the component will have high accuracy. We assurance 100% of tube will ovality . also we testing the machine before delivery.
Q:How we get from the machine for after service?
A:We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to your company .
