Manufacturer Price Large Turntable Slewing Bearing Slewing Ring
US $900.00-$920.00
Высокоскоростной линейный подшипник блок слайд SBR40UU
- Категории: Bearings >>>
- Поставщик: Lishui,Yuxuan,Automation,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

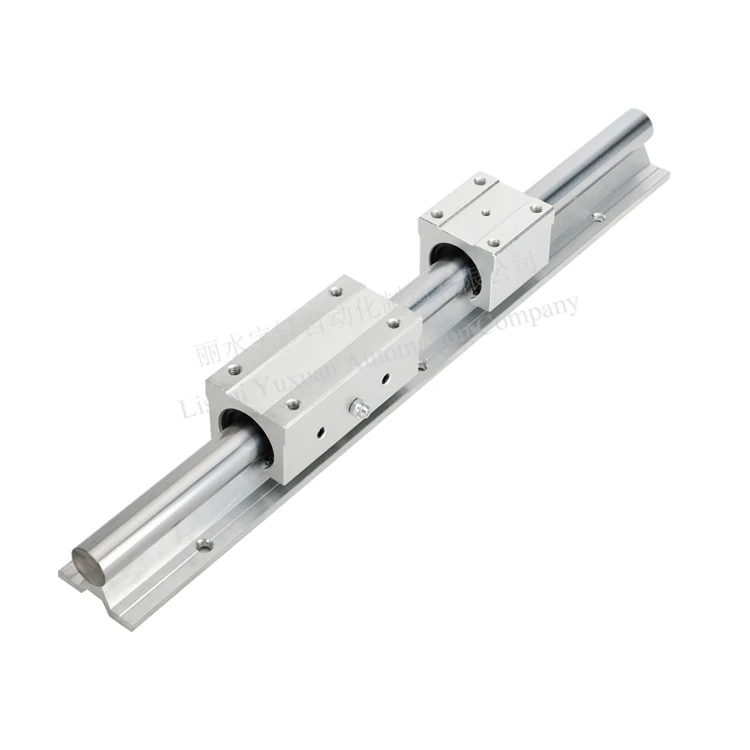

Product Name | Linear Motion Slide Unit Block Bearing SBR...UU |
Model No. | SBR40UU / SBR50UU |
Housing Material | Aluminum |
Bearing Material | Bearing Steel |
Cage Material | Steel, Brass, Nylon |
Bore Diameter | 40mm / 50mm |
Weight(kg/pc) | 1.33kg / 3.0kg |
Brand | Y&X or OEM |
Sample Policy | Sample Charge Free, Courier Charge Required |
Lead Time | 3 - 5 Days for In-stock Products, Others need be Negotiated |
Service | OEM Customized Service Provided |
Features | 1. High Precision and High Rigidity |
2. High Load and High Stability | |
3. Long Life and Smooth Motion | |
4. Factory Directly Sale and First Hand Price |
Application
Linear slide units are widely used in electronic equipment, tensile testing machine and digital 3d coordinate measuring equipment such as precision equipment, and multi-axis machine tools, automatic punching machine, printer, card sorting machine, industrial machinery, such as food packages installed the sliding parts.
Full Type of Linear Slide Block Bearing Series
SCS(SC)...UU Series: SCS6UU - SCS60UU (6/8/10/12/13/16/20/25/30/35/40/50/60mm)
SCS(SC)...LUU Series: SCS8LUU - SCS60LUU (8/10/12/13/16/20/25/30/35/40/50/60mm)
SBR...UU Series: SBR10UU - SBR50UU (10/12/13/16/20/25/30/35/40/50mm)
SBR...LUU Series: SBR10LUU - SBR50LUU(10/12/16/20/25/30/35/40/50mm)
TBR...UU Series: TBR16UU - TBR30UU(16/20/25/30mm)

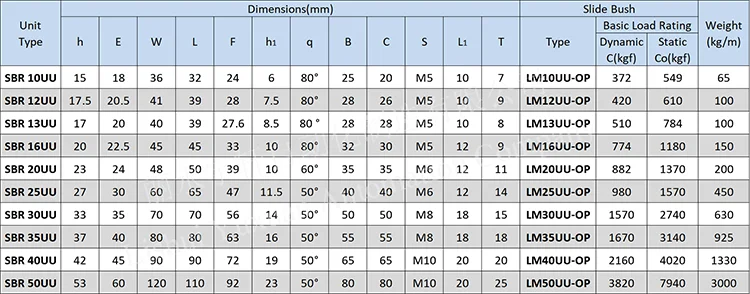

Specification Table

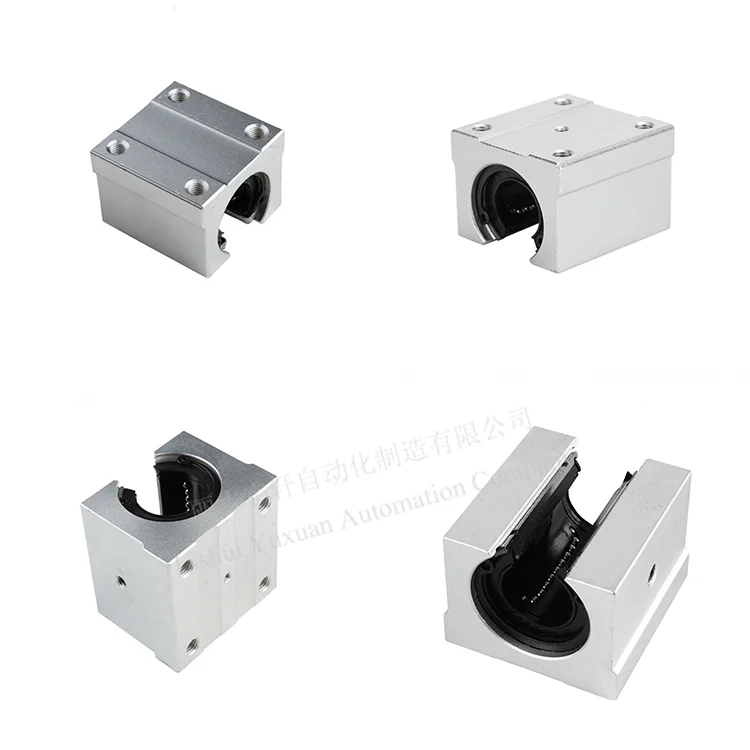

Prodcut Display

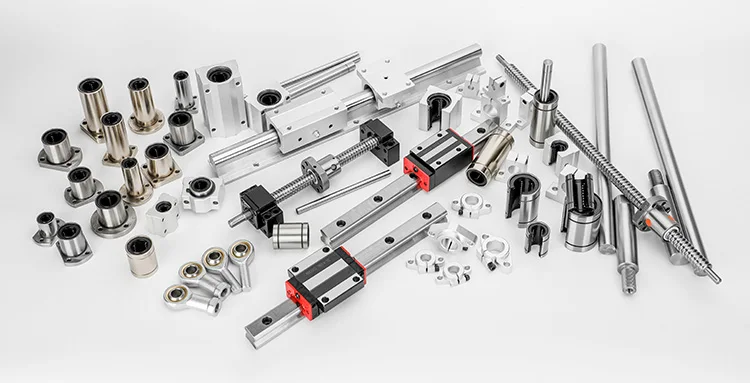

We are professional in producing linear motion stuff such as linear shaft, linear bearing, linear guide block and unit, square guideway, shaft support...
If you want to know more about our products, please feel free to contact us. We are always here for help, thank you!
Company Information
FAQ
Q: Are you a factory or trading company?
A: We have our own factories. The type of our company is factory + trading.
Q: Why choose us?
A: 1. We have the experience of bearing manufacturing more than 10 years.
2. Even though we are new in ALIBABA, we have our own online and offline stores in domestic market 6 years. The quality of our products can be ensure.
3. We can provide first hand price and OEM service.
4. The lead time is short.
Q: What are your main products?
A: Our main products are linear guide series, linear bearing series, linear shaft series, ball screw series, rod end bearings. We are specialized in linear motion series.
Q: Can you provide samples for free?
A: Yes, we can provide samples for free, but the freight should be afford by customer.
Q: How about the transportation methods?
A: If it's small quantity , we suggest to send by express, such as DHL, UPS, FEDEX. If it’s large amount, we suggest yo send by air or sea shipping.
Q: What about the lead time?
A: 3-10 days for sample or in stock products, 3-4 weeks for mass production.
