Eurotech 3 4 дюймов 800X800 MIPI 39 pin Круглый дисплей ЖК-экран круглое Панельное HD-MI плата контроллера для виртуальной
- Категории: "
Описание и отзывы
Характеристики
Product Description

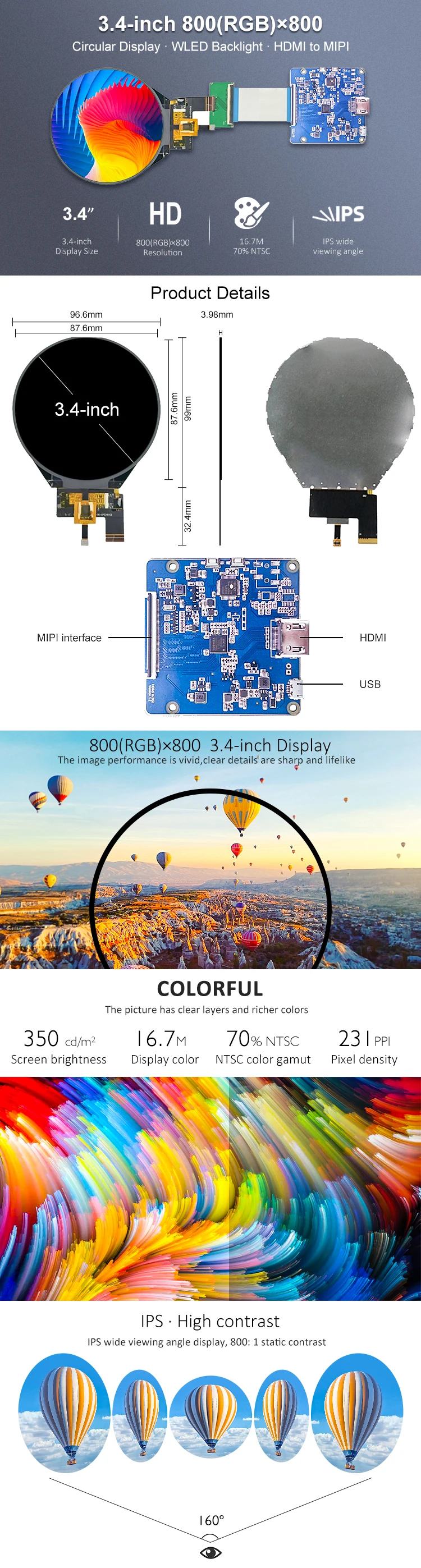

Eurotech 3.4 inch 800X800 MIPI 39 pins round display LCD screen Circular panel HDMI to MIPI controller board for Virtual Reality
Product size | 3.4-inch | Type | a-Si TFT-LCD, LCM | ||
Pixel Format | 800(RGB)×800 231PPI | Configuration | RGB Vertical Stripe | ||
Active Area | 87.6(H)×87.6(V) mm | Outline Dim. | 99(H)×96.6(V) mm | ||
Bezel Area | 88.6(H)×88.6(V) mm | Treatment | Hard coating (7H) | ||
Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) | ||
View Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) | ||
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | ||
Support Color | 16.7M 70% NTSC | Light Source | WLED [2S4P] , 30K hours , W/O Driver | ||
Weight | TBD | Designed For | Industrial/Round Display/Instruments & Meters | ||
Frame Rate | - | Touch Panel | PCAP | ||
Interface Type | MIPI (3 data lanes) , 39 pins FPC | ||||
Power Supply | 1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD) | ||||
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||||
