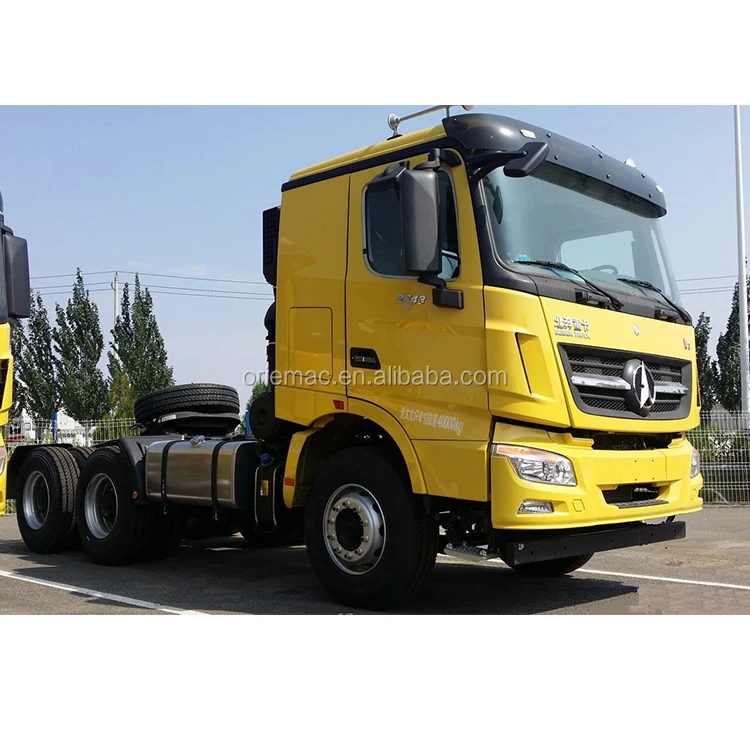

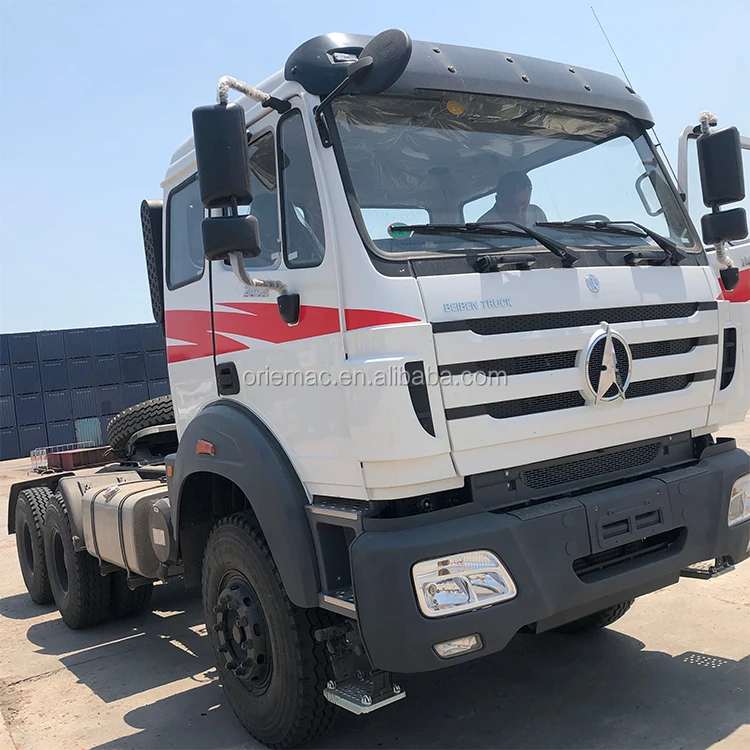

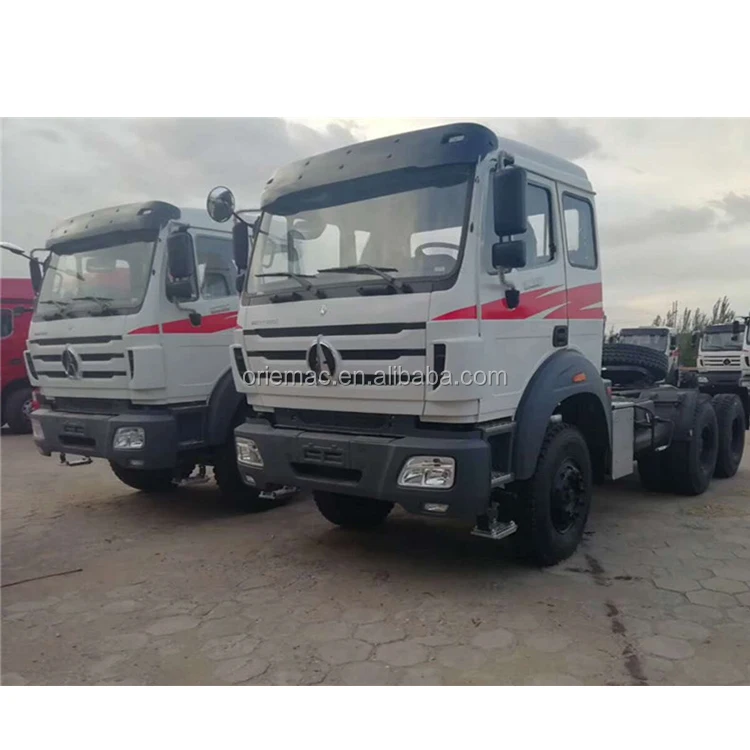

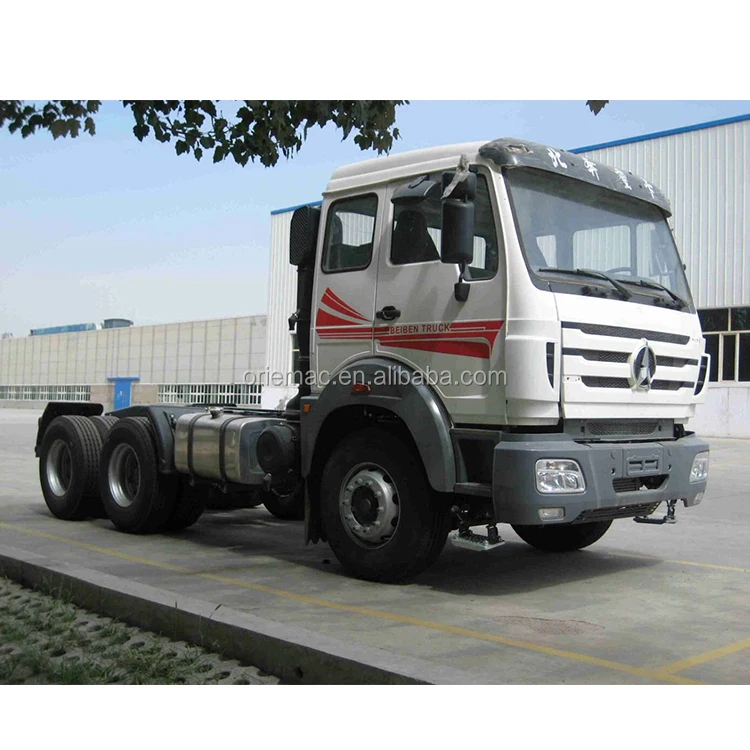

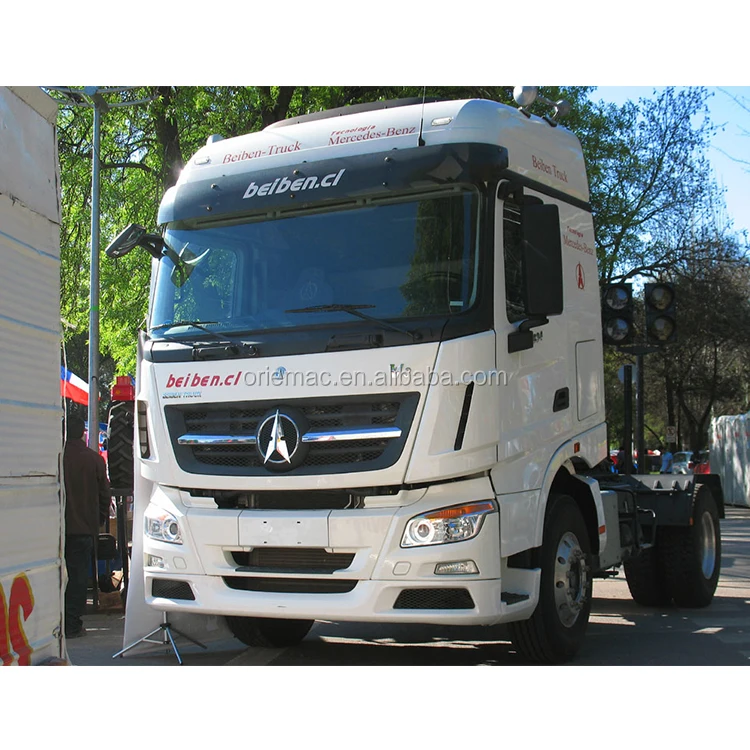

Китай BEIBEN 420hp 6X4 тягач для

Model

ND42601B34J(2538GSZ)

Traction type

6X4

Driving type

Left Hand Driving

Overall Dimension(LxWxH)

7180x2490x3180

Wheel base(mm)

3450+1450mm

Curb weight(kg)

9200

Total mass(kg)

25000

Traction force(kg)

396700

Engine

Steyr technology, made in China

WP12.420E32 420HP

Diesel, 4-stoke Direct injection

6-cylinder in line, radiator,

turbo-charging

Displacement(L)

11.596

Bore X stroke (mm)

126mm/130mm

Max power(kw/rpm)

420HP/308Kw

Max torque(Nm/rpm)

1350NM@1600/rpm

Emission

EUROII

Fuel tanker(L)

400 steel fuel tank

Gearbox

Brand

(Fast)

Model

12JS200T

Shift mode

12 forward speeds;

2 reverse speeds

Steering system

Model

ZF8098

Clutch

Model

430 Diaphragm type

Frame

317x70x8.5+7+12mm

Front axle

7.5T front non-driving steering axle

Middle and Rear axle

13T double reduction driving axle

Tyre

12.00R20

Number of tyre

10+1 spare

Fifth wheel

Suspension

Leaf spring type

Color

optional

Cabin

 NG80B flat roof cabin with one sleeper and ABS,A/C.
