Полностью автоматическая упаковочная машина для картонных коробок с


Поделиться:

Цена:12 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

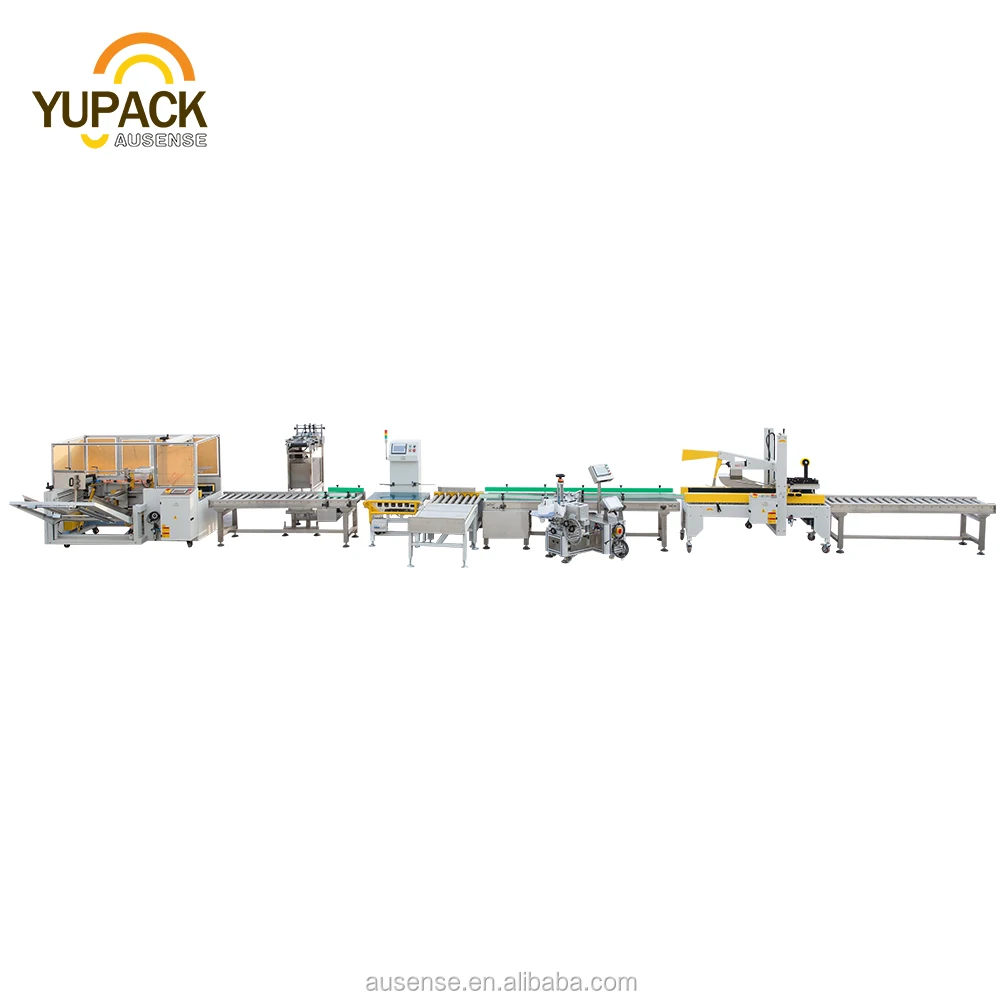

carton packaging line, case erector


Customized  carton packaging line, carton erector machine,carton sealing machine, case weighing machine , carton strapping machine.
This carton packaging line Including carton erector ,carton sealer ,carton corner edge sealer ,labelling machine and strapping mchine which can be equipped with various options based on the requirements of our clients to save labor cost and improve working capacity .


01020304





6





2





Advantage of packing line
1.Imported accessories, electrical and pneumatic components
2.Realize fold the box flaps automatically
3.Manually adjustable the height and the width for different size of cartons
4.Top&bottom belts driven, carton sealing in top
5.Cutter Safety system to prevent hands form stabbed by the cutter
6.Both steel and stainless steel types
7.Also suitable for cartons with side covers
8.Top and bottom movement can be interchanged
9.Height of working table can be adjustable

Parameter of Packing line






























































ModeYPK-4012FXJ-AT5050FXJ-P5050MH-102B
Power200W 50/60Hz240W 50HZ240W600W
Voltage220v/380V220V 1ph can be customized220/380V220/380V
Machine dimensionL2100*W2100*H1480mmL1020*W850*H1450mmL2000*W1200*H1500mmL1900*W630*H1760mm
Packing SizeL450*W400*H400
L250*W150*H100
Mini Size:L& W120*120 Max Size:L&*500*500L450*W400*H400
L250*W150*H100
W800*H600mm
Net weight450kg120KG730kg150kg
Capacity 9-12carton/min15-20carton/min15-20cartons/min2.5S/strp
Tape width48-75mm 48~75mm48-75mm PP tape





6





IMG_20171201_113656





01





05





 02





03





04








08





03
