Track rock mobile crusher station price, Small Portable gravel stone jaw crushing plant, mobile granite concrete crushing line

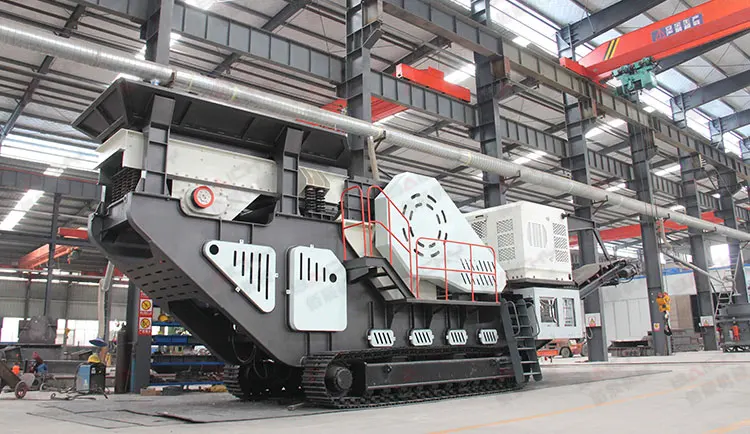

Crawler hydraulic driven crushing station is a mobile crushing and screening equipment developed by our company with the introduction of well-known mining machinery company technology and combined with the actual situation in China.The machine adopts hydraulic system to drive the track, so as to achieve smooth walking, and can adapt to a variety of complex field conditions.It is widely used in mineral mining, stone mining, highway (railway) and Bridges, urban construction waste treatment and many other fields.
The chassis is made of all-steel ship structure with high strength and better adaptability to the working site;High power walking motor, powerful horsepower, safe and reliable;Adopt famous brand motor, realize the excellent performance of power system, have the characteristics of low noise, energy saving, etc
According to the requirements of customers, all levels of crushing and screening equipment can be rationed, the whole machine optimized design, fully ensure the quality;Generator set can be equipped to meet the normal operation requirements in complex situations such as no power or power cut, to ensure continuous operation and reduce losses

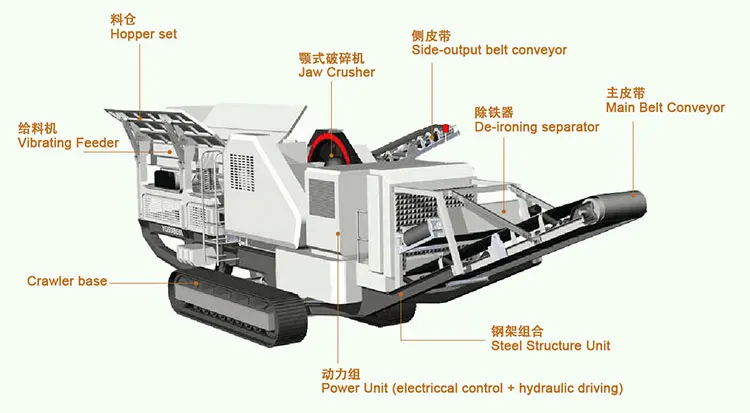

Mobile crusher station is a full hydraulic drive tracked vehicle chassis with mobile crushing screening equipment, Baichy independent research and development. The machine has the advantages of compact structure, reliable performance, beautiful appearance, high automation level. With full hydraulic drive tracked vehicle, optimization with high performance crusher, vibrating screen, electric control cabinet, generators and other equipment, form a complete crushing system. It's widely applicable to the road construction, city building, metallurgy, energy and other departments, for crushing, screening and other operations.
Working principle
Material by the feeder evenly to the jaw crusher, after beginning of jaw crusher broken material by the conveyor into the counterattack crusher for secondary crushing, crushing the material through the sieve sieve, satisfies the requirement of the broken material from the conveyor output, does not meet the requirements of the material into the counterattack crusher broken again, the caterpillar jaw crusher + reaction type mobile crushing plant production line through circular vibrating screen constitute closed-circuit system, realize the material cycle of broken, finished product material from the conveyor output, continuous crushing operations.
| Model | Crusher model | Max.feeding size(mm) | Capacity(t/h) | Weight(T) |
| CHT-E69 | PEL69 | 500 | 80-100 | 41 |
| CHT-C96 | C96 | 480 | 100-120 | 39 |
| CHT-C100 | C100 | 580 | 120-150 | 52 |
This equipment is a mobile crushing and screening equipment independently developed by our company to meet the market demand, which is fully hydraulically-driven crawler-type vehicle chassis walking. It adopts the integrated group operation mode, which eliminates the complex installation operation of construction and reduces the consumption of material man-hour.
Jaw crusher
Impact crusher
Cone crusher
Ball mill

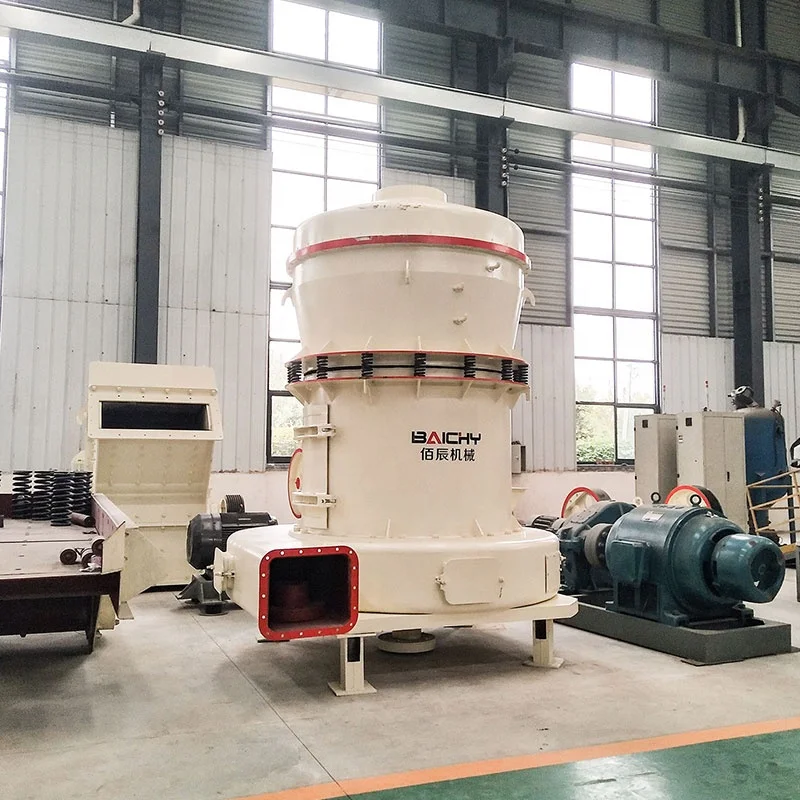

Grinding mill
Mobile crusher
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
