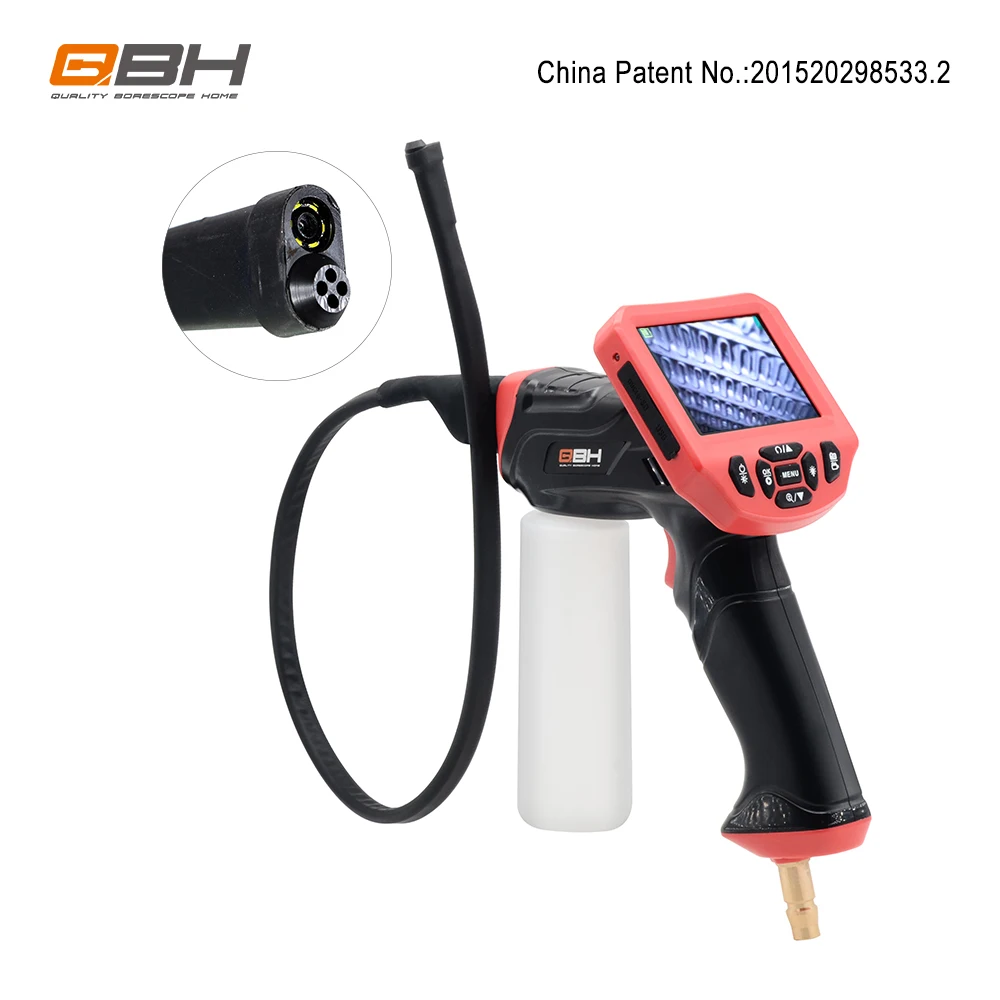

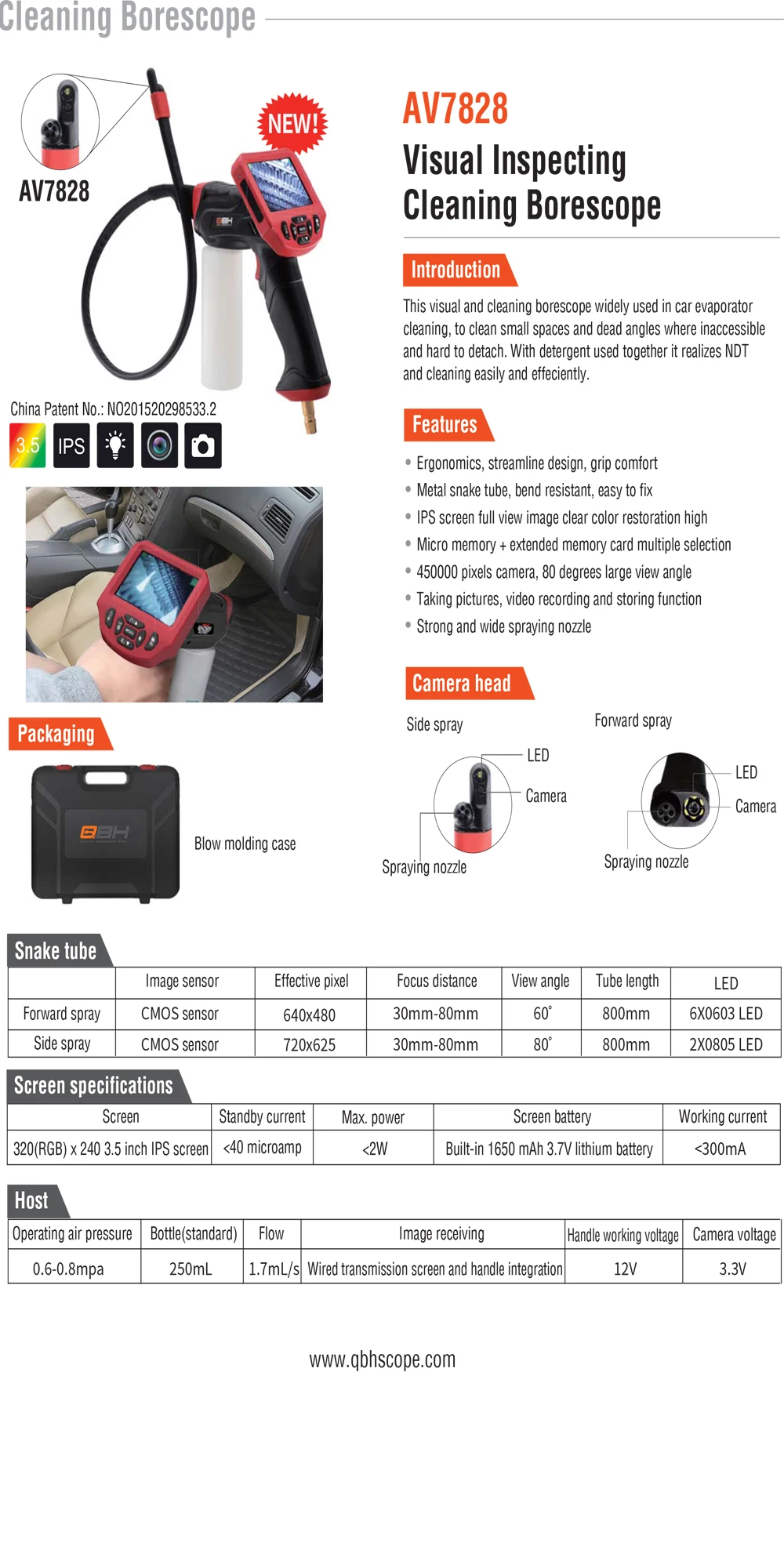

AV7828 VISUAL INSPECTING CLEANING BORESCOPE FOR CAR EVAPORATOR CLEANING
Forward spray mode:
Snake Tube (camera) | |
Image sensor | CMOS Sensor |
Effective Pixel | 720*625 |
Focus distance | 30mm-80mm |
View angle | 60 degree Fov(D) |
Probe diameter | Φ9.0 mm |
Probe tube length | 800m |
LED illumination | 6 lamps, 3.level adjustment the lights |
Host | |
Screen | 3.5'' 320 (RGB) x 240 IPS screen |
Record and Photograph | Photo format:JPG/BMP/JPEG; Video Format:AVI |
Memory card | Max capacity of 32G mini TF card |
Screen Battery | Built-in Li-battery 1650MAH |
Working Current | <300MA/H |
Side spray mode:
Snake Tube (camera) | |
Image sensor | CMOS Sensor |
Effective Pixel | 640*480 |
Focus distance | 30mm-80mm |
View angle | 80 degree Fov(D) |
Probe diameter | Φ9.0 mm |
Probe tube length | 800m |
LED illumination | 2 lamps, 3.level adjustment the lights |
Host | |
Screen | 3.5'' 320 (RGB) x 240 IPS screen |
Record and Photograph | Photo format:JPG/BMP/JPEG; Video Format:AVI |
Memory card | Max capacity of 32G mini TF card |
Screen Battery | Built-in Li-battery 1650MAH |
Working Current | <300MA/H |

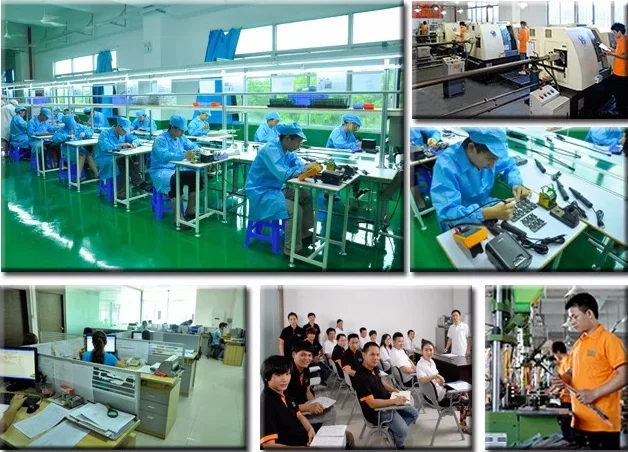

SHENZHEN QBH TECHNOLOGY DEVELOPMENT CO.,LTD. is located in Shenzhen, our company is an innovative high-tech enterprise with a 16-year history of manufacturing intelligent endoscopes. Having more than 30 patent certificates, including 2 patents for invention, our company enjoys the well reputation of possessing one of the most productive and specializing snake camera production lines around the world.
1. Question: What mode of payment do you support?
Answer: We support these mode of payment such as: Paypal, TT, L/C, Western Union. According to your specific circumstances, you can choose the most suitable mode of payment.
2. Question: What's length of the snake tube?
Answer: The standard tube length is 1M. The tube can be made up to 10M. We can provide ODM and OEM service according to your requirements.
3. Question: How long time can the host and the screen keep working?
Answer: The screen can keeping working for 1 hours. The host can keep working for 6 hours. The screen charger time is 4-6 hours.
4. Question: Is the snake tube detachable? Is the host removable from the screen?
Answer: The tube is detachable. The host can be removed from the screen. The screen can keep working when separated from host within 10 M.
|
