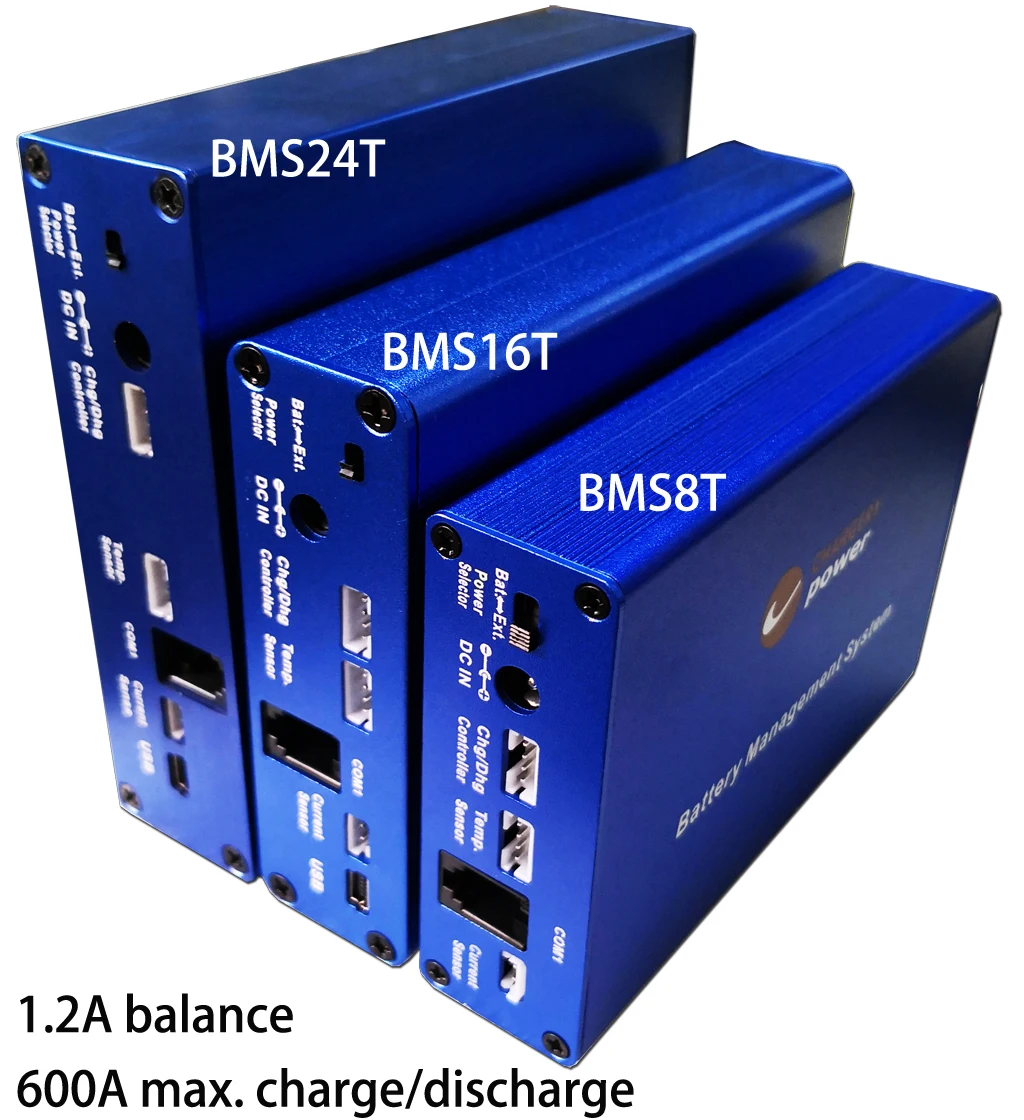

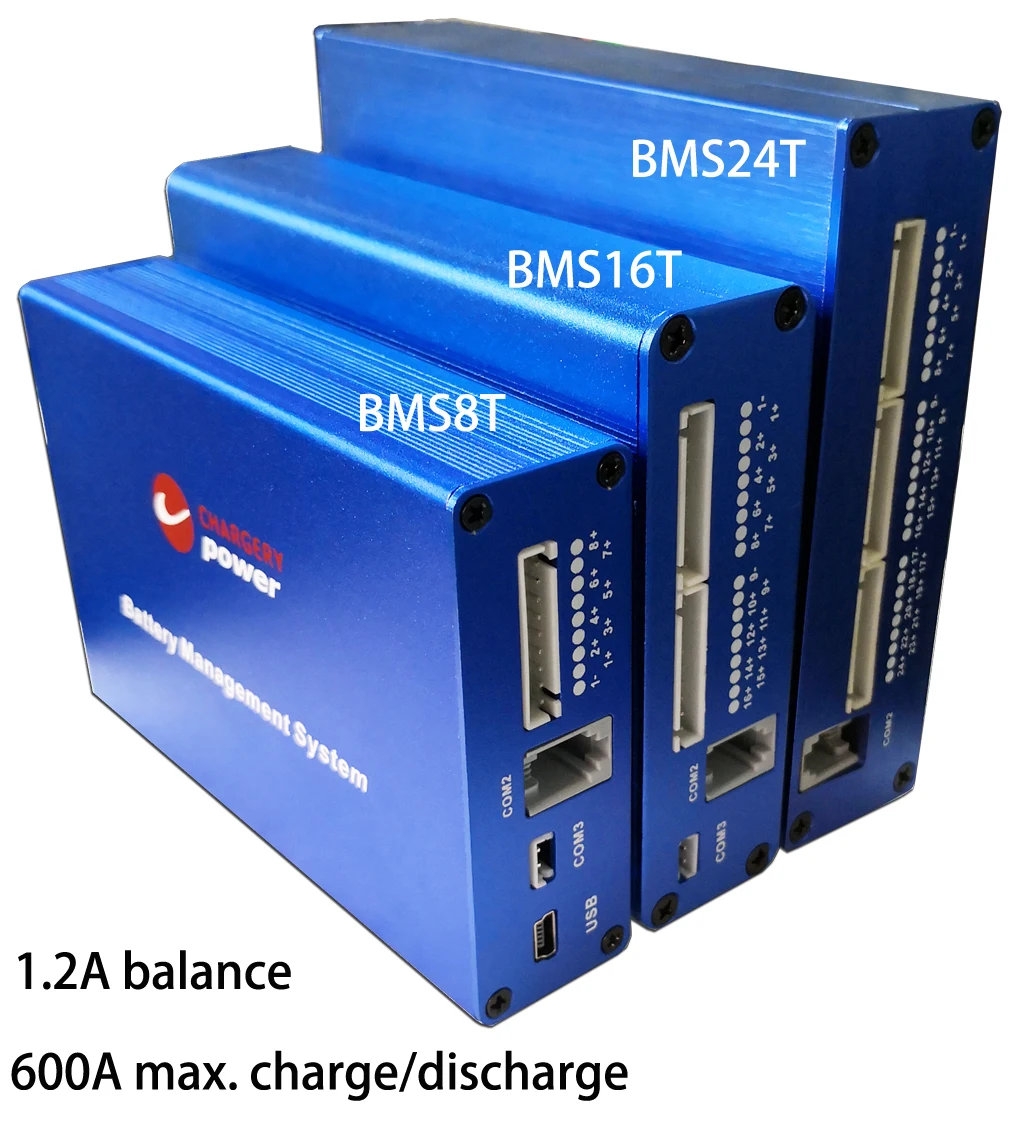

BMS24T 600A 2S - 24S литиевый LiPo LiFe LTO аккумулятор Smart BMS 1.2A баланс
- Категории: Другая бытовая электроника >>>
- Поставщик: Shenzhen,Xuba,Electronic,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Main module Size | 128×114×33 (L×W×T, mm) or 5.1×4.5×1.3 (L×W×T, inch) |
Main module weight | 420g excluding accessories |
Display module size | 96×80×24 (L×W×T, mm) or 3.8×3.2×0.95 (L×W×T, inch) |
Display module weight | 130g excluding accessories |
Warning LED | 11000mCd, 2.0V, 20mA |
Warning beeper | 85dB 12V, 25mA |
Package | AL alloy case |
Updated Features:
1. BMS24T draw current from total battery pack even 24S lipo at full charge (100.8v)
2. Added an RS-232 port so an external device can read all data from the BMS24T
3. For same Battery positive and negative terminal when charge and discharge, BMS24T can control charge and discharge
separately.
4. Improved cell detection accuracy
5. Added over-current protection during cell balancing
6. Optimized SOC accuracy. New approaches are based on voltage and coulomb counting that take the individual cell
impedances into consideration. Please configure the correct battery capacity via the Program setup menu before using
the BMS24T.
7. Added current, AH and WH, and SOC to interface. The user can now read the charge or discharge current, total battery
capacity, as well as current power and battery capacity remaining on one easy to use interface.
8. Updated relay controller to use a 12V 3A regulator powered by the battery pack. It can now drive both large current
mechanical and solid state relays..
9. When using an external 15V to 100V 3A or larger power adapter, the BMS can manage 2S-24S battery packs without
drawing any power from the battery pack
Special Features:
1. The BMS24T uses advanced ADC measurement technology, high accuracy, high voltage and high current
detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 24S LiPo battery
(102V)
2. Support regenerative braking, during braking operation can charge the batter pack and the discharge power
(Wh) will decrease to response to the braking power.
3. Charge/discharge current up to 600A. Bigger current can be customized.
4. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
voltage balance status at the shortest time. Over temperature protection make sure the system safety
during balance.
5. BMS24T calculate and display the charge and discharge power (Wh), generally the battery rated power is
rated voltage multiply rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC
and temperature and so on.
7. BMS24T features a maximal safety protection, within the range parameters can be setup, BMS24T will alarm
and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged absolute
maximum ratings BMS24T will force to cutoff charge or discharge to prevent the battery from fire.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all cells or external power supply.
10. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not
uniformity, the device will alarm and cutoff charge or discharge according to users’ setup, the feature can
prevent any cell connection from loosing.
11. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several
seconds cut off or Don't cut off charge or discharge. The delay time can be programmed.
12. Charge relay and discharge relay are controlled independently.
13. Two temperature sensors monitor battery temperature on different position.
14. Supports upgrading the firmware program by USB port.

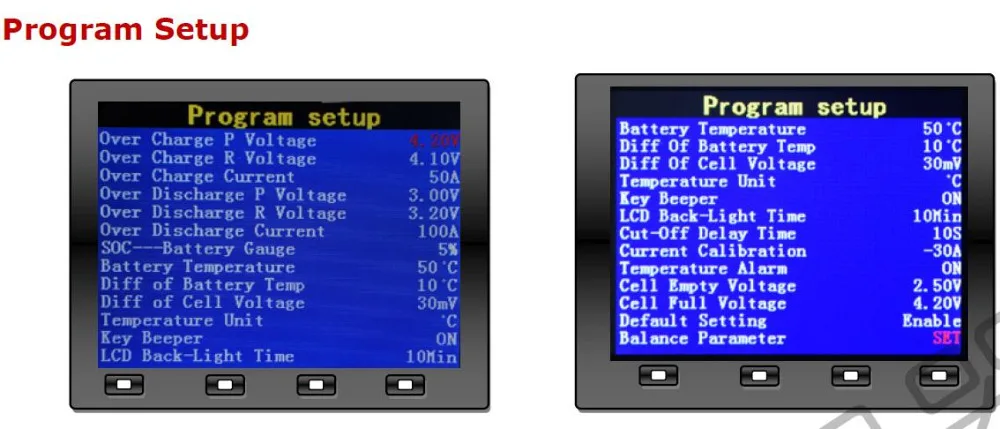

15. BMS24T provide users the maximal flexibility, key parameters can be programmed.
16. BMS24T display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack
voltage and battery gauge (%) is displayed simultaneously.
17. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode
to save energy consumption, at this mode, Charge and Discharge is forbidden, and LCD back light is off.
Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to resume “ON”.
1. BMS24T draw current from total battery pack even 24S lipo at full charge (100.8v)
2. Added an RS-232 port so an external device can read all data from the BMS24T
3. For same Battery positive and negative terminal when charge and discharge, BMS24T can control charge and discharge
separately.
4. Improved cell detection accuracy
5. Added over-current protection during cell balancing
6. Optimized SOC accuracy. New approaches are based on voltage and coulomb counting that take the individual cell
impedances into consideration. Please configure the correct battery capacity via the Program setup menu before using
the BMS24T.
7. Added current, AH and WH, and SOC to interface. The user can now read the charge or discharge current, total battery
capacity, as well as current power and battery capacity remaining on one easy to use interface.
8. Updated relay controller to use a 12V 3A regulator powered by the battery pack. It can now drive both large current
mechanical and solid state relays..
9. When using an external 15V to 100V 3A or larger power adapter, the BMS can manage 2S-24S battery packs without
drawing any power from the battery pack
Special Features:
1. The BMS24T uses advanced ADC measurement technology, high accuracy, high voltage and high current
detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 24S LiPo battery
(102V)
2. Support regenerative braking, during braking operation can charge the batter pack and the discharge power
(Wh) will decrease to response to the braking power.
3. Charge/discharge current up to 600A. Bigger current can be customized.
4. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
voltage balance status at the shortest time. Over temperature protection make sure the system safety
during balance.
5. BMS24T calculate and display the charge and discharge power (Wh), generally the battery rated power is
rated voltage multiply rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC
and temperature and so on.
7. BMS24T features a maximal safety protection, within the range parameters can be setup, BMS24T will alarm
and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged absolute
maximum ratings BMS24T will force to cutoff charge or discharge to prevent the battery from fire.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all cells or external power supply.
10. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not
uniformity, the device will alarm and cutoff charge or discharge according to users’ setup, the feature can
prevent any cell connection from loosing.
11. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several
seconds cut off or Don't cut off charge or discharge. The delay time can be programmed.
12. Charge relay and discharge relay are controlled independently.
13. Two temperature sensors monitor battery temperature on different position.
14. Supports upgrading the firmware program by USB port.
15. BMS24T provide users the maximal flexibility, key parameters can be programmed.
16. BMS24T display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack
voltage and battery gauge (%) is displayed simultaneously.
17. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode
to save energy consumption, at this mode, Charge and Discharge is forbidden, and LCD back light is off.
Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to resume “ON”.
Protection functions:
1. Cell count error protection
2. Over charge protection
3. Under voltage protection
4. Over current protection when charge or discharge
5. Over temperature protection
6. Over differential cell voltage protection
7. Over differential battery temperature protection
8. Under SOC protection
1. Cell count error protection
2. Over charge protection
3. Under voltage protection
4. Over current protection when charge or discharge
5. Over temperature protection
6. Over differential cell voltage protection
7. Over differential battery temperature protection
8. Under SOC protection
