Product Description

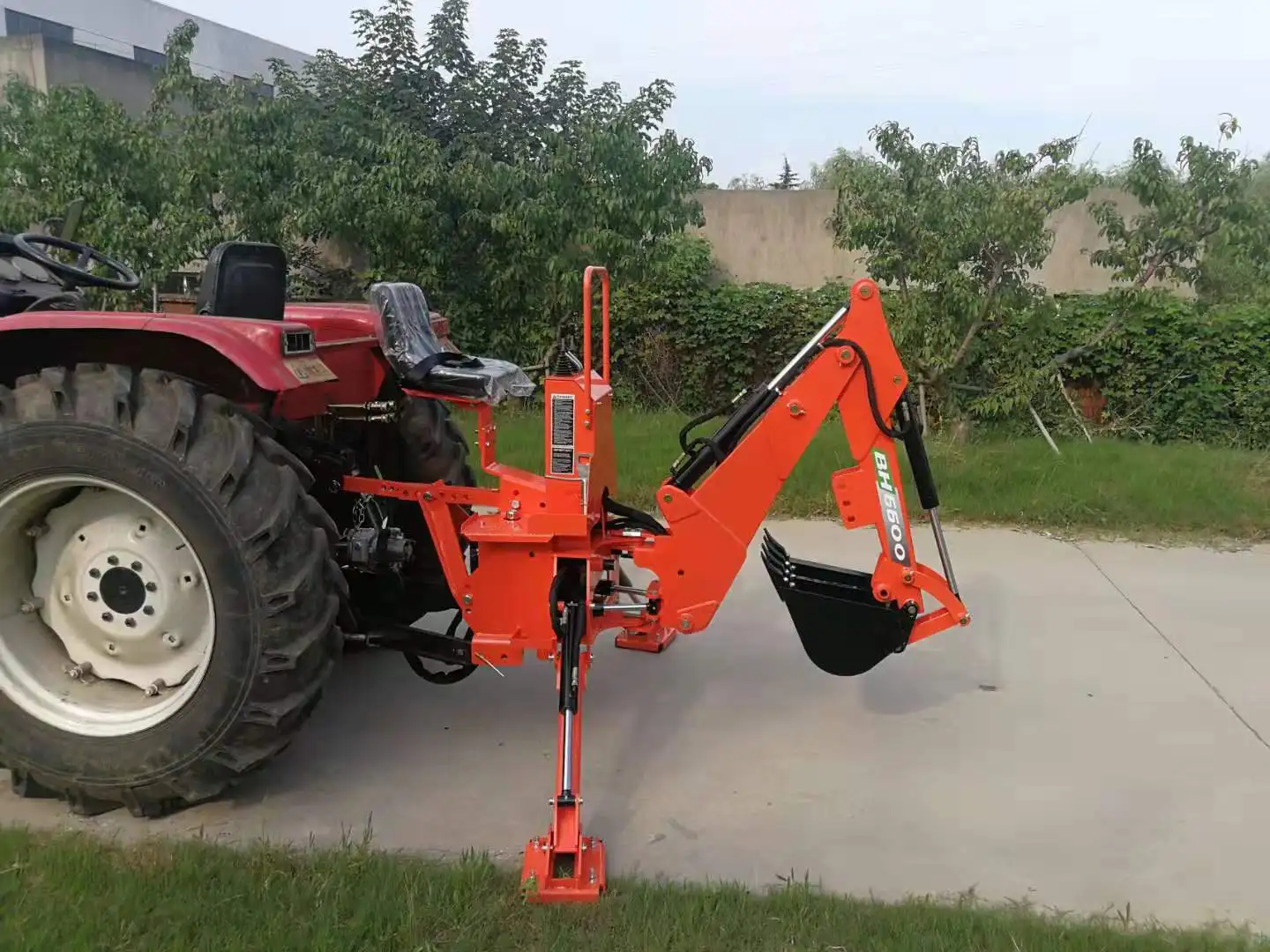

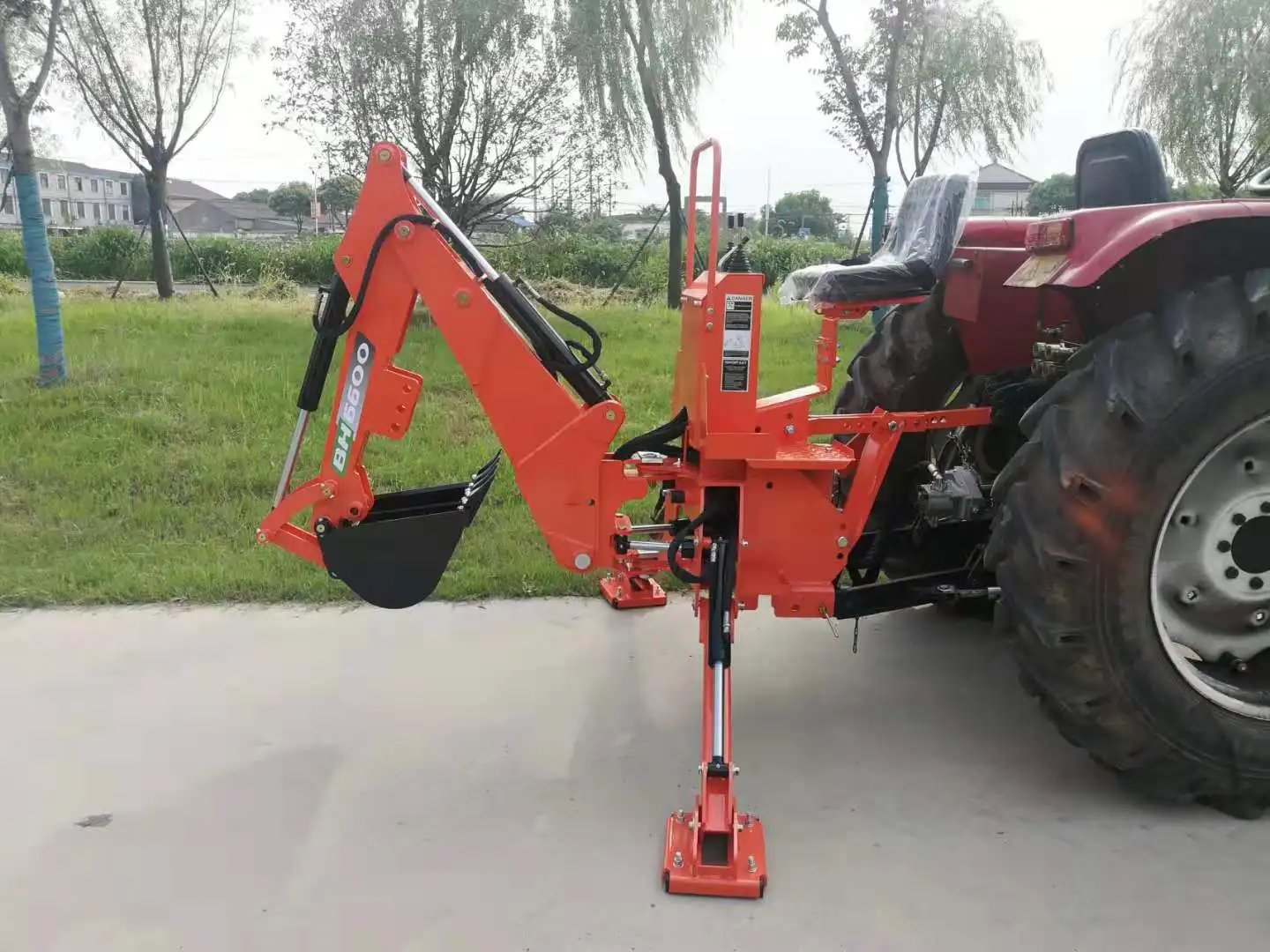

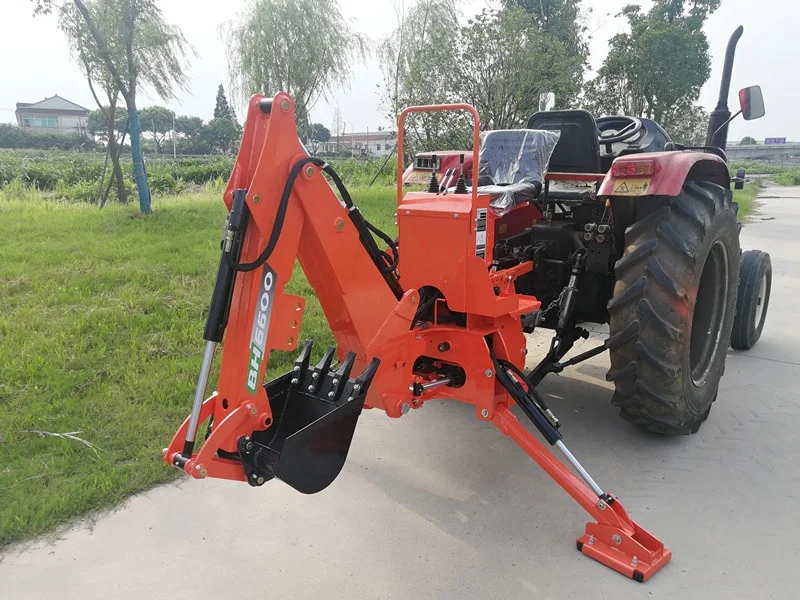

tractor mounted backhoe

Model	BH5600	BH6600	BH7600	BH8600
Tractor horsepower	18-25hp	25-35hp	30-45hp	35-66hp
Three point suspension	Cat-1&2	Cat-1&2	Cat-1&2	Cat-1&2
Max. Digging depth	1830mm	2133mm	2438mm	2745mm
Digging depth(2 feet flat bottom)	1676mm	1980mm	2286mm	2590mm
Boom swing degree	180°	180°	180°	180°
Loading height(bucket at 60°)	1270mm	1524mm	1778mm	2032mm
Loading reach(bucket at 60°)	865mm	965mm	1092mm	1220mm
Reach from center line of swing pivot	2286mm	2590mm	2895mm	3200mm
Max. transport height	1245mm	1498mm	1752mm	2032mm
Transport overhang	1016mm	1042mm	1066mm	1092mm
Bucket rotation	180°	180°	180°	180°
Undercut	660mm	712mm	762mm	812mm
Stabilizer spread, down position	1700mm	1980mm	2260mm	2565mm
Stabilizer spread, up position	1066mm	1194mm	1550mm	1828mm
Bucket cylinder digging force	930kg	1112kg	1288kg	1360kg
Dipper stick cylinder digging force	476kg	566kg	910kg	1135kg
Bucket width	230mm	300mm	380mm	450mm
Hydraulic volume	3-4GPM	3-4GPM	3-4GPM	3-4GPM
Hydraulic pressure	2000psi	2000psi	2000psi	2000psi
Weight(without bucket)	252kg	296kg	356kg	498kg
40”HC	40pcs	40pcs	40pcs	36pcs

Feature:

1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.

2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.

3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and mounted on it.

4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank
