24 Вт ручной универсальный настенный адаптер для ноутбука с 6 стандартными наконечниками постоянного тока переключатель

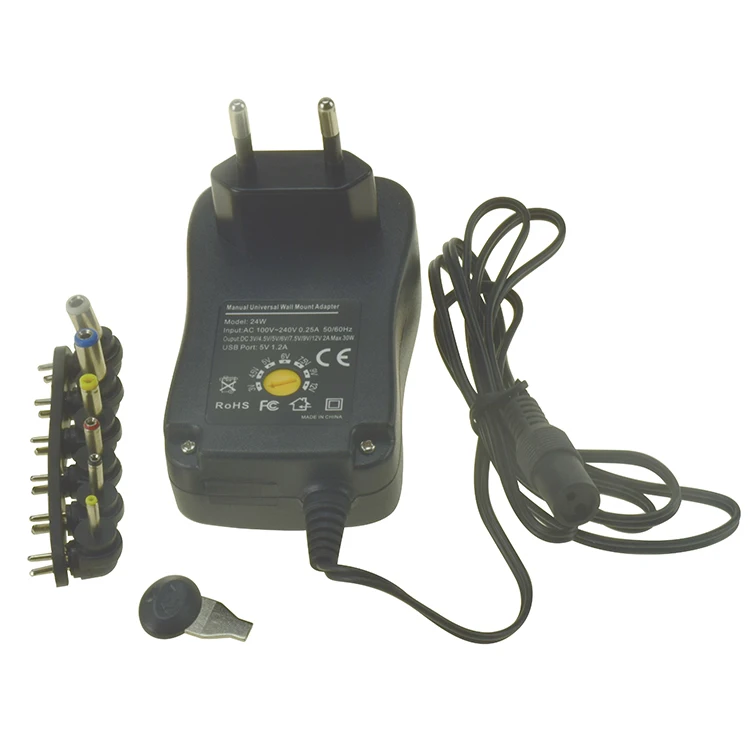

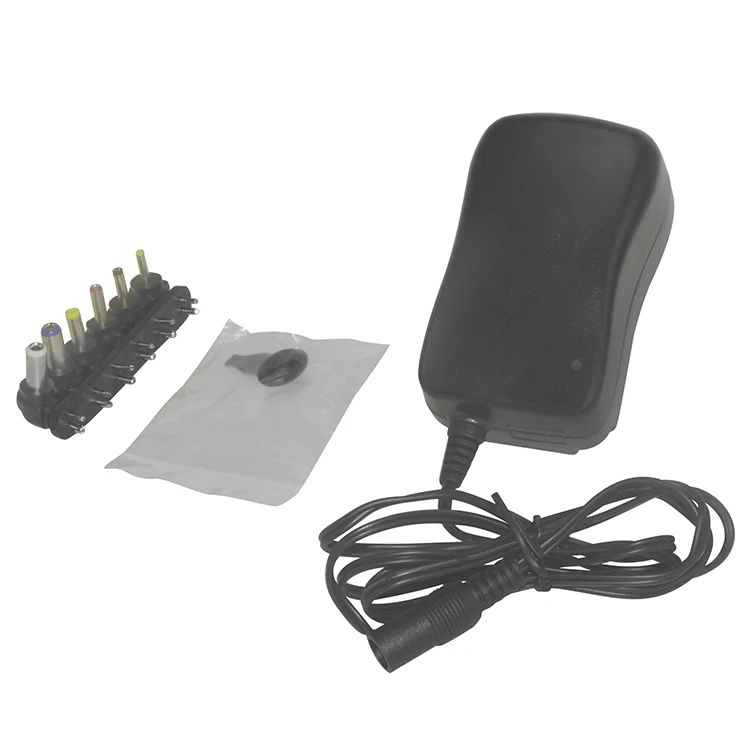

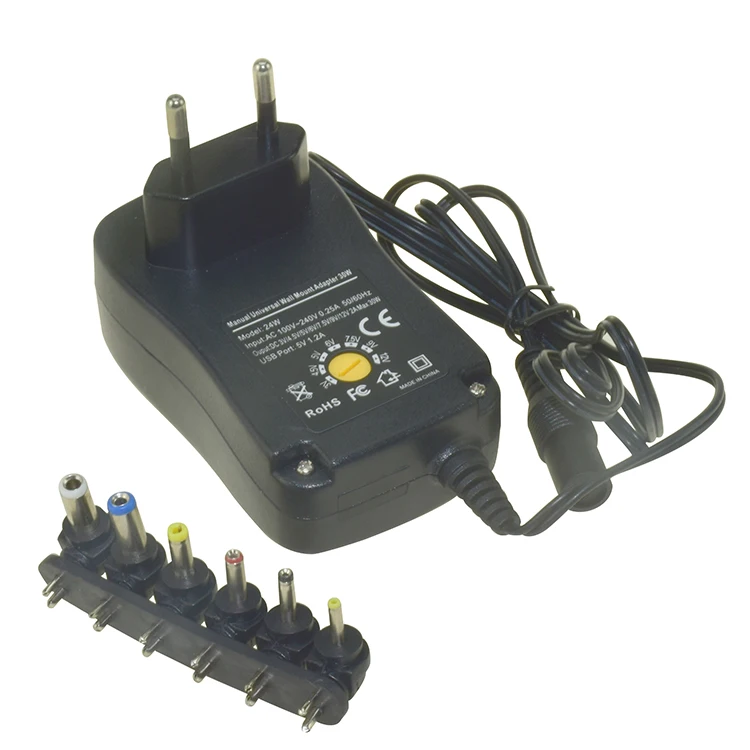

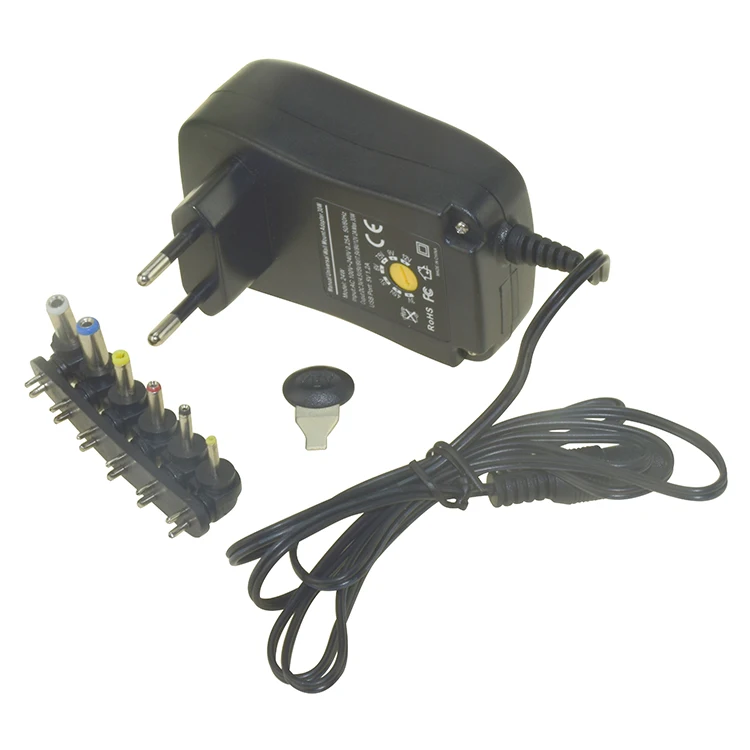

EU Universal wall adapter 24W

Model No.

YUN-EU24W

AC Input

Nominal Input Voltage

AC 100V~240V 0.2A

Input Frequency

50/60Hz

Input Plug

EU

DC Output

Output Voltage

3V/4.5V/5V/6V/7.5V/9V/12V-max 2A

Output Power

24W

DC Connector Size

2 pin ( with 6 standard dc tips)

6 Standard DC Tips

2.5*0.7mm/3.0*1.1mm/3.5*1.35mm/4.0*1.7mm/5.5*2.1mm/5.5*2.5mm

Line Regulation

1%

Load Regulation

1%

Ripple Noise

180 Mvp-p

Efficiency

>85%

Output Cable Standard

0.3mm2 Pure Copper

Output Cable Length

1.2m normally or customized requirement

Widely  Application:

this AC adapter with multi voltage, multi tips, can apply to most appliances that the efficient voltage is from 3V to 12V. Such as some household electronics, Tablet,routers, Telecommunication devices , Security Camera,led light,moniter and so on.

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, FCC

Dimensions

Adapter Size

6.5*4.4*7.5 CM (not including the AC plug)

Adapter Weight

130G(including the 6 pcs dc tip)

Color Box Size

11.8*5.7*8.2 CM

Color Box Weight

20G

PCS/CTN

90PCS

Outer Carton Size

54*25.5*43CM

Outer Carton Weight

600G

GW/CTN

15KG

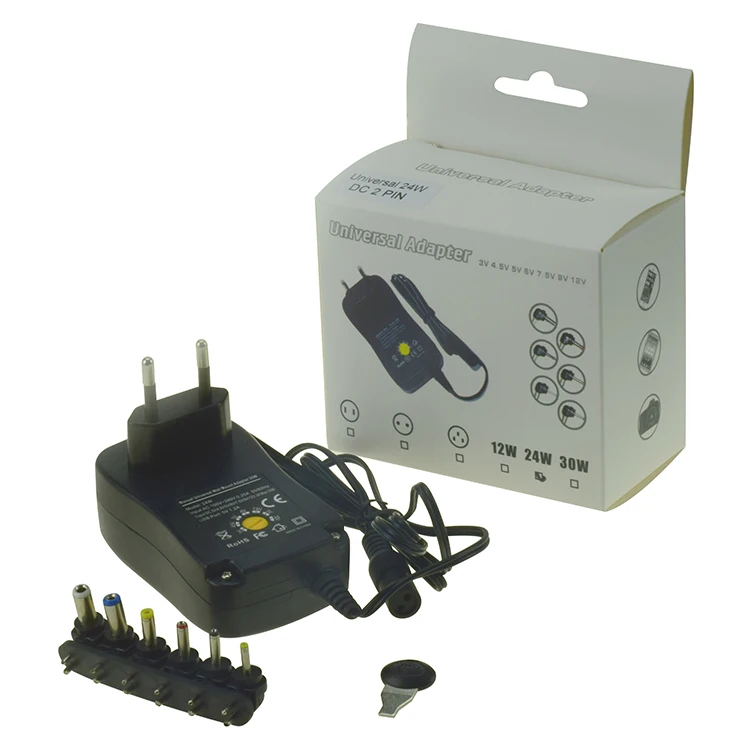

Package

Inner Box

Normally neutral color box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

1 year

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
