Product Description

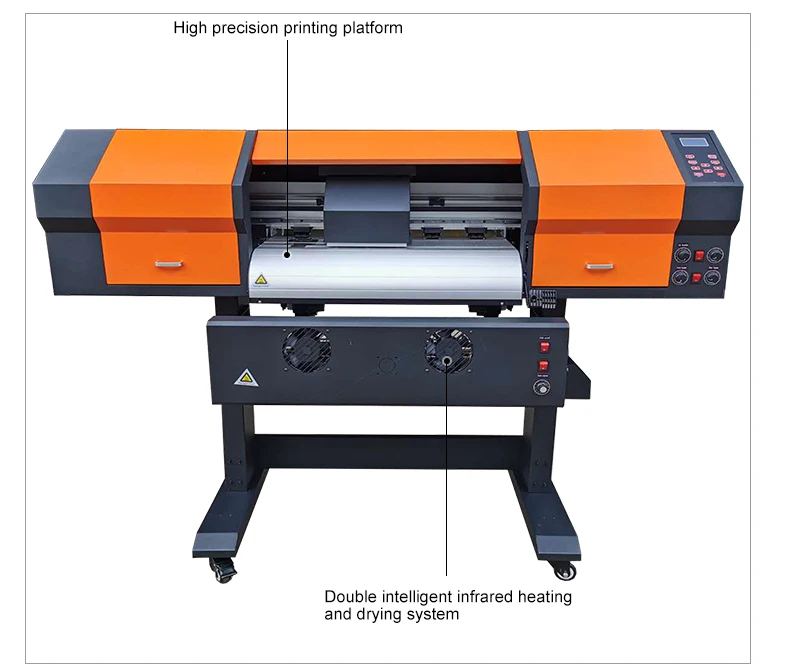

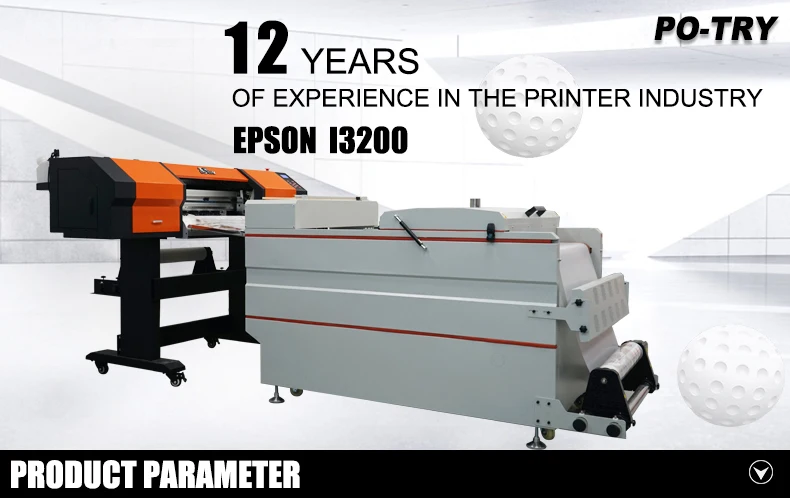

Pigment powder shaking printer inkjet printers cotton tshirt printing machine

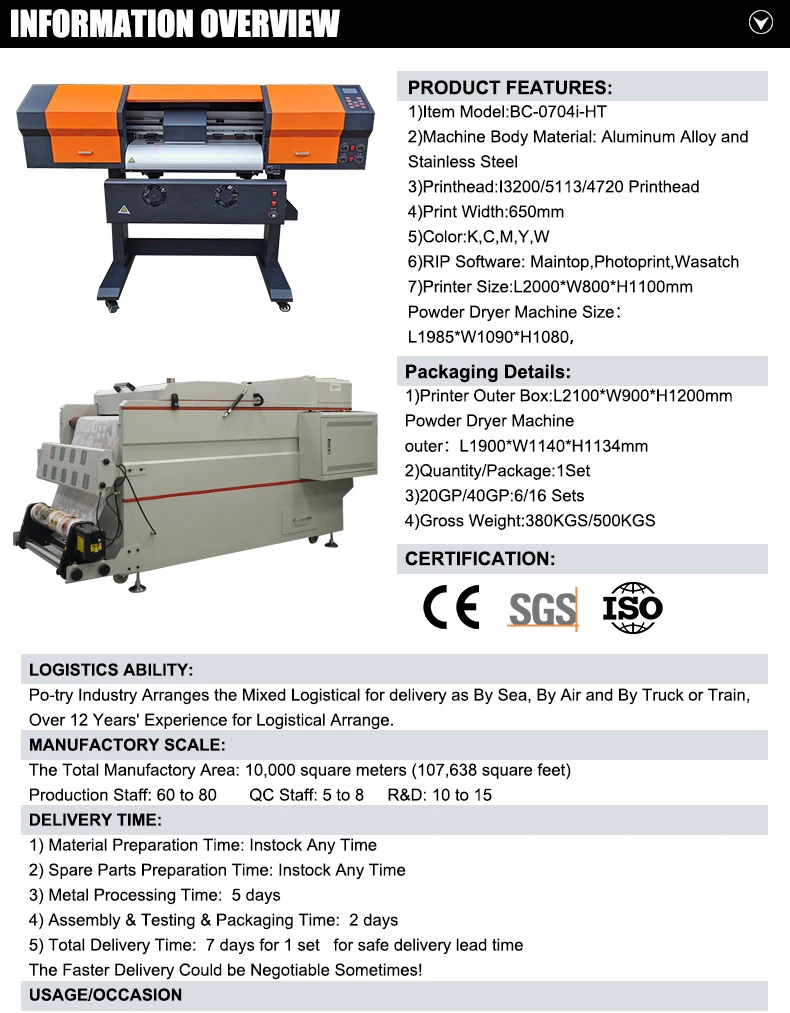

| Specification & Technical Data | ||||
| Model Number | BC-0702i-HT | BC-0704i-HT | ||
| Printhead | EPSON 4720 | |||
| Number of Printheads | 2 | 4 | ||
| Print Resolution /Speed | 4pass:12m²/H 6pass:7m²/H |
4pass:24m²/H 6pass:14m²/H |
||
| Print Width | 700mm | |||
| Ink Type | Water-based pigment ink, white ink | |||
| Ink Capacity | 5*2L | |||
| Precision Mode | VSD | |||
| Color | K C M Y W | |||
| Work Environment | Temperature: 15℃-28℃;Relative Humidity: 40%-60% | |||
| Rolling System | Automatic | |||
| Drying System | External Drying system | |||
| Print Interface | USB3.O/ Network Interface | |||
| RIP Software | Maintop | |||
| Power Supply | AC110V ± 10%.AC220V ± 10%.50/60 ± 1Hz | |||
| Power (Watt) | 2000W | |||
| Language Of Operating System | Chinese & English | |||
| Printer Size | L2000mm*W800mm*H1100mm | |||
| Printer Outer Box Size | L2100mm*W900mm*H1200mm | |||
| Powder Dryer Machine size | L2023mm*W1210mm*H1337mm | |||
| Powder Dryer Machine Outer Box Size | L1850mm*W1310mm*H1367mm | |||
| Net Weight | 100KG ( printer weight) | 180KG( Powder dryer weight) | ||
| Gross Weight | 130KG( printer weight) | 260KG (Powder dryer weight) | ||

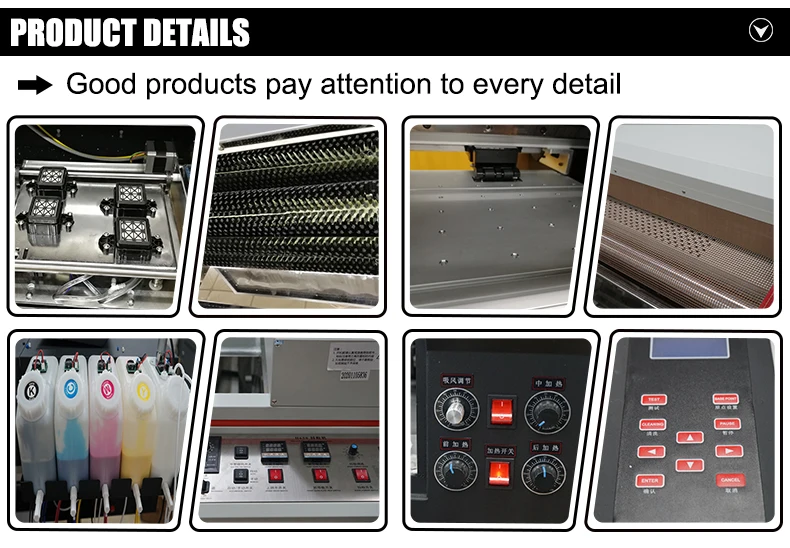

Charateristic,Suction guide

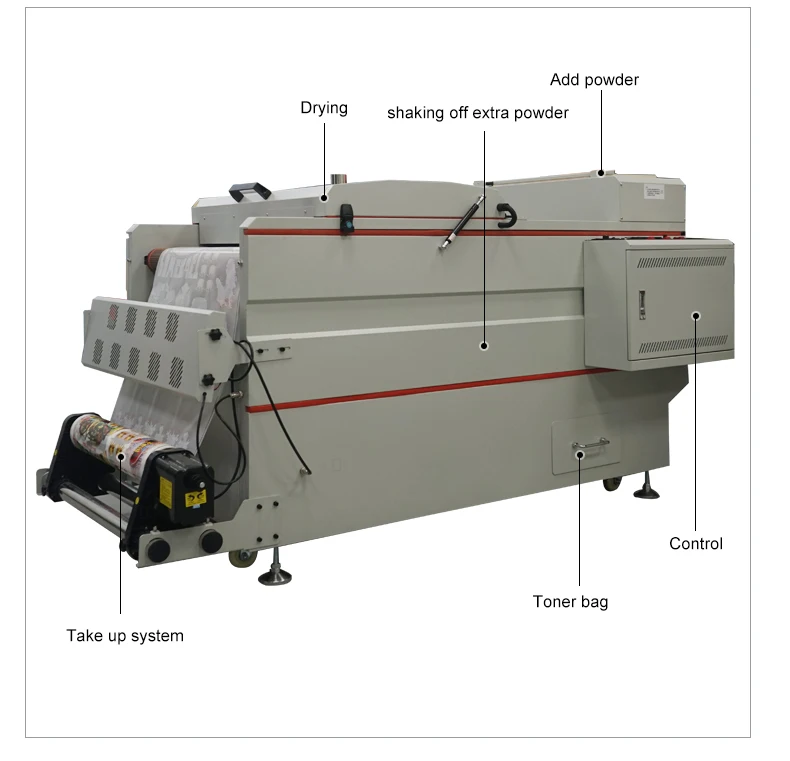

Efficient powder shaking device,Simple control switch
Removable powder collecting device,Make sure the paper is stable
Shake powder clean and no residue,Simple operation,Powder recycling
Efficient powder shaking device,Simple control switch
Removable powder collecting device,Make sure the paper is stable
Shake powder clean and no residue,Simple operation,Powder recycling

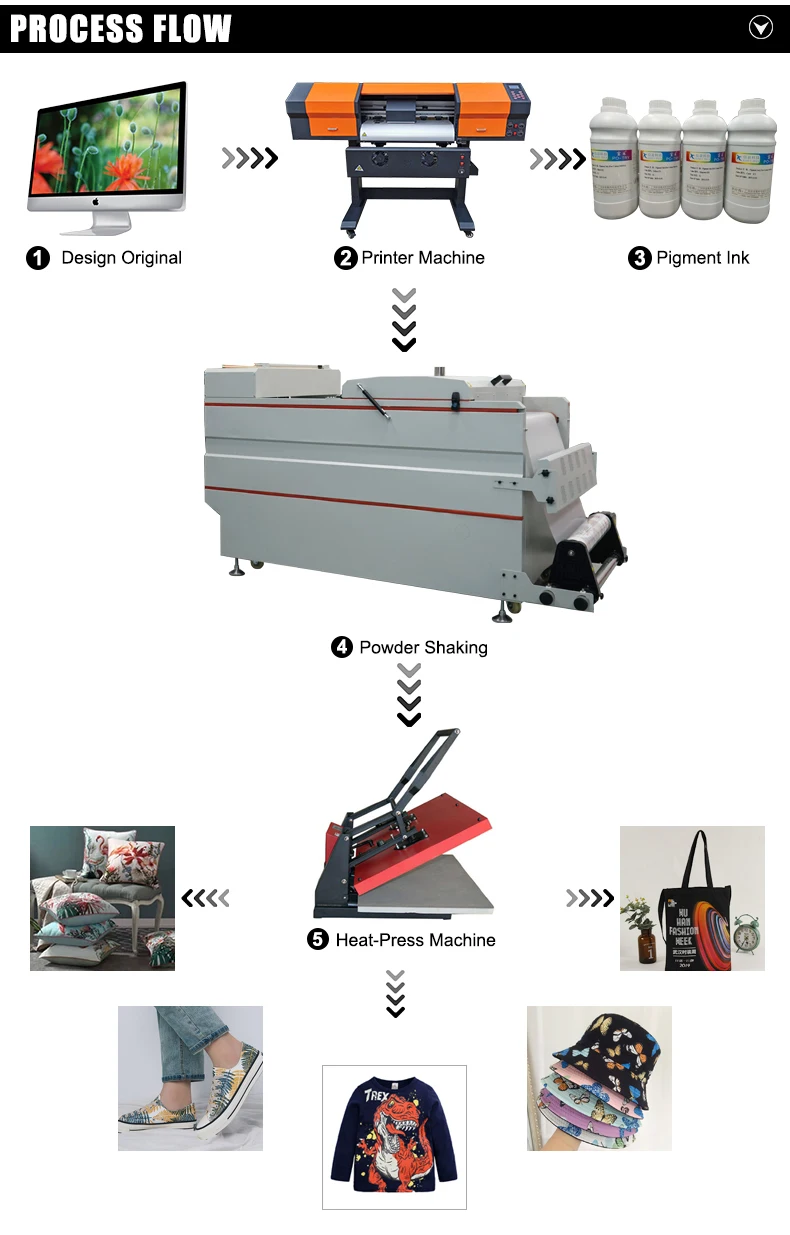

How to use it?

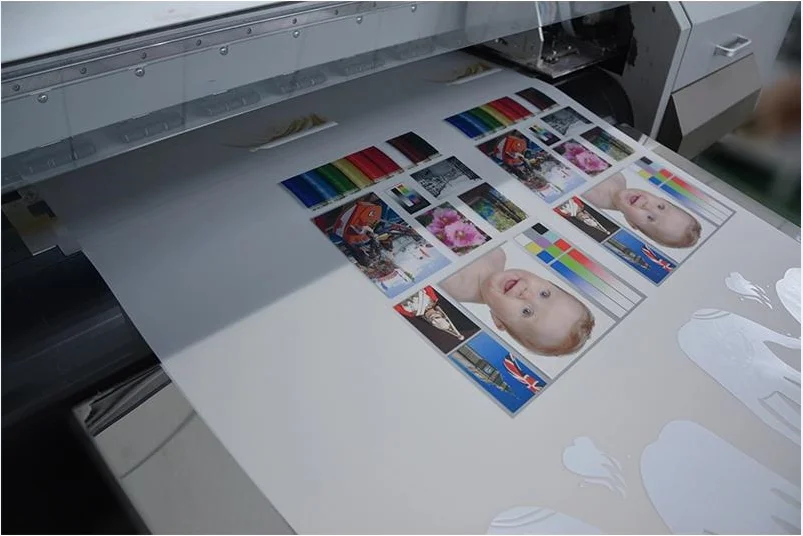

1. If you want to print a T shirt, use a roll-to-roll printer to print patterns on the film.
2. The printed pattern will enter the powder shaker, the machine will automatically cover the hot melt powder, and quickly shake to make the hot melt powder evenly covered, and heat at a high temperature to completely dissolve the hot melt powder on the film.
3. The Smart PET film collector will automatically roll the film together.
4. When you need to use, cut out the pattern you want and transfer the pattern to any fabric
on the heat transfer machine.
