Good Quality Chinese Vacuum Panel Glass Lifter Price

  Special designed for handling different kinds of heavy plate, board,glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

Model	GL-HD-4015(4x30)	GL-HD-4015(6x25)	GL-HD-4015(6x30)	GL-HD-4015(8x25)
Max. Load Capacity	400kgs	400kgs	400kgs	400kgs
Safe Load Capacity	200kgs	200kgs	200kgs	200kgs
Lifting Height	1500mm	1500mm	1500mm	1500mm
QTY of Caps (customized)	4pcs	6pcs	6pcs	8pcs
Cap Diameter	Ø300mm	Ø250mm	Ø300mm	Ø250mm
Plate Size (customized)	1220x1830mm	1220x1830mm	1220x1830mm	1220x1830mm
Load Center	650mm	650mm	650mm	650mm
Drive Motor	24V/500W	24V/500W	24V/500W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah
Charger	24V/10A	24V/10A	24V/10A	24V/10A



Self-propelled drive, Higher lift cap, available upon request. Electric side shift 100mm both right & left. Electric tilting forwards&backwards from vertical to horizontal or reverse. Suction plate is manual rotating.



The vacuum suction is designed with automatic pressure control doable routes to avoid system failure.Ideal for loading & unloading transporting, rotating and installation.Easy for operation, with the following

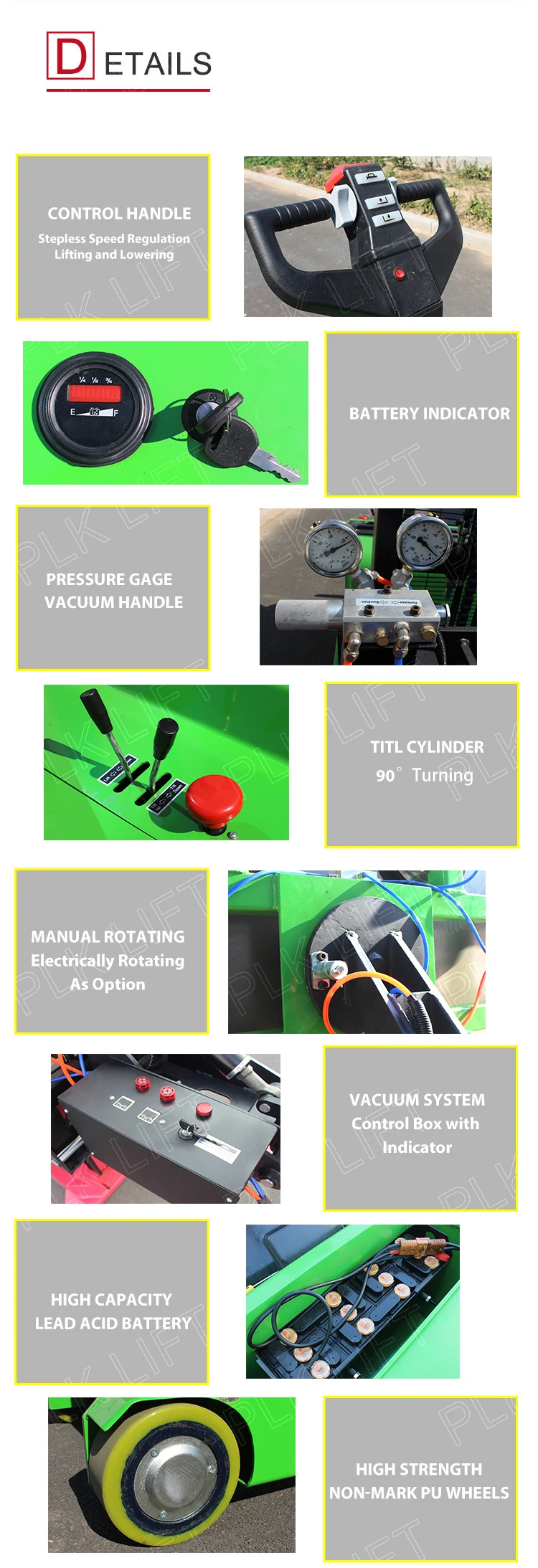

Functions:

ü Self-propelled drive. Manual rotating.

ü Electric lift up to 2.5M

ü Higher lift cap. is available upon request.

ü Electric side shift 100mm both right & left.

ü Electric tilting forwards & backwards from vertical to horizontal or reverse.
