Product Description
The Microwave Therapeutic System is an electricity (AC-powered) device intended to generate microwave energy for localized non-vascular soft-tissue ablation, typically to treat tumors and/or hydatid cysts. The device connects via a delivery cable to the Disposable Microwave Therapeutic Antennas for delivery of microwaves to the target tissues. It is intended to be used in percutaneous, laparoscopic, or open surgery procedures to ablate tissue typically in the liver, lung, kidney, thyroid, uterine, breast and bone.
3. Principles:
1. Product name:
Microwave Therapeutic System-ECO-100A2
2. Intended use:
2. Intended use:
The Microwave Therapeutic System is an electricity (AC-powered) device intended to generate microwave energy for localized non-vascular soft-tissue ablation, typically to treat tumors and/or hydatid cysts. The device connects via a delivery cable to the Disposable Microwave Therapeutic Antennas for delivery of microwaves to the target tissues. It is intended to be used in percutaneous, laparoscopic, or open surgery procedures to ablate tissue typically in the liver, lung, and kidney.
3. Principles:
Microwave therapeutic system produce heat by using polar molecules of tissue (mainly for the water molecules) with microwave frequency high-speed rotation and mutual friction. It features instantaneous coagulation from inner to outside, low temperature, clear edge of damage area, uniform heat area, and excellent haemostatic effect.
How does MWA Compare with Traditional Methods ? | ||||||
Treatment | Advantage | Limitation | Trend | |||
MWA | Minimally invasive; No toxic side effects; Target treatment | Inadequate popularity | New tumor treating method with rapid development | |||
Surgery | Local radical treatment | Long recovery time; Nonsurgical candidate | Popular | |||
Chemotherapy | Systemic treatment | Toxic side effects | Popular | |||
Radiotherapy | Local sensitive tumors | Toxic side effect; Non-sensitive or advanced tumors | Highly involved with interventional treatments | |||
Features | Benefits | ||||||
Integrated peristaltic pump | Continuous cooling capacity | ||||||
Dual energy source generator available | 2 antennas can be used simultaneously within one generator to coagulate-ablate very large or multiple lesions to save time | ||||||
Real-time coolant temperature monitoring and display | Minimizes risk to non-targeted tissues along the shaft of the antenna | ||||||
Pre-procedure cooling and microwave output self-test function | Ensures effectiveness and safety before starting the procedure | ||||||
Independent thyroid ablation mode available | Effective MW treatment for benign nodules and malignant tumors of thyroid and parathyroid gland | ||||||

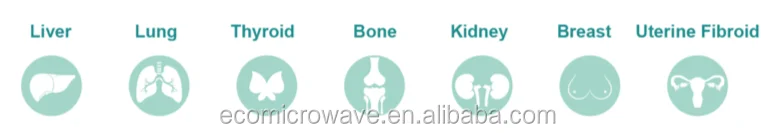

Applications
4. Technical parameters of model ECO-100A2
1) Working Frequency: 2450±20MHz;
2) Output Power: 0-150W in one channel, 0-125W in multiple channels; deviation: ±20%, continuously adjustable.
3) VSWR: ≤1.5
4) Treatment time: 0 ~ 30min, continuously adjustable, deviation ≤±1min.
5) Output mode: continuous and intermittent pulse.
6) Cooling temperature (0 ~ 50 ℃, deviation≤±1℃)
7) Input power:≤900VA+10%;
8) Microwave leakage: ≤2mW/cm2;
Cold circulation system: 1. Pipe connections no leakage, 2. Cooling liquid Flow : 25mL / min ~ 60mL / min.

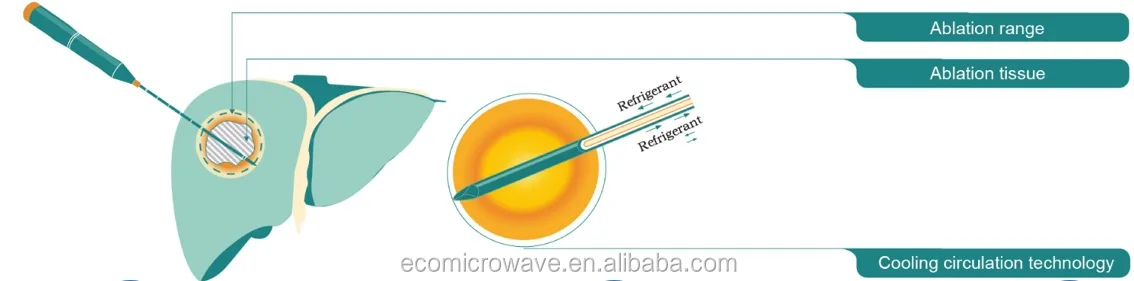

5. Mechanism of Microwave Ablation:
1) Thermal energy causes irreversible damage to organelles and proteins, ultimately generating tissue necrosis within solid tumors.
2) Besides, thermal energy ablates blood vessels around tumor, stopping blood supply and tumor metastasis.
3) Necrotic tissue gets fiberizing and slowly diminishes in size after MWA, activating immune function simultaneously.
1) Working Frequency: 2450±20MHz;
2) Output Power: 0-150W in one channel, 0-125W in multiple channels; deviation: ±20%, continuously adjustable.
3) VSWR: ≤1.5
4) Treatment time: 0 ~ 30min, continuously adjustable, deviation ≤±1min.
5) Output mode: continuous and intermittent pulse.
6) Cooling temperature (0 ~ 50 ℃, deviation≤±1℃)
7) Input power:≤900VA+10%;
8) Microwave leakage: ≤2mW/cm2;
Cold circulation system: 1. Pipe connections no leakage, 2. Cooling liquid Flow : 25mL / min ~ 60mL / min.
5. Mechanism of Microwave Ablation:
1) Thermal energy causes irreversible damage to organelles and proteins, ultimately generating tissue necrosis within solid tumors.
2) Besides, thermal energy ablates blood vessels around tumor, stopping blood supply and tumor metastasis.
3) Necrotic tissue gets fiberizing and slowly diminishes in size after MWA, activating immune function simultaneously.

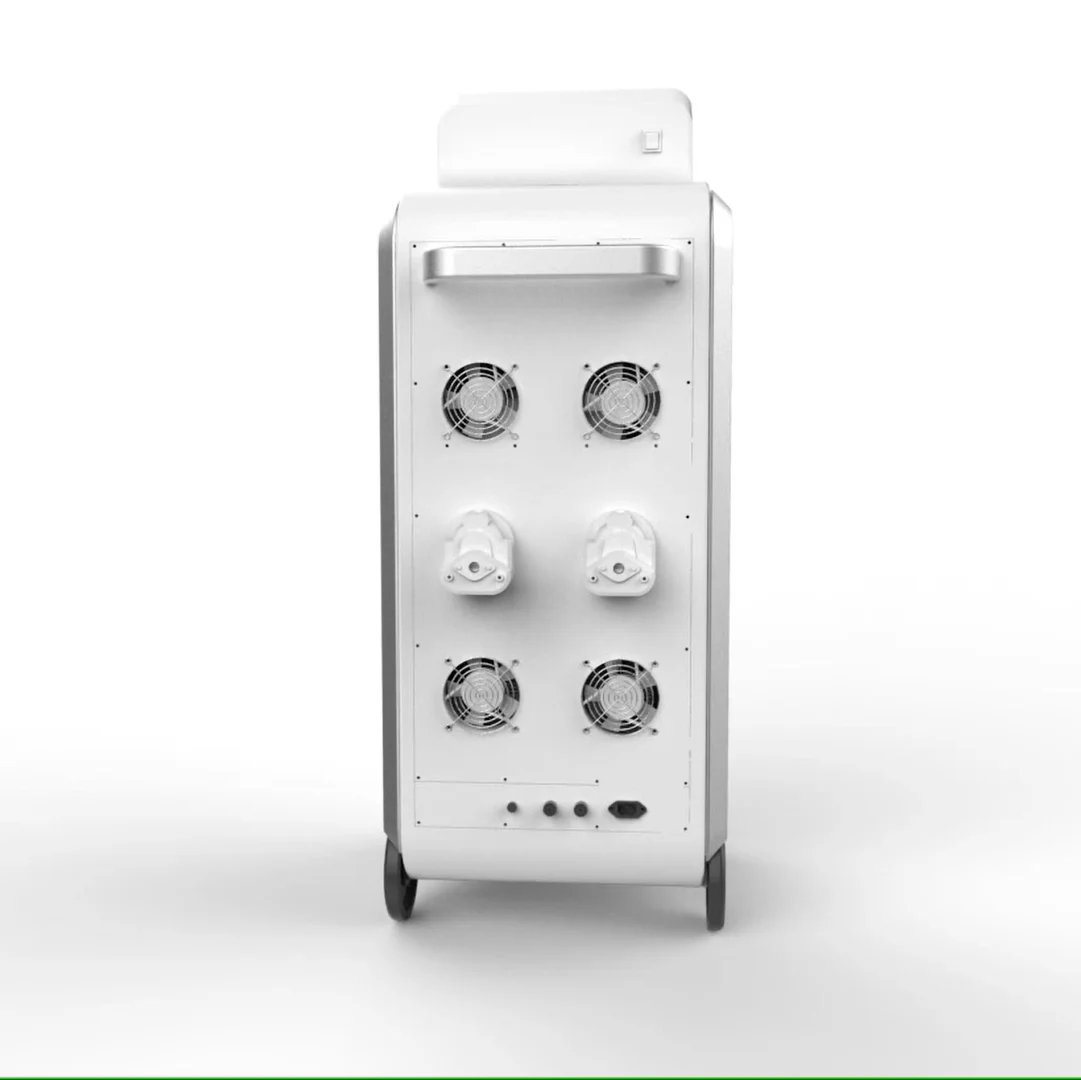

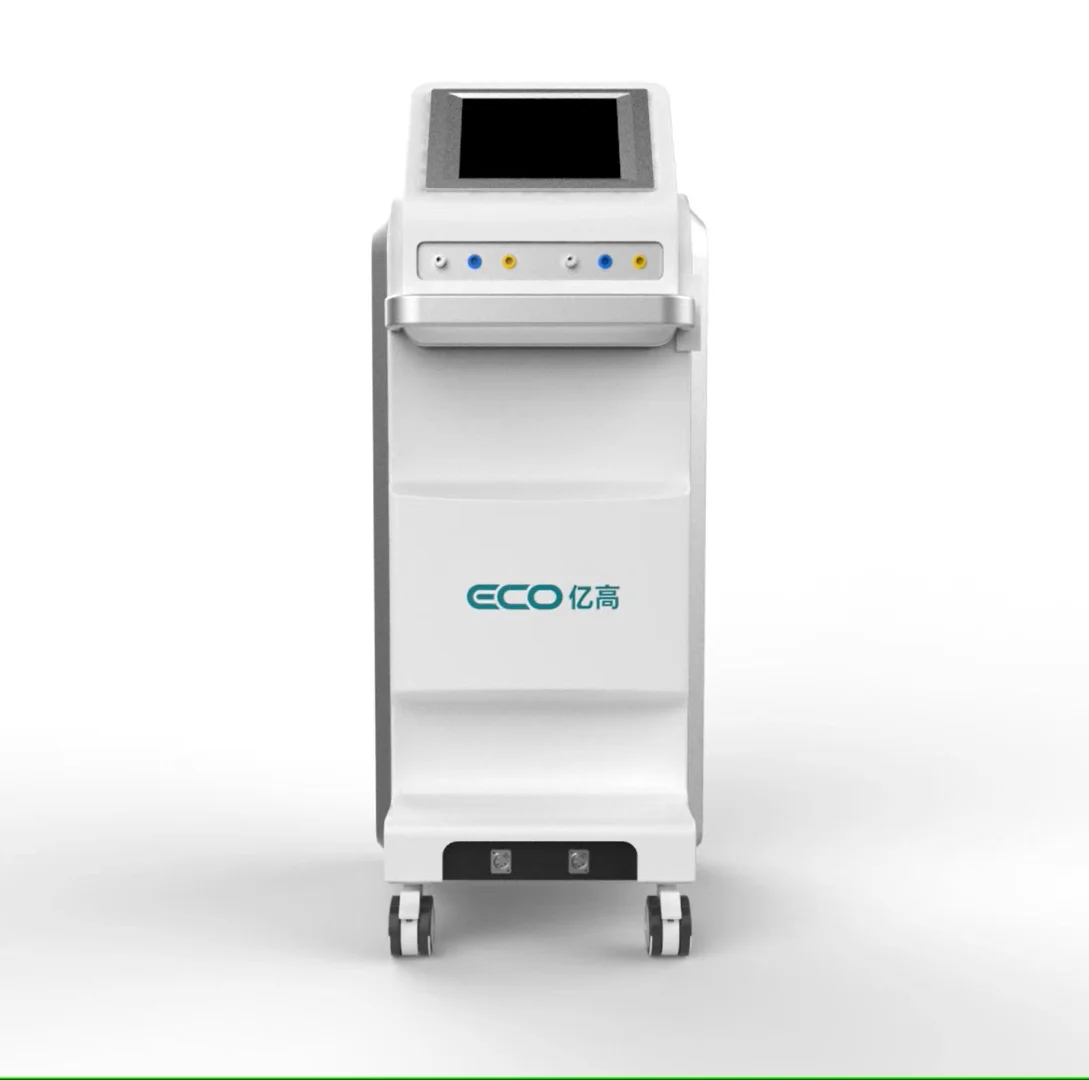

Detailed Images
The system consists of microwave source, microwave radiator, control system, display system and temperature measurement system. A maximum of 1microwave source can be configured for each product.
