G5T серьезный базовый микропереключатель НЛО Ловец игровой контроллер аркадный
- Категории: Микро переключатели >>>
- Поставщик: Huizhou,Grandye,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

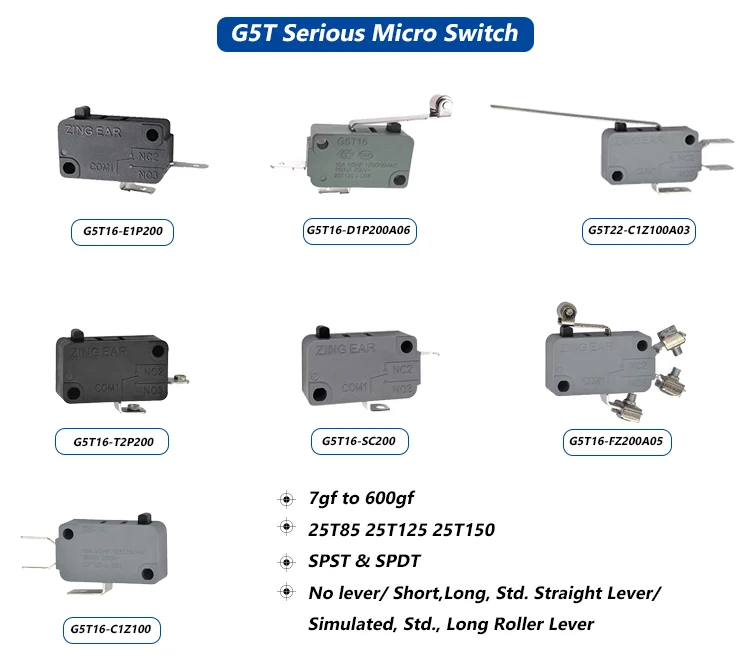

G5T Micro Switch Features
- Global safety approvals
- Wide operating force(7gf~600gf)
- Variety of temperature grade (25T85 25T125 25T150)
- With optional PTI grade (175V, 250V, 600V)
- Variety of levers
Application | ||||||

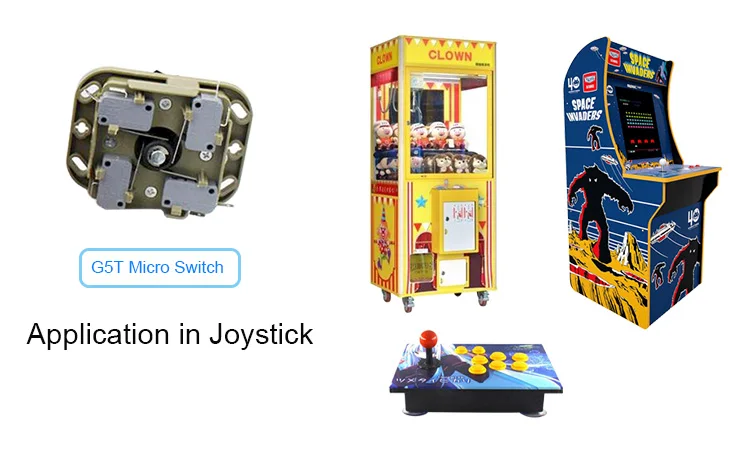

Home Appliance | Electronic Equipment, Like Joystick | Automatic equipment | Floating torch | |||
Auto Electronics | Apparatus and Instrument | Power Tools | Insulation machine | |||
Operating speed | 0. 1mm-1m/s(Related with actuator forms) | ||||||
Operating frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | ||||||
Insulation resistance | ≥ 100 Ω (500VDC) | ||||||
Contact resistance | ≤ 100m Ω (Initial value) | ||||||
Between each terminals of the same polarity | AC1000V, 50/60нz, Imin | ||||||
Betweencurrent-carrying metal partand ground. and between eachterminaland non -current carring metal parts | AC1500V, 50/60HZ, 1min. | ||||||
Vibration resistance | 10-55HZ, 1.5mm Double amplitude | ||||||
Shock resistance | Destruction:0F> 1.0N: 1000m/s2 (approx. 100G) max. 0F≤ 1.0N:400m/s2 (approx. 40G) max. 0F> 1.0N:200m/s2 (approx. 20G) max. 0F≤ 1.0N:100m/s2 (approx. 10G) max. | ||||||
Life expectancy | Mechanical >10,000, 000 cycles or 1, 000,000 cycles Electrical >50,000 cycles or 100,000 cycles | ||||||
Electrical | Min. 100, 000次/cycles(Depend on part NO.) | ||||||
Weight | Approx. 6.2g(No lever). | ||||||
Certifications
Company Information
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Our Exhibition
We participates many famous electrical exhibitions all over the world every year.
2019 Micro Switch in India Electronic & Smart Appliances Expo
HongKong-Electronics-Fair
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
Packing&Shipping
About Package:
1. Color box inside with foam and carton outside, which can protect goods;
2. Special package is available；
About Shipment:
1. By air, By sea, By land
2. By Express, like DHL, TNT, UPS, Fedx
3. By post or other carrier, this type of shipment will be slow but more cheaper
FAQ
Q1: Are you a trading company or manufacturer?
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs and we will provide 5-10 pcs free sample for your testing before order, pls CONTACT US to know more.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production?
A: About 2-4 weeks.
Q6: what is the capacity per month?
A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs and we will provide 5-10 pcs free sample for your testing before order, pls CONTACT US to know more.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production?
A: About 2-4 weeks.
Q6: what is the capacity per month?
A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
