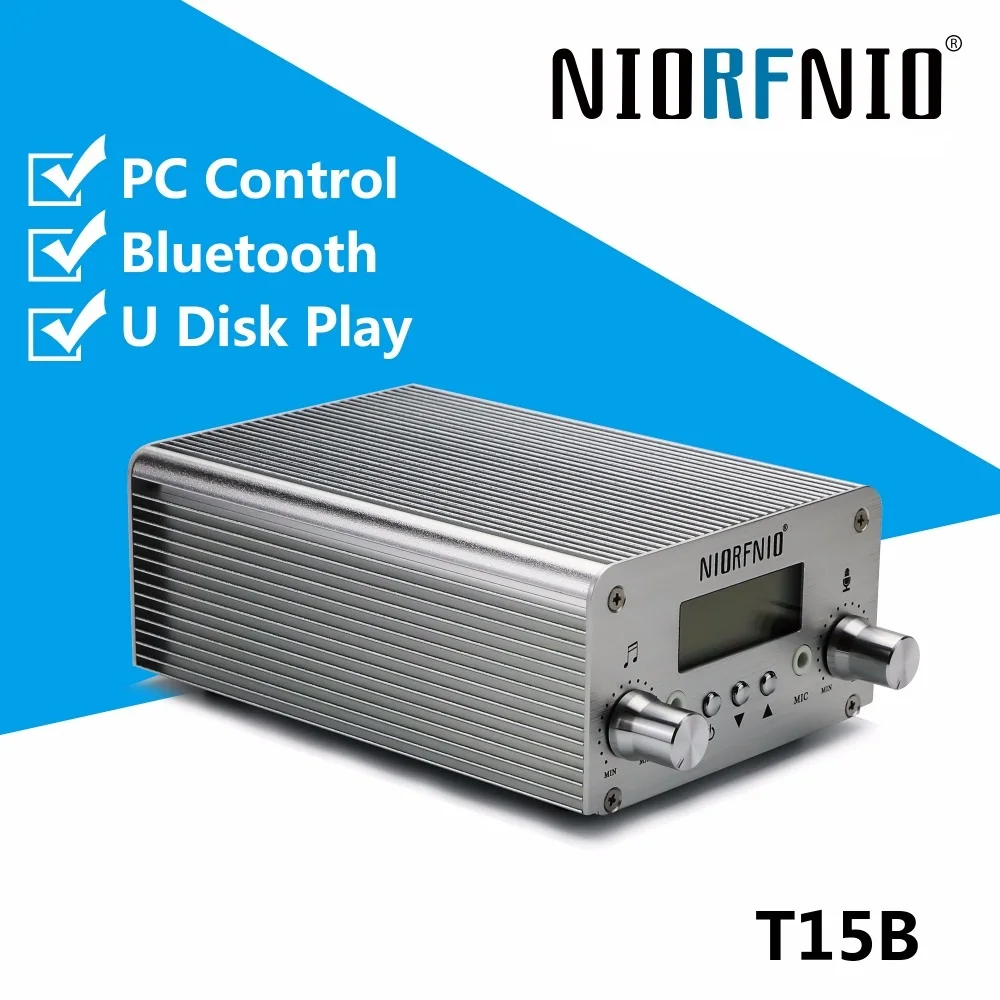

PC control NIO-T15B 15w watts fm radio broadcast wireless fm transmitter
And it adds 8 Cells for output power to be adjusted.
Main Feature:
1.imported electronic component
2.stereo sound
3.bluetooth function

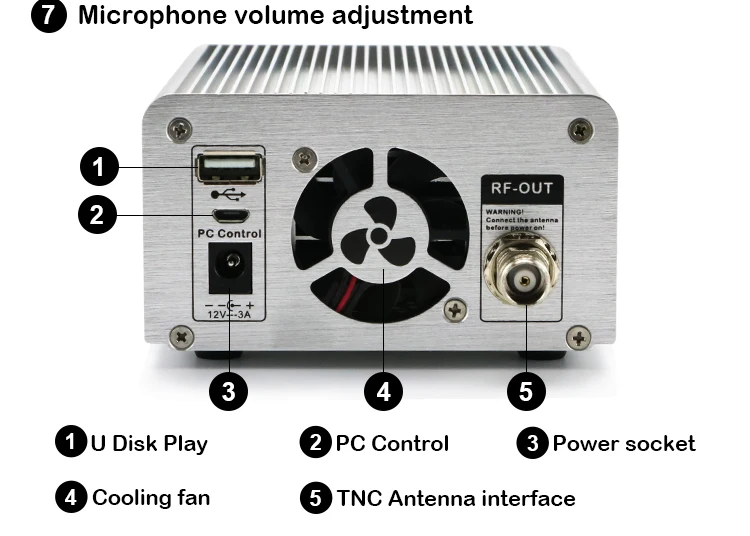

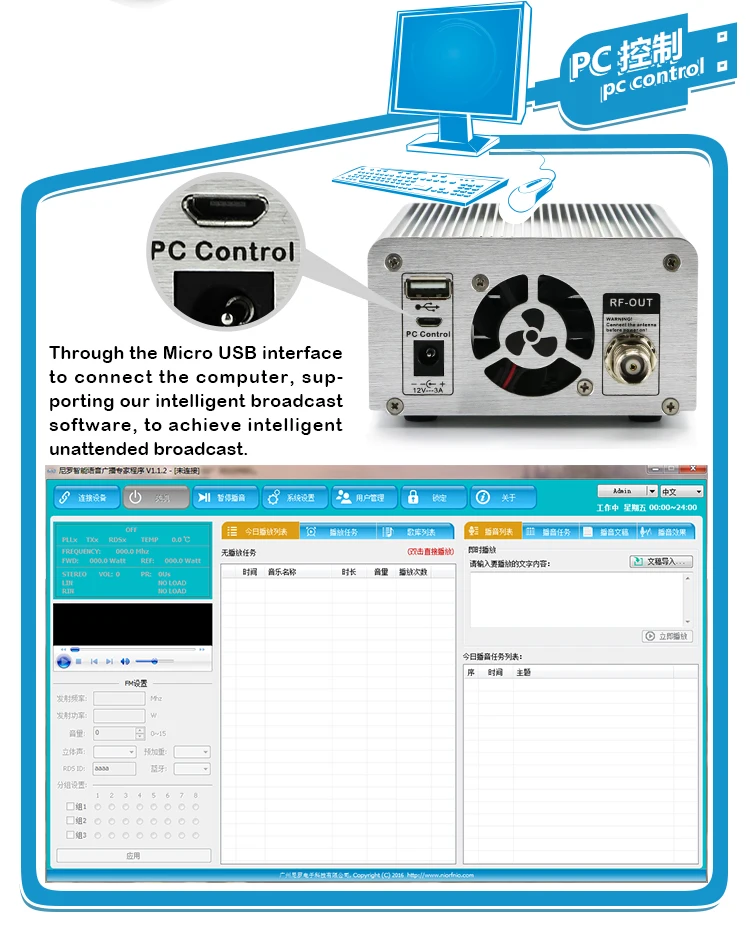

4.PC control
5.U disk player

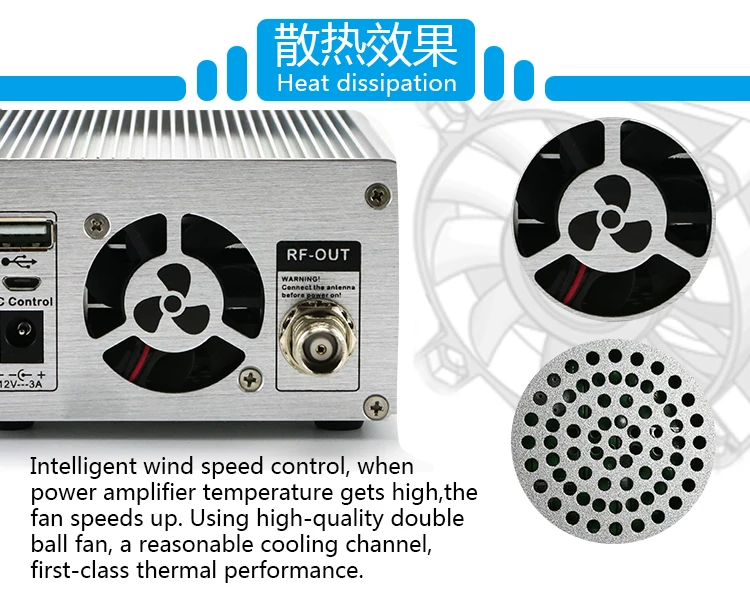

6.wind speed control
7.power adjustable (1.9W/cells, totla 8 cells)
8.intelligent alarm

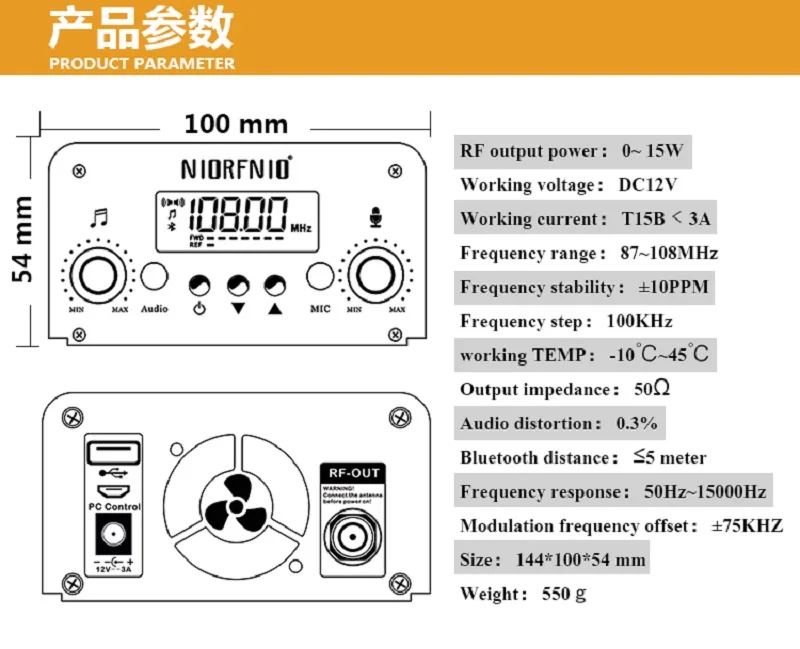

Technical Parameter:
NO. | Item | Technical Parameter |
1 | RF Output Power | 0~15W |
2 | Working Voltage | DC12V |
3 | Working Current | <3A |
4 | Frequency Range | 87-108 MHz |
5 | Frequency Stability | ±10 PPM |
6 | Frequency Step | 100 KHz |
7 | Working Temp. | -10℃-40℃ |
8 | Output Impedance | 50Ω |
9 | Audio Distortion | 0.3% |
10 | Bluetooth Distance | ≥5 meters |
11 | Frequency Response | 50Hz~15000Hz |
12 | Modulation Frequency Offset | ±75KHz |
13 | Size | 144x100x54mm |
14 | Weight | 550g |
Packing Included:
1*T15B-1 15w fm transmitter
ATTENTION:
Connect antenna first before connecting transmitter to DC supply, otherwise, transmitter will be burned out.
Select an unused FM station in your area.
Packing is not included the antenna and power supply,and you can buy the power supply in your local and you can also buy it from my store.
